SPECIFICATIONS
| Model: | BLDC-D5BLD250 |
| Matched Controller Model: | BLD-750 |
| Rated Power: | 250W |
| Rated Voltage: | 24V DC |
| Rated Current: | 13A |
| Phase: | 3 phase |
| Rated Torque: | 0.8 Nm |
| Max. Torque: | 2.39Nm |
| Rated Speed: | 3000 rpm |
| No-load Speed: | 3300 rpm |
| No-load Current: | ＜4.13A |
| Square Flange Size: | 86 mm |
| Working Efficiency: | 85% |
| Insulation Grade: | F |
| Protection Grade: | IP54 |
| Motor Lead Length: | 1 meter |
| Certificate: | CE, RoHS, ISO |
| Weight: | 3 kg |
Note: Power, Voltage, Speed, Shaft, Motor Length, and Motor Lead of BLDC Motors can be customized.
Speed - Torque Curve
- Instantaneous maximum torque lineThe maximum torque momentarily impacts the load when the motor is started.Beyond this torque, the over-current protection of the driver will cause the motor to stop.
- Short-time operation areaThe motor can run for a short time within this torque range at different speeds.If the operation time is too long, the motor will generate heat, which may cause the motor to stop or burn.
- Rated operating torque lineThe rated torque of the motor runs at different speeds, and the motor can run for a long time at this torque.
- Continuous operating areaWhen the motor rotates at different speeds, it runs continuously in this corresponding zone.

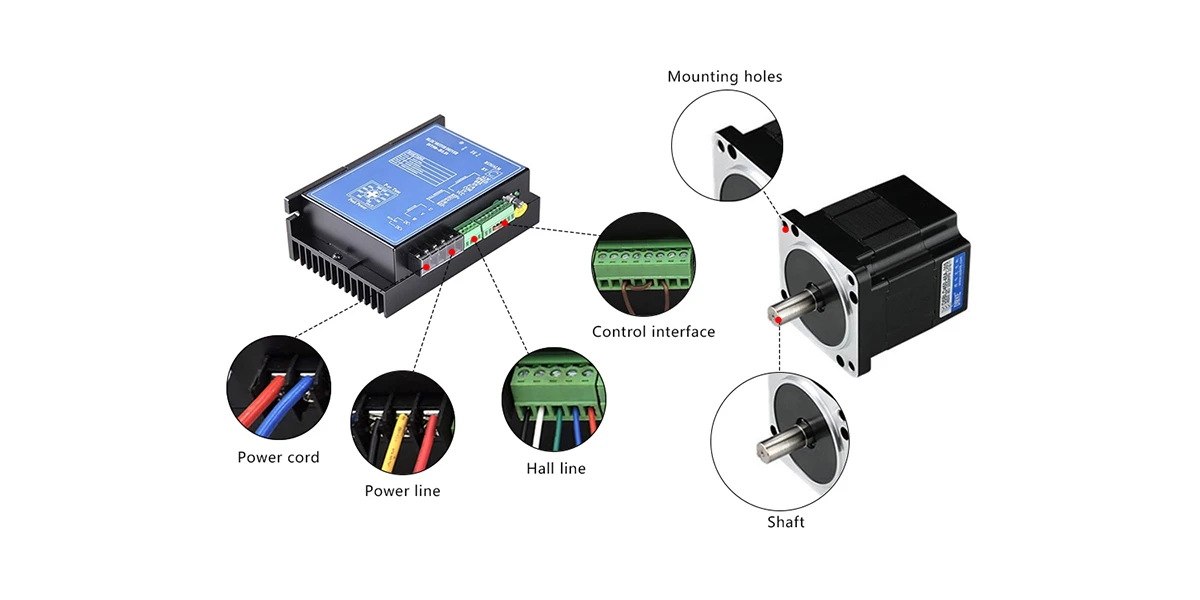

Line Define
| Power Wire | Hall Wire | ||
| Red | U | Red | 5V |
| Yellow | V | Black | GND |
| Black | W | Blue | Hu |
| Green | Hv | ||
| White | Hw | ||

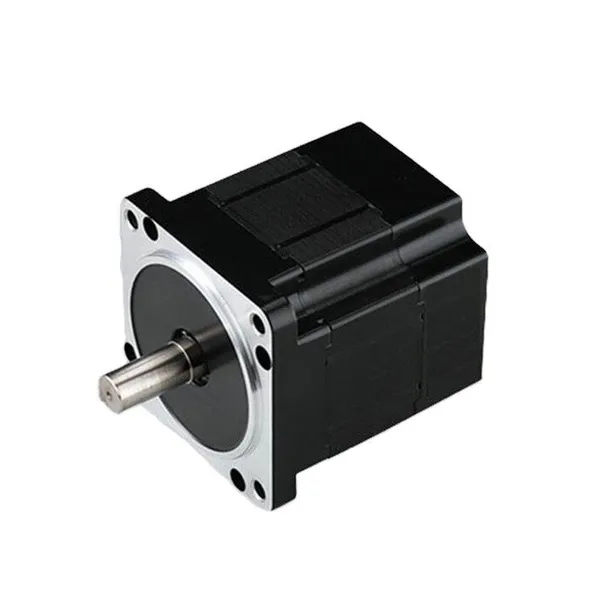

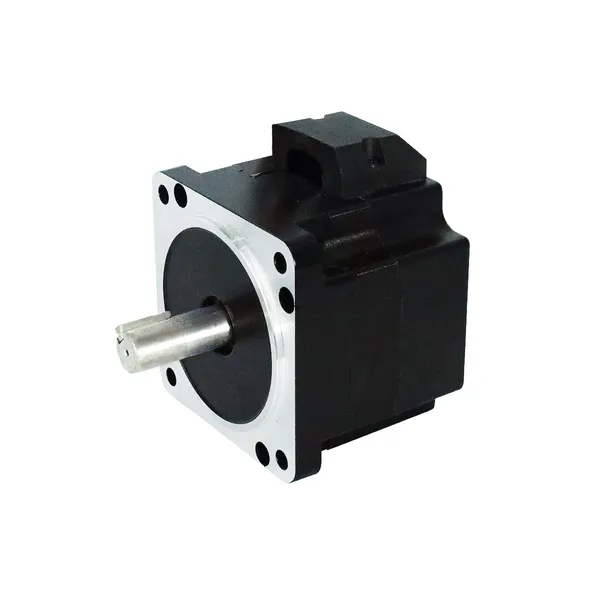

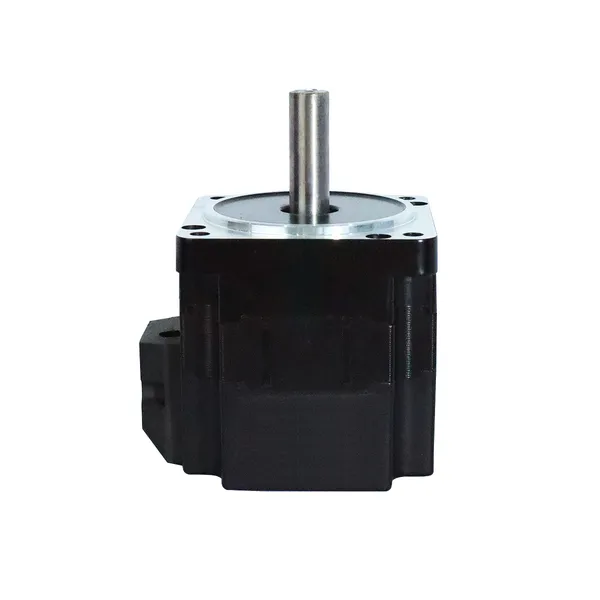

Product Display
Looking for a cost-effective 3-phase brushless DC motor? Look no further! We offer a factory price for our high-quality 24V BLDC motor. With a rated power of 250 watts, rated torque of 0.8 Nm, and rated current of 13A, this motor delivers reliable performance for various applications. It is designed to meet your needs for power and efficiency.
Our high-speed 250W BLDC motor features an innovative sealing device, ensuring excellent protection and adaptability to harsh environments. It can operate continuously in challenging conditions, including corrosion and humidity, making it a durable and reliable choice.
This small-sized 24V brushless DC motor is ideal for electric car applications. With its compact square flange size of 86mm, it can be easily integrated into electric vehicle systems. The motor offers a no-load speed of 3300 rpm and is capable of providing rated torque from zero speed to the rated speed. It boasts a fast response and large starting torque, ensuring optimal performance in various driving scenarios.
Product Feature
Features
- Stable Speed Control: The 24V brushless motor features continuous speed adjustment based on a feedback signal compared to the motor's actual speed. This enables precise voltage adjustments even when the load changes, ensuring stable and consistent running speeds. It allows for seamless speed control, ranging from slow to instantaneous adjustments, maintaining optimal performance.
- Sleek Design, High Power: This 3-phase DC motor utilizes a permanent magnet brushless rotor, resulting in a slim and compact design while delivering impressive power output.
- Wide Speed Control Range: The 250W brushless motor offers a broader speed control range compared to traditional AC motors and inverters. Unlike AC motors, which often have torque limitations at low speeds, the brushless motor can smoothly operate across a wide speed range, from low to high speeds, providing consistent torque throughout.
- Energy Saving Contribution: The brushless motor employs a permanent magnet rotor, reducing rotor losses and resulting in over 20% power consumption reduction compared to three-phase induction motors with variable frequency control. This energy efficiency improvement contributes to overall device energy savings, promoting sustainability.
- Equipped with Protection Function: The high-speed BLDC motor is equipped with built-in protection functions, ensuring the safety and reliability of the equipment system. It helps safeguard the system from potential risks and ensures smooth operation under various conditions.
Product Applications
Application

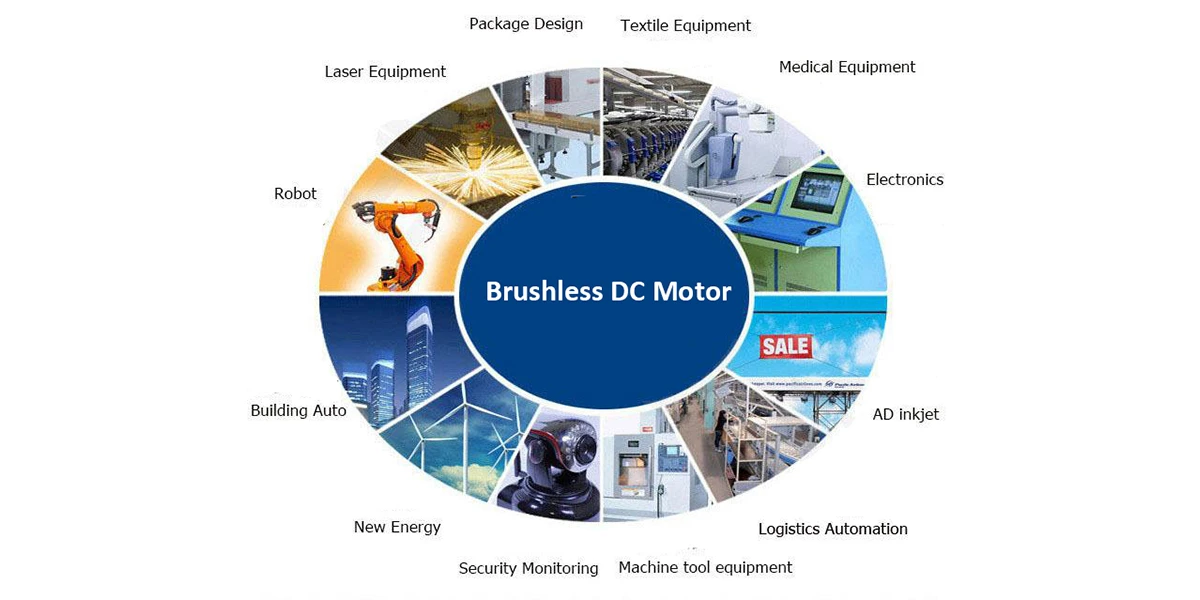

High-torque brushless DC motors find wide-ranging applications in our daily lives. They are commonly used in electric bicycles, inverter air conditioners, washing machines, drones, automobiles, CNC machine tools, polishing and grinding equipment, packaging machinery, industrial control systems, medical machinery, automation, AGV trolleys, aerospace, intelligent storage equipment, and more. Their versatility and robust performance make them a vital component in numerous industries and applications.
Upgrade your electric vehicle or implement advanced automation systems with our high-quality 24V high-torque brushless DC motor. Take advantage of its factory price, high speed, and strong environmental adaptability. Purchase yours online today and experience the reliability and efficiency it brings to your specific industry or project.
Tips: Can we use CAN open by the separate matched control 24V BLDC?
Yes, you can use the control unit to use CAN open, it's no problem. But it needs you to write CAN open programs. We only mean we can provide CAN communication protocol for your reference.
Related Products
Videos

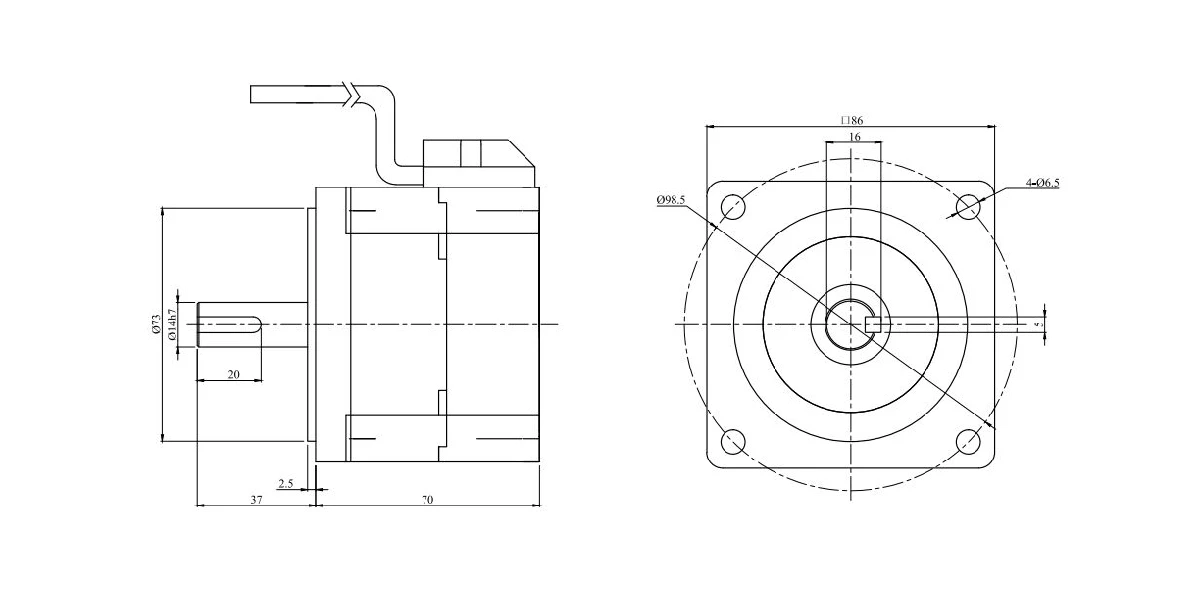

DIMENSIONS
