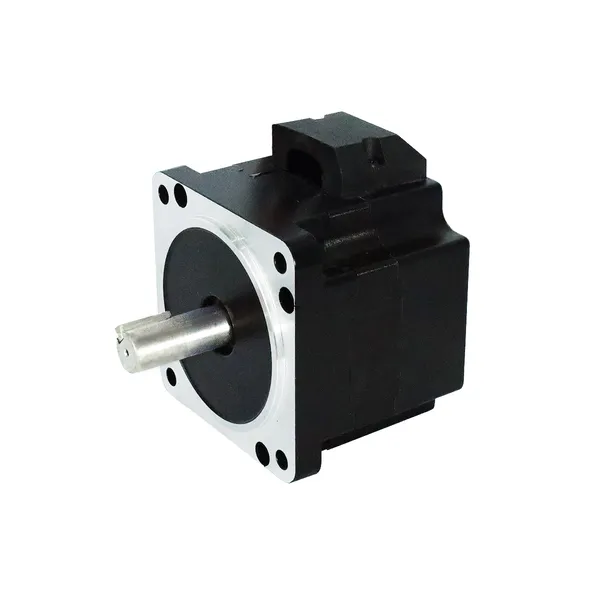

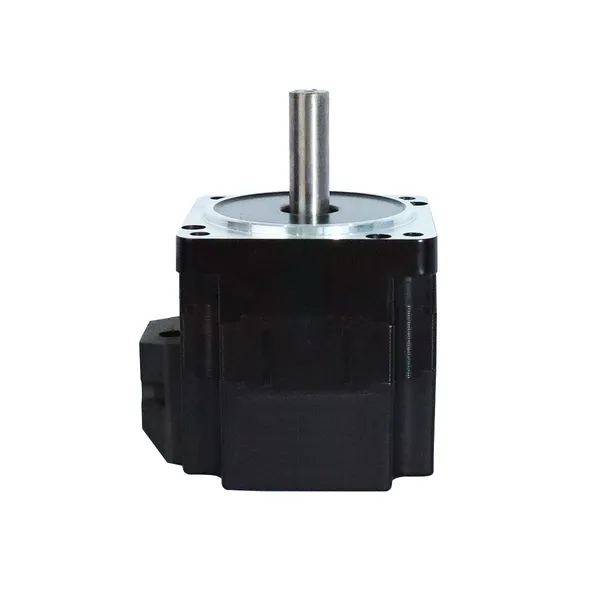

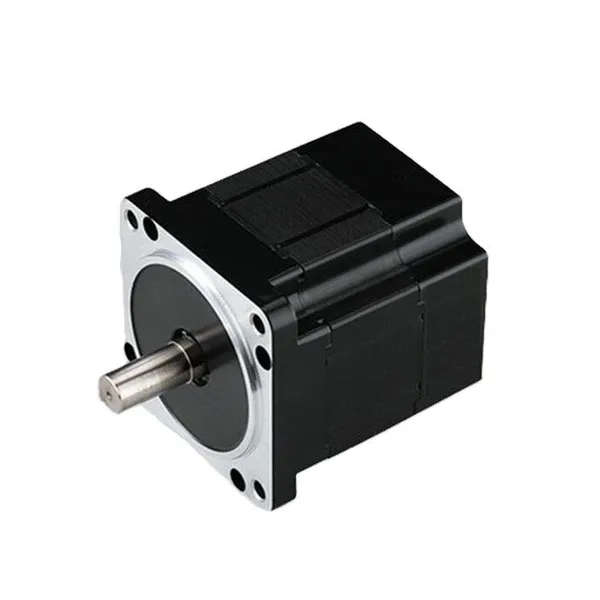

24V 200W 0.64 Nm 3000 rpm 10.4A Brushless DC Motor

$245.39

24V 200W 0.64 Nm 3000 rpm 10.4A Brushless DC Motor. Features: High Torque, High Speed, Wide Application Range. Application: Electric Bicycles, Inverter Air Conditioners, Washing Machines, Drones, Automobiles, CNC Machine Tools, Polishing and Grinding Equipment, Packaging Machinery, Industrial Control, Medical Machinery, Automation, AGV Trolleys, Aerospace, Intelligent Storage Equipment, and more.

Model Type

Power(W)()200

Voltage (V)()24

Rated Speed (rpm)()3000

SPECIFICATIONS

24V 200W 0.64 Nm 3000 rpm 10.4A Brushless DC Motor
Model: BLDC-D5BLD200
Matched Controller Model: BLD-750
Rated Power: 200W
Rated Voltage: 24V DC
Rated Current: 10.4A
Phase: 3 phase
Rated Torque: 0.64 Nm
Max. Torque: 1.91Nm
Rated Speed: 3000 rpm
No-load Speed: 3300 rpm
No-load Current: <4.13A
Square Flange Size: 86 mm





Working Efficiency: 85%
Insulation Grade: F
Protection Grade: IP54
Motor Lead Length: 1 meter
Certificate: CE, RoHS, ISO
Weight: 3 kg

Note: Power, Voltage, Speed, Shaft, Motor Length, and Motor Lead of BLDC Motors can be customized.

24V 200W 0.64 Nm 3000 rpm 10.4A Brushless DC Motor
  • Instantaneous maximum torque lineThe maximum torque momentarily impacts the load when the motor is started.Beyond this torque, the over-current protection of the driver will cause the motor to stop.
  • Short-time operation areaThe motor can run for a short time within this torque range at different speeds.If the operation time is too long, the motor will generate heat, which may cause the motor to stop or burn.
  • Rated operating torque lineThe rated torque of the motor runs at different speeds, and the motor can run for a long time at this torque.
  • Continuous operating areaWhen the motor rotates at different speeds, it runs continuously in this corresponding zone.

Line Define

24V 200W 0.64 Nm 3000 rpm 10.4A Brushless DC Motor
Power Wire Hall Wire
Red U Red 5V
Yellow V Black GND
Black W Blue Hu
Green Hv
White Hw

Product Display

Looking for a high-power brushless DC motor at an affordable price? We have the perfect solution for you! Our 24V brushless DC motor offers a rated power of 200 watts, with a rated speed of 3000 rpm and a rated current of 10.4A. It delivers a high torque of 0.64 Nm, making it capable of handling strong loads and high-temperature environments.

This small-sized 3-phase brushless DC motor is designed to handle demanding applications. With its strong load capacity and high-temperature resistance, it ensures reliable and efficient performance in various situations.

The high-torque 200W 3000 rpm brushless DC motor operates at a rated voltage of 24V and features an IP54 protection grade, ensuring durability and reliability. It can deliver a maximum torque of up to 1.91 Nm, making it suitable for a wide range of applications.

Product Feature

Features

  • Stable Speed Control: The 24V brushless motor maintains a consistent speed by continuously adjusting the voltage applied to the motor based on a feedback signal compared to the desired speed. This allows for stable operation even when the load changes, enabling precise and instant speed adjustments.
  • Compact and Powerful: This 3-phase DC motor utilizes a permanent magnet brushless rotor design, resulting in a compact and high-power motor solution. It delivers robust performance in a small form factor.
  • Wide Speed Control Range: The 200W brushless motor offers a wider speed control range compared to traditional AC motors and inverters. Unlike AC motors, it doesn't have torque limitations at low speeds, making it suitable for applications requiring a broad range of speeds, from low to high, with sufficient torque.
  • Contributes to Energy Saving: By utilizing a permanent magnet rotor, the brushless motor significantly reduces rotor losses, resulting in over 20% power consumption reduction compared to three-phase induction motors with variable frequency control. This energy efficiency improvement contributes to overall device energy savings.
  • Equipped with Protection Function: The high-speed BLDC motor is equipped with built-in protection functions, enhancing the safety and reliability of the entire equipment system.

Product Applications

Application

24V 200W 0.64 Nm 3000 rpm 10.4A Brushless DC Motor

This high-speed brushless DC motor finds extensive use in new energy electric cars, renewable energy systems, and compact environments that require efficient and powerful motor performance. Additionally, it is widely employed in electric bicycles, inverter air conditioners, washing machines, drones, automobiles, CNC machine tools, polishing and grinding equipment, packaging machinery, industrial control systems, medical machinery, automation, AGV trolleys, aerospace, intelligent storage equipment, and more.

Upgrade your equipment or develop your projects with our high-quality 24V high-power brushless DC motor. Benefit from its high torque, high speed, and wide range of applications. Purchase yours today and experience the reliability and efficiency it brings to your specific industry or project.

Tips: Can a 24V BLDC motor run on AC?

We already know that in a 24V BLDC motor the field winding has very less resistance than a DC shunt motor as the field is connected in series with the armature winding. So if we give AC supply on a DC Motor it will run perfectly. In fact, DC Series can run on both AC and DC supplies.

Videos

DIMENSIONS

Technical Documents Downloads

File NameSizeDownload
DC-Motor-Catalog.pdf55.7MBDownload
