24V 100W 0.32 Nm 3000 rpm 5.2A Brushless DC Motor

Home > 24V 100W 0.32 Nm 3000 rpm 5.2A Brushless DC Motor

24V 100W 0.32 Nm 3000 rpm 5.2A Brushless DC Motor

$178.58

This 100W 3-phase brushless DC motor offers a rated torque of 0.32 Nm (with a maximum torque of up to 0.96 Nm) and a rated speed of 3000 rpm. With its high torque capabilities, this motor is suitable for electric car applications.

Motor TypeDC Motor

Power(W)100

Voltage (V)24

Rated Speed (rpm)3000

Model: BLDC-D2BLD100-24A-30S
Matched Controller Model: BLD-300B
Rated Power: 100W
Rated Voltage: 24V DC
Rated Current: 5.21A
Phase: 3 phase
Rated Torque: 0.32 Nm
Max. Torque: 0.96Nm
Rated Speed: 3000 rpm
No-load Speed: 3300 rpm
No-load Current: <0.8A
Square Flange Size: 60 mm
Working Efficiency: 85%
Insulation Grade: F
Protection Grade: IP54
Motor Lead Length: 1 meter
Certificate: CE, RoHS, ISO
Weight: 2.5 kg

Note: Power, Voltage, Speed, Shaft, Motor Length, and Motor Lead of BLDC Motors can be customized.

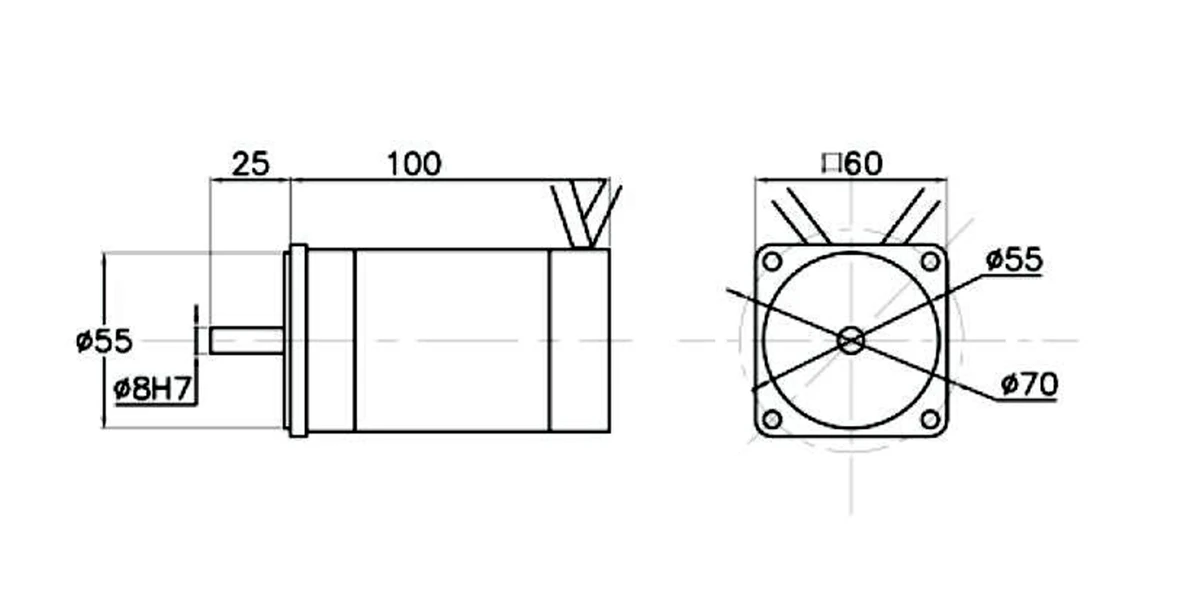

Dimensions(Unit: mm)

24V 100W 0.32 Nm 3000 rpm 5.2A Brushless DC Motor

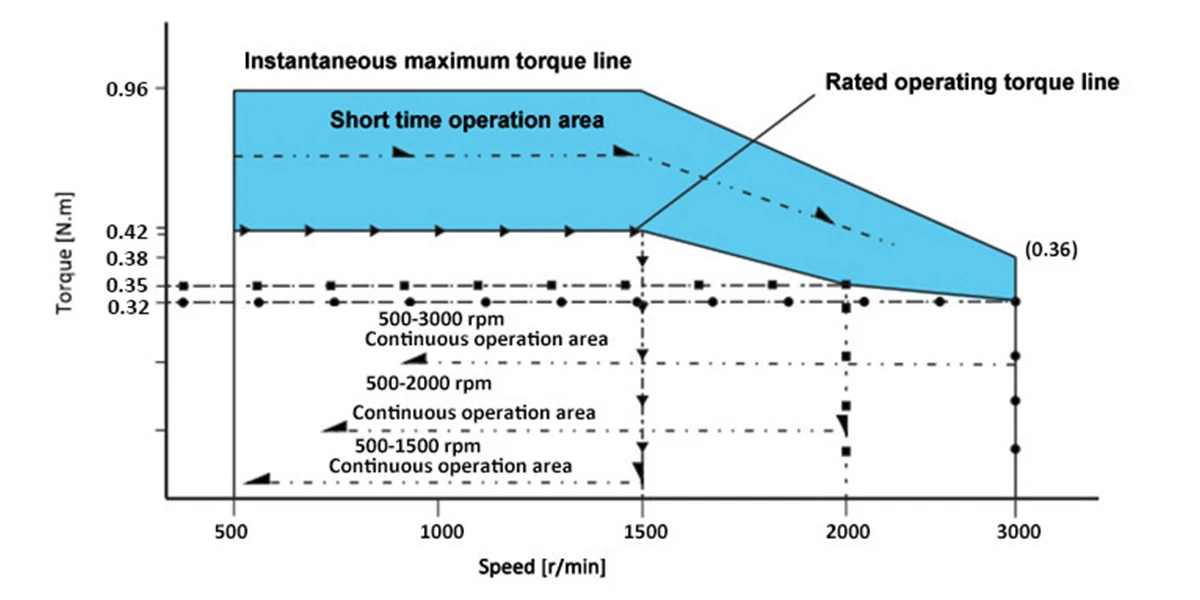

Speed - Torque Curve

24V 100W 0.32 Nm 3000 rpm 5.2A Brushless DC Motor

Line Define

Power Wire Hall Wire
Red U Red 5V
Yellow V Black GND
Black W Blue Hu
Green Hv
White Hw

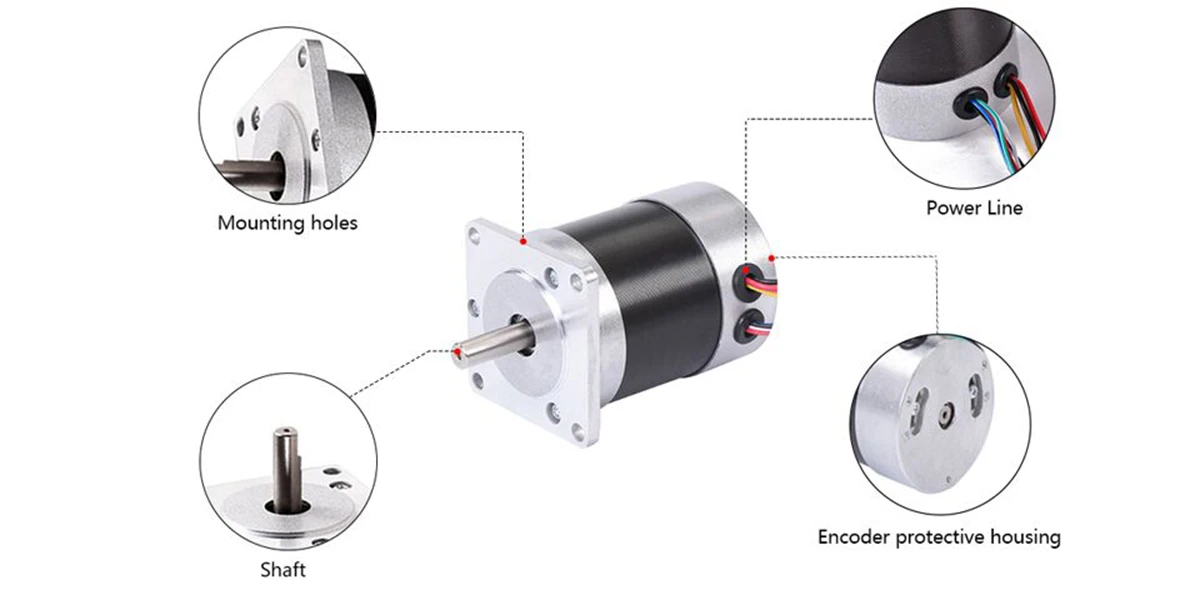

Details

24V 100W 0.32 Nm 3000 rpm 5.2A Brushless DC Motor

Product Display   / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / /

Discover the value and performance of our affordable 24V BLDC motor. This motor delivers 100 watts of power with a rated speed of 3000 rpm, making it ideal for various applications. Its brushless design ensures a long lifespan, while the IP54 duty rating allows for continuous operation. This compact motor is widely used in new energy electric cars, renewable energy systems, and other space-constrained environments. Take advantage of our online sale to get the motor you need.

Feature   / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / /

  • Stable speed control: The 24V brushless motor enables precise speed control by continuously comparing the feedback signal from the motor's speed to the set speed and adjusting the applied voltage accordingly. This ensures consistent and stable running speed, even with load variations.
  • Thin and high power: The 3-phase DC motor incorporates a permanent magnet brushless motor rotor, resulting in a slim design with impressive power output.
  • Wide speed control range: The speed control range of the 100W brushless motor is wider compared to speed AC motors and inverters. Unlike speed AC motors that have torque restrictions at low speeds, this brushless motor is suitable for a wide range of speed requirements, all while maintaining a certain torque level.
  • Contributes to energy savings: The rotor of the brushless motor utilizes permanent magnets, reducing rotor losses and resulting in over 20% reduced power consumption compared to three-phase induction motors with variable frequency control. This makes it an energy-efficient choice for your device.
  • Equipped with protection function: The high-speed BLDC motor is designed with built-in protection functions to ensure the safety of your equipment system.

Applications   / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / /

The high-torque brushless DC motor finds wide applications in various industries and equipment, including:

  • Electric bicycles
  • Inverter air conditioners
  • Washing machines
  • Drones
  • Automobiles
  • CNC machine tools
  • Polishing and grinding equipment
  • Packaging machinery
  • Tools
  • Turnstiles
  • Industrial control systems
  • Medical machinery
  • Automation systems
  • AGV trolleys
  • Aerospace applications
  • Intelligent storage equipment

Note: Ensure proper installation, adhere to safety guidelines, and consider the specific requirements of your application to maximize the performance and longevity of the motor.

Tips: Is it safe to run a 24V BLDC motor for 24 hours?

Keeping the temperature and other environmental factors constant continuous 24 x 7 running of a DC motor depends upon the load at which you are running the motor.

    1. Under load:If the 24V brushless DC motor is running underload i. e. working under its capacity then there is no problem in using it 24*7.
    2. Overload:If you are running the motor at more load than its normal capacity then it may cause damage to your motor. In that case, if you use the motor 24*7 then it can burn due to overcurrent.

Apart from load conditions, the working of your motor also depends upon the DC voltage supply on the motor.
