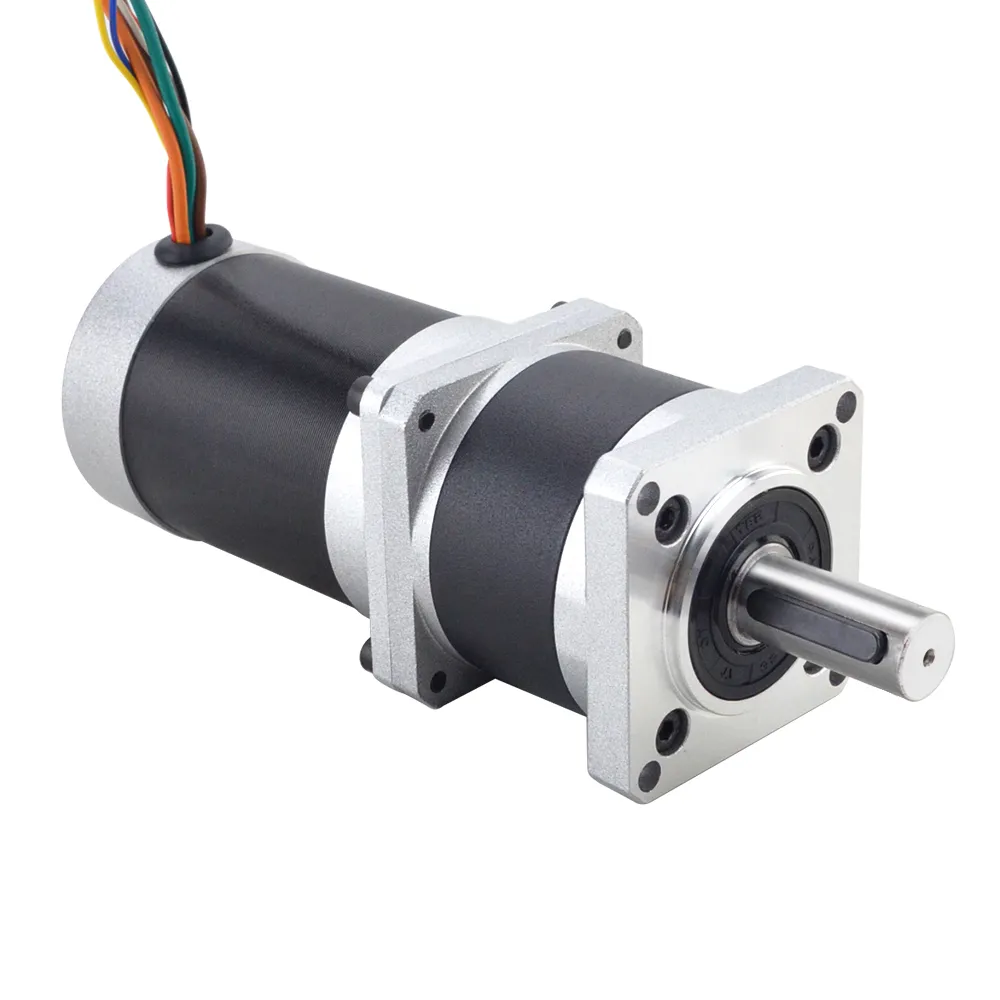

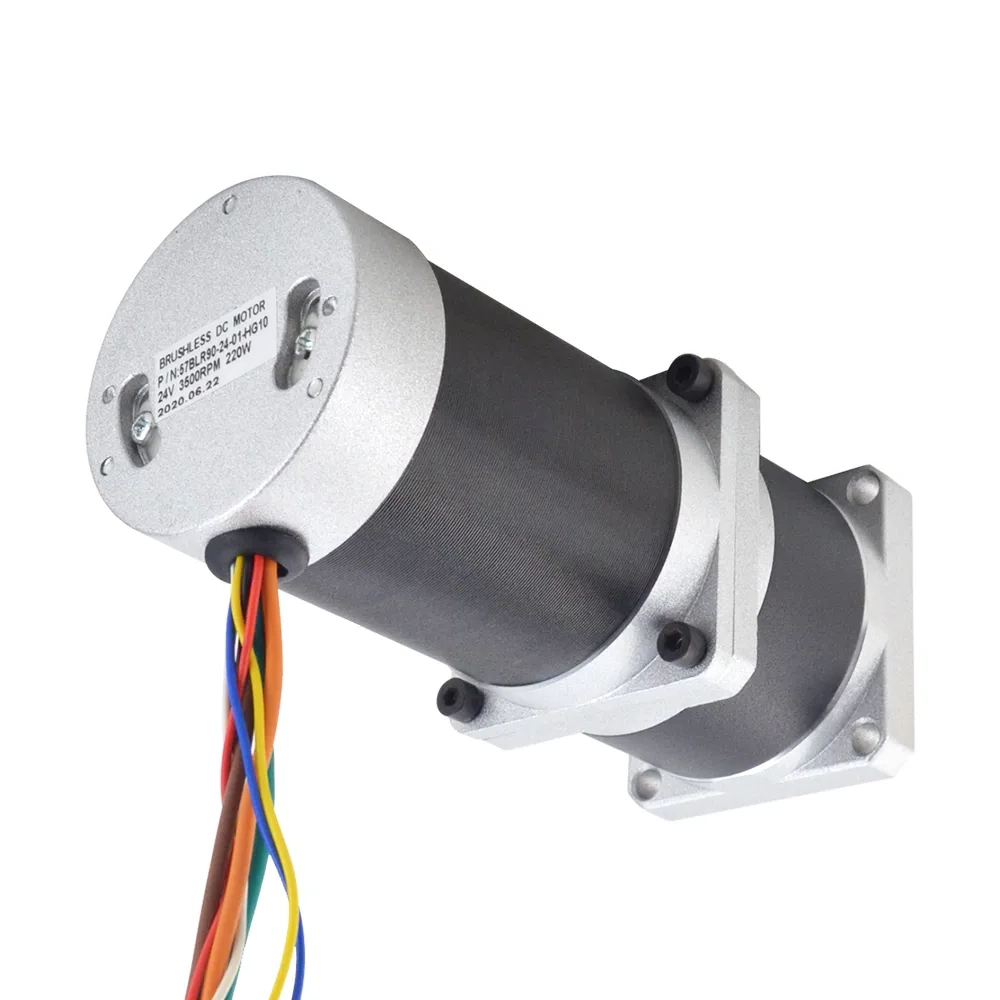

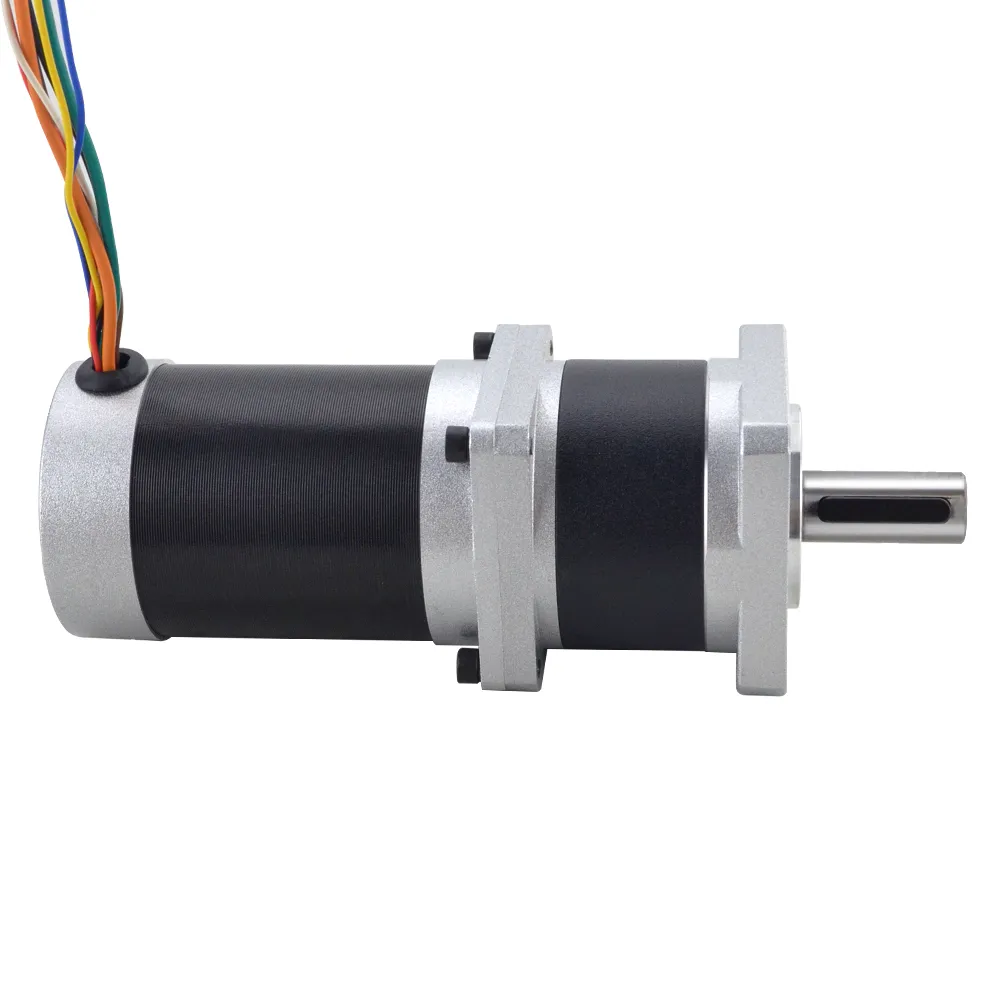

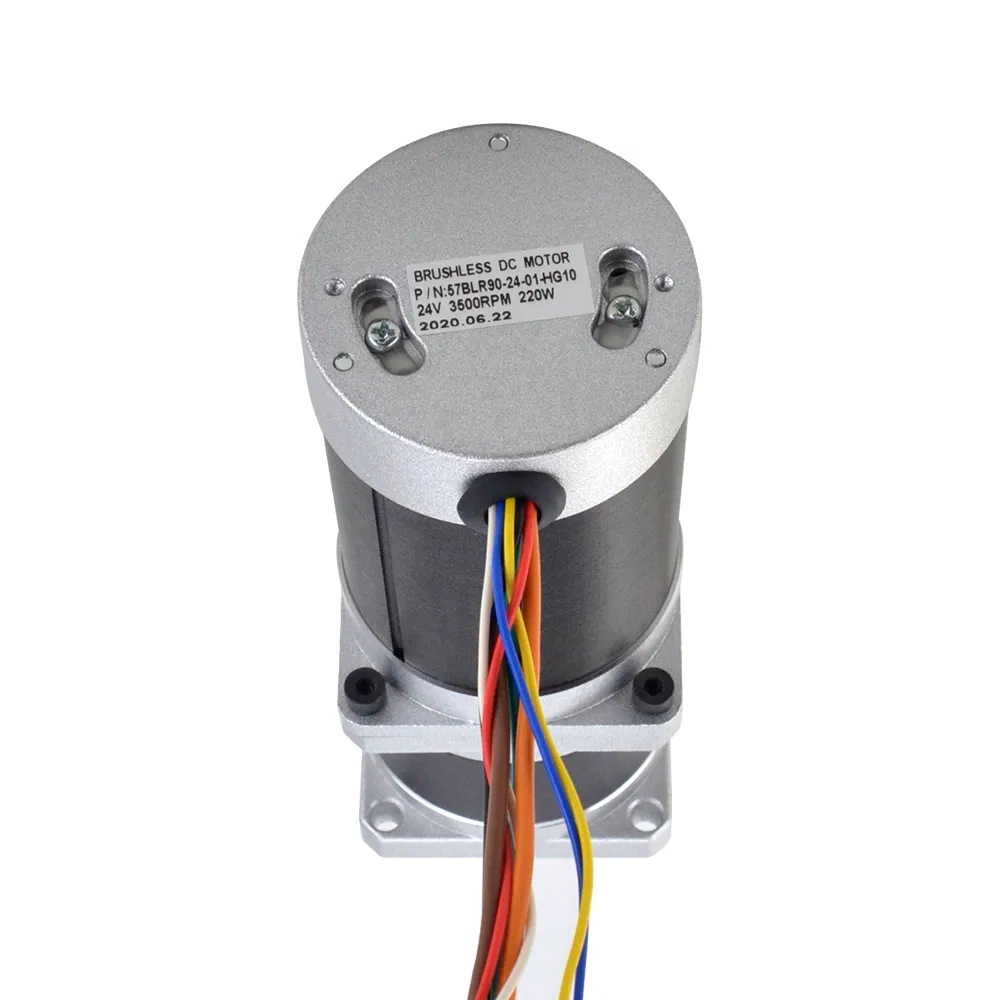

SPECIFICATIONS
Electrical Specification
Manufacturer Part Number | 57BLR90-24-01-HG10 |
Phase | 3 |
Poles | 4 |
Product Type | Geared BLDC Motor |
Rated Current(A) | 14.0 |
Rated Power(W) | 220 |
Rated Speed(rpm) | 350 |
Rated Torque(Nm) | 5.10 |
Rated Voltage(V) | 24 |
Insulation Class | Class B |
Insulation Resistance | 100MΩ Min @500VDC |
Dielectric Strength Test | 500VAC for 1 Minute |
Physical Specification
Inventory Method | Dedicated Inventory |
IP Rating | 20 |
With Gearbox | Yes |
Frame Size(mm) | Nema 23 (57 x 57) |
Body Length(mm) | 89.1 |
Gear Ratio(xx:1) | 10 |
Backlash at No-load | <=0.8 deg |
Output Shaft Type | Keyway |
Shaft Diameter(mm) | 14 |
Shaft Length(mm) | 34 |
Bearing Type | NMB Ball Bearing, C3 |
Weight | 1.61kg |
Gearbox Specifications
Attribute | Value |
---|---|
Gearbox Type | Planetary |
Gear Ratio | 10 : 1 |
Efficiency | 85% |
Backlash at No-load | <=0.8 deg |
Max. Permissible Torque | 6Nm(849.7oz.in) |
Moment Permissible Torque | 12Nm(1699.68oz.in) |
Max. Radial Load | 250N |
Insulation Class | B |
Noise | <=50 dB |
Ambient Temperature | 0 - 50℃ |
Product Feature
High Efficiency
This brushless DC motor offers high efficiency with a power output of 220W, ensuring optimal performance and energy savings.
High Torque
Delivers a high torque of 5.10Nm, making it suitable for applications that require substantial force and load capacity.
Low Speed, High Torque
Operates at a low speed of 350RPM, providing high torque output for demanding applications.
Durable Construction
Constructed with high-quality materials, this motor is designed for long-lasting durability and reliable performance in various environments.
Geared Design
The geared design enhances the motor's torque output and load-handling capabilities, making it ideal for heavy-duty applications.
Brushless Technology
Utilizes brushless technology, resulting in lower maintenance requirements, reduced noise, and longer motor lifespan.
Wide Voltage Range
Operates efficiently within a wide voltage range of 24V, providing flexibility for various power supply conditions.
Product Applications
Robotics
Ideal for robotics applications, providing precise motion control and high torque for robotic arms and automated systems.
Conveyor Systems
Suitable for conveyor systems, ensuring smooth and reliable movement of goods in automated manufacturing processes.
Electric Vehicles
Perfect for electric vehicles, delivering high torque and efficient performance for motorized transportation solutions.
Industrial Machinery
Used in industrial machinery, offering reliable and efficient operation for heavy-duty applications.
Automated Assembly Lines
Applicable in automated assembly lines, providing accurate and efficient motion control for manufacturing and assembly tasks.
Medical Equipment
Ideal for medical equipment, ensuring precise and reliable operation in various medical and laboratory devices.
Agricultural Machinery
Suitable for agricultural machinery, delivering high torque and reliable performance for farming equipment and systems.
