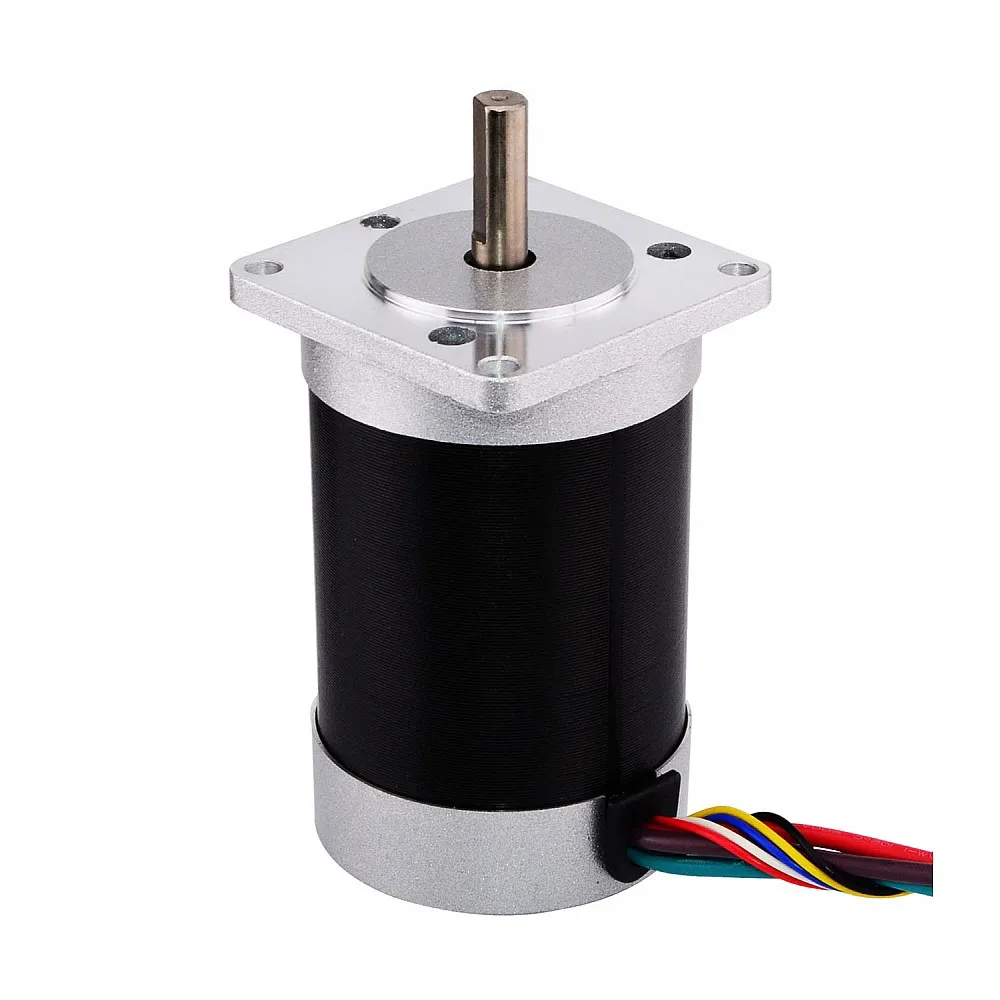

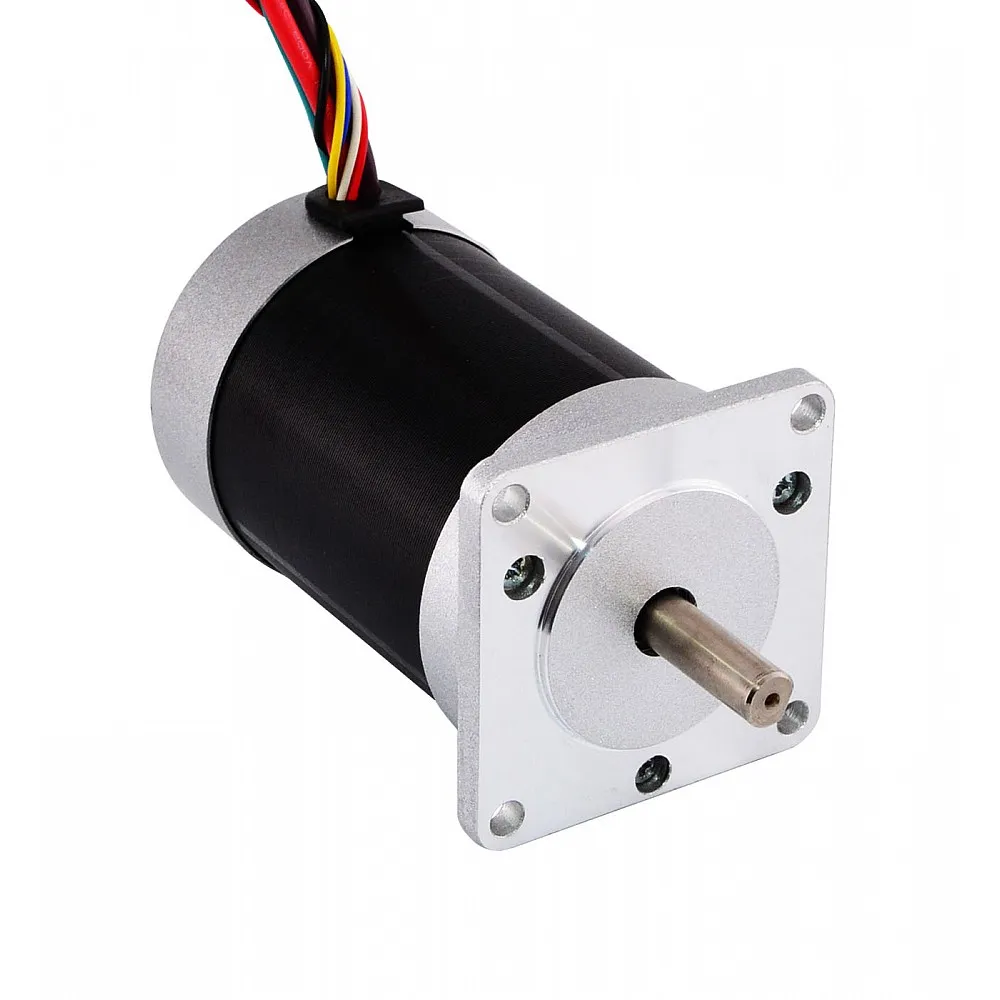

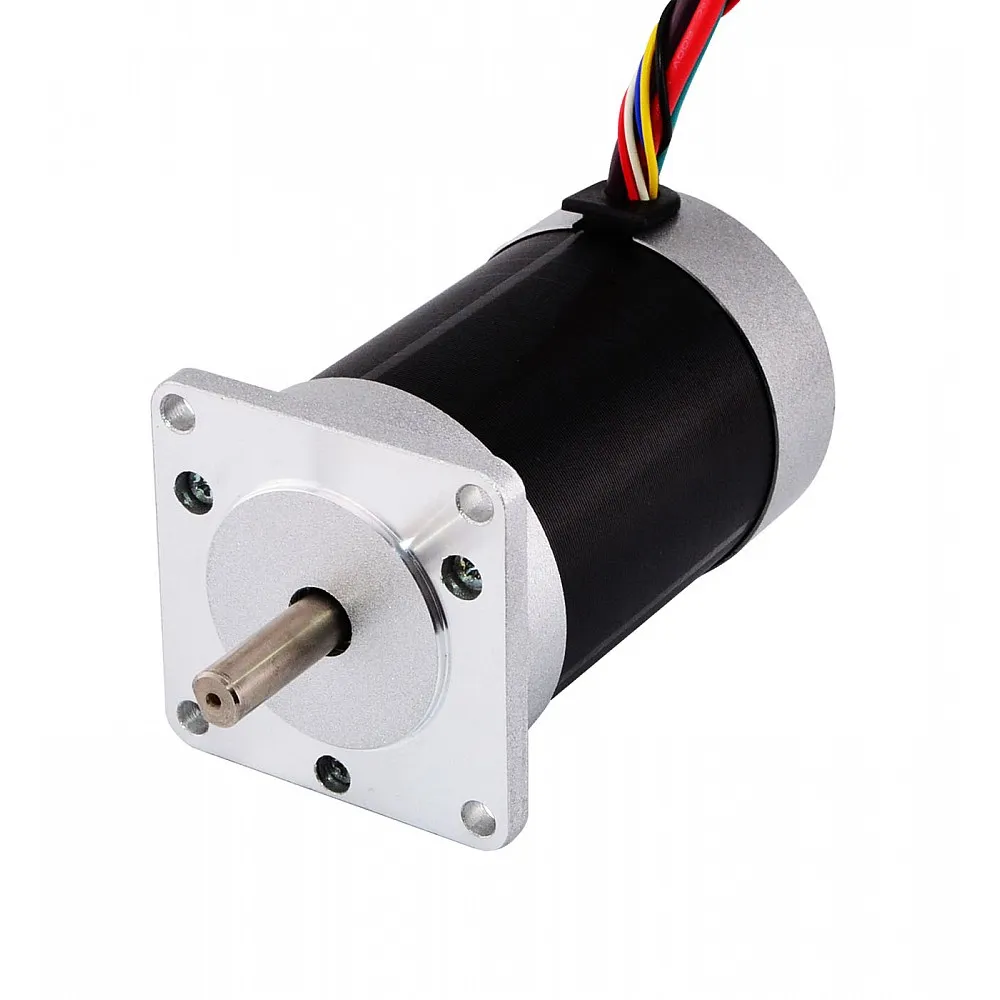

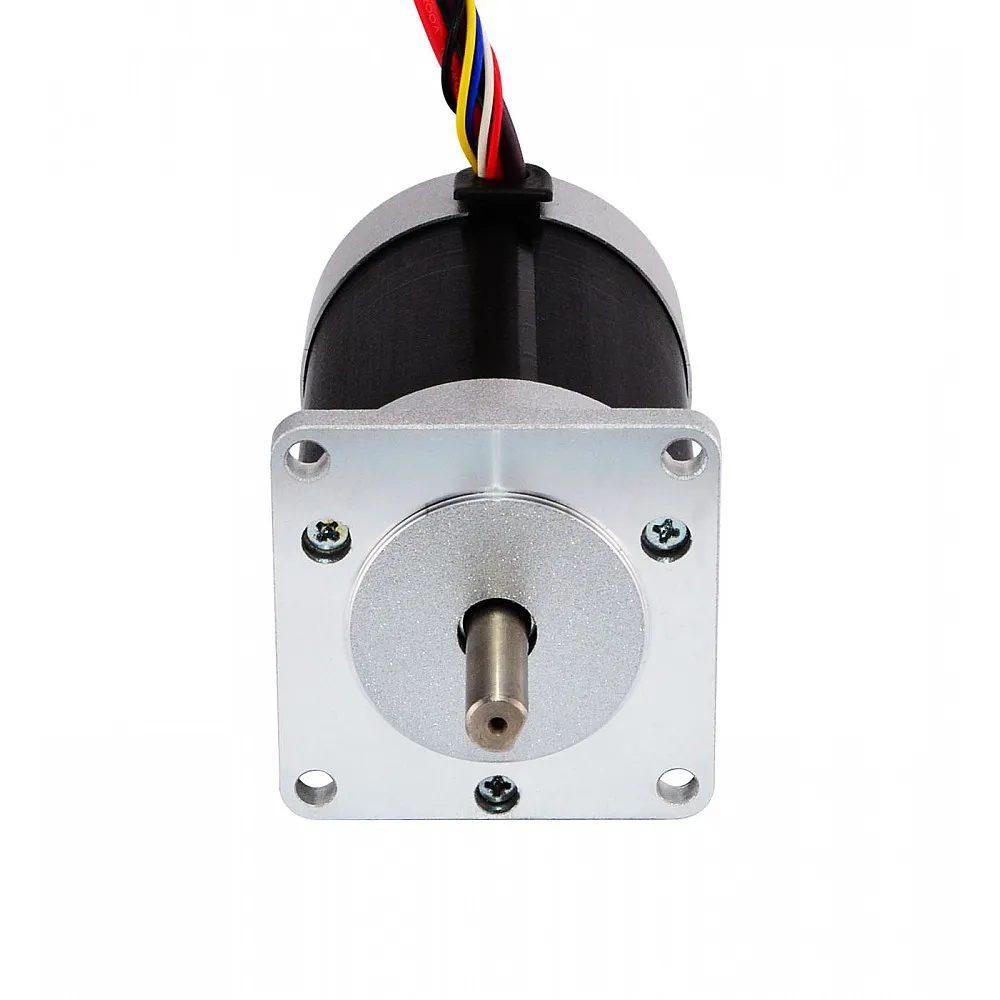

220W 24V 3500RPM 0.6Nm Brushless DC Motor

$36.62

220W 24V 3500RPM 0.6Nm Brushless DC Motor, a high-power and high-torque solution designed to excel in demanding applications. With its impressive power output and robust torque, this motor delivers exceptional performance for tasks that require strong and reliable operation. Whether it's industrial machinery, automation systems, or electric vehicles, this motor provides the power and precision you need.

Model Type

Output Power (W)()220

Voltage (V)()24

Rated Speed (rpm)()3500

SPECIFICATIONS

Electrical Specification

Manufacturer Part Number 57BLR90-24-01
Phase 3
Poles 4
Product Type BLDC Motor
Rated Current(A) 14
Rated Power(W) 220
Rated Speed(rpm) 3500
Rated Torque(Nm) 0.6
Rated Voltage(V) 24
Insulation Class Class B
Insulation Resistance 100MΩ Min @500VDC
Dielectric Strength Test 500VAC for 1 Minute

Physical Specification

Inventory Method Dedicated Inventory
IP Rating 20
With Gearbox No
Frame Size(mm) Nema 23 (57 x 57)
Body Length(mm) 89.1
Output Shaft Type O
Shaft Diameter(mm) 8
Shaft Length(mm) 25
Bearing Type NMB Ball Bearing, C3
Weight 1kg

Product Feature

High Efficiency

Delivers high efficiency with a power output of 220W, ensuring optimal performance and energy savings.

Compact and Lightweight

Features a compact and lightweight design, making it easy to integrate into various applications with limited space.

High Speed

Operates at a high speed of 3500RPM, providing rapid and efficient motion control.

Reliable Torque

Offers a reliable torque of 0.6Nm, suitable for applications requiring precise and consistent force.

Low Noise Operation

Designed for low noise operation, providing a quiet working environment.

Durable Construction

Constructed with high-quality materials, ensuring durability and long-lasting performance.

Easy Installation

Engineered for easy installation, reducing setup time and increasing efficiency.

Product Applications

Industrial Automation

Ideal for industrial automation systems, providing reliable and efficient motor performance for machinery and equipment.

Robotics

Suitable for robotics applications, offering precise and controlled movement for various robotic functions.

CNC Machines

Perfect for CNC machines, ensuring accurate and consistent motion control for precise machining.

Conveyor Systems

Applicable in conveyor systems, providing efficient and reliable motion control for material handling.

Medical Devices

Used in medical devices that require precise and dependable motor performance for various medical applications.

Packaging Equipment

Ideal for packaging machinery, ensuring efficient and accurate operation in packaging processes.

Textile Machinery

Suitable for textile machinery, offering precise and reliable motion control in fabric processing.

Videos

DIMENSIONS

Technical Documents Downloads

File NameSizeDownload
DC-Motor-Catalog.pdf55.7MBDownload
