220V 230V AC Single Phase Vertical Gear Motor

Home > 220V 230V AC Single Phase Vertical Gear Motor

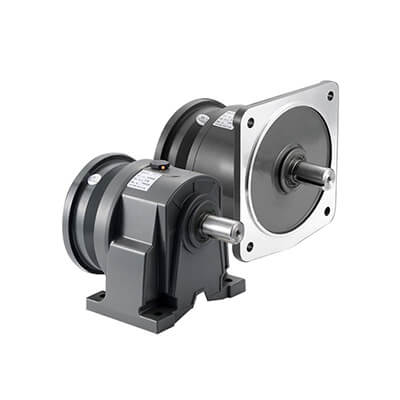

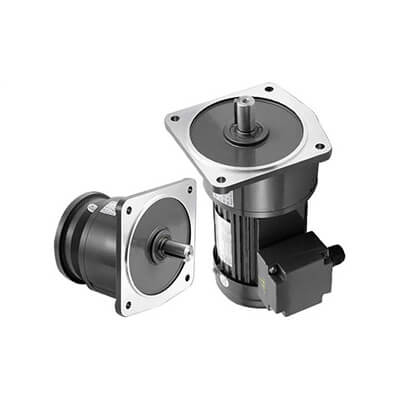

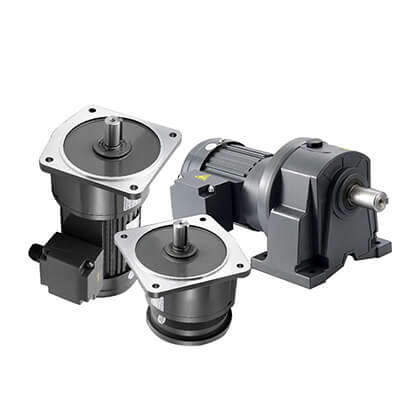

220V 230V AC Single Phase Vertical Gear Motor

This AC single phase vertical gear motor provides reliable performance with 220V to 230V input voltage. Its durable design and including anodized aluminum housing ensure long lasting use. Enjoy smooth, quiet performance with this motor's optimized gear design.

Motor TypeInduction motor

Output Power (W)100-3700

Voltage (V/Hz)220/380 50/60

Rated Speed (r/min)1350/1680


The following are the specifications that our company's Micro AC gear motors 100w 1/8hp 200w 1/4hp 400w 1/2hp 750w 1hp 1500w 2hp 2200w 3hp 3700w 5hp can achieved. You can also contact us to tell us the power, voltage, torque and other parameters you need. We can accept and customize. and You can also contact us for drawings and detailed parameters.
Band name
Lunyee
Output Power
100w 1/8hp 200w 1/4hp 400w 1/2hp 750w 1hp 1500w 2hp 2200w 3hp 3700w 5hp
Gearbox type
1# 2# 3# 4# 5# 6#
Gearbox ratio
3-200
Voltage
110v 115v 220v 230v 380v 415v 440v 460v
Frequency
50Hz 60Hz
Phase
Single phase Three phase
Rated Speed
1350/1680 r/min
Current
0.6-21 A
Output shaft torque
0.19-127 kg/m
Duty
Continuous Running
Enviroment
Tem:-10℃ ~ +40℃
Pole
4P(6P)
Motor Shaft type
Pinion shaft Round shaft Keyway
Accessories that can be added
gear box
Terminal box
w/fan w/ forced fan
eleceromagnetic brake
thermally

Overview

The ac induction motor has become the most often used motor due to the phenomenal expansion of the ac power system. The ac motor has a more straightforward construction and is simpler to produce than a dc motor because it lacks a commutator, which makes it straightforward to create motors with high speeds, high voltages, huge currents, and enormous capacities. The power of an alternating current motor may vary from a few watts to hundreds of thousands of kilowatts or even a million kilowatts.

220V 230V AC Single Phase Vertical Gear Motor
  • 1. Outstanding torque characteristics
  • 2. Instant start/stop
  • 3. Reliable starting and directional stability
  • 4. Near-silent operation for noise-sensitive applications
  • 5. Under rated frequency, the speed status is invariable and unaffected by voltage.
  • 6. Winding will not be damaged if the motor is overwhelmed or abruptly stopped.
  • 7. High-quality engineering guarantees a quiet and long-lasting performance.
Application Image
