Model Type Lead Wire Type |
Rating At Locked rotor |
Voltage V |
Frequency Hz |
Starting Torque mN.m |
Max. Output power W |
Speed at Max. Output power r/min |
Torque at Max. Output power mN.m |
Capacitor μF |
|
Pinion Shaft | Roung Shaft | ||||||||
2TK3GN-A | 2TK3A-A | 5MIN CONT |
110 60 |
50 | 69 25 |
3.2 1.3 |
750 | 41 16 |
7/250 |
2TK3GN-A | 2TK3A-A | 5MIN CONT |
110 60 |
60 | 69 25 |
3.2 1.3 |
900 | 37 11 |
6/250 |
2TK3GN-C | 2TK3A-C | 5MIN CONT |
220 140 |
50 | 69 25 |
3.2 1.2 |
750 | 41 16 |
1.5/450 |
2TK3GN-C | 2TK3A-C | 5MIN CONT |
220 140 |
60 | 69 25 |
3.2 1.2 |
900 | 37 11 |
1.2/450 |
3TK6GN-A | 3TK6A-A | 5MIN CONT |
110 60 |
50 | 134 68 |
6 2.5 |
750 | 80 36 |
8/250 |
3TK6GN-A | 3TK6A-A | 5MIN CONT |
110 60 |
60 | 134 68 |
6.5 2.8 |
900 | 74 30 |
7/250 |
3TK6GN-C | 3TK6A-C | 5MIN CONT |
220 140 |
50 | 134 68 |
6 2.5 |
750 | 80 36 |
2/450 |
3TK6GN-C | 3TK6A-C | 5MIN CONT |
220 140 |
60 | 134 68 |
6.5 2.8 |
900 | 74 30 |
1.5/450 |
4TK10GN-A | 4TK10A-A | 5MIN CONT |
110 60 |
50 | 235 74 |
10 3 |
750 | 127 46 |
10/250 |
4TK10GN-A | 4TK10A-A | 5MIN CONT |
110 60 |
60 | 69 25 |
10 3 |
900 | 127 38 |
8/250 |
4TK10GN-C | 4TK10A-C | 5MIN CONT |
220 140 |
50 | 265 98 |
10 3 |
750 | 127 46 |
2.5/450 |
4TK10GN-C | 4TK10A-C | 5MIN CONT |
220 140 |
60 | 225 90 |
10 3 |
900 | 127 38 |
2/450 |
5TK20GN-A | 5TK20A-A | 5MIN CONT |
110 60 |
50 | 363 137 |
20 6 |
750 | 224 76 |
15/250 |
5TK20GN-A | 5TK20A-A | 5MIN CONT |
110 60 |
60 | 294 108 |
26 6 |
900 | 216 64 |
12/250 |
5TK20GN-C | 5TK20A-C | 5MIN CONT |
220 140 |
50 | 363 137 |
20 6 |
750 | 224 76 |
3.5/450 |
5TK20GN-C | 5TK20A-C | 5MIN CONT |
220 140 |
60 | 216 64 |
26 6 |
900 | 216 64 |
3/450 |

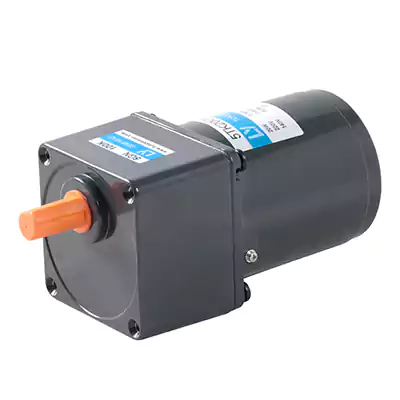

Torque motors have a high starting torque and torque motors have a high starting torque and sloping characteristics, allowing easy speed control simply by changing the power supply voltage. (The motor torque varies approximately in proportion to the voltage square.)
Torque motors can be used for motion control not just in industrial automation processes and cyclic machines, but also in industries such as Semiconductors, Printing, Robotics, and Machine tooling.
