200W 90MM BLDC Gear Motor

Home > 200W 90MM BLDC Gear Motor

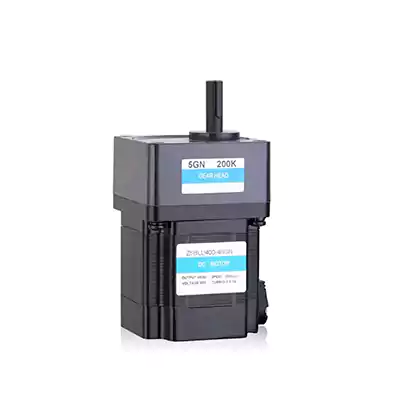

200W 90MM BLDC Gear Motor

Our advanced 200W BLDC gear motor is designed for maximum efficiency and smooth, reliable performance. The 90mm motor features a high torque-to-weight ratio and a low noise output, making it perfect for applications requiring a compact but powerful solution.

Power (W)200

Voltage (V)24~48

Flange (mm)90


Model Voltage
(V)
Rated Power
(W)
No-load Parameters Load Parameters Motor Life
(H)
Motor Weight
(kg)
Speed
(RPM)
Current
(A)
Speed (RPM) Torque
(N.m)
Current
(A)
Z5BLD200-24 24 200 3500 Max 0.80 3000 0.64 10.5 >5000 1.6
Z5BLD200-36 36 200 3400 Max 0.65 3000 0.64 7.0 >5000 1.6
Z5BLD200-48 48 200 3300 Max 0.45 3000 0.64 5.2 >5000 1.6

Overview

This motor has the optional accessories: gearbox, controller, encoder, brake.

For DC brushless motor, we can make from 10W to 500W with all voltage and speed ratio.

Motor voltage, power and speed will be customized according to your requests under the allowed circumstance of adoptable dimension

If you have interest or demand, you can send inquiry for details

Gearbox Ratio, Speed and Torque:

200W 90MM BLDC Gear Motor

Dimension Drawing

200W 90MM BLDC Gear Motor
