Product Feature
High Efficiency
This brushless DC motor offers high efficiency, ensuring optimal performance while reducing energy consumption.
Compact Design
With its compact and integrated design, this motor is easy to install and saves valuable space in your applications.
Powerful Performance
The motor delivers 200W of power with a speed of 3000RPM and a torque of 0.64Nm, providing strong and reliable performance for various applications.
Durable Construction
Constructed with high-quality materials, this motor ensures long-lasting durability and can withstand demanding environments.
Low Noise Operation
Designed for low noise operation, this motor is suitable for applications where quiet performance is essential.

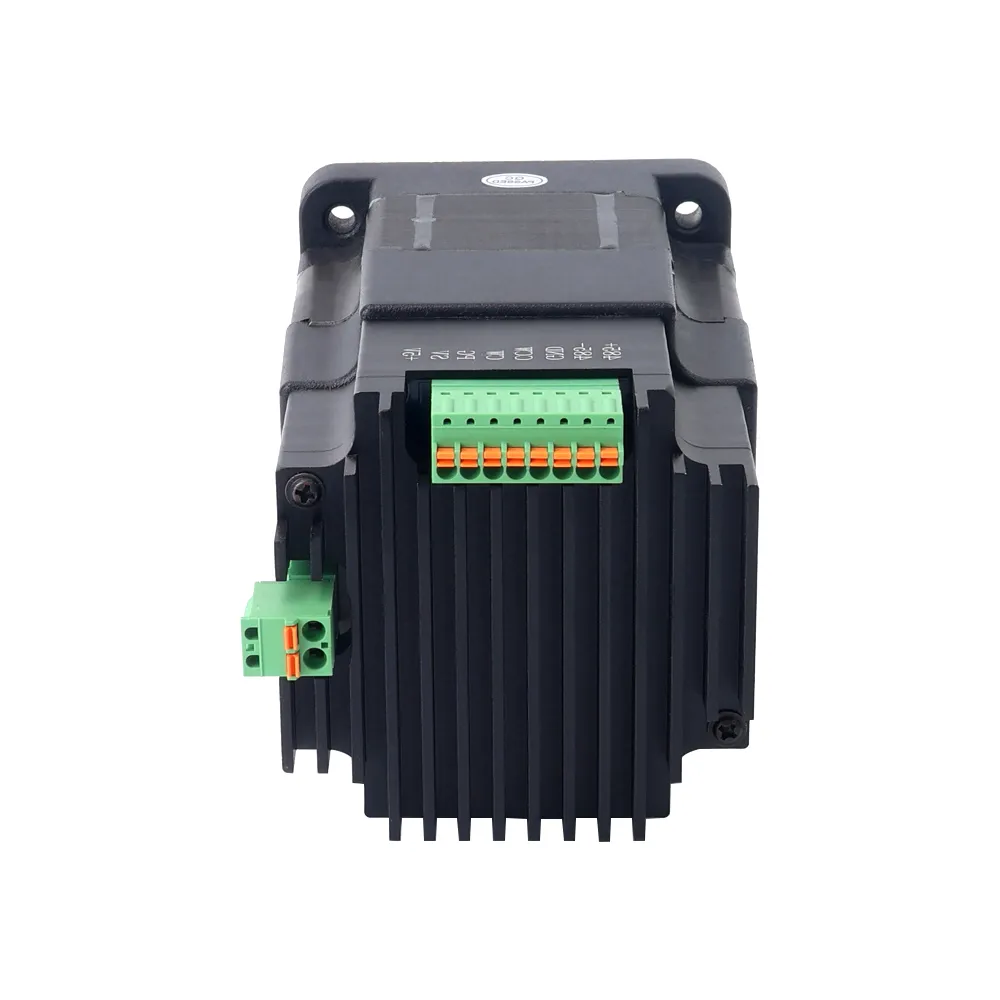

Integrated Driver
The integrated driver simplifies the control system, reducing the need for additional components and making installation easier.
Wide Voltage Range
Operates on a 48V power supply, making it versatile and suitable for various industrial and commercial applications.
Product Applications
Robotics
Ideal for robotics applications, providing precise and reliable motion control for robotic arms, AGVs, and other robotic systems.
Automated Machinery
Suitable for automated machinery, ensuring accurate and efficient operation in manufacturing and assembly lines.
CNC Machines
Perfect for CNC machines, delivering high precision and durability for milling, cutting, and engraving tasks.
Conveyor Systems
Used in conveyor systems, offering reliable and efficient power for material handling and transportation.
Medical Devices
Ideal for medical devices, ensuring precise and reliable operation in various medical and laboratory equipment.
Printing Machinery
Applicable in printing machinery, providing consistent and accurate motion control for high-quality printing results.
Semiconductor Equipment
Suitable for semiconductor manufacturing equipment, offering high precision and reliability for the demanding semiconductor industry.
Related Products
Videos
SPECIFICATIONS
Electrical Specifications
| Manufacturer Part Number | 86IBL200-4830 |
| Inductance(mH) | 0.51 |
| No. of Phase | 3 |
| Phase Resistance(ohm) | 0.21 |
| Product Type | Integrated BLDC Motor |
| Rated Current(A) | 4.17 |
| Input Voltage(V) | 48 |
| Holding Torque(Ncm) | 64 |
| Holding Torque(oz.in) | 90.63 |
| Rated Power(W) | 200 |
| Rated Speed(rpm) | 3000 |
| Insulation Class | Class B |
| Resistance/phase | 0.21±10%Ohms |
| Inductance/phase | 0.51±20%mH |
| Sensor | HALL |
Physical Specifications
| Inventory Method | Shared Inventory |
| Frame Size(mm) | Nema 34 (86 x 86) |
| Body Length(mm) | 138 |
| Shaft Diameter(mm) | 14 |
| Shaft Length(mm) | 32 |
| Weight | 2.13kg |
DIMENSIONS
Technical Documents Downloads
| File Name | Size | Download |
| DC-Motor-Catalog.pdf | 55.7MB | Download |
