200W 24V 80mm DC Servo Motor

Home > 200W 24V 80mm DC Servo Motor

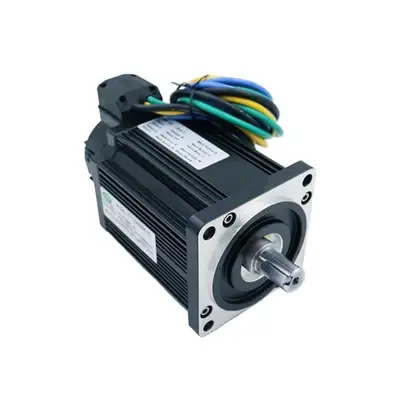

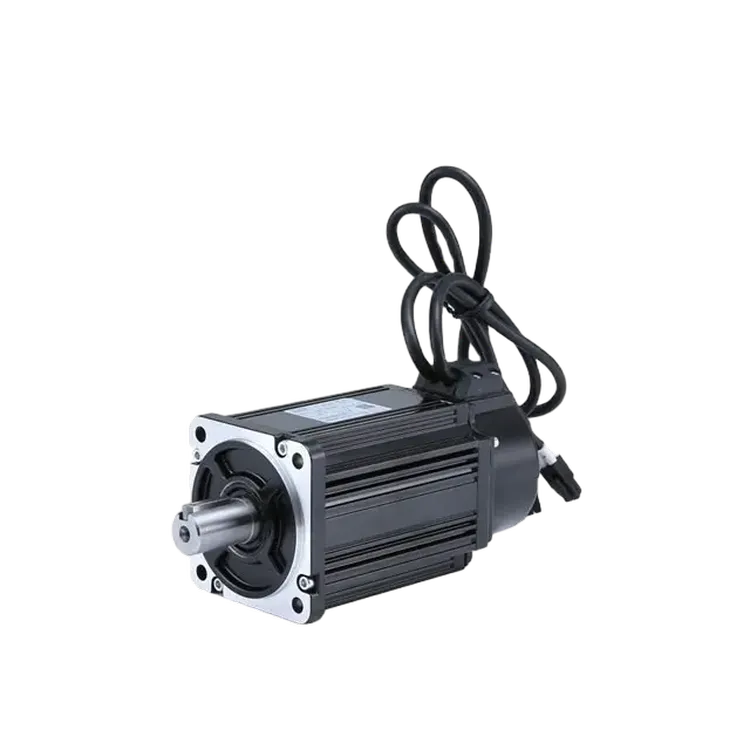

200W 24V 80mm DC Servo Motor

$297.67

This high-torque DC Servo Motor is an ideal choice for precision motion control. It delivers up to 200W of power at 24V, with a maximum speed of 3000 RPM. Its 80mm diameter makes it compact and lightweight, while still providing plenty of torque.

Motor TypeDC Servo Motor

Output Power (W)200

Voltage (V)24

Rated Speed (rpm)1500

Rated Power
200W
Rated Voltage
24V DC
Rated Current
9.4 A
Rated Torque
1.27 Nm
Peak Torque
3.8 Nm
Rated Speed
1500 rpm
No-load Speed
1700 rpm
Working Efficiency
85%
Flange Size
80mm
Weight
2.5 kg
200W 24V 80mm DC Servo Motor

Overview

servo motor 1.0 description pic
servo motor 1.0 description pic

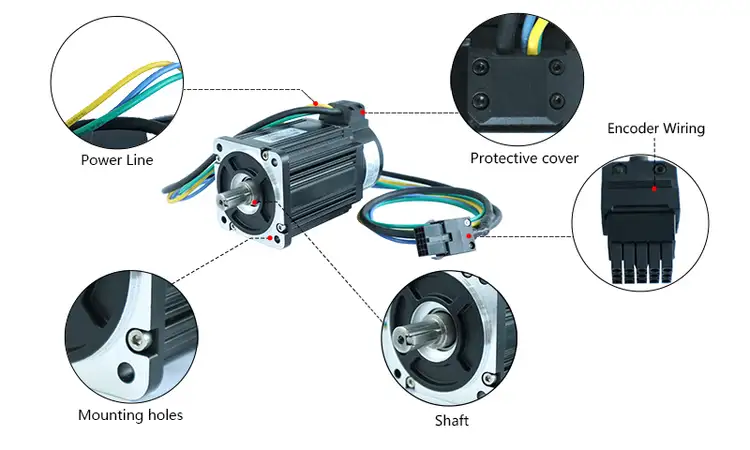

  1. 200W DC servo motor with F class insulation and IP55 protection rating
  2. High efficiency (85%), optimized winding end structure, reduced copper loss and iron loss, compact size, light weight, low temperature increase
  3. ATO DC brushless servo motors with high coercivity, NdFe35 permanent magnets, excellent anti-demagnetization properties, and consistent motor performance
  4. Minimal moment of inertia, low vibration, and low noise
  5. a broad speed range, quick dynamic reaction, and substantial overload capacity (4 times)
