SPECIFICATIONS
|
Color |
Silver white |
Silver white |
|
Speed no load |
110r/min |
90r/min |
|
Noise no load |
<65dB |
<65dB |
|
Current no load |
<1.5A |
<1.5A |
|
Rated power |
200w |
200w |
|
Rated current |
<17A |
<10A |
|
Rated torque |
30N.m |
20N.m |
|
Rated speed |
70r/min |
90r/min |
|
electric brake |
Voltage of brake |
24v |
| Current no load |
1.2A(24V) |
|
| Torque of brake | >=30N.m | |
| Manual clutch | Have |
Product Feature
1. Optimized Performance

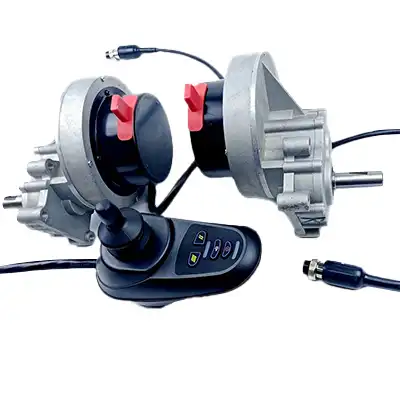

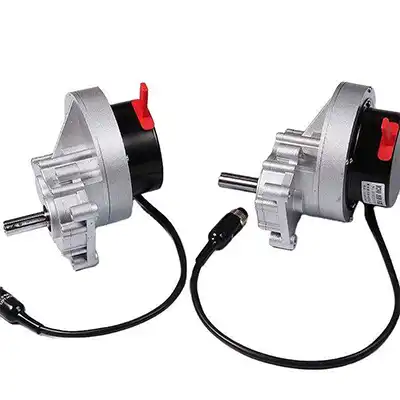

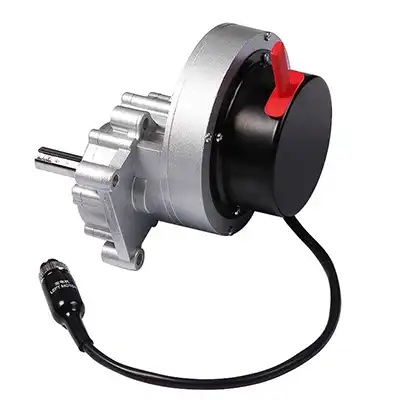

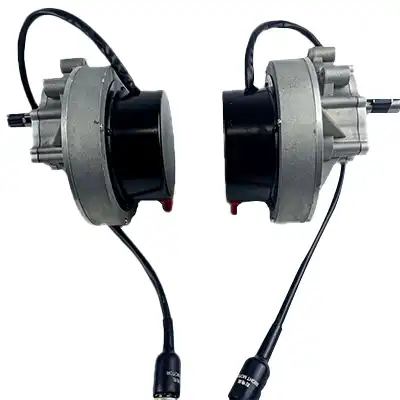

The 200W 12-24V brushed PMDC motor is designed for maximum performance, offering a reliable and efficient driving force intended for wheelchair use.
2. Robust Construction
Robust and durable by design, this motor is crafted to withstand demanding environments, enhancing its life and value for users even in challenging conditions.
3. High Torque
With a high torque output of 30N.m to 20N.m, this motor guarantees optimal force for efficient wheelchair propulsion.
4. Lower Noise Levels
The PMDC motor operates at low noise levels, less than 65dB, ensuring smooth and silent movement for wheelchair users.
Product Applications
1. Wheelchairs
Aligned with the dataset, this motor is optimized for use in wheelchairs, empowering individuals with physical constraints with mobility independence.
2. Mobility Scooters
Given its compact size and high torque output, this motor can also be utilized to power lightweight electric mobility scooters, enhancing mobility for the elderly and disabled.
3. Automation in Healthcare Devices
Incorporating this motor into healthcare devices can significantly enhance their operation and efficiency, offering improved solutions for individuals with physical limitations.
4. Personal Transportation Vehicles
Given its power, this motor is suitable for integration in personal transportation vehicles used in indoor environments such as workplaces or large residential complexes.
