172W 24V 70RPM 17.63Nm Geared Brushless DC Motor

Home > 172W 24V 70RPM 17.63Nm Geared Brushless DC Motor

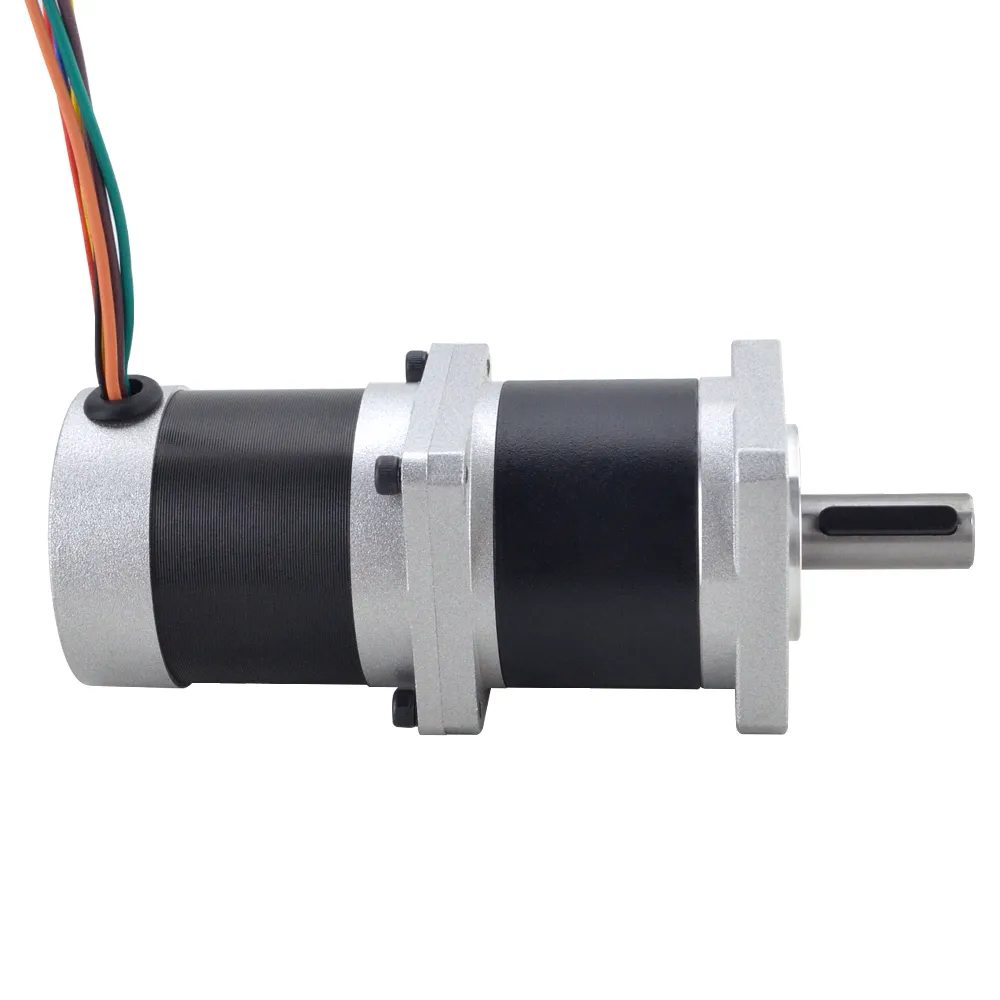

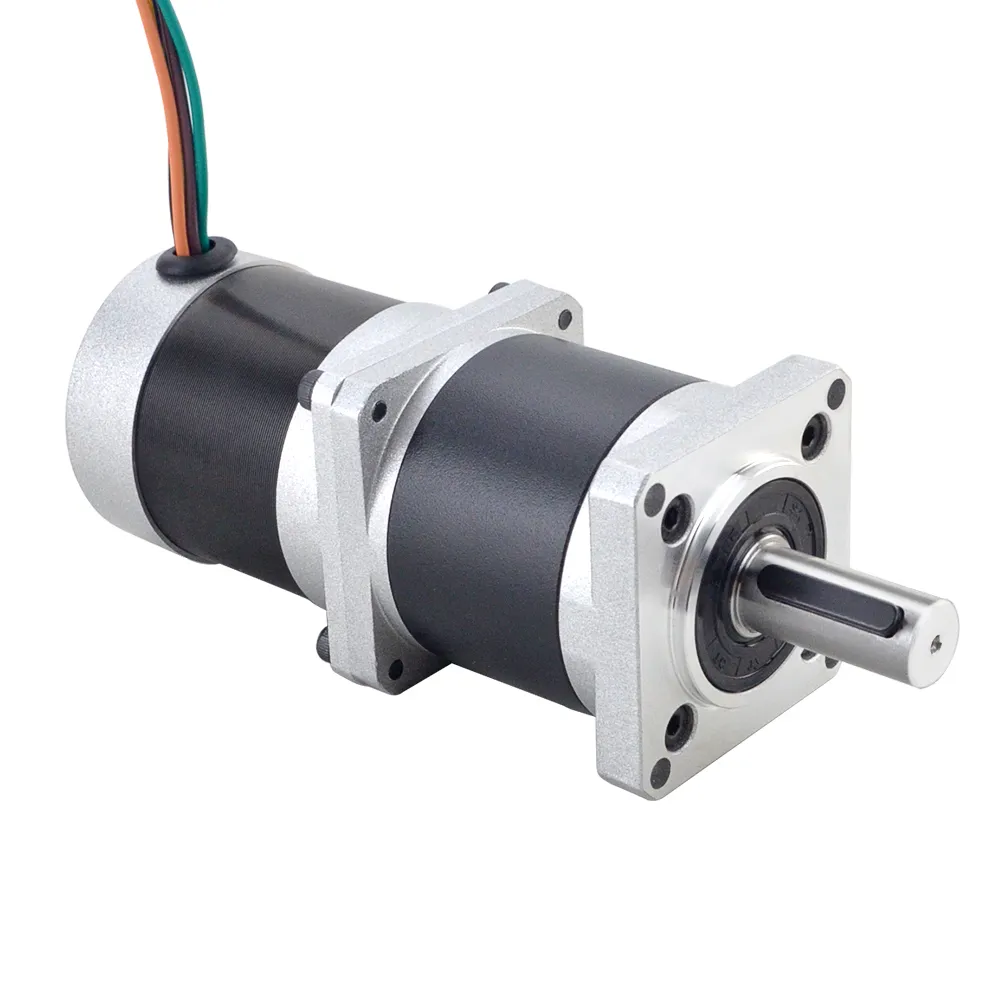

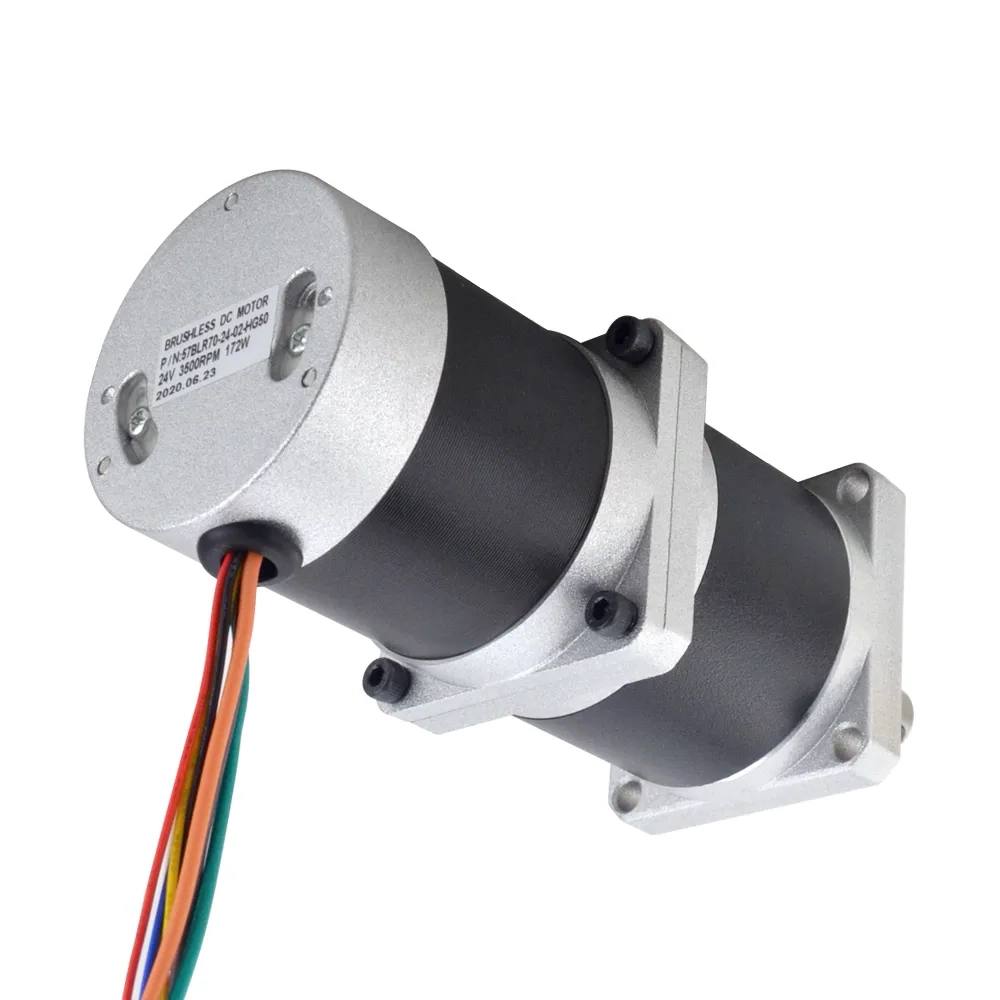

172W 24V 70RPM 17.63Nm Geared Brushless DC Motor

$83.11

172W 24V 70RPM 17.63Nm Geared Brushless DC Motor, a high-torque and powerful solution designed for demanding applications that require exceptional strength and precision. With its optimized gear ratio and advanced brushless DC motor technology, this motor delivers robust torque output and precise speed control.

Motor TypeDC Geared Brushless Motor

Output Power (W)172

Voltage (V)24

Rated Speed (rpm)70

Electrical Specification

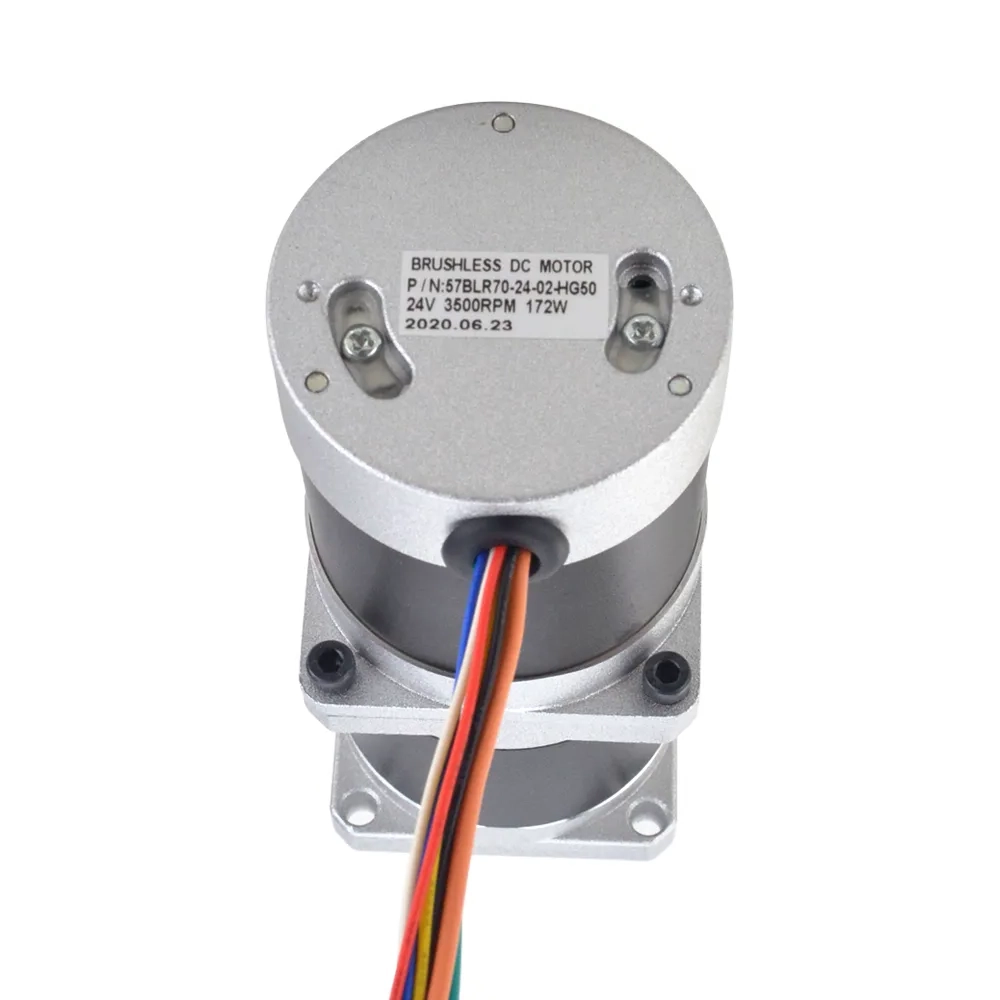

Manufacturer Part Number 57BLR70-24-02-HG50
Phase 3
Poles 4
Product Type Geared BLDC Motor
Rated Current(A) 10.4
Rated Power(W) 172
Rated Speed(rpm) 70
Rated Torque(Nm) 17.63
Rated Voltage(V) 24
Insulation Class Class B
Insulation Resistance 100MΩ Min @500VDC
Dielectric Strength Test 500VAC for 1 Minute

Physical Specification

Inventory Method Dedicated Inventory
IP Rating 20
With Gearbox Yes
Frame Size(mm) Nema 23 (57 x 57)
Body Length(mm) 69.1
Gear Ratio(xx:1) 50
Backlash at No-load <=1.6 deg
Output Shaft Type Keyway
Shaft Diameter(mm) 14
Shaft Length(mm) 34
Bearing Type NMB Ball Bearing, C3
Weight 1.49kg

Gearbox Specifications

Attribute Value
Gearbox Type Planetary
Gear Ratio 50 : 1
Efficiency 75%
Backlash at No-load <=1.6 deg
Max. Permissible Torque 20Nm(2832.8oz.in)
Moment Permissible Torque 40Nm(5665.6oz.in)
Max. Radial Load 250N
Insulation Class B
Noise <=50 dB
Ambient Temperature 0 - 50℃
