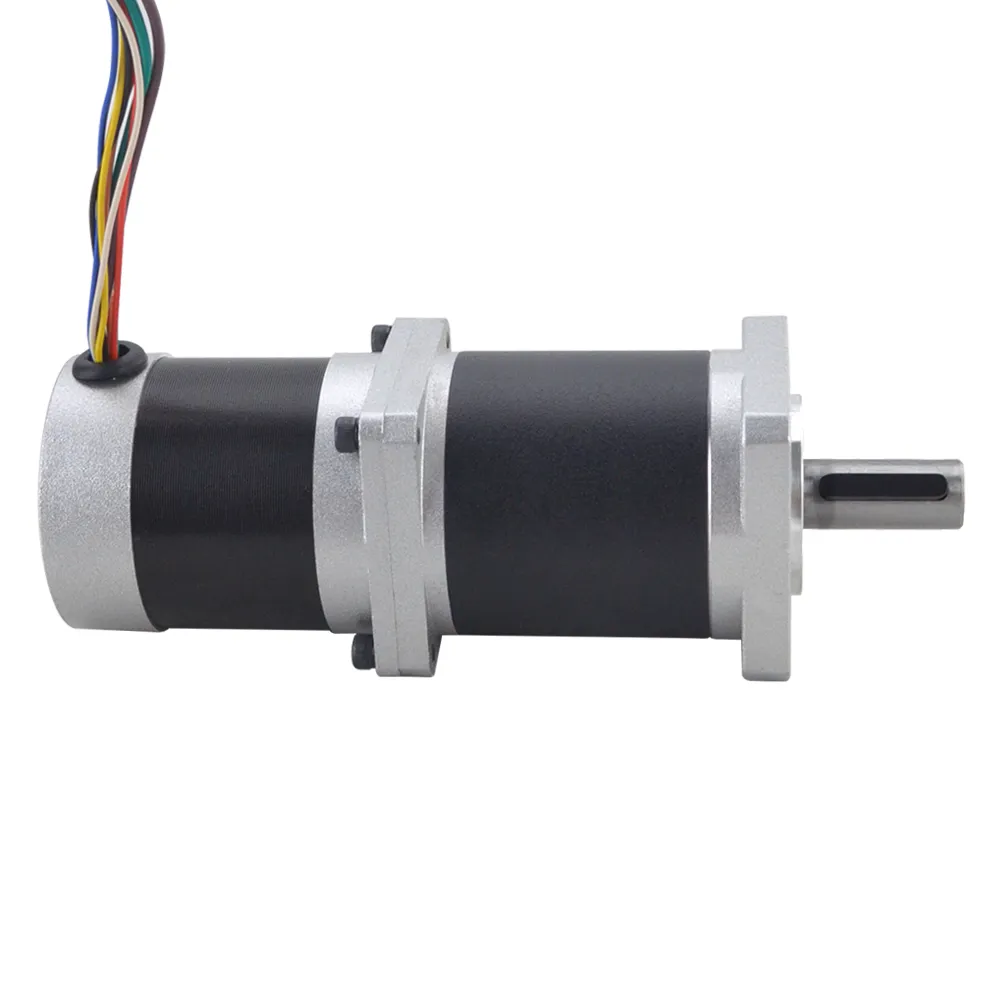

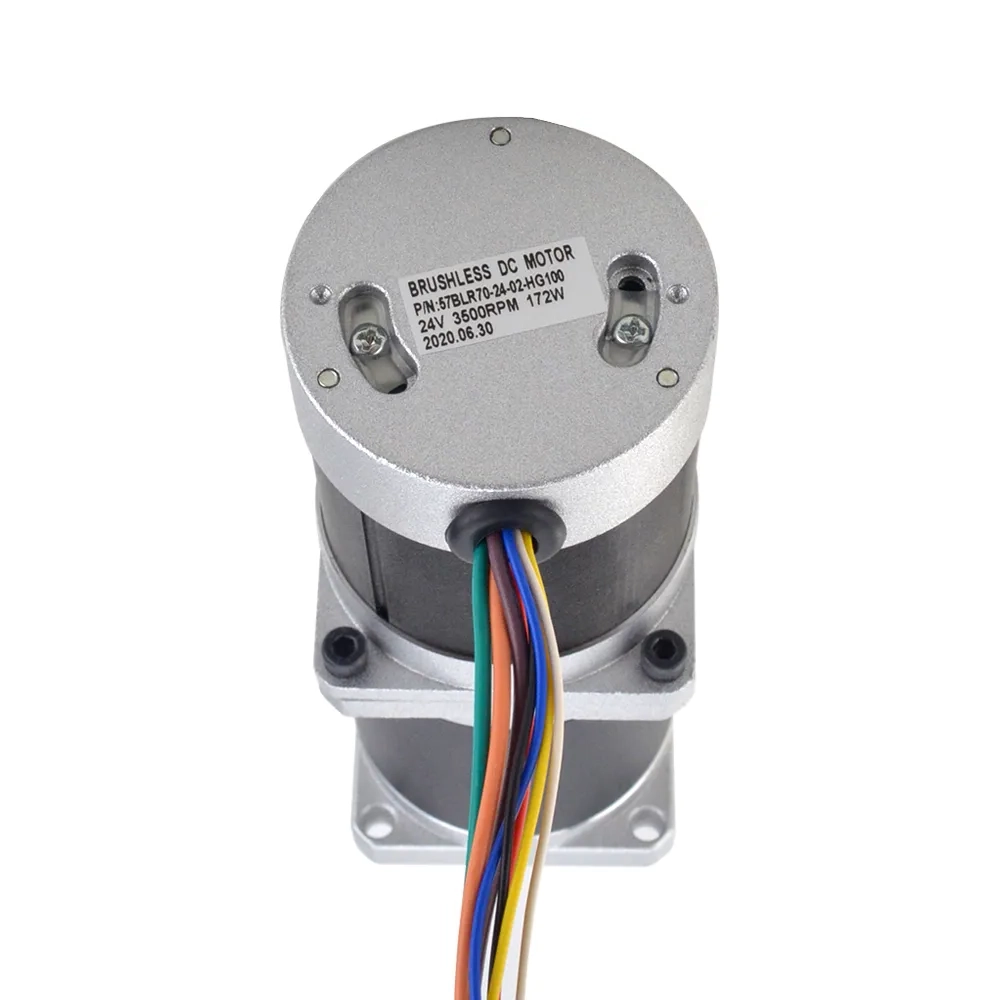

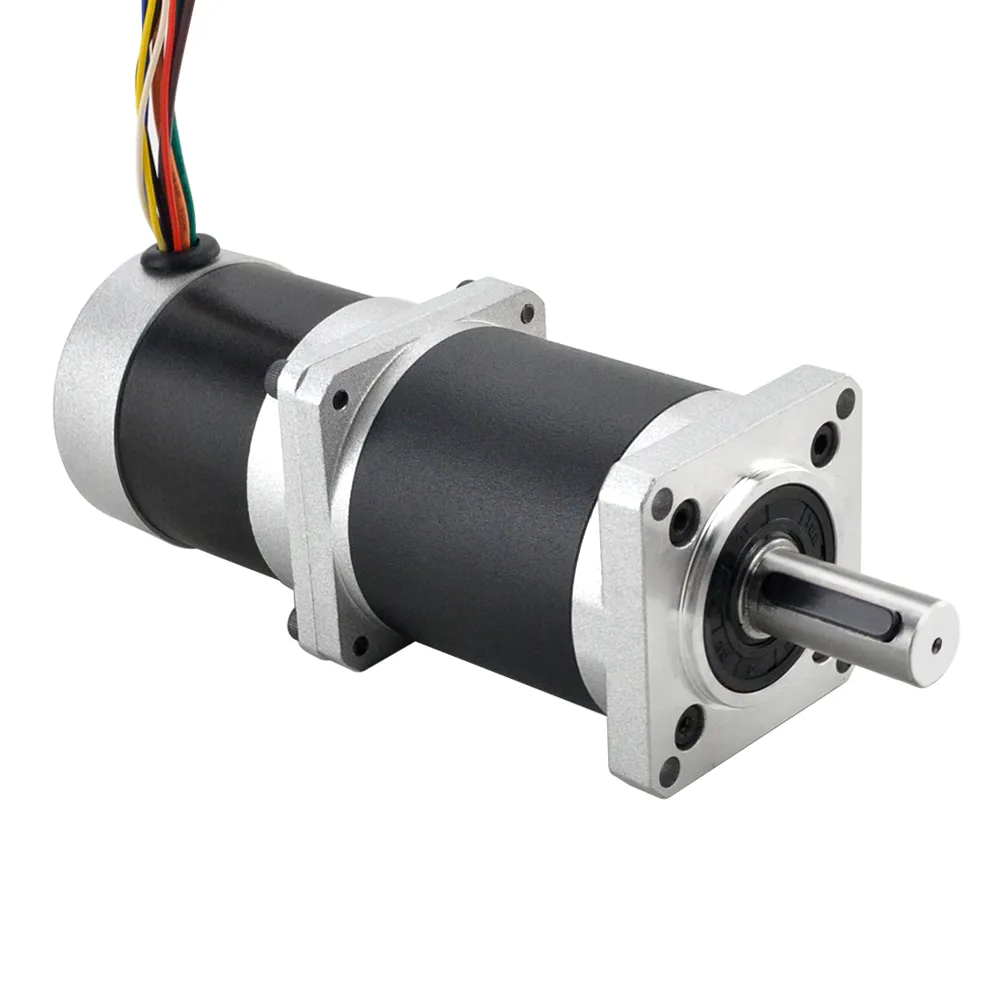

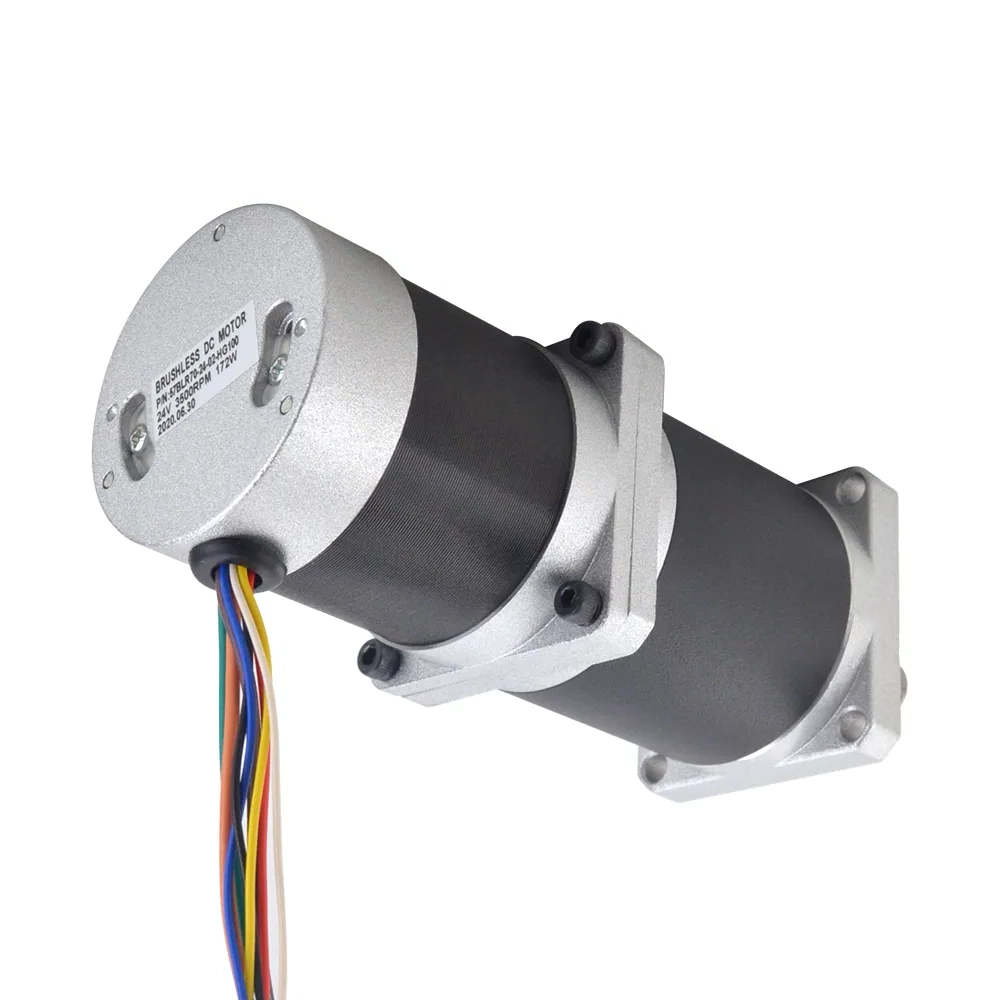

172W 24V 35RPM 25.00Nm Geared Brushless DC Motor


172W 24V 35RPM 25.00Nm Geared Brushless DC Motor, a high-torque and high-power solution designed for demanding applications that require exceptional strength and precision. With its optimized gear ratio and advanced brushless DC motor technology, this motor delivers superior torque output and precise speed control, making it ideal for heavy-duty machinery, robotics, and automation systems.

Model TypeDC Geared Brushless Motor

Output Power (W)172

Voltage (V)24

Rated Speed (rpm)35




Electrical Specification

Attribute Value
Manufacturer Part Number 57BLR70-24-02-HG100
Product Type Geared BLDC Motor
Phase 3
Poles 4
Rated Current(A) 10.4
Rated Power(W) 172
Rated Speed(rpm) 35
Rated Torque(Nm) 25.00
Rated Voltage(V) 24
Insulation Class Class B
Insulation Resistance 100MΩ Min @500VDC
Dielectric Strength Test 500VAC for 1 Minute

Physical Specification

Inventory Method Dedicated Inventory
IP Rating 20
With Gearbox Yes
Frame Size(mm) Nema 23 (57 x 57)
Gear Ratio(xx:1) 100
Backlash at No-load <=2.4 deg
Output Shaft Type Keyway
Shaft Diameter(mm) 14
Shaft Length(mm) 34
Bearing Type NMB Ball Bearing, C3
Weight 1.7kg

Gearbox Specifications

Gearbox Type Planetary
Gear Ratio 100 : 1
Efficiency 65%
Backlash at No-load <=2.4 deg
Max. Permissible Torque 25Nm(3540oz.in)
Moment Permissible Torque 50Nm(7082oz.in)
Max. Radial Load 250N
Insulation Class B
Noise <=50 dB
Ambient Temperature 0 - 50℃
