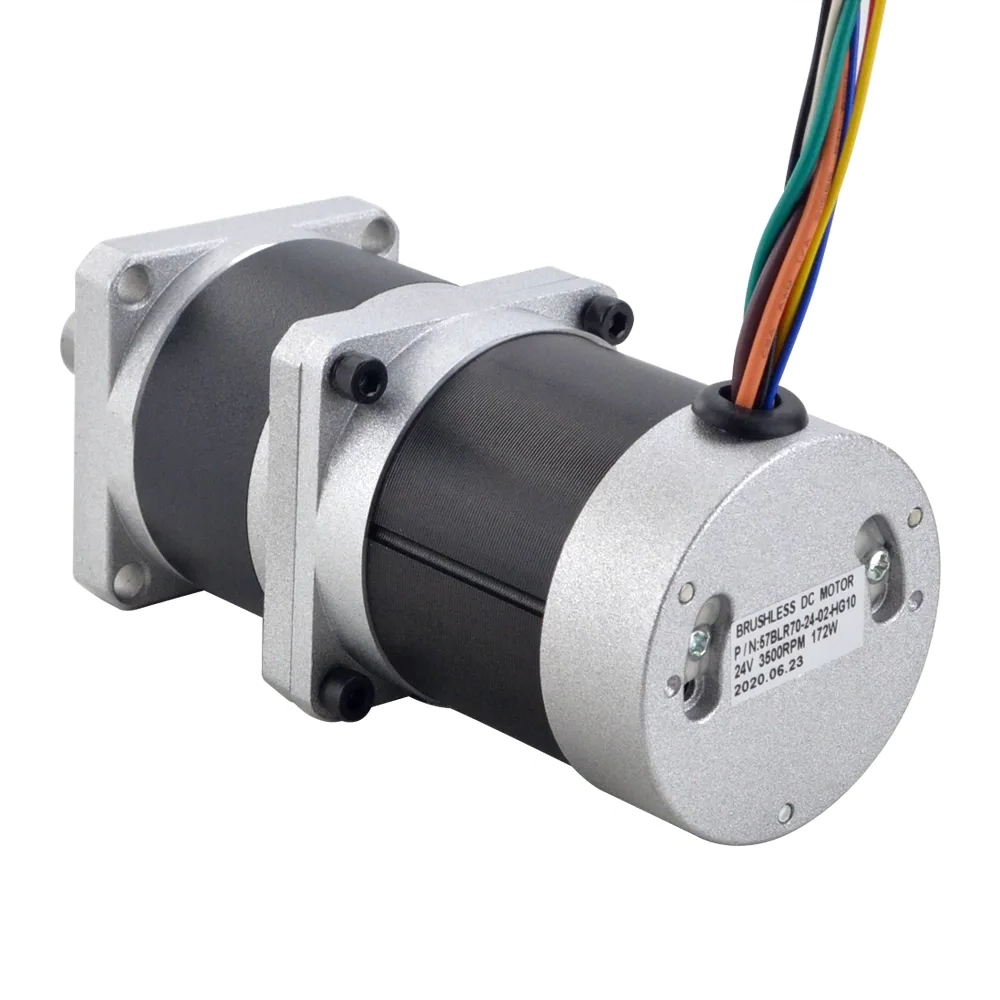

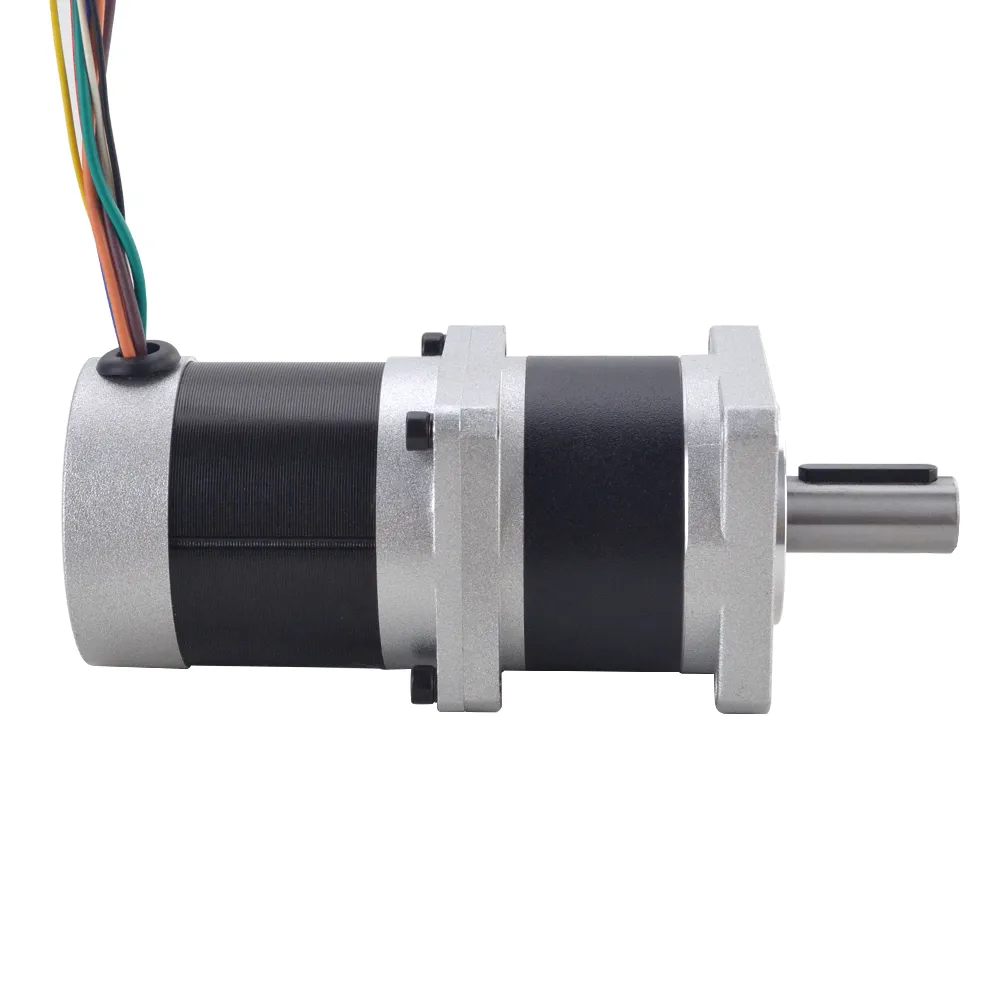

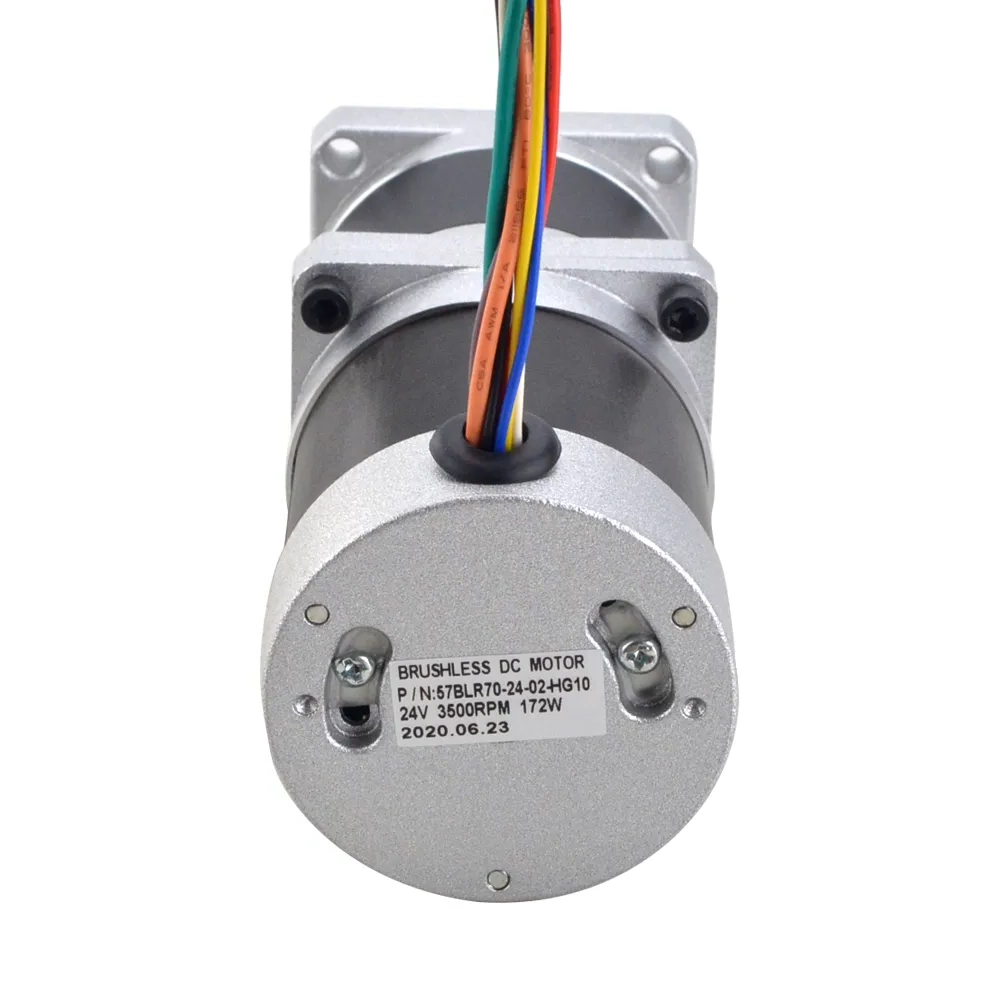

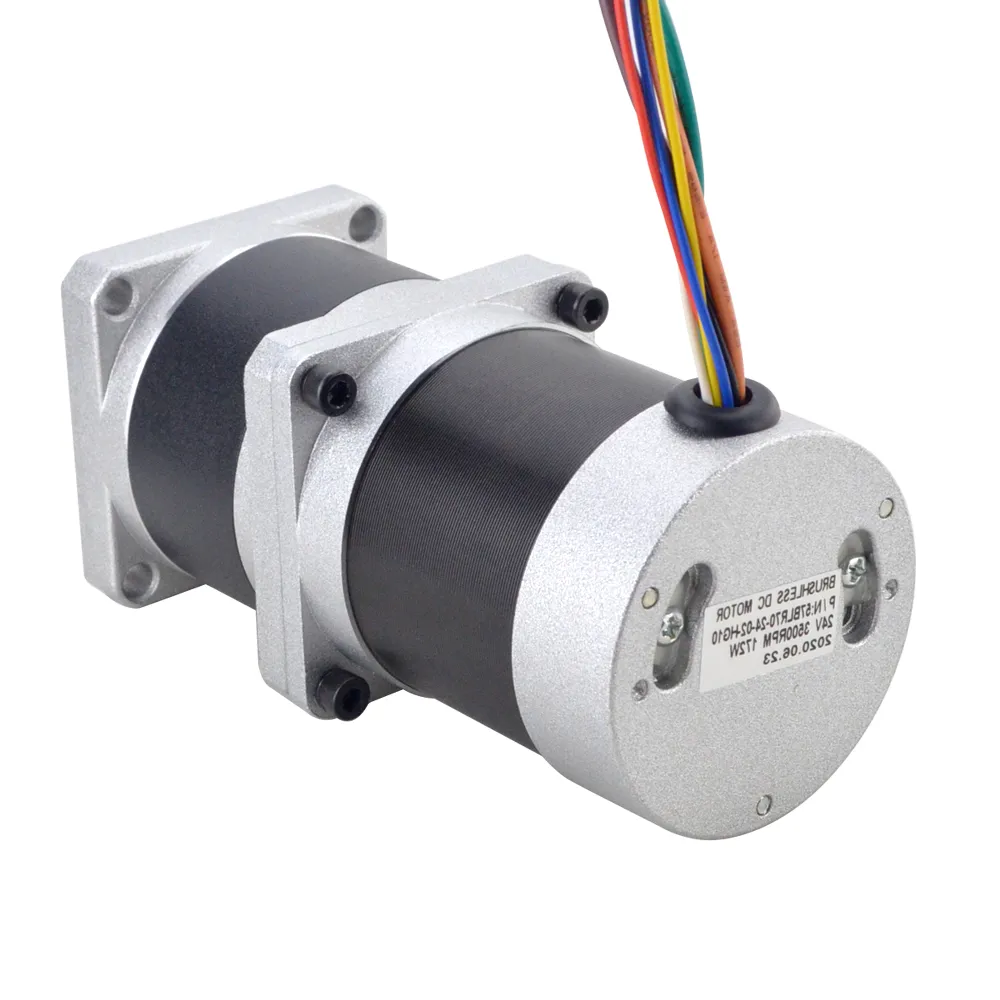

172W 24V 350RPM 4.00Nm Geared Brushless DC Motor


172W 24V 350RPM 4.00Nm Geared Brushless DC Motor, a high-torque and robust solution designed to tackle demanding applications with precision. With its optimized gear ratio and advanced brushless DC motor technology, this motor delivers impressive torque output and precise speed control. Perfect for tasks such as heavy-duty machinery, automation systems, and electric propulsion.

Model TypeDC Geared Brushless Motor

Output Power (W)172

Voltage (V)24

Rated Speed (rpm)350



Electrical Specification

Manufacturer Part Number 57BLR70-24-02-HG10
Phase 3
Poles 4
Product Type Geared BLDC Motor
Rated Current(A) 10.4
Rated Power(W) 172
Rated Speed(rpm) 350
Rated Torque(Nm) 4.00
Rated Voltage(V) 24
Insulation Class Class B
Insulation Resistance 100MΩ Min @500VDC
Dielectric Strength Test 500VAC for 1 Minute

Physical Specification

Inventory Method Dedicated Inventory
IP Rating 20
With Gearbox Yes
Frame Size(mm) Nema 23 (57 x 57)
Body Length(mm) 69.1
Gear Ratio(xx:1) 10
Backlash at No-load <=0.8 deg
Output Shaft Type Keyway
Shaft Diameter(mm) 14
Shaft Length(mm) 34
Bearing Type NMB Ball Bearing, C3
Weight 1.37kg

Gearbox Specifications

Attribute Value
Gearbox Type Planetary
Gear Ratio 10 : 1
Efficiency 85%
Backlash at No-load <=0.8 deg
Max. Permissible Torque 6Nm(849.7oz.in)
Moment Permissible Torque 12Nm(1699.68oz.in)
Max. Radial Load 250N
Insulation Class B
Noise <=50 dB
Ambient Temperature 0 - 50℃
