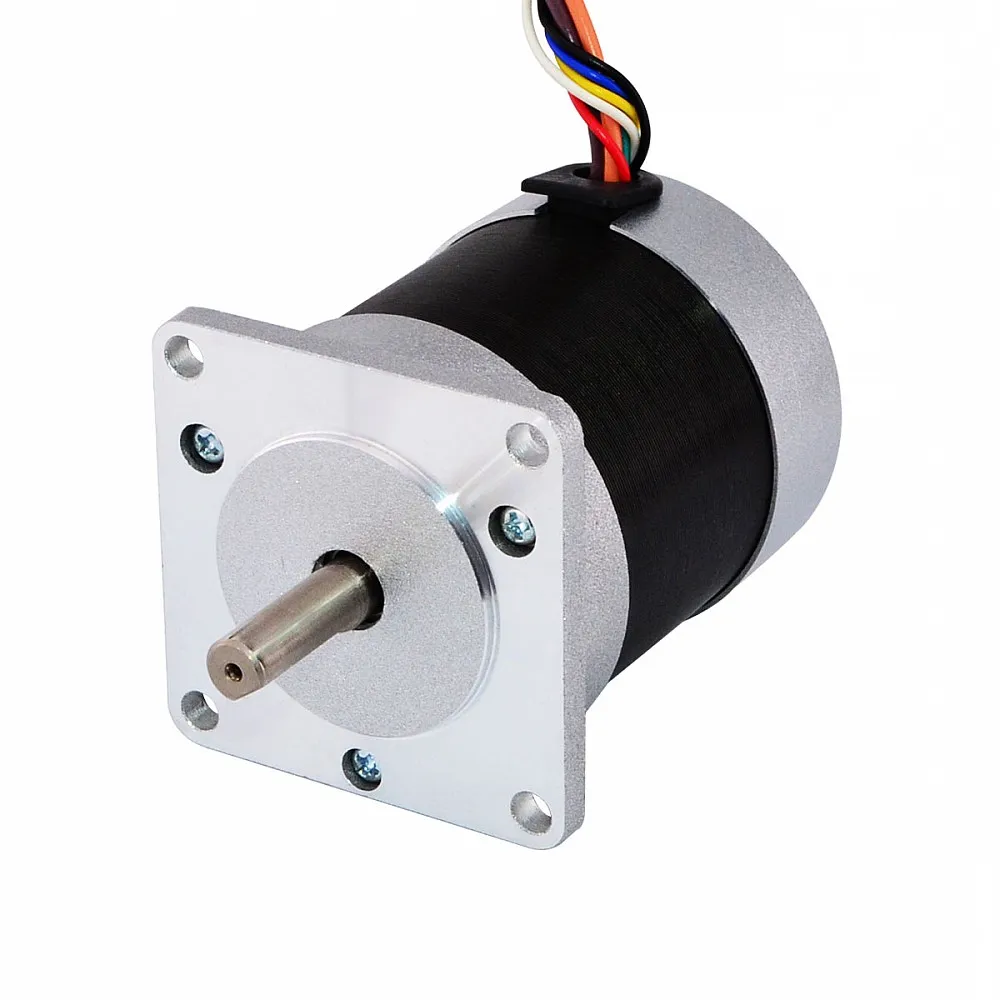

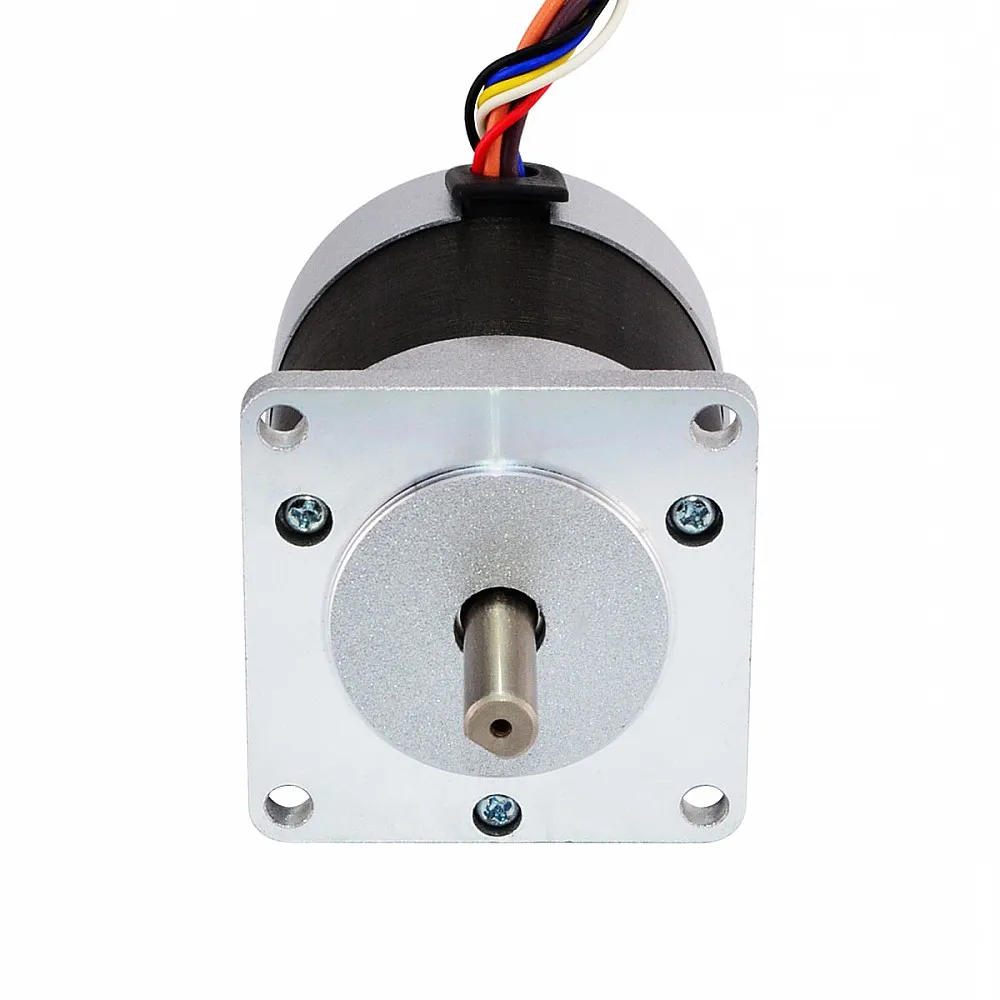

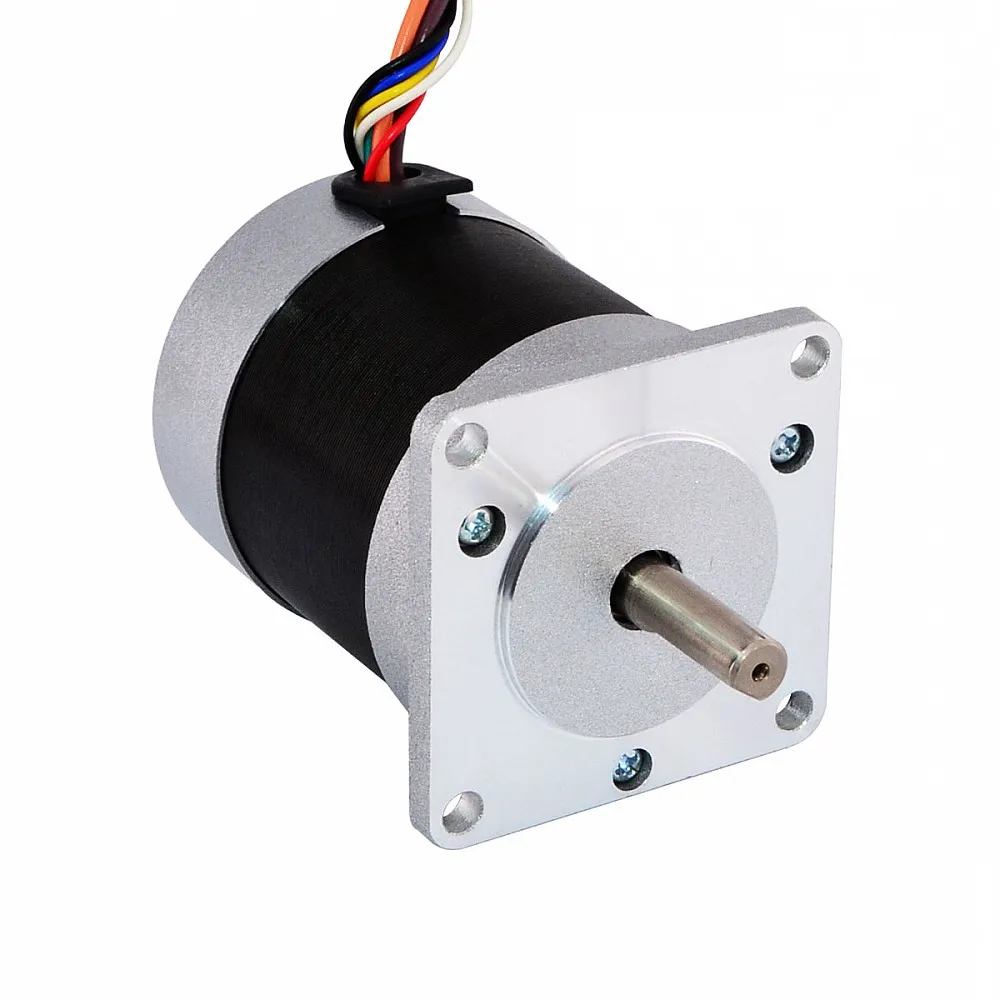

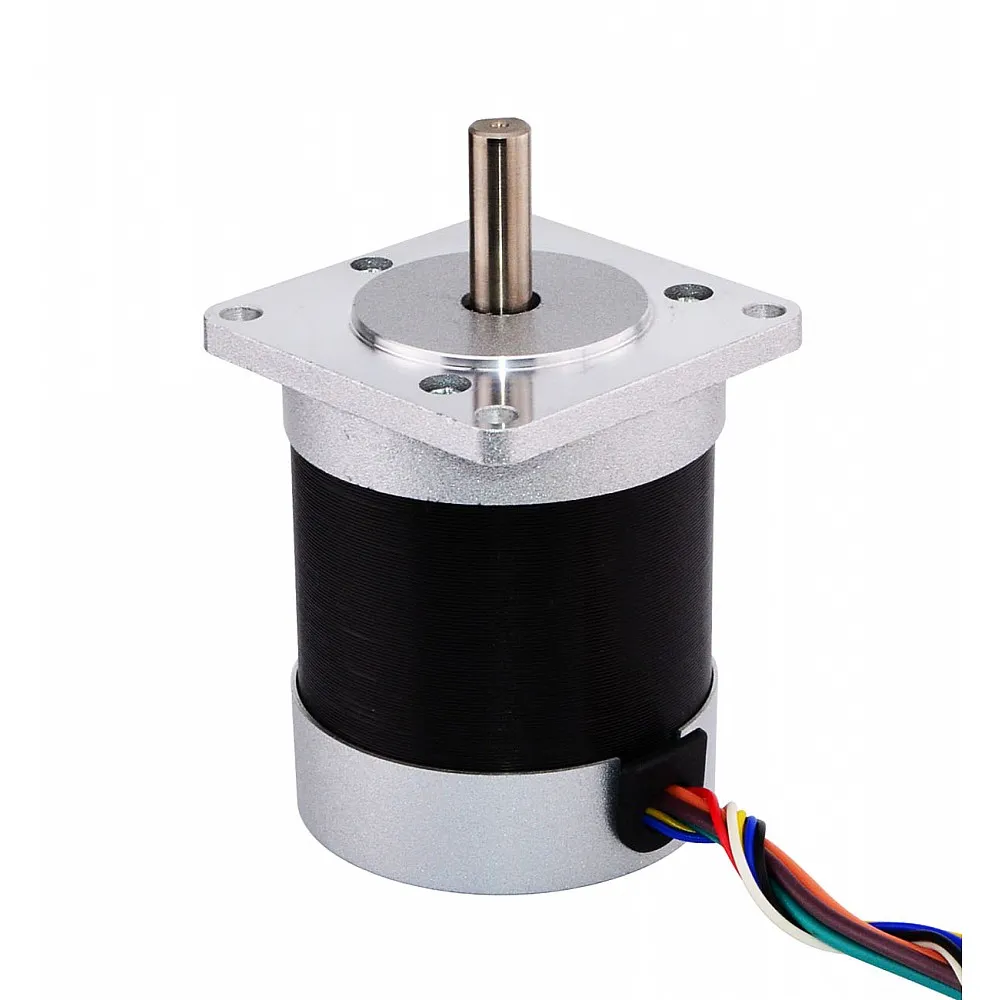

172W 24V 3500RPM 0.47Nm Brushless DC Motor

Home > 172W 24V 3500RPM 0.47Nm Brushless DC Motor

172W 24V 3500RPM 0.47Nm Brushless DC Motor

$30.08

172W 24V 3500RPM 0.47Nm Brushless DC Motor, an innovative solution that combines power and efficiency to tackle a wide range of applications. With its high torque output and precise speed control, this motor is perfect for tasks requiring smooth and reliable performance, such as robotics, automation systems, and small electric vehicles.

Motor TypeDC Brushless motor

Output Power (W)172

Voltage (V)24

Rated Speed (rpm)3500

Electrical Specification

Attribute Value
Manufacturer Part Number 57BLR70-24-02
Phase 3
Poles 4
Product Type BLDC Motor
Rated Current(A) 10.4
Rated Power(W) 172
Rated Speed(rpm) 3500
Rated Torque(Nm) 0.47
Rated Voltage(V) 24
Insulation Class Class B
Insulation Resistance 100MΩ Min @500VDC
Dielectric Strength Test 500VAC for 1 Minute

Physical Specification

Inventory Method Dedicated Inventory
IP Rating 20
With Gearbox No
Frame Size(mm) Nema 23 (57 x 57)
Body Length(mm) 69.1
Output Shaft Type O
Shaft Diameter(mm) 8
Shaft Length(mm) 25
Shaft Type D-cut
D-cut Length 20mm
Number of Leads 8
Lead Length 300mm
Bearing Type NMB Ball Bearing, C3
Weight 0.75kg
