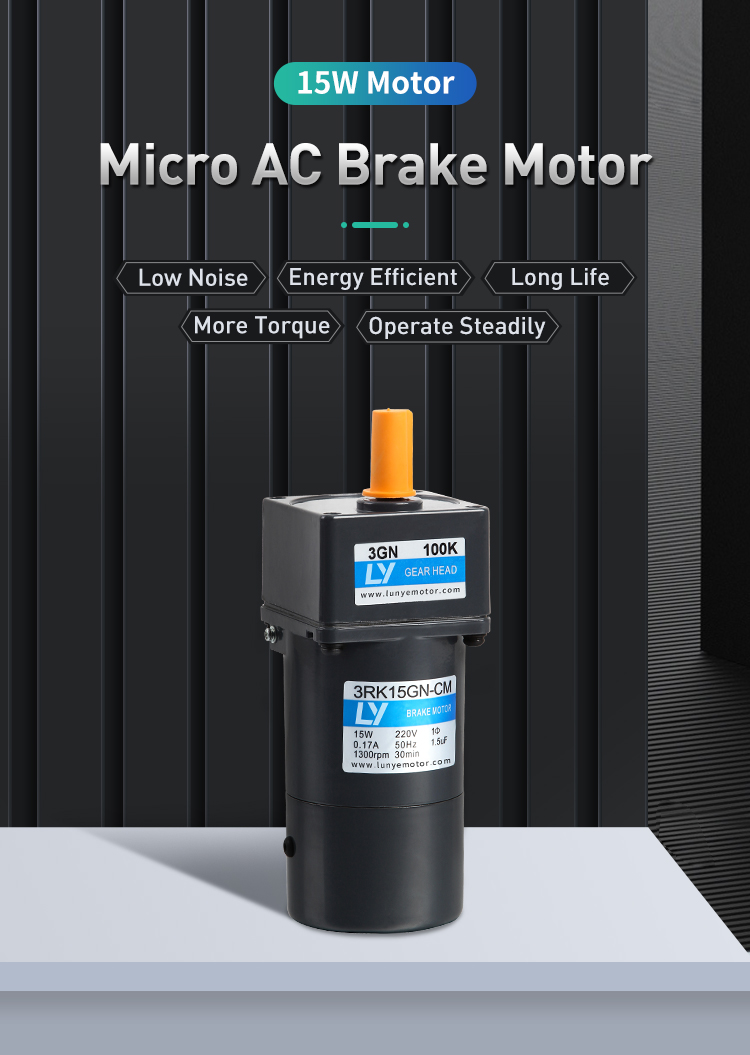

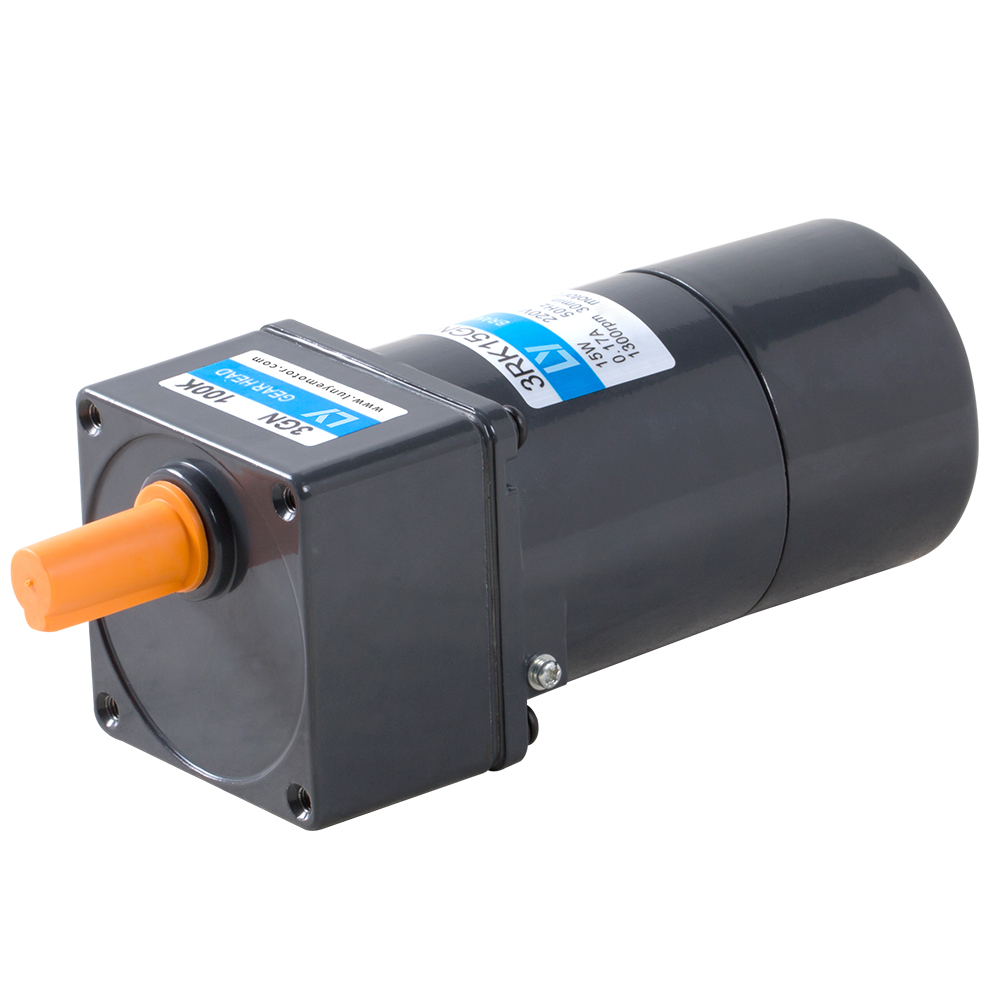

15W 220V 1-3phase ac gear brake motor

$9.80-$32.20

The 15W 220V 1-3phase ac gear brake motor is a powerful and reliable motor, capable of delivering high torque at low speed. Its efficient cooling ensures a long service life, making it an ideal choice for most applications.

Model Type

Output Power (W)()15

Voltage (V/Hz)()220 50/60

Rated Speed (r/min)()1200/1450

SPECIFICATIONS

Motor Type
Lead Wire Type
Rating Output power
W
Voltage
V
Frequency
Hz
Current
A
Starting torque
mN.m
Raed Torque
mN.m
Rated speed
r/min
Capacitor
μF
Pinion Shaft Round Shaft
3RK15GN-AM 3RK15A-AM 30min 15 1ph100 50 0.4 110 125 1200 7
15 1ph100 60 0.56 105 105 1450 7
3RK15GN-EM 3RK15A-EM 30min 15 1ph110 60 0.43 85 105 1450 6
15 1ph120 60 0.42 85 105 1450 6
3RK15GN-CM 3RK15A-CM 30min 15 1ph220 50 0.23 110 125 1200 1.5
15 1ph230 50 0.23 110 125 1200 1.5
3RK15GN-HM 3RK15A-HM 30min 15 1ph220 60 0.15 85 105 1450 1.5
15 1ph230 60 0.2 90 105 1450 1.5
3IK15GN-SM 3IK15A-SM Cont 15 3ph220 50 0.14 220 125 1200 1.5
15 3ph220 60 0.12 180 105 1450 1.5

Product Display

A brake motor is a motor that has a brake and is appropriate for devices that need quick braking and have a holding function. The brake operates in such a way that it engages when the electrical power to the motor is turned off or fails. When the power is turned off, the brake will activate an immediate stop, which may help to keep the loading and position stable.

Product Feature

Powerful Braking

Equipped with a robust braking system, the motor delivers quick stopping power and reliable holding functionality, critical for applications needing immediate halting.

High Torque at Low Speed

Delivers high torque output even at low operational speeds, making it suitable for tasks that require controlled motion and strength.

Efficient Cooling System

An advanced cooling system ensures the motor maintains a consistent temperature, promoting a longer service life and operational efficiency.

Diverse Voltage and Frequency Options

Available in various voltages and frequencies, this motor offers flexibility to suit different international electrical standards and requirements.

Versatile Speed Control

When paired with a gearbox, it achieves a constant speed, accommodating an extensive range of reduction ratios for tailored speed needs.

Product Applications

Packaging and Processing

Its reliable braking feature is ideal for automated packaging lines and processing equipment that require accurate stops and position maintenance.

Industrial Automation

The motor’s high torque at low speeds is perfect for varied automated systems, providing necessary power for precision-driven tasks.

Conveyor Systems

Its braking mechanism makes it a good fit for conveyor belt systems where swift halt and load stability are essential for safety and reliability.

Material Handling

Suitable for use in cranes and hoists where precise positional control and quick stopping ensure effective material transfer and placement.

Custom Machinery

The motor's adaptability in pairing with varied gear ratios allows for integration into custom machinery, tailored to specific operational needs.

Videos

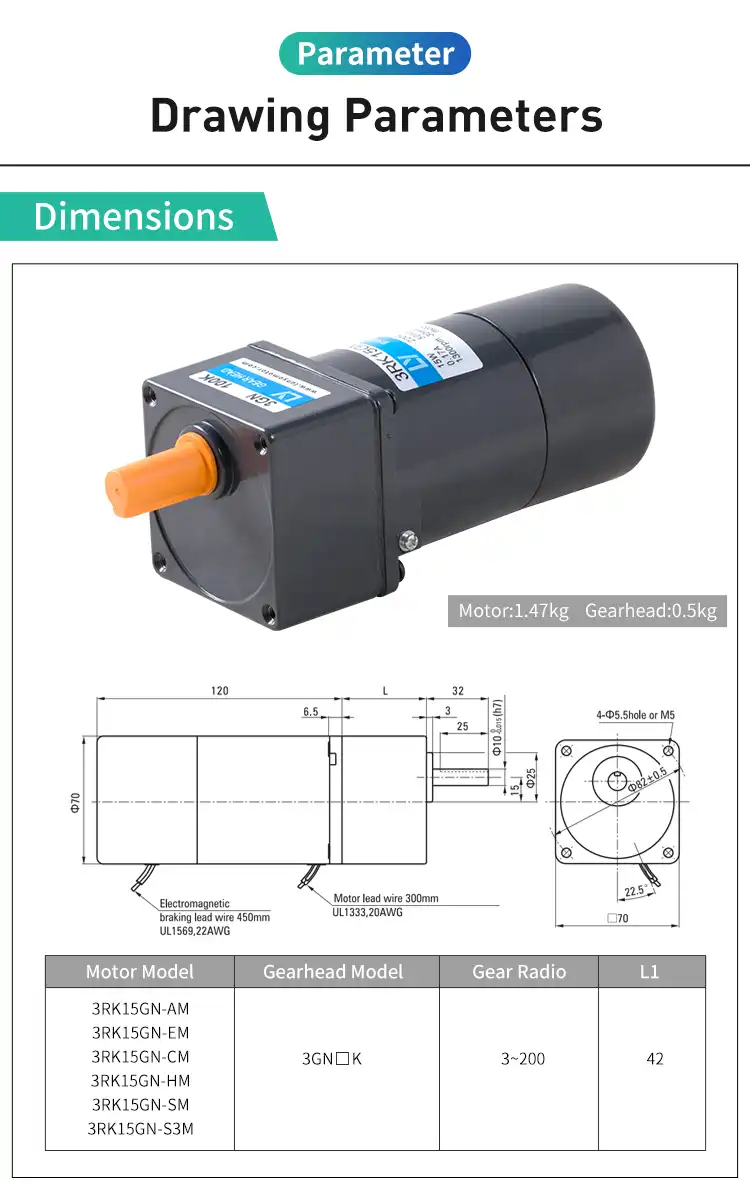

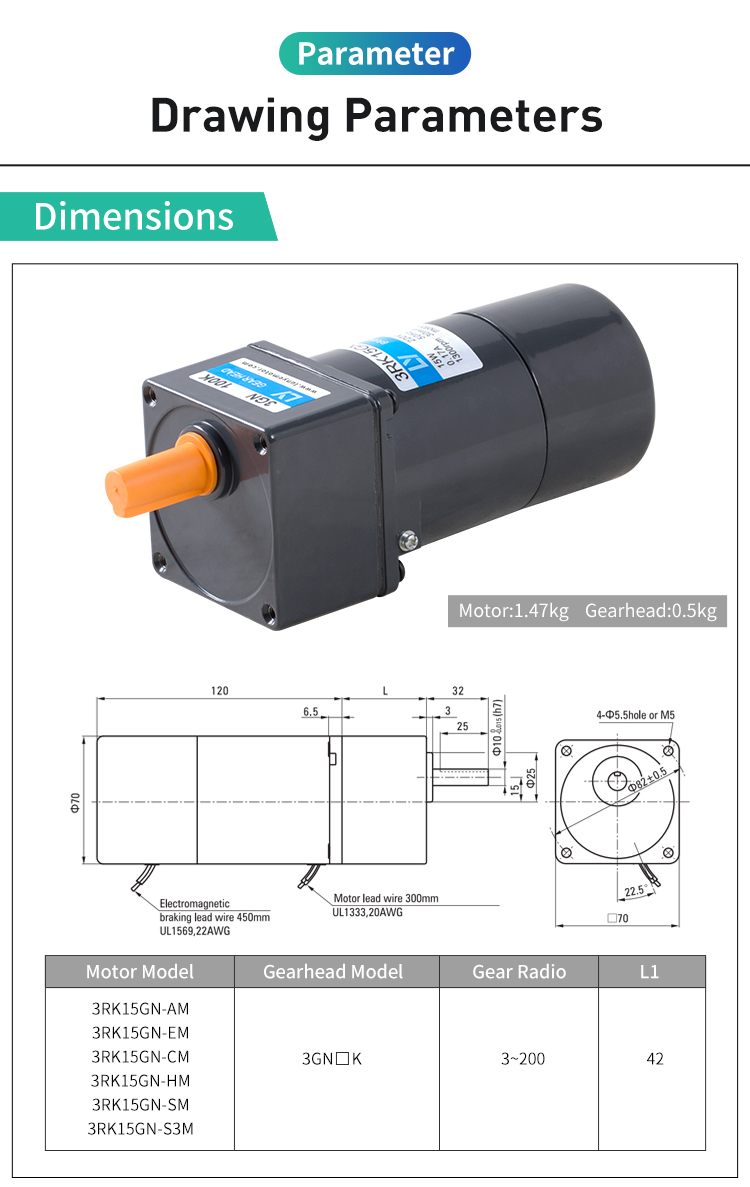

DIMENSIONS
