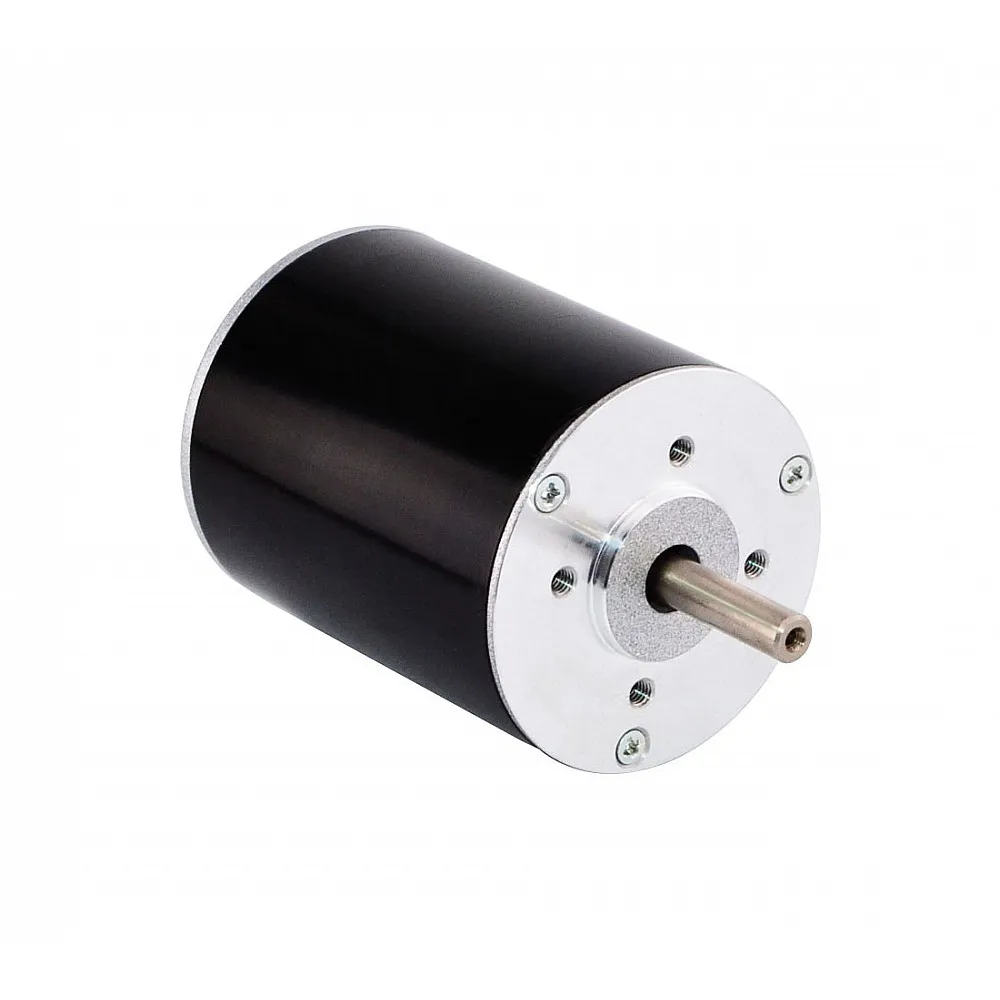

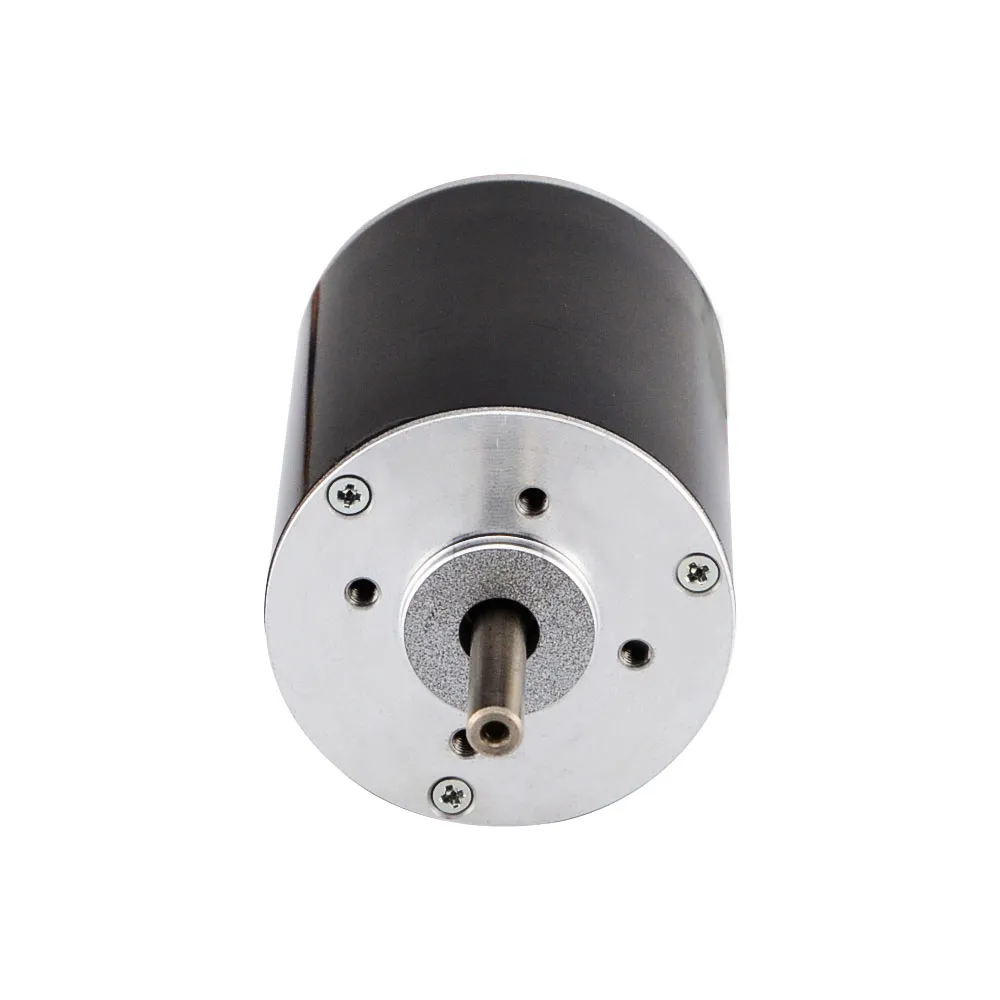

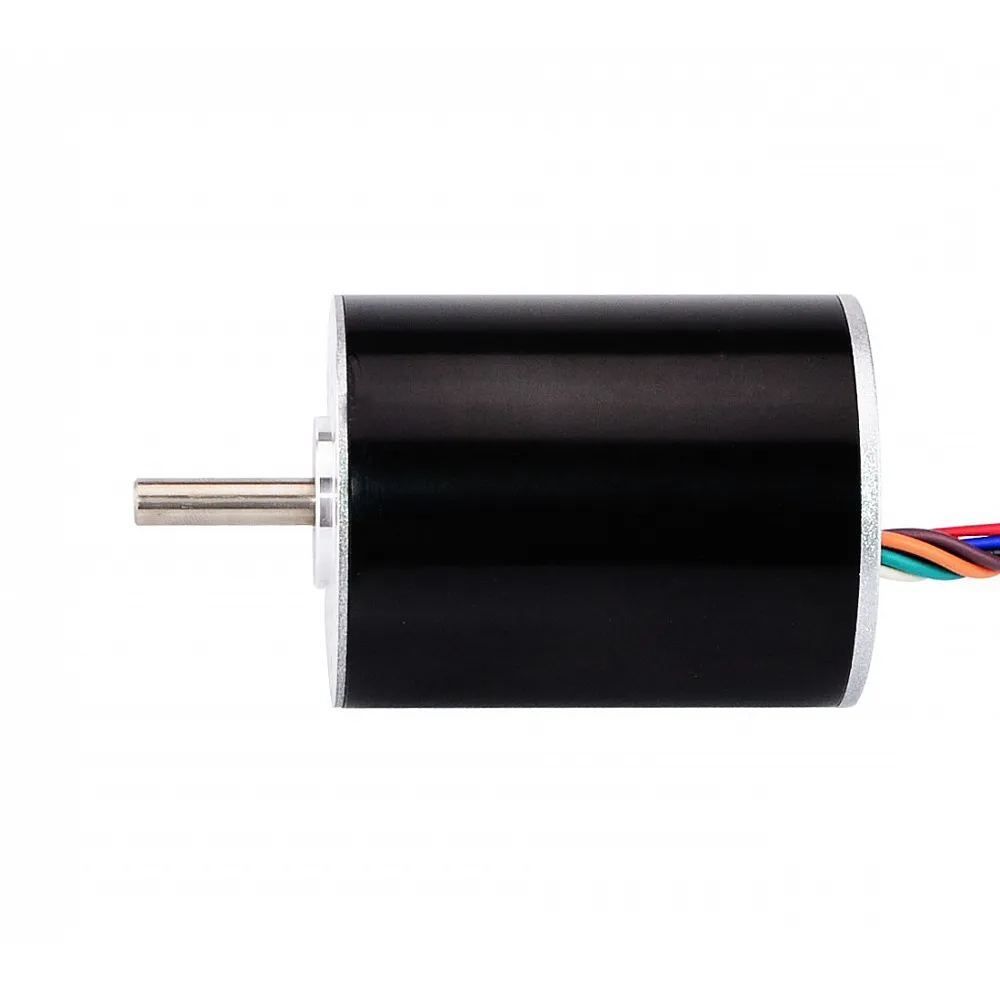

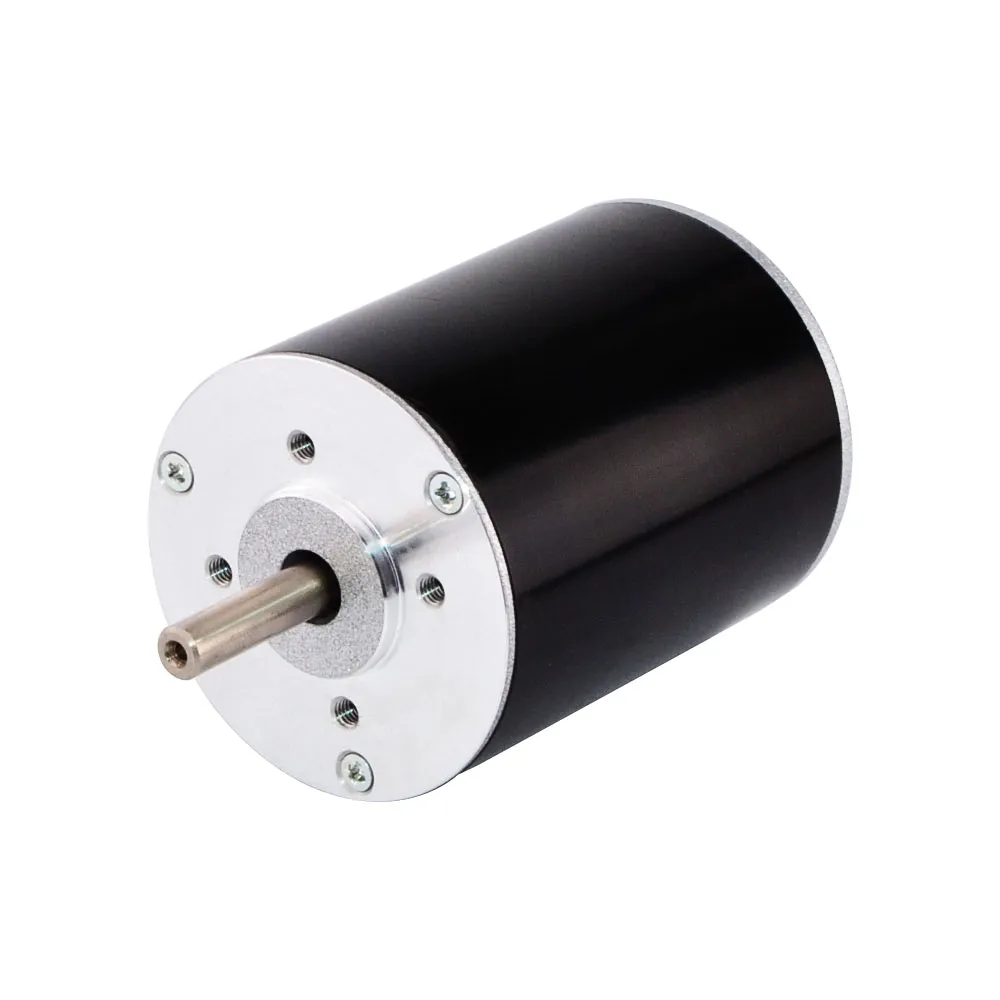

15W 12V 3000RPM 0.048Nm Brushless DC Motor
$24.85
15W 12V 3000RPM 0.048Nm Brushless DC Motor, a compact and versatile solution that offers efficient performance for various applications. With its optimal power output and reliable speed control, this motor is perfect for tasks that require precise and consistent operation, such as robotics, automation systems, and small-scale machinery.
SPECIFICATIONS
Electrical Specification
| Manufacturer Part Number | 42BLR53-12-01 |
| Phase | 3 |
| Poles | 4 |
| Product Type | BLDC Motor |
| Rated Current(A) | 1.9 |
| Rated Power(W) | 15 |
| Rated Speed(rpm) | 3000 |
| Rated Torque(Nm) | 0.048 |
| Rated Voltage(V) | 12 |
| Insulation Class | Class B |
| Insulation Resistance | 100MΩ Min @500VDC |
| Dielectric Strength Test | 500VAC for 1 Minute |
Physical Specification
| Inventory Method | Dedicated Inventory |
| IP Rating | 20 |
| With Gearbox | No |
| Frame Size(mm) | Φ42 |
| Body Length(mm) | 53 |
| Output Shaft Type | O |
| Shaft Diameter(mm) | 5 |
| Shaft Length(mm) | 20 |
| Bearing Type | NMB Ball Bearing, C3 |
| Sensor | Hall Sensor |
| Weight | 0.35kg |
Related Products
Videos
DIMENSIONS
Technical Documents Downloads
| File Name | Size | Download |
| DC-Motor-Catalog.pdf | 55.7MB | Download |
