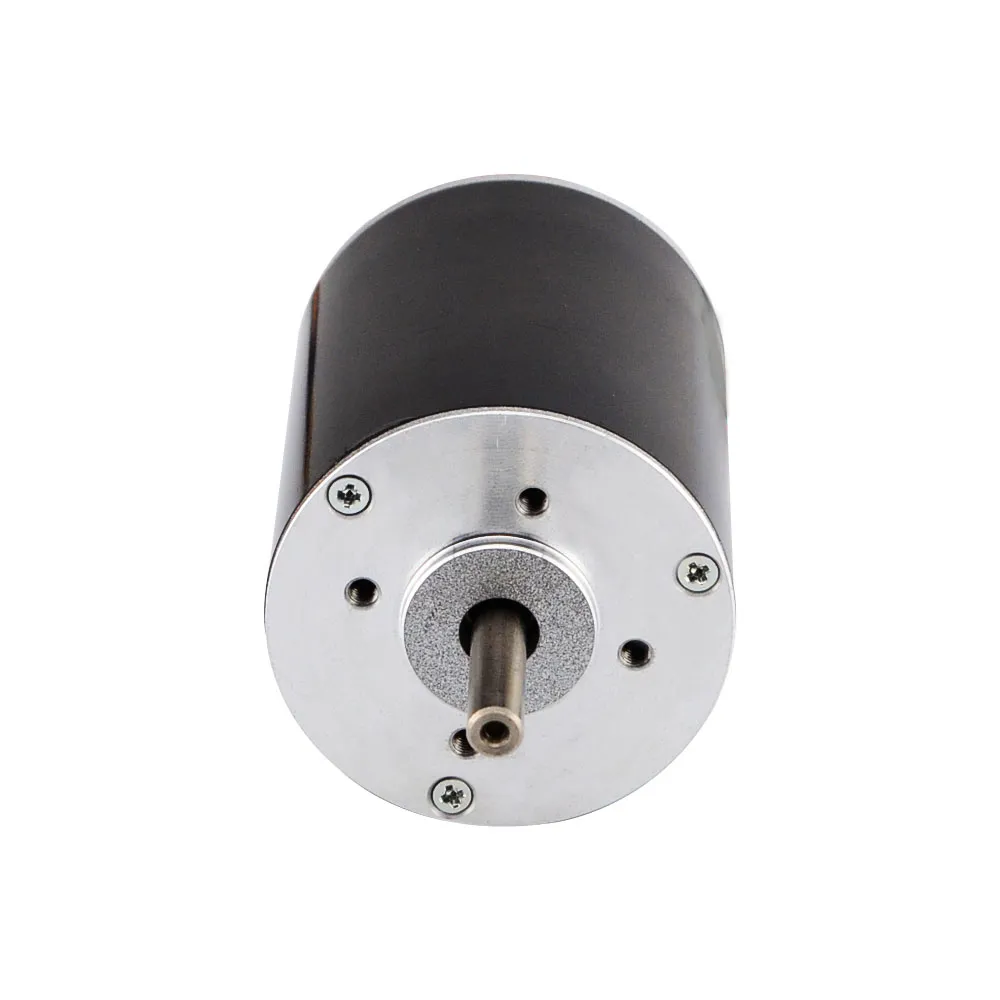

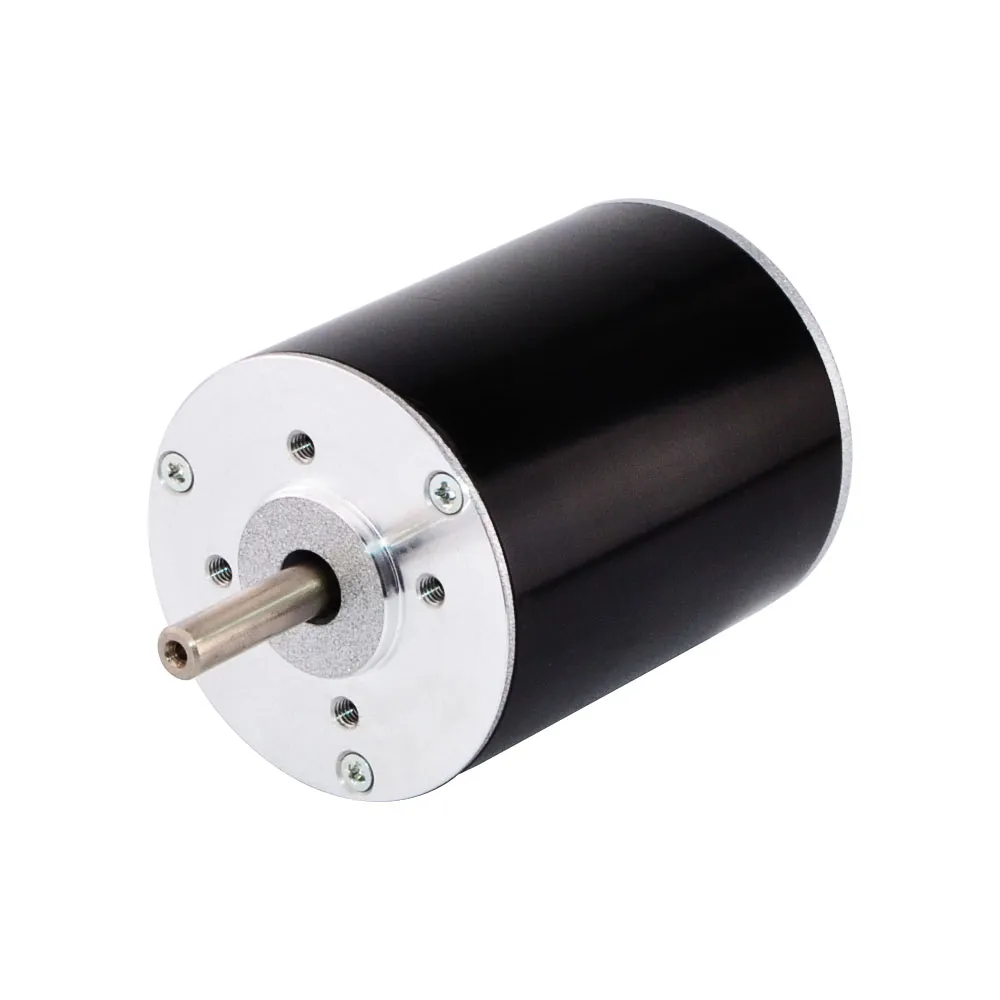

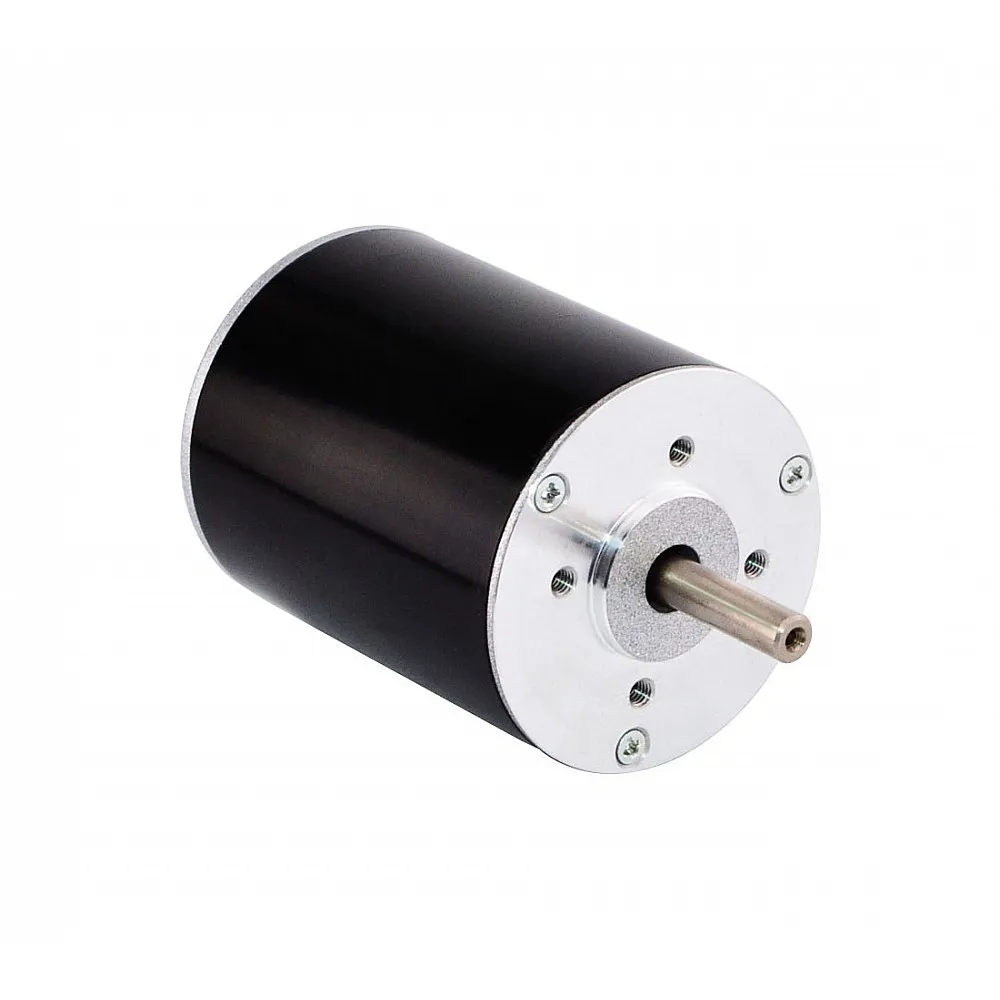

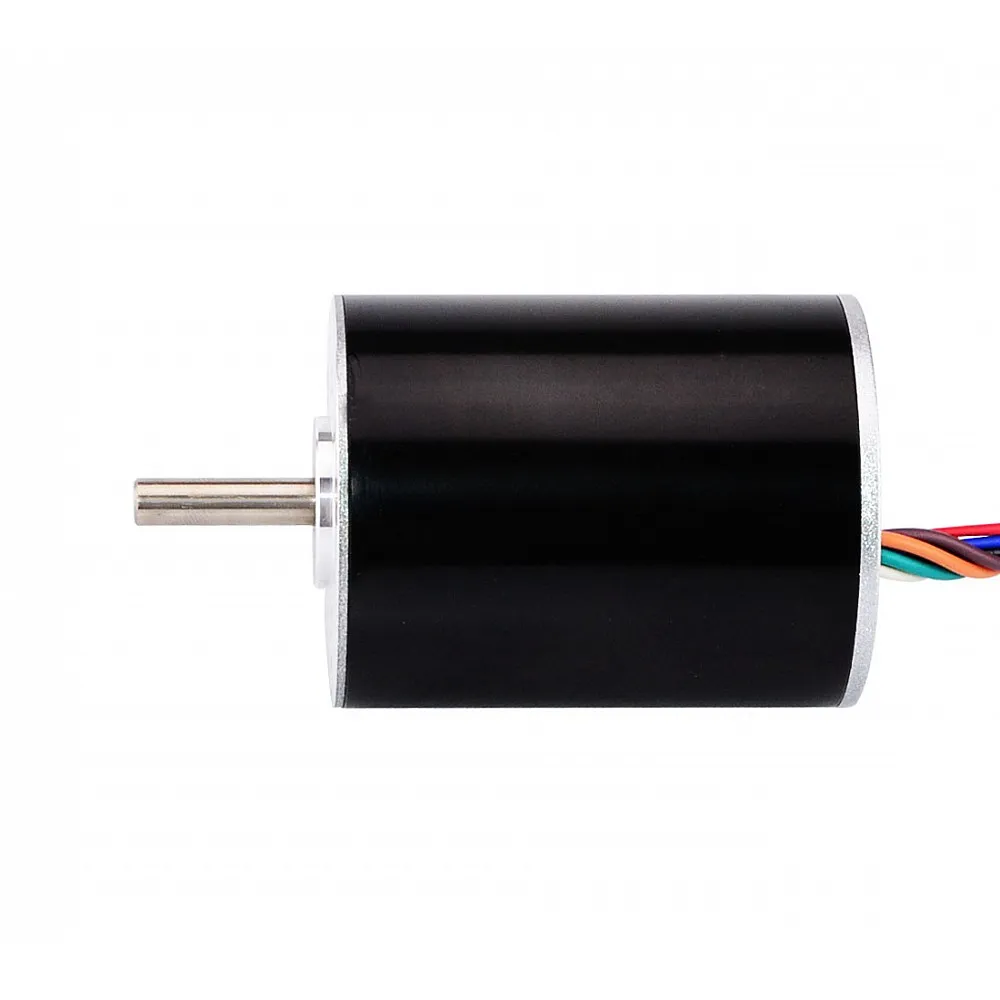

13W 24V 2000RPM 0.062Nm Brushless DC Motor
$22.23
13W 24V 2000RPM 0.062Nm Brushless DC Motor, a compact and efficient solution designed for tasks requiring reliable performance and precise control. Whether it's small-scale automation systems, robotics, or specialized electronic devices, this motor delivers the perfect balance of power and efficiency.
SPECIFICATIONS
Electrical Specification
| Attribute | Value |
|---|---|
| Manufacturer Part Number | 42BLR43-24-01 |
| Phase | 3 |
| Poles | 4 |
| Product Type | BLDC Motor |
| Rated Current(A) | 0.91 |
| Rated Power(W) | 13 |
| Rated Speed(rpm) | 2000 |
| Rated Torque(Nm) | 0.062 |
| Rated Voltage(V) | 24 |
| Insulation Class | Class B |
| Insulation Resistance | 100MΩ Min @500VDC |
| Dielectric Strength Test | 500VAC for 1 Minute |
Physical Specification
| Inventory Method | Dedicated Inventory |
| IP Rating | 20 |
| With Gearbox | No |
| Frame Size(mm) | Φ42 |
| Body Length(mm) | 43 |
| Output Shaft Type | O |
| Shaft Diameter(mm) | 5 |
| Shaft Length(mm) | 20 |
| Number of Leads | 8 |
| Lead Length | 300mm |
| Bearing Type | NMB Ball Bearing, C3 |
| Sensor | Hall Sensor |
| Weight | 0.25kg |
Related Products
Videos
DIMENSIONS
Technical Documents Downloads
| File Name | Size | Download |
| DC-Motor-Catalog.pdf | 55.7MB | Download |
