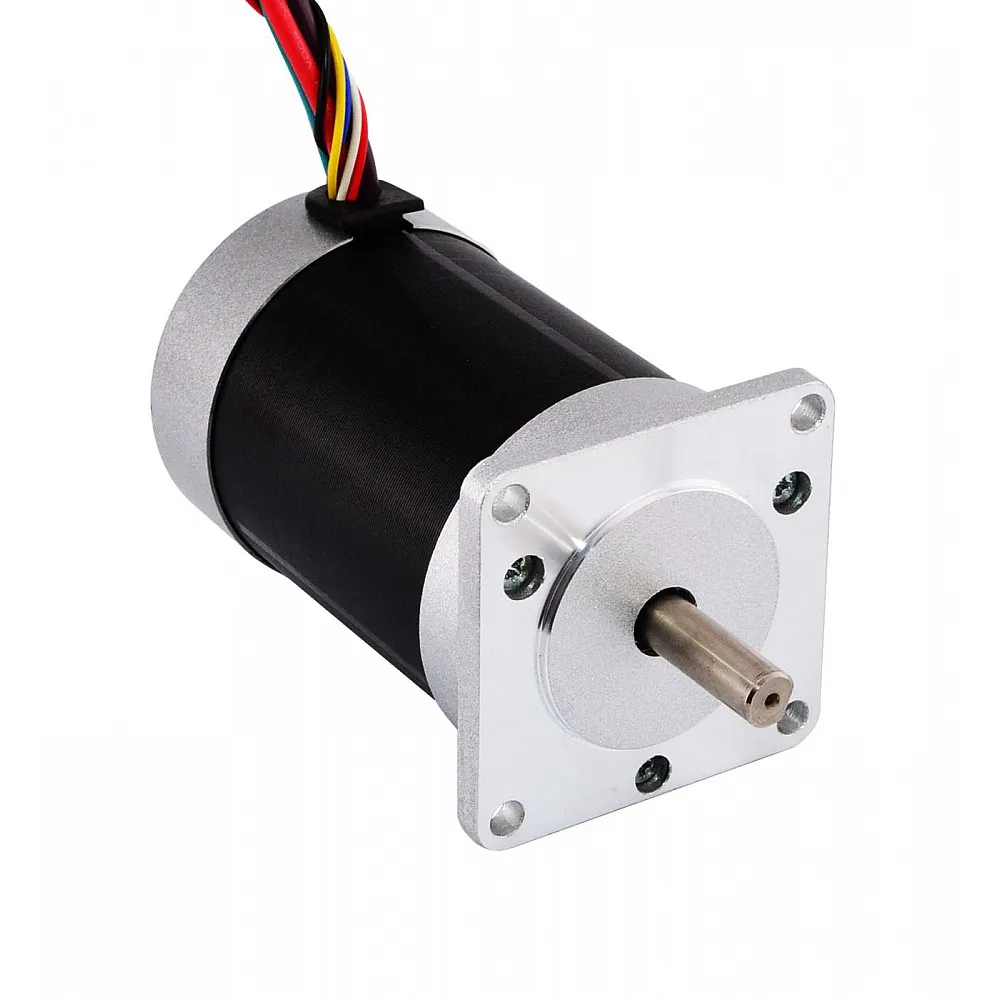

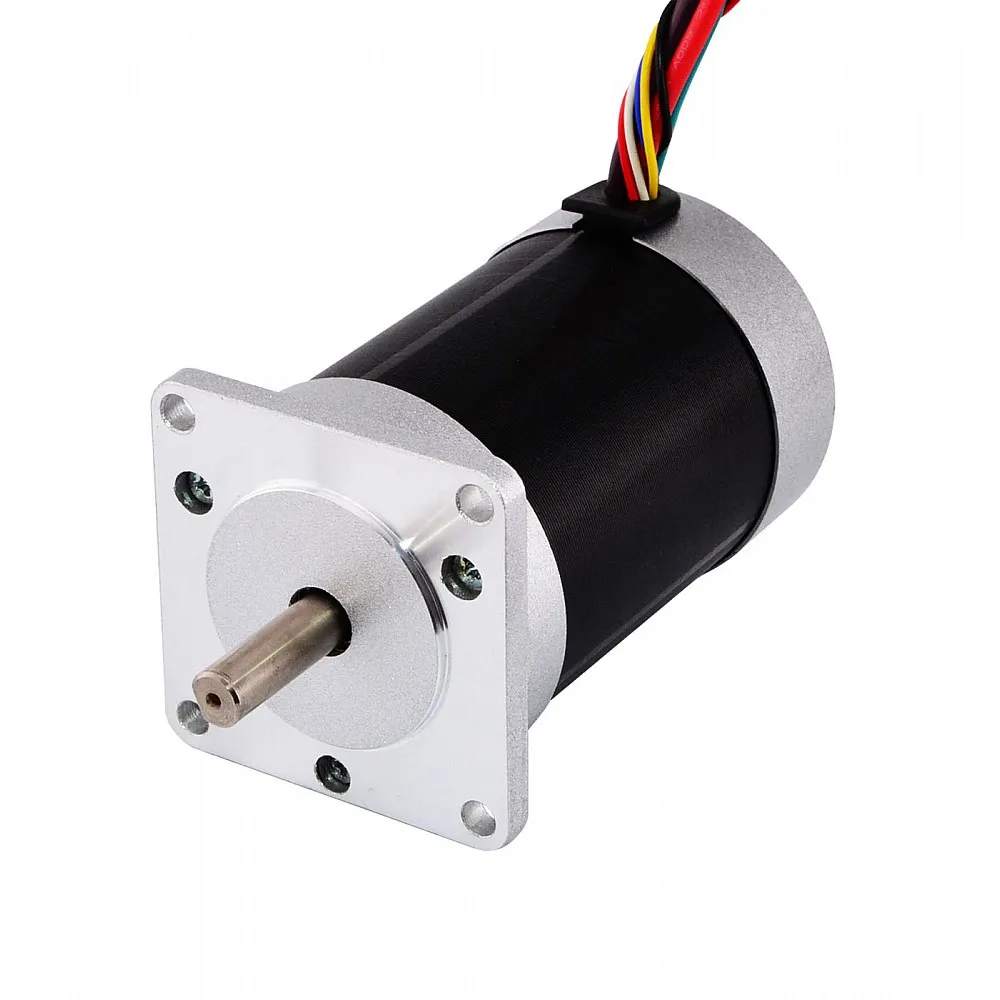

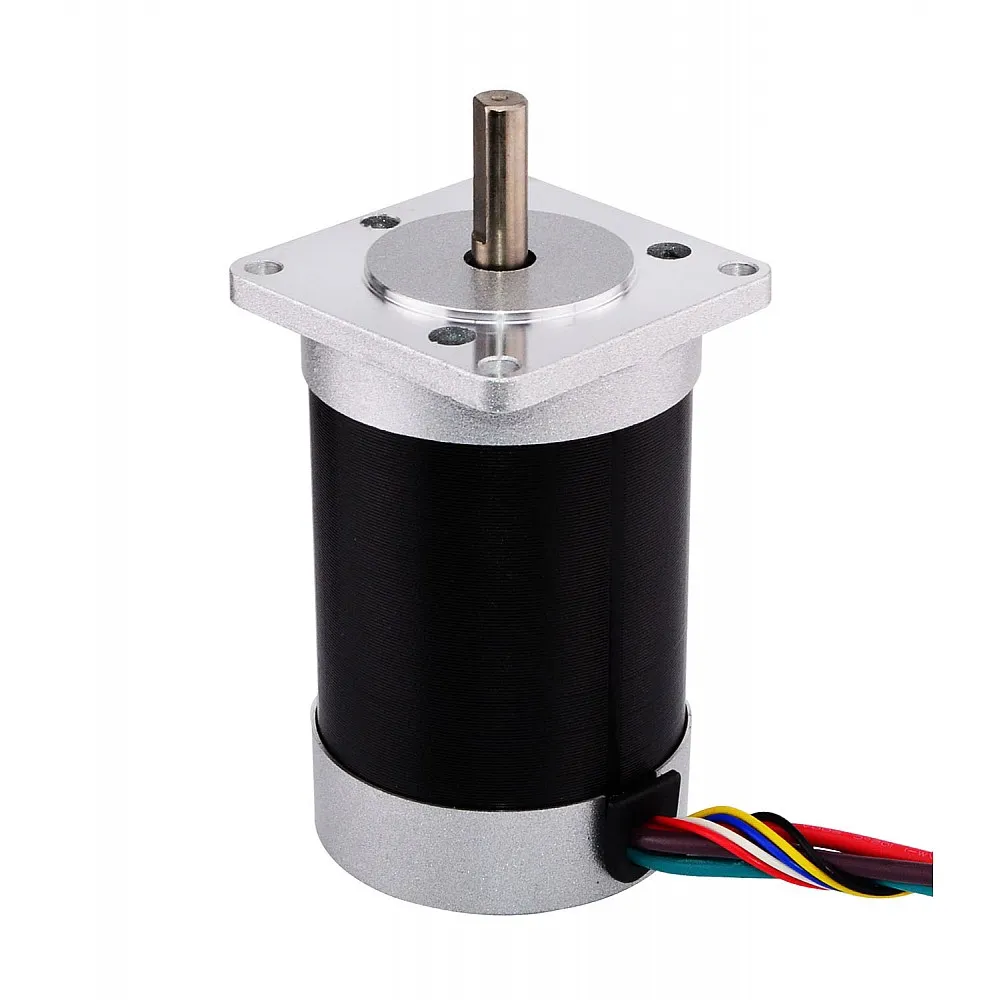

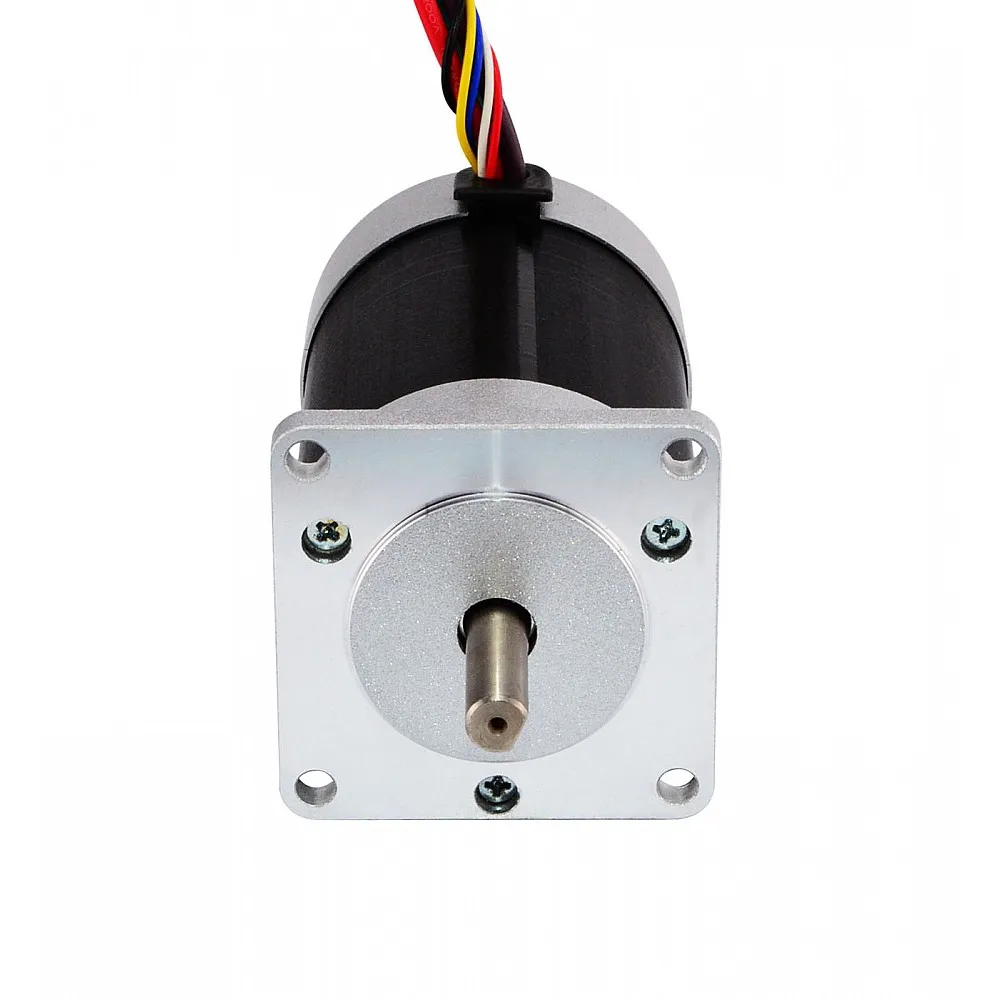

138W 36V 4000RPM 0.33Nm Brushless DC Motor
$36.62
38W 36V 4000RPM 0.33Nm Brushless DC Motor, a high-power and high-performance solution designed to meet the demands of industrial applications. With its impressive torque output and precise speed control, this motor excels in tasks requiring robust and reliable performance, such as heavy machinery, automation systems, and electric vehicle propulsion.
SPECIFICATIONS
Electrical Specification
| Manufacturer Part Number | 57BLR90-36-01 |
| Phase | 3 |
| Poles | 4 |
| Product Type | BLDC Motor |
| Rated Current(A) | 5 |
| Rated Power(W) | 138 |
| Rated Speed(rpm) | 4000 |
| Rated Torque(Nm) | 0.33 |
| Rated Voltage(V) | 36 |
| Insulation Class | Class B |
| Insulation Resistance | 100MΩ Min @500VDC |
| Dielectric Strength Test | 500VAC for 1 Minute |
Physical Specification
| Inventory Method | Dedicated Inventory |
| IP Rating | 20 |
| With Gearbox | No |
| Frame Size(mm) | Nema 23 (57 x 57) |
| Body Length(mm) | 89.1 |
| Output Shaft Type | O |
| Shaft Diameter(mm) | 8 |
| Shaft Length(mm) | 25 |
| Shaft Type | D-cut |
| D-cut Length | 20mm |
| Number of Leads | 8 |
| Lead Length | 300mm |
| Bearing Type | NMB Ball Bearing, C3 |
| Weight | 0.95kg |
