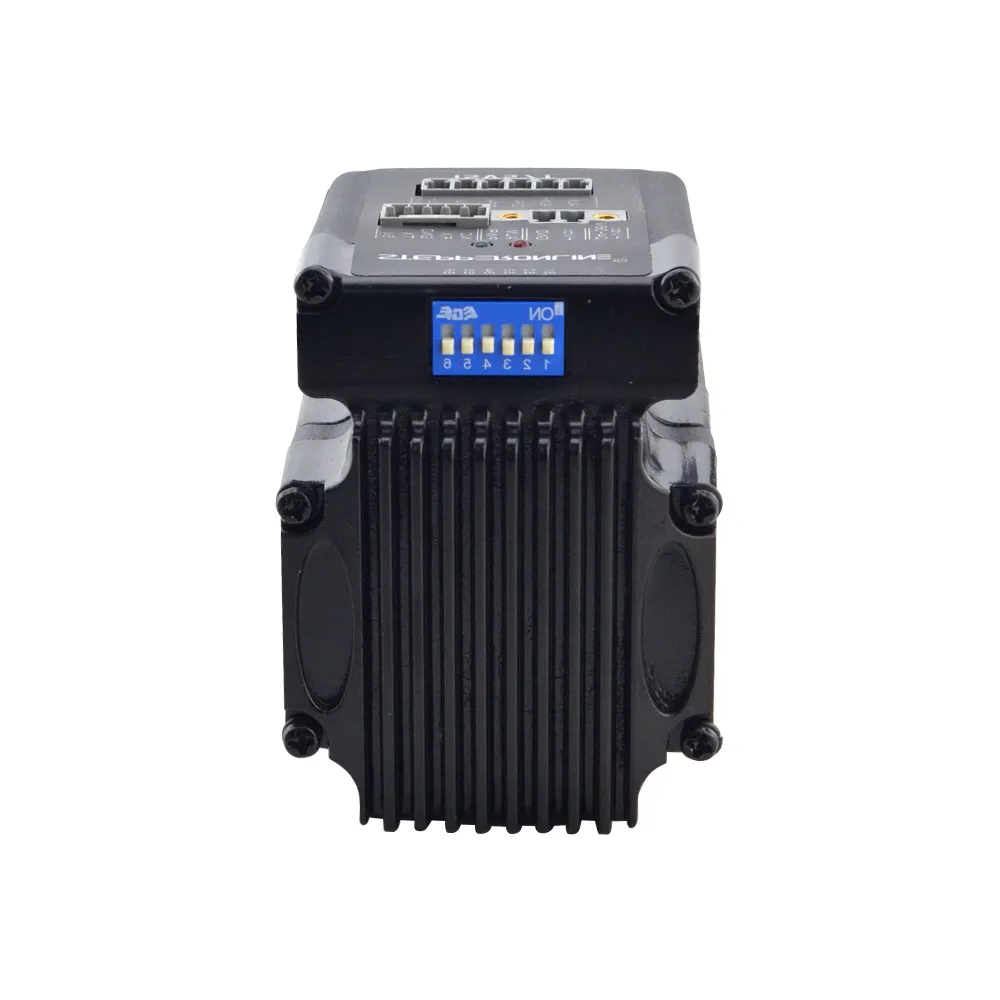

130W 20-50V 3000RPM 0.45Nm NEMA 23 Integrated DC Servo Motor


130W 20-50V 3000RPM 0.45Nm NEMA 23 Integrated DC Servo Motor, a high-performance and versatile solution designed for precise motion control applications. This integrated DC servo motor, built to the NEMA 23 standard, offers a wide voltage range of 20-50V, providing flexibility in power supply options.

Model TypeServo motor

Output Power (W)130

Voltage (V)20-50

Rated Speed (rpm)3000

Product Feature

High Efficiency

The 130W DC servo motor provides high efficiency, ensuring optimal performance and energy savings in various applications.

Integrated Design

Combines motor and driver in a compact and integrated design, simplifying installation and reducing wiring complexity.

High Speed

Operates at a high speed of 3000RPM, delivering rapid and efficient motion control.

Reliable Torque

Offers a consistent torque of 0.45Nm, suitable for applications requiring precise and reliable force.

Wide Voltage Range

Supports a wide voltage range of 20-50V, providing flexibility for various power supply conditions.

Durable Construction

Constructed with high-quality materials, ensuring durability and long-lasting performance in demanding environments.

Low Noise Operation

Designed for low noise operation, providing a quiet and efficient working environment.

Product Applications

Industrial Automation

Ideal for industrial automation systems, providing reliable and efficient motor performance for machinery and equipment.


Suitable for robotics applications, offering precise and controlled movement for various robotic functions.

CNC Machines

Perfect for CNC machines, ensuring accurate and consistent motion control for precise machining.

Conveyor Systems

Applicable in conveyor systems, providing efficient and reliable motion control for material handling.

Medical Devices

Used in medical devices that require precise and dependable motor performance for various medical applications.

Packaging Equipment

Ideal for packaging machinery, ensuring efficient and accurate operation in packaging processes.

Textile Machinery

Suitable for textile machinery, offering precise and reliable motion control in fabric processing.



Electrical pecifications:

Manufacturer Part Number iSV57T-130S
Product Type Integrated Motor
Control Modes Pulse Mode
Input Voltage(V) 20~50VDC
Peak Speed(rpm) 4000
Output Peak Current(A) 0~6
With Brake No
Encoder Type Magnetic Incremental
Logic Signal Current(mA) 7~16
Pulse Input Frequency(kHz) 0~300
Pulse Voltage(V) 5
Rated Power(W) 130
Rated Speed(rpm) 3000
Rated Torque(Nm) 0.45
Peak Torque(Nm) 1.1
Encoder Resolution 16bit
Isolation Resistance 100MΩ

Physical Specifications:

Aviation Plug or Not No
Integrated or Not Yes
Inventory Method Dedicated Inventory
IP Rating 20
Frame Size(mm) 57 x 57
Body Length(mm) 128
Shaft Diameter(mm) 8
Shaft Length(mm) 21
Weight 1.25kg
