130 Large Torque Worm Gear Three-In-One Suit Combination

$270-$325

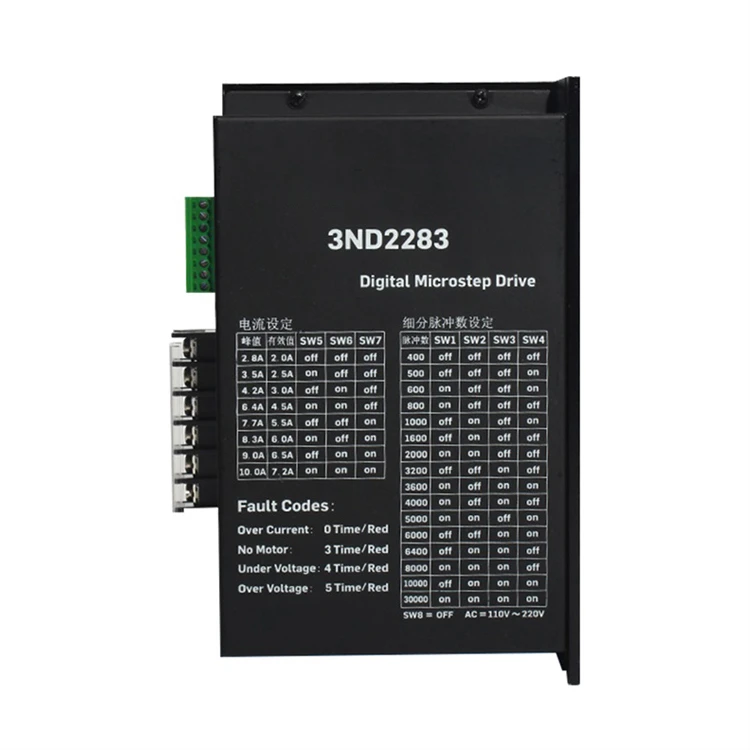

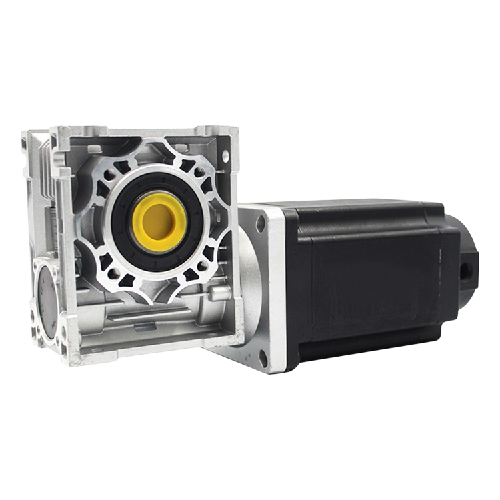

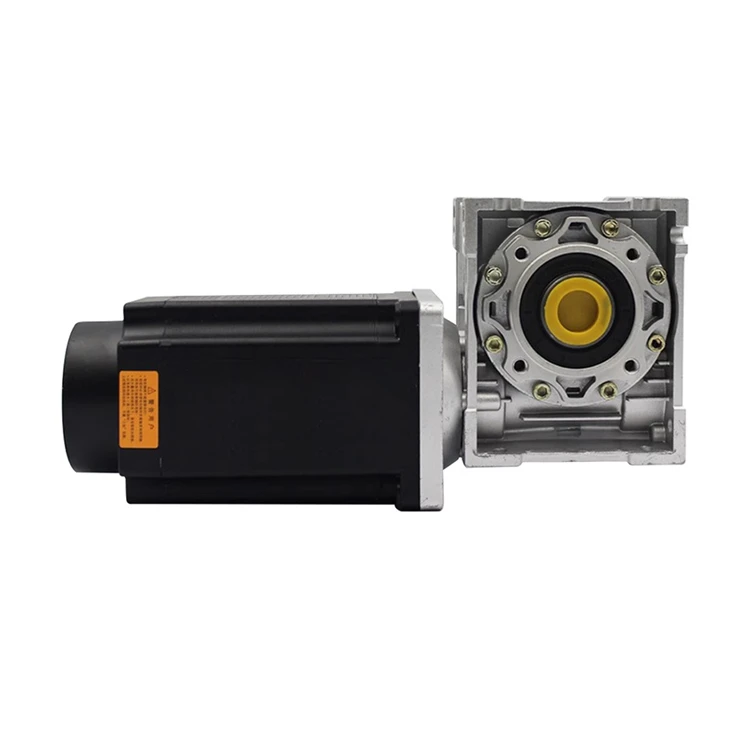

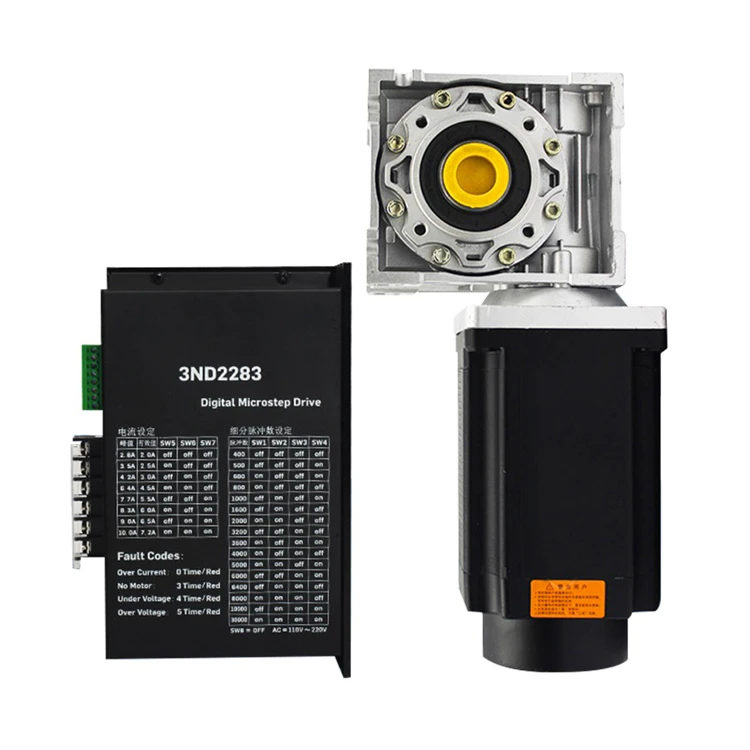

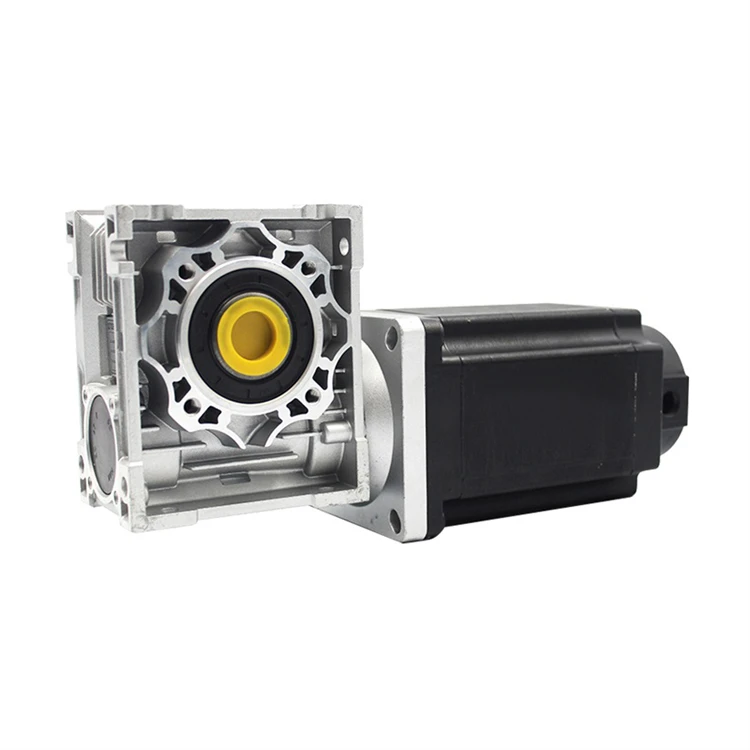

The 130 Large Torque Worm Gear Three-In-One Suit Combination features a 3ND2283 driver, 130 stepper motor and worm gearbox. It offers high accuracy, stable performance, and low noise. With strong wear resistance and high torque. Ideal for large industrial machines such as heavy-duty cutting machines and large-scale automated assembly equipment.

Model TypeStepper Motor

SPECIFICATIONS

Torque 24N 28N 35N 50N
Motor Length (mm) 188 220 252 280
Turbine Worm Specifications 063(Input shaft 19mm keyway 6mm, output orifice 25mm keyway 8mm)
Gear Ratio 5/7.5/10/15/20/25/30/40/50/75/80/100

Videos

DIMENSIONS

Technical Documents Downloads

File NameSizeDownload
Stepper-Motor-Catalog.pdf19.2MBDownload
