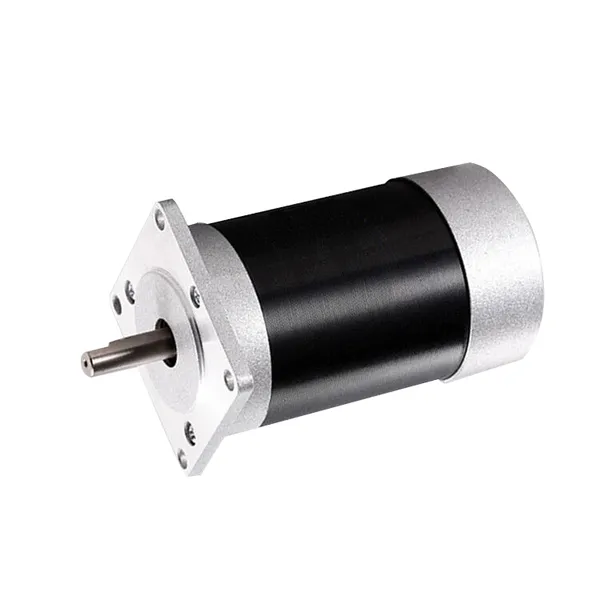

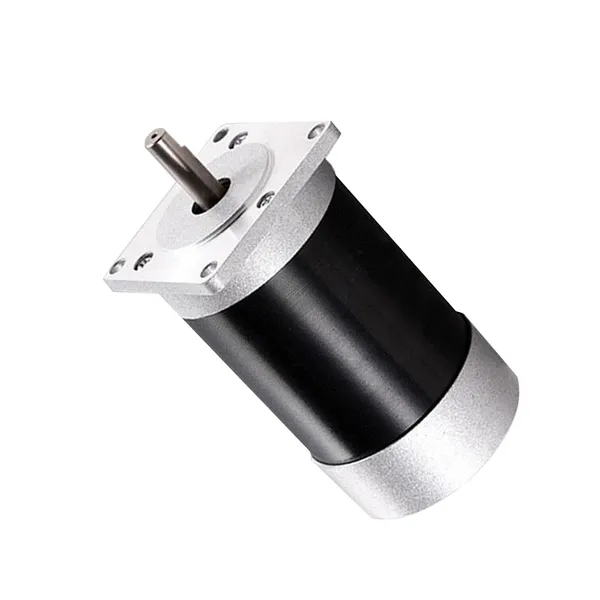

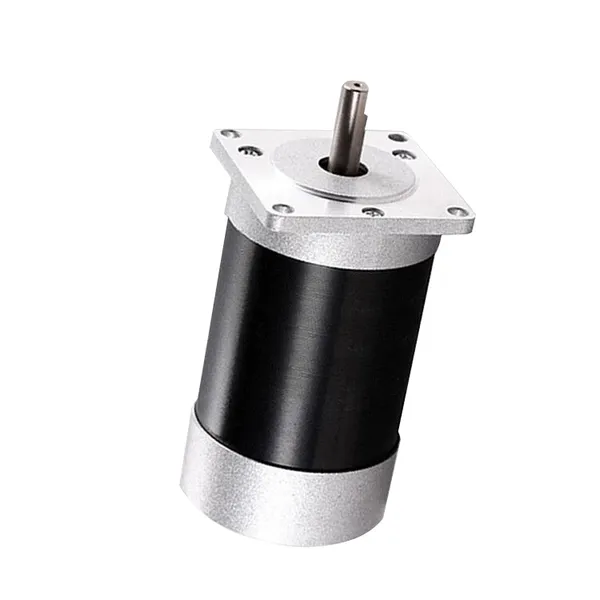

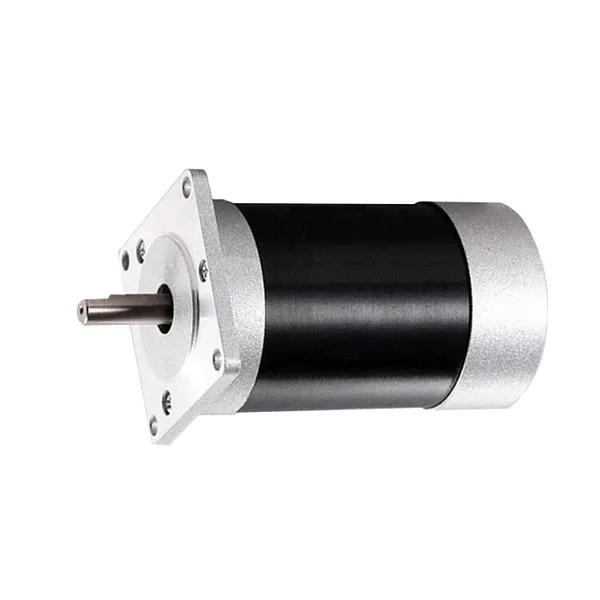

12V 50W 0.16 Nm 3000 rpm 5.2A Brushless DC Motor

Home > 12V 50W 0.16 Nm 3000 rpm 5.2A Brushless DC Motor

12V 50W 0.16 Nm 3000 rpm 5.2A Brushless DC Motor

$156.98

12V Brushless Motor: Low price, 3-phase DC motor with continuous control at maximum torque. 50W power, 3000 rpm speed, 0.16 Nm torque, 5.2A current. Efficient and precise, suitable for electric car applications.

Motor TypeDC Motor

Power(W)50

Voltage (V)12

Rated Speed (rpm)3000

12V 50W 0.16 Nm 3000 rpm 5.2A Brushless DC Motor
Model: BLDC-D2BLD50-12A-30S
Matched Controller Model: BLD-120A
Rated Power: 50W
Rated Voltage: 12V
Rated Current: 5.21A
Phase: 3 phase
Rated Torque: 0.16 Nm
Max Torque: 0.48 Nm
Rated Speed: 3000 rpm
No-load Current: <0.8A
Square Flange Size: 60 mm
Insulation Grade: F
Working Efficiency: 71%
Protection Grade: IP54
Motor Lead Length: 1 meter
Certificate: CE, RoHS, ISO
Weight: 2 kg

Note: Power, Voltage, Speed, Shaft, Motor Length, and Motor Lead of BLDC Motors can be customized.

12V 50W 0.16 Nm 3000 rpm 5.2A Brushless DC Motor

Line Define

Power Wire Hall Wire
Red U Red 5V
Yellow V Black GND
Black W Blue Hu
Green Hv
White Hw

Product Display   / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / /

Upgrade your projects with our high-efficiency and controllable 50W brushless DC motor, offered at a low price. This motor features a rated speed of 3000 rpm, a rated torque of 0.16 Nm, a peak torque of 0.48 Nm, and a rated current of 5.2A. With its 3-phase design, it operates efficiently at a 12V power supply, delivering precise control over desired torque and rotation speed.

The versatility of the 12V 50W brushless DC motor makes it widely used in various applications. It finds application in electric bicycles, inverter air conditioners, washing machines, drones, automobiles, CNC machine tools, polishing and grinding equipment, packaging machinery, tools, turnstiles, industrial control, medical machinery, automation, AGV trolleys, aerospace, and intelligent storage equipment.

Upgrade your electric bicycles, appliances, machinery, and automation projects with this reliable and cost-effective 12V 50W brushless DC motor. Experience its high efficiency, controllability, and wide application range in various industries.

Feature   / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / /

Features

  • Stable speed control: 12V brushless motor continues to set speed and a feedback signal is compared from the speed of the motor to adjust the voltage applied to the motor; therefore, even if the load change, still can set the speed from slow instantaneous adjustment to, and in order to stabilize the running speed.
  • Thin, high power: 3 phase DC motor adopts a permanent magnet brushless motor rotor, thus realizing the thin and high power.
  • Wide speed control range: 50W brushless DC motor speed control range than speed ac motor and inverter wider, because unlike the speed ac motor that at low speed have restrictions on the use of torque, so there is no brush motor is suitable for from low speed to high speed, all require the use of a certain torque.
  • Contribute to energy saving: The rotor of the brushless dc electric motor is used for the permanent magnet, which can reduce the two-loss of the rotor, so the power consumption is reduced by more than 20% compared with the three-phase induction motor with variable frequency control, which is helpful for the energy saving of the device.
  • Equipped with protection function: 12V 50W BLDC motor can help to protect the safety of the equipment system.
  • Instantaneous maximum torque lineThe maximum torque momentarily impacts the load when the motor is started.Beyond this torque, the over-current protection of the driver will cause the motor to stop.
  • Short-time operation areaThe motor can run for a short time within this torque range at different speeds.If the operation time is too long, the motor will generate heat, which may cause the motor to stop or burn.
  • Rated operating torque lineThe rated torque of the motor runs at different speeds, and the motor can run for a long time at this torque.
  • Continuous operating areaWhen the motor rotates at different speeds, it runs continuously in this corresponding zone.

Applications   / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / /

12V 50W 0.16 Nm 3000 rpm 5.2A Brushless DC Motor

12V 50W Brushless DC motors are widely used in our lives, such as electric bicycles, inverter air conditioners, washing machines, drones, automobiles, CNC machine tools, polishing and grinding equipment, packaging machinery, tools, turnstiles, industrial control, medical machinery, automation to, AGV trolley, aerospace and intelligent storage equipment, etc.

Tips: Can a 12V solar panel be connected to a 12V BLDC motor?

The answer is yes. Since the solar panel output is DC, it is possible to run a BLDC motor. But you may need more than one solar panel. The 12 V solar panels should be connected in parallel to provide starting current to the 12V BLDC motors. The charging of the panel is not constant. Depending on the timing of the solar density, the voltage may fluctuate, so your 12V brushless motor speed may vary. What we need to pay attention to is that the starting current may be 30% larger than the rated current.
