  • 12v-48v 1200N 5mm/s-120mm/s linear actuator

  • Voltage (V):48V / 36V / 24V / 12V DC
    Load Capacity:1200N
    Max Speed:5~40mm/s
    Stroke:Customize
    Type of Duty:10%,2min.on  /  18min.off
    Limit switches:Inner
    Operation Temperature:-15℃~45℃
    Color:Black or Gray
    Protection Class:IP65
  • 1 piece

    $24.5 - $48
  • Online consultation

Parameters

Input Voltage 48V / 36V / 24V / 12V DC
Load Capacity 1200N
Speed 5~40mm/s
Stroke Customize
Type of Duty 10%, 2min.on / 18min.off
Limit switches Inner
Operation Temperature -15℃~45℃
Protection Class IP65

Introduction

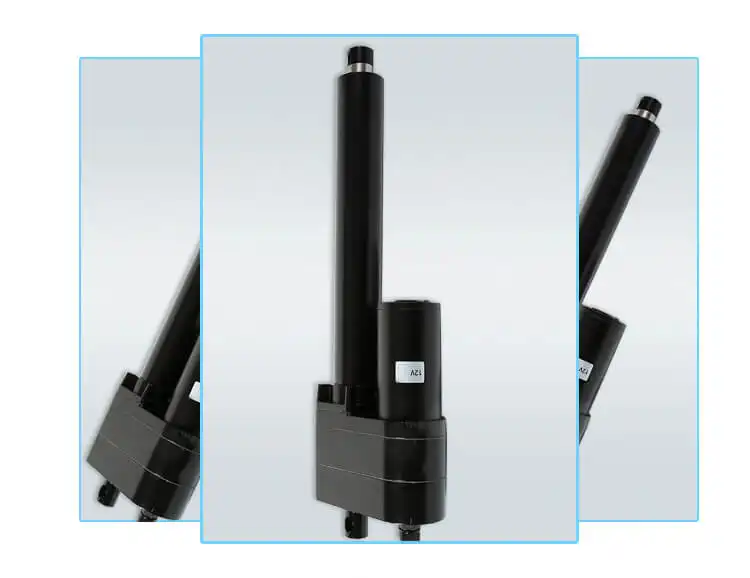

LY015 high-thrust industrial DC linear actuator is an extremely important product in the industrial industry. The product adopts DC permanent magnet motor, which has a small structure, strong and durable, and is especially suitable for occasions with harsh environment and relatively large output load requirements. Outstanding superior product performance makes this product very versatile in special vehicles, new energy, and environmental protection industries. The super protection ability can also be easily dealt with in the application of the shipbuilding industry.

12v-48v 1200N 5mm/s-120mm/s linear actuator 12v-48v 1200N 5mm/s-120mm/s linear actuator 12v-48v 1200N 5mm/s-120mm/s linear actuator 12v-48v 1200N 5mm/s-120mm/s linear actuator 12v-48v 1200N 5mm/s-120mm/s linear actuator 12v-48v 1200N 5mm/s-120mm/s linear actuator 12v-48v 1200N 5mm/s-120mm/s linear actuator 12v-48v 1200N 5mm/s-120mm/s linear actuator

Features

1. DC permanent magnet motor, simple and compact structure, made of pure metal stainless steel seamless steel tube, sturdy and durable;

2. Optional input voltage: 12V/24V/36V/48V/72V DC;

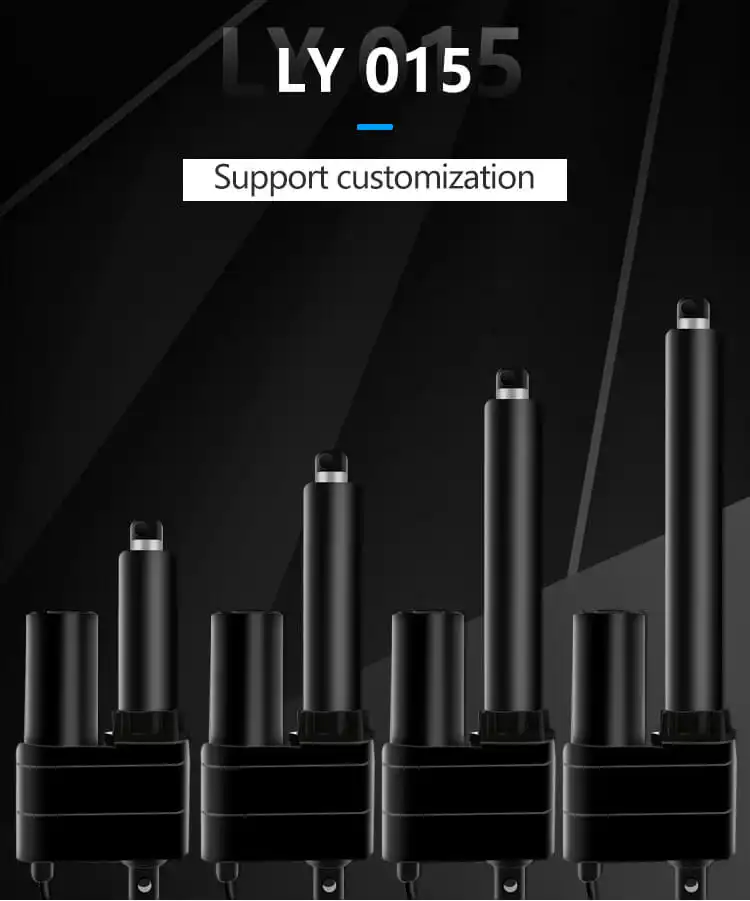

3. Customized according to usage requirements:

(1) Load: The maximum load is 10000N;

(2) Speed: 5mm/s- 80mm/s;

(3) Operating temperature configuration: -45℃- 80℃;

4. Optional signal feedback type: potentiometer, Hall;

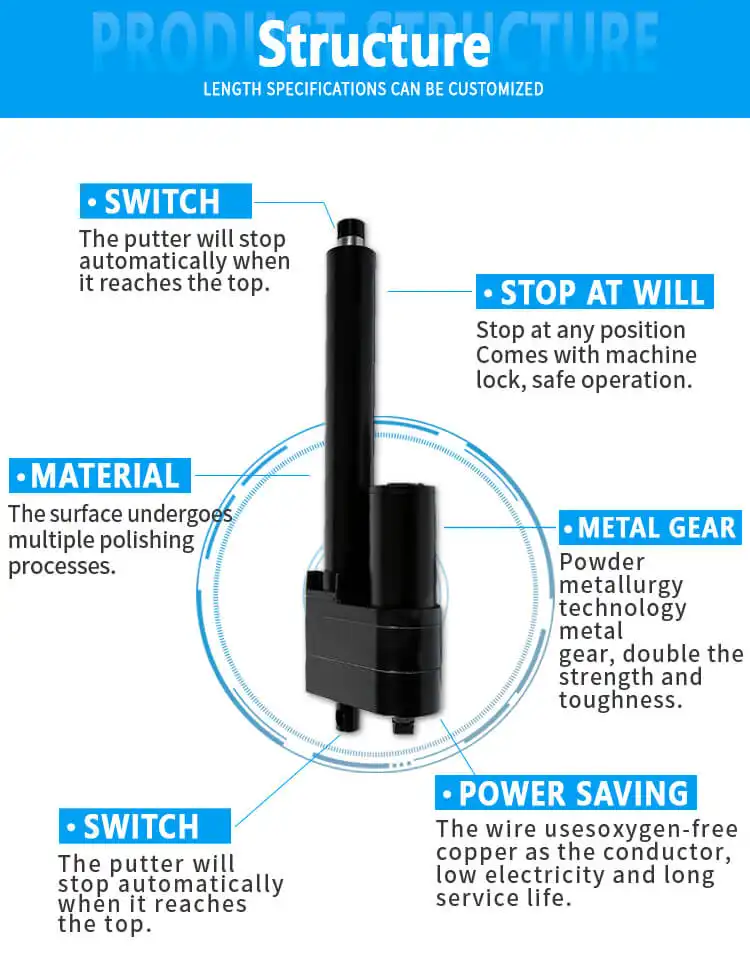

5. Built-in travel switch, with good self-locking function, will not slide or slip;

6. The equipment has an overcurrent protection function;

7. The protection level is IP65:

(1) Use American standard waterproof gaskets, fully waterproof:

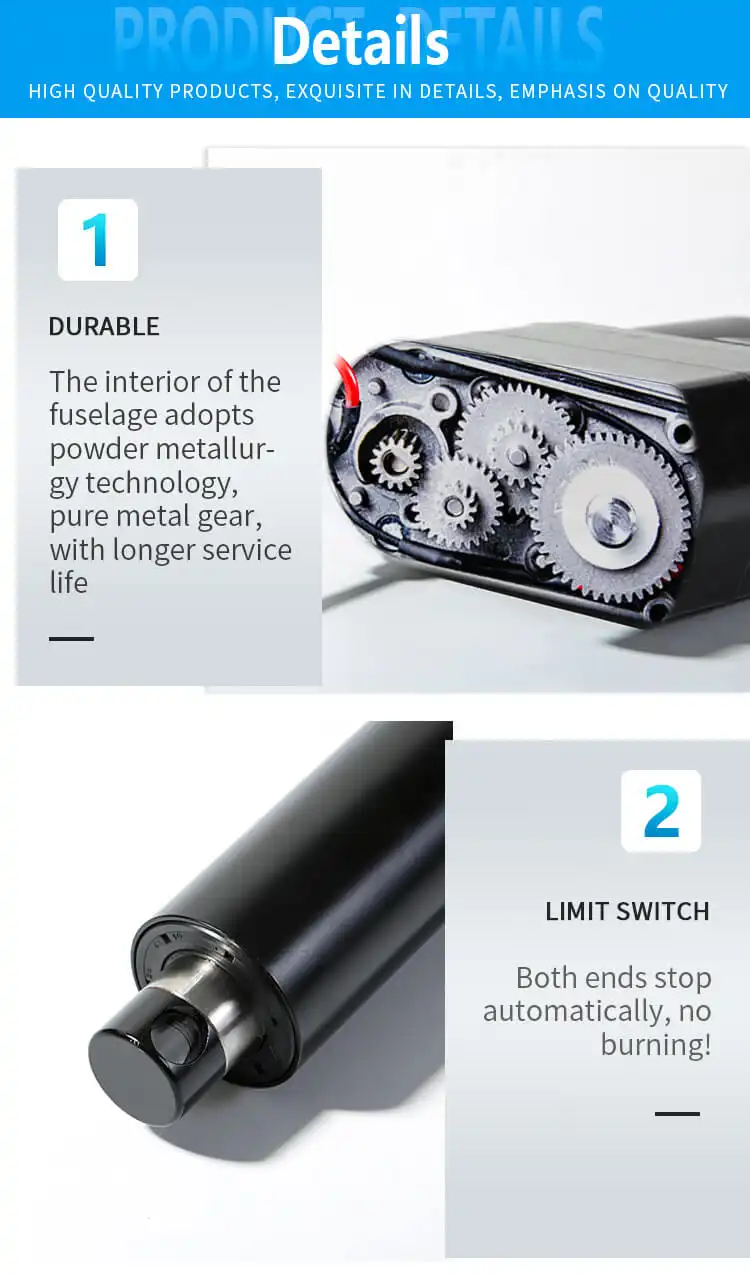

(2) The product gear is made of powder metallurgy, high strength, wear resistance and long life;

(3) The product adopts special grease, the lowest temperature can reach -45℃ to 80℃, and it has anti-corrosion function;

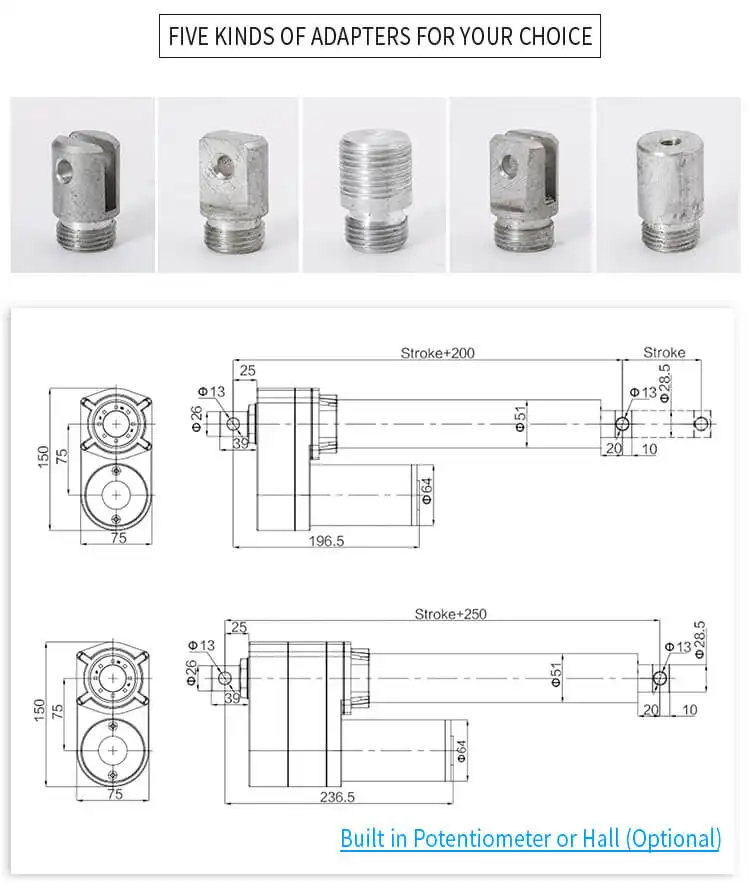

8. The slider can be customized before and after the product, and the selection is flexible and unlimited;

9. This product is widely used in special vehicles, mining properties, environmental sanitation, etc.

12v-48v 1200N 5mm/s-120mm/s linear actuator

Application

12v-48v 1200N 5mm/s-120mm/s linear actuator

LY015 high-thrust industrial DC linear actuator has the characteristics of energy saving and environmental protection, reliable performance, sensitive action, stable operation, the same push-pull force, and good environmental adaptability. Novel design, small size, high precision, complete synchronization, good self-locking performance, sanitation, direct motor drive, widely used in electric booths, electric skylights, ergonomic furniture and other occasions that require linear motion actuators, and the installation is very convenient
