12v-24v 6000N 50-800mm 4-10mm/s linear actuator

Home > 12v-24v 6000N 50-800mm 4-10mm/s linear actuator

12v-24v 6000N 50-800mm 4-10mm/s linear actuator

$39 - $215

This 12v-24v linear actuator offers a maximum thrust of 6000N and stroke lengths of 50-800mm. With a speed range of 4-10mm/s, it operates quietly and efficiently to accomplish a variety of projects.

Voltage (V)24 / 12 DC

Load Capacity (N)6000

Speed4mm/s(6000N) , 10mm/s(2000N)


Input Voltage 24V / 12V DC
Load Capacity 6000N
Max Speed 4mm/s(6000N) , 10mm/s(2000N)
Stroke Customize
Type of Duty 10%,2min.on  /  18min.off
Limit switches Inner
Operation Temperature -15℃~45℃
Color Black or Gray
Protection Class IP54

If the product model cannot meet your requirements, please feel free to inform us of your requirements, such as stroke, voltage, usage, thrust, speed and quantity. Our company also has other types of linear actuators for you to choose and can be customized according to your requirements!

Overview

12v-24v 6000N 50-800mm 4-10mm/s linear actuator

LY012 Manufacturer-customized IP66 DC electric push rod silent electric linear actuator for cleaning equipment is the most widely used electric push rod. It is an electric drive device that converts the rotary motion of the motor into the linear motion of the push rod. The linear motion of the push rod is completed by controlling the forward and reverse rotation of the electric. Mechanisms such as levers, rockers or connecting rods can complete complex actions such as rotation and swing. It can be equipped with hand controller, remote control, reciprocator, timer, induction controller, temperature controller, PLC programming, speed controller, touch screen controller, etc. to control. It is the most extensive in the fields of skylights, fire fighting equipment, medical equipment, electric sanitation vehicles, electric furniture and mechanical equipment.

12v-24v 6000N 50-800mm 4-10mm/s linear actuator 12v-24v 6000N 50-800mm 4-10mm/s linear actuator 12v-24v 6000N 50-800mm 4-10mm/s linear actuator

Shopping guide:

1. Determine the voltage: There are two options for voltage: DC 12V and 24V.

2. Determine the stroke of the push rod, that is, the range of motion of the push rod, which can be customized according to your requirements.

3. Determine the pushing speed of the putter. Different speeds correspond to different powers. The details are described in the details. You can also consult online or leave a message to me.

The power of the putter is related to the speed. The faster the speed, the smaller the power, and the slower the speed, the greater the power. The two are inversely proportional. Buyers can choose the appropriate speed and thrust motor according to the following parameter table:



12v-24v 6000N 50-800mm 4-10mm/s linear actuator 12v-24v 6000N 50-800mm 4-10mm/s linear actuator
  1. DC 12V/24V permanent magnet motor;
  2. Maximum thrust 8000N, maximum pull 6000N
  3. The shell color is gray or black optional
  4. Protection IP54
  5. The inner tube adopts stainless steel tube
  6. Low noise, the average noise level is lower than 48dB (environmental noise≤40dB)
  7. Built-in electronic limit switch

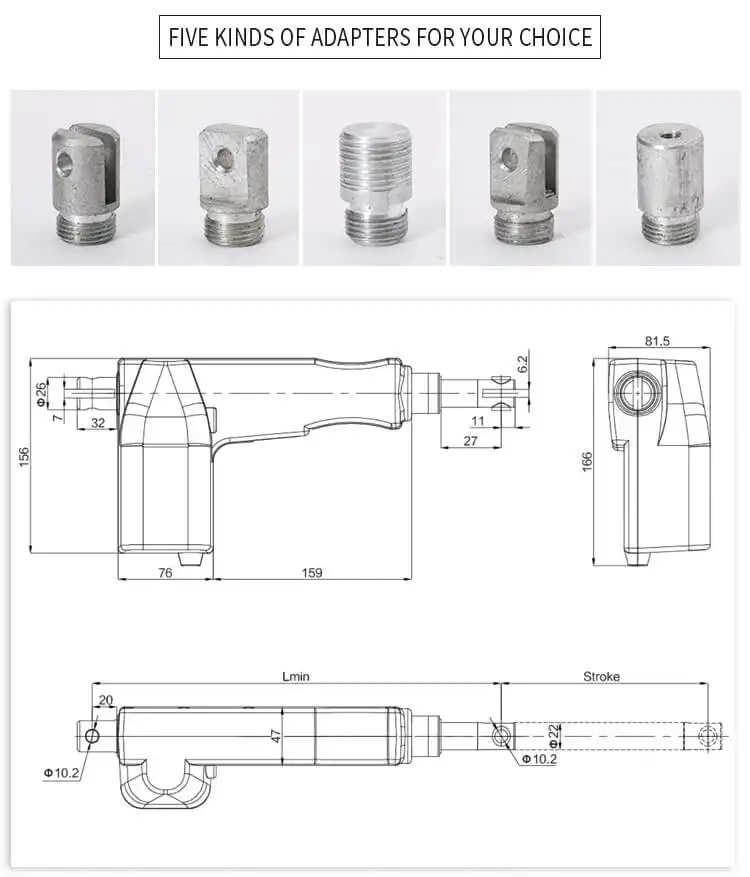

  8. High-strength front and rear fixing device
Application Image
