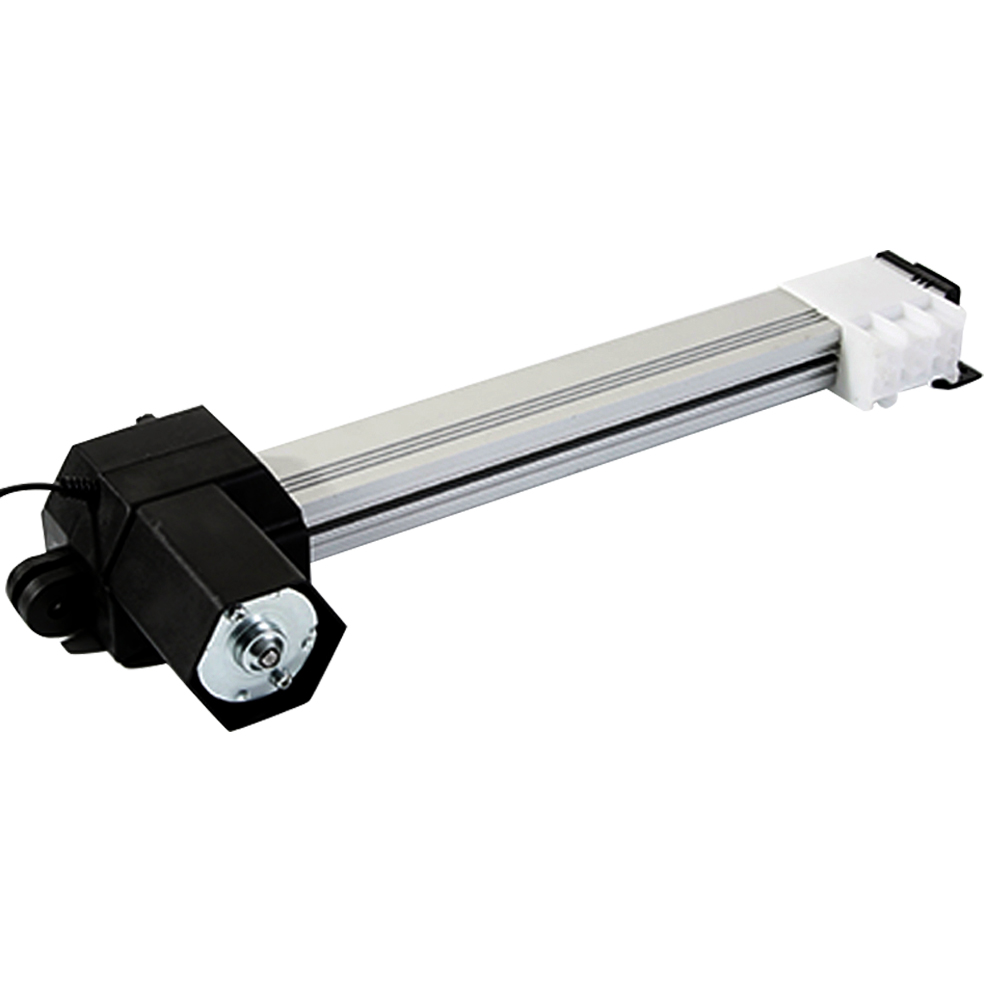

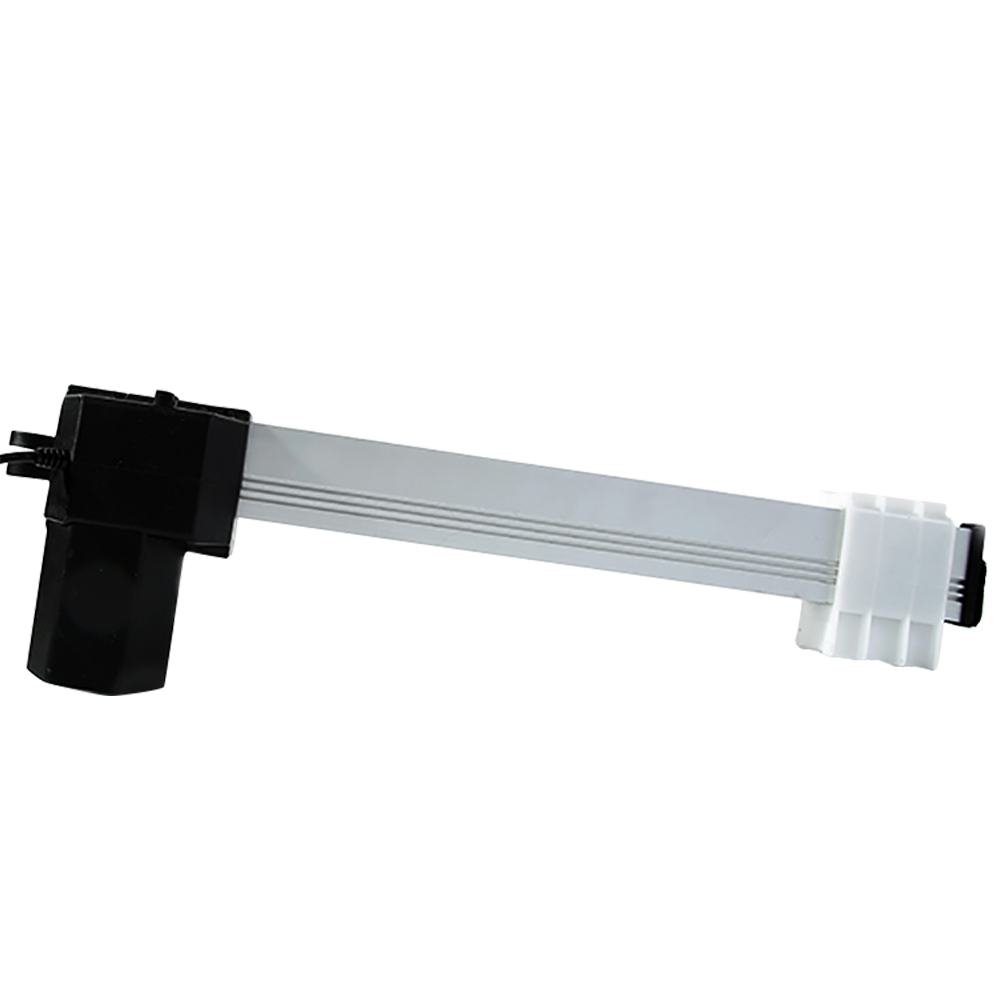

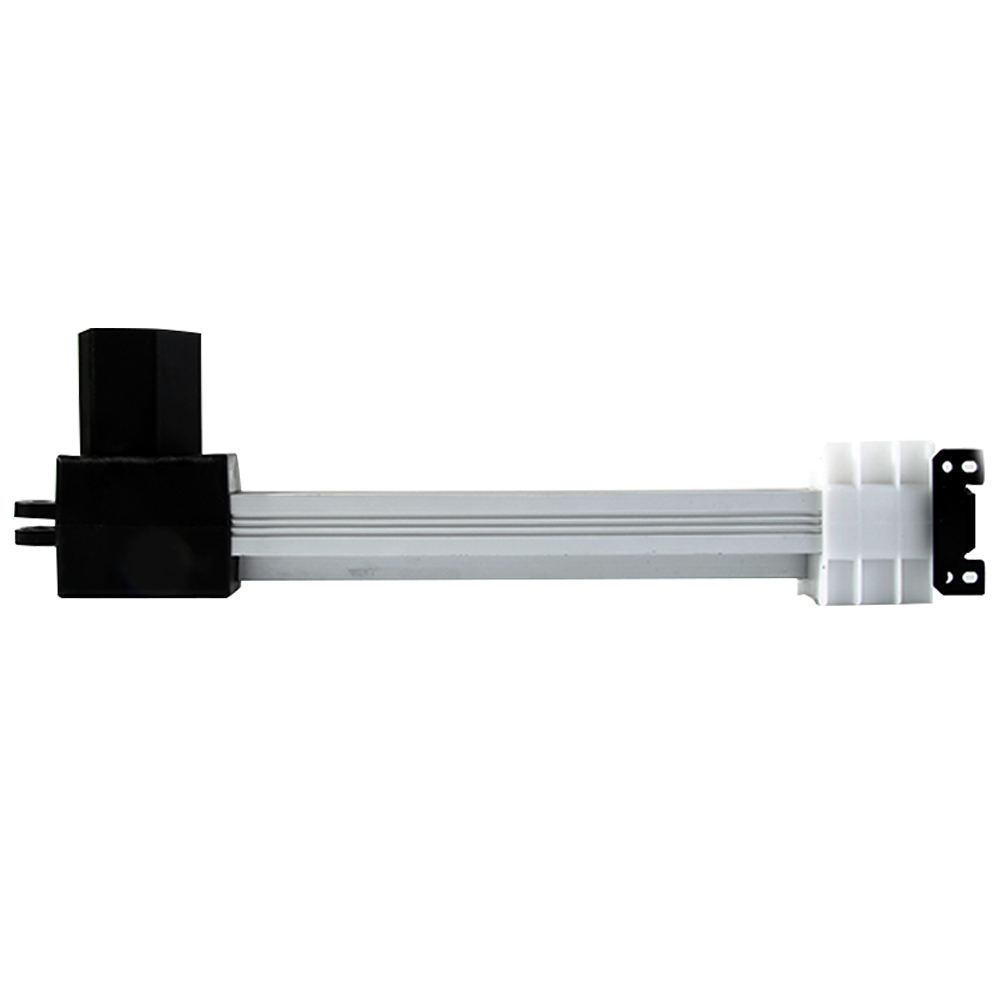

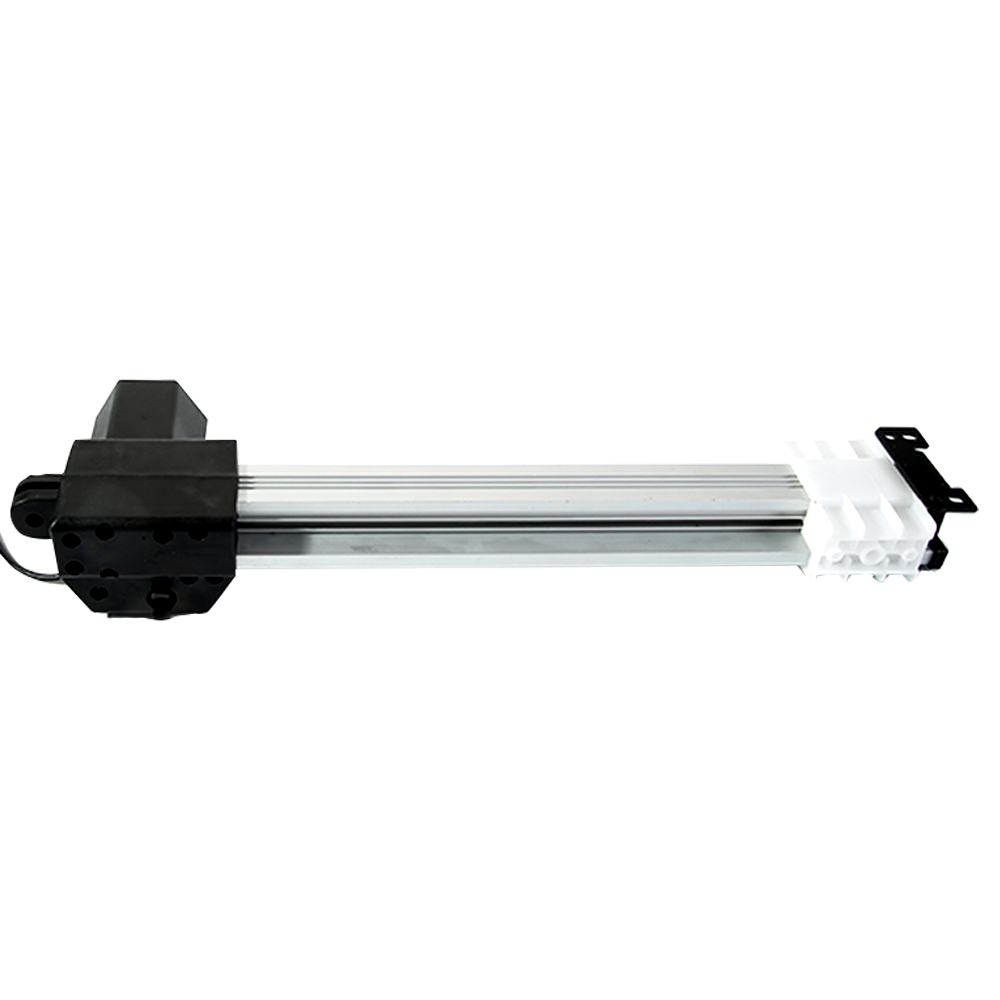

12V 24V 4000N 100-800mm 18mm/s-35mm/s linear actuator
12V 24V 4000N 100-800mm 18mm/s-35mm/s linear actuator
12V 24V 4000N 100-800mm 18mm/s-35mm/s linear actuator
12V 24V 4000N 100-800mm 18mm/s-35mm/s linear actuator
right
left
  • 12V 24V 4000N 100-800mm 18mm/s-35mm/s linear actuator

  • Voltage:12V / 24V DC
    Load Capacity:4000N
    Max Speed:18mm/s(1500N) , 35mm/s(750N)
    Stroke:Customize
    Type of Duty:10%,2min.on / 18min.off
    Limit switches:Inner
    Operation Temperature:-15℃~45℃
    Protection Class:IP20
  • 1 piece

    $48 - $239
  • Online consultation

Parameters

Input Voltage 24V / 12V DC
Load Capacity 4000N
Max Speed 18mm/s(1500N), 35mm/s(750N)
Stroke Customize
Type of Duty 10%,2min.on / 18min.off
Limit switches Inner
Operation Temperature -15℃~45℃
Protection Class IP20

Introduction

LY014 DC motor-driven high-thrust aluminum alloy track putter is a special product, suitable for furniture and fitness industry applications, such as electric hospital beds, home care beds, furniture, office furniture, etc. It has the characteristics of small size, lighter weight, large torque and large stroke. The range of travel options is large, and with the controller, it can realize any height adjustment in the lifting position, meeting the needs of free adjustment of the product lifting height. It is most widely used in the fields of display stand, medical equipment, mechanical equipment, etc. The product can achieve a larger travel range in a limited space.

12V 24V 4000N 100-800mm 18mm/s-35mm/s linear actuator 12V 24V 4000N 100-800mm 18mm/s-35mm/s linear actuator 12V 24V 4000N 100-800mm 18mm/s-35mm/s linear actuator

Features

Track-type slider, the nut can slide on the aluminum profile, the average noise level is less than 60dB (environmental noise is less than 40dB)

Aluminum alloy material, sturdy appearance, precise structure design, integral construction, convenient installation, and meticulous workmanship

Stroke limit, built-in limit switch, the slider will automatically stop after running to both ends to prevent idling and dry burning

It can be widely used in electric medical beds. Electric lift bed, electric lift table, electric recliner, electric massage chair, etc.

If the product model cannot meet your requirements, please feel free to inform us of your requirements, such as stroke, voltage, usage, thrust, speed and quantity. Our company also has other types of linear actuators for you to choose and can be customized according to your requirements!

12V 24V 4000N 100-800mm 18mm/s-35mm/s linear actuator 12V 24V 4000N 100-800mm 18mm/s-35mm/s linear actuator

Application

Application areas: electric nursing bed, electric operating table, electric traction bed, electric massage chair, electric dental chair, electric wheelchair, electric lifting cabinet, LCD TV lifting frame, bedside table LCD TV intelligent hiding, camera electric lifting rod, intelligent electric booth , Electric lifting table, wedding props lifting and sliding mechanism, electric window opener and other occasions that require linear running actuators, the product design is novel, self-locking performance is good, no air source/oil circuit is required, and the installation is convenient and simple.
