12V 200W 0.64 Nm 3000 rpm 20.8A Brushless DC Motor

Home > 12V 200W 0.64 Nm 3000 rpm 20.8A Brushless DC Motor

12V 200W 0.64 Nm 3000 rpm 20.8A Brushless DC Motor

$245.39

12V 200W Brushless Motor: Cheap, High Efficiency, High Torque. Rated Speed: 3000 rpm, Rated Torque: 0.64 Nm, Rated Current: 20.8A. Ideal for Electric Bicycles, Inverter Air Conditioners, Washing Machines, Drones, CNC Machine Tools, and more.

Motor TypeDC Motor

Power(W)200

Voltage (V)12

Rated Speed (rpm)3000

12V 200W 0.64 Nm 3000 rpm 20.8A Brushless DC Motor
Model: BLDC-D5BLD200
Matched Controller Model: BLD-50A/100A
Rated Power: 200W
Rated Voltage: 12V
Rated Current: 20.83A
Phase: 3 phase
Rated Torque: 0.64 Nm
Max Torque: 1.91Nm
Rated Speed: 3000 rpm
No-load Current: <6.2A

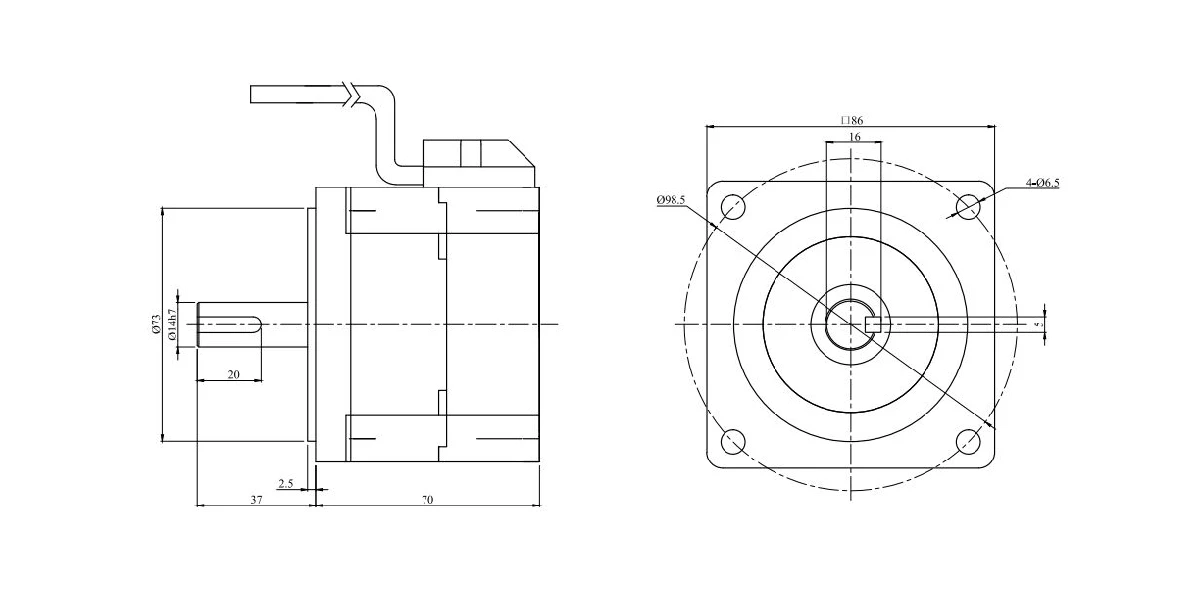

Square Flange Size: 86mm
Insulation Grade: F
Working Efficiency: 71%
Protection Grade: IP54
Motor Lead Length: 1 meter
Certificate: CE, RoHS, ISO
Weight: 3 kg

Note: Power, Voltage, Speed, Shaft, Motor Length, and Motor Lead of BLDC Motors can be customized.

12V 200W 0.64 Nm 3000 rpm 20.8A Brushless DC Motor
Power Wire Hall Wire
Red U Red 5V
Yellow V Black GND
Black W Blue Hu
Green Hv
White Hw

Product Display   / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / /

Discover our affordable and highly efficient 12V 200W brushless DC motor available for online purchase. This motor delivers exceptional performance while being cost-effective. With a rated speed of 3000 rpm, a rated torque of 0.64 Nm, and a rated current of 20.8A, it provides the power and torque required for various applications. The 3-phase design ensures efficient operation, with a working efficiency of up to 85%. It can continuously control at maximum rotational torque.

Upgrade your projects with our reliable and affordable high-torque brushless motor. This 3-phase small brushless motor operates on a 12V power supply and offers a rated speed of 3000 rpm, a rated torque of 0.64 Nm, and a rated current of 20.83A. Designed for a long operating life, it ensures durability and consistent performance.

Feature   / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / /

Features

  • Stable speed control: 12V brushless motor continues to set speed and a feedback signal is compared from the speed of the motor to adjust the voltage applied to the motor; therefore, even if the load change, still can set the speed from slow instantaneous adjustment to, and in order to stabilize the running speed.
  • Thin, high power: 3 phase DC motor adopts a permanent magnet brushless motor rotor, thus realizing the thin and high power.
  • Wide speed control range: 200W brushless DC motor speed control range than speed ac motor and inverter wider, because unlike the speed ac motor that at low speed have restrictions on the use of torque, so there is no brush motor is suitable for from low speed to high speed, all require the use of a certain torque.
  • Contribute to energy saving: The rotor of the brushless dc electric motor is used for the permanent magnet, which can reduce the two-loss of the rotor, so the power consumption is reduced by more than 20% compared with the three-phase induction motor with variable frequency control, which is helpful for the energy saving of the device.
  • Equipped with protection function: 12V 200W BLDC motor can help to protect the safety of the equipment system.

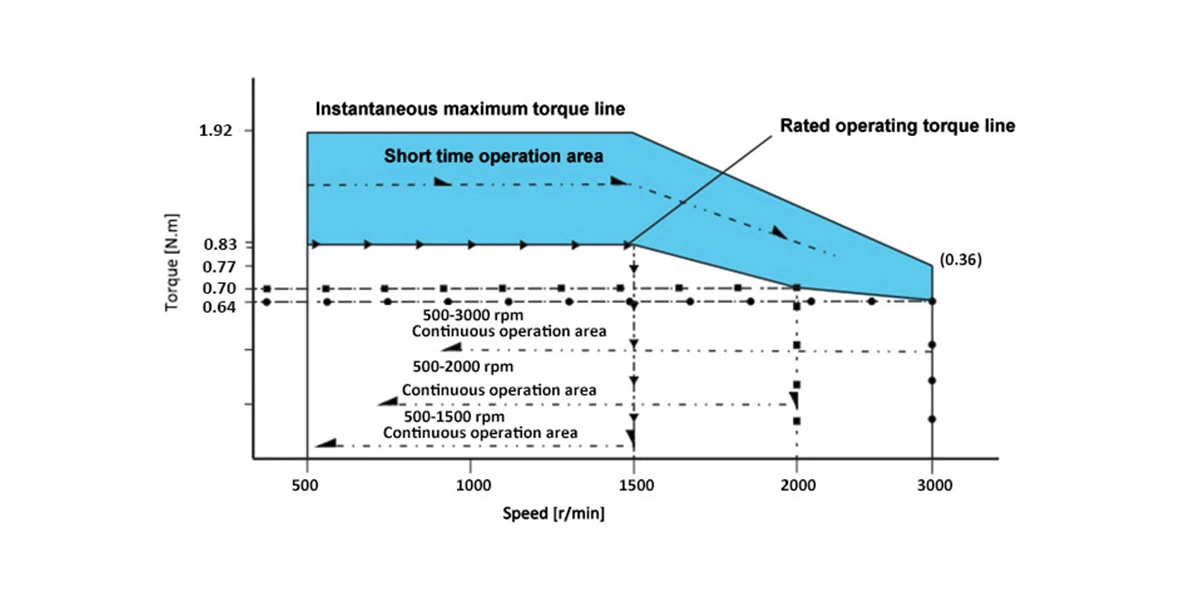

  • Instantaneous maximum torque line: The maximum torque momentarily impacts the load when the motor is started. Beyond this torque, the over-current protection of the driver will cause the motor to stop.
  • Short-time operation area: The motor can run for a short time within this torque range at different speeds.If the operation time is too long, the motor will generate heat, which may cause the motor to stop or burn.
  • Rated operating torque line: The rated torque of the motor runs at different speeds, and the motor can run for a long time at this torque.
  • Continuous operating area: When the motor rotates at different speeds, it runs continuously in this corresponding zone.

Applications   / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / /

Application

The versatility of 12V 200W brushless DC motors makes them widely used in various applications. From electric bicycles and inverter air conditioners to washing machines, drones, automobiles, CNC machine tools, polishing and grinding equipment, packaging machinery, tools, turnstiles, industrial control, medical machinery, automation, AGV trolleys, aerospace, and intelligent storage equipment, these motors provide reliable power and performance across diverse industries.

12V 200W 0.64 Nm 3000 rpm 20.8A Brushless DC Motor

Tips: Can a 12V brushless motor be connected to a 9V circuit board?

You have to see what the starting voltage of a 12V brushless motor is. It can be tested directly with 9V power on. If the motor can rotate, it means that it can be connected to the 9V circuit board. It should be noted that the 12V brushless motor is powered by 9V, and the speed and torque are proportionally reduced.
