Model: |
BLDC-D2BLD150-12A-30S |
Matched Controller Model: |
BLD-750 |
Rated Power: |
150W |
Rated Voltage: |
12V |
Rated Current: |
15.63A |
Phase: |
3 phase |
Holding Torque: |
0.48 Nm |
Peak Torque: |
1.43Nm |
Rated Speed: |
3000 rpm |
No-load Current: |
<1.5A |
Square Flange Size: |
60 mm |
Insulation Grade: |
F |
Working Efficiency: |
71% |
Protection Grade: |
IP54 |
Motor Lead Length: |
1 meter |
Certificate: |
CE, RoHS, ISO |
Weight: 3 |
kg |
Power Wire |
Hall Wire |
Red |
U |
Red |
5V |
Yellow |
V |
Black |
GND |
Black |
W |
Blue |
Hu |
Green |
Hv |
White |
Hw |

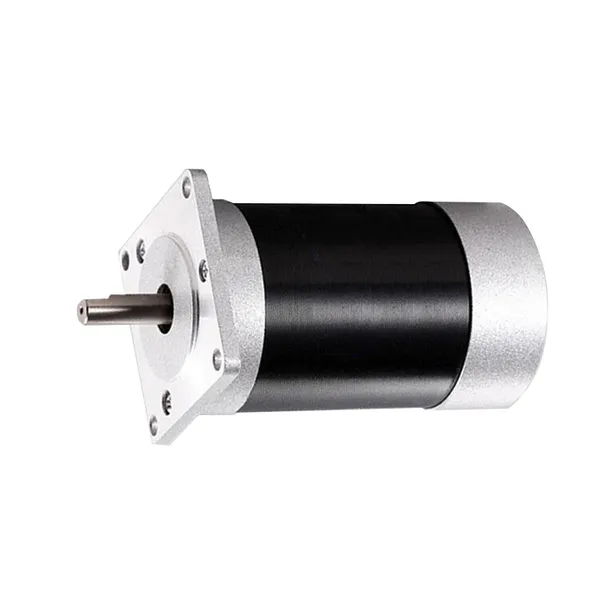

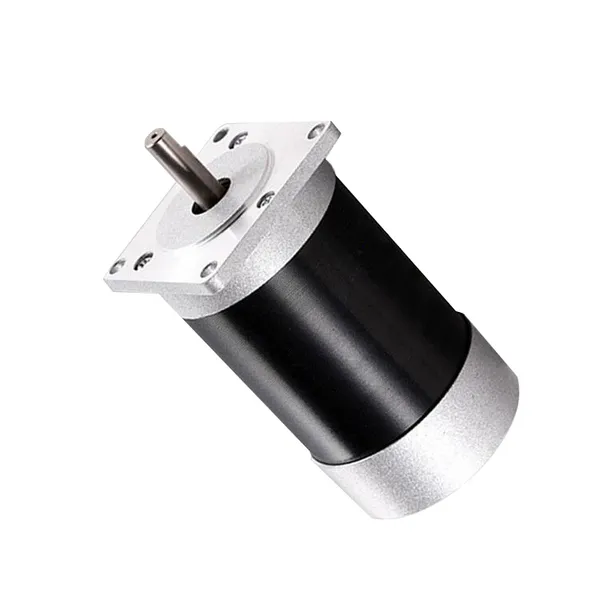

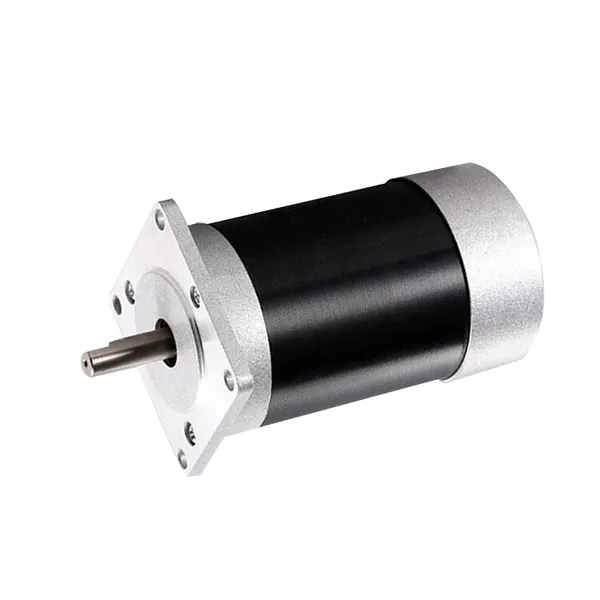

Product Display / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / /
Obtain a high-torque BLDC motor with an included brushless motor controller conveniently through our online platform. This 150W brushless DC electric motor operates at 12V and offers a rated torque of 0.48 Nm, a rated current of 15.6A, and a rated speed of 3000 rpm. Designed specifically for electric car applications, it is a reliable and efficient 3-phase brushless DC motor.
Explore our range of customizable 12V brushless DC motors available at a low price. With a rated torque of 0.48 Nm, a rated current of 15.6A, and a rated speed of 3000 rpm, these motors can be tailored to meet your specific requirements. Combine the 150W BLDC motor with a 3-phase brushless DC motor controller and choose from options such as a planetary gearbox or worm gearbox for enhanced functionality.
Feature / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / /
Features
- Stable speed control: 12V brushless motor continues to set speed and a feedback signal is compared from the speed of the motor to adjust the voltage applied to the motor; therefore, even if the load change, still can set the speed from slow instantaneous adjustment to, and in order to stabilize the running speed.
- Thin, high power: 3 phase DC motor adopts a permanent magnet brushless motor rotor, thus realizing the thin and high power.
- Wide speed control range: 150W brushless DC motor speed control range than speed ac motor and inverter wider, because unlike the speed ac motor that at low speed have restrictions on the use of torque, so there is no brush motor is suitable for from low speed to high speed, all require the use of a certain torque.
- Contribute to energy saving: The rotor of the brushless dc electric motor is used for the permanent magnet, which can reduce the two-loss of the rotor, so the power consumption is reduced by more than 20% compared with the three-phase induction motor with variable frequency control, which is helpful for the energy saving of the device.
- Equipped with protection function: 12V 150W BLDC motor can help to protect the safety of the equipment system.
- Instantaneous maximum torque line: The maximum torque momentarily impacts the load when the motor is started.Beyond this torque, the over-current protection of the driver will cause the motor to stop.
- Short-time operation area: The motor can run for a short time within this torque range at different speeds.If the operation time is too long, the motor will generate heat, which may cause the motor to stop or burn.
- Rated operating torque line: The rated torque of the motor runs at different speeds, and the motor can run for a long time at this torque.
- Continuous operating area: When the motor rotates at different speeds, it runs continuously in this corresponding zone.
Applications / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / /
Application
The versatility of 12V 150W brushless DC motors makes them widely used in various applications. From electric bicycles and inverter air conditioners to washing machines, drones, automobiles, CNC machine tools, polishing and grinding equipment, packaging machinery, tools, turnstiles, industrial control, medical machinery, automation, AGV trolleys, aerospace, and intelligent storage equipment, these motors deliver reliable performance across diverse industries.
Tips: How does a 12V DC brushless motor run stably?
- To make the 12V DC brushless motor rotate stably, the following points need to be done:
- The accuracy of the bearing must meet the requirements.
- The stator winding of the BLDC motor meets the speed requirements.
- The precision of the rotor shaft of the brushless DC motor should be high.
- To remove the burr of the 12V BLDC motor stator.
- The use of advanced sensors can accurately record the angular position, record the rotor angle of the brushless DC motor, and the accuracy of accurate measurement can reduce the torque vibration of the BLDC motor during operation, and make the operation of the brushless DC motor during high-speed operation. Smoother and more efficient.
- The protection level of the brushless DC motor is higher. When the DC brushless motor is not powered on and rotates, the generated current will not break down the copper wire and the driver.
