12kW 140KV 6-18S Waterproof Sensorless Brushless DC Motor

Home > 12kW 140KV 6-18S Waterproof Sensorless Brushless DC Motor

12kW 140KV 6-18S Waterproof Sensorless Brushless DC Motor

$1,540.95

Discover a reliable 140KV waterproof brushless DC motor available for purchase online. This 12000-watt waterproof inrunner BLDC motor delivers a rated power of 6000W, with a rotation speed of 140KV. It operates on an input voltage range of 6-18S (DC 25-75.6V) and offers a maximum torque of 21.8Nm, along with a 58mm shaft extension.

Motor TypeDC Motor

Power(W)12000

Voltage (V)25-75.6

Rated Speed140KV

12kW 140KV 6-18S Waterproof Sensorless Brushless DC Motor
Model: BLDC-85135
Max Power: 12 kW
Rated Power: 6000W
Rotation Speed KV (RPM/V): 140KV
Voltage Range: 6-18S (DC 25-75.6V)
Max. Torque: 21.8 Nm
Motor Pole: 5 poles
Internal Structure: 12N/ 10P

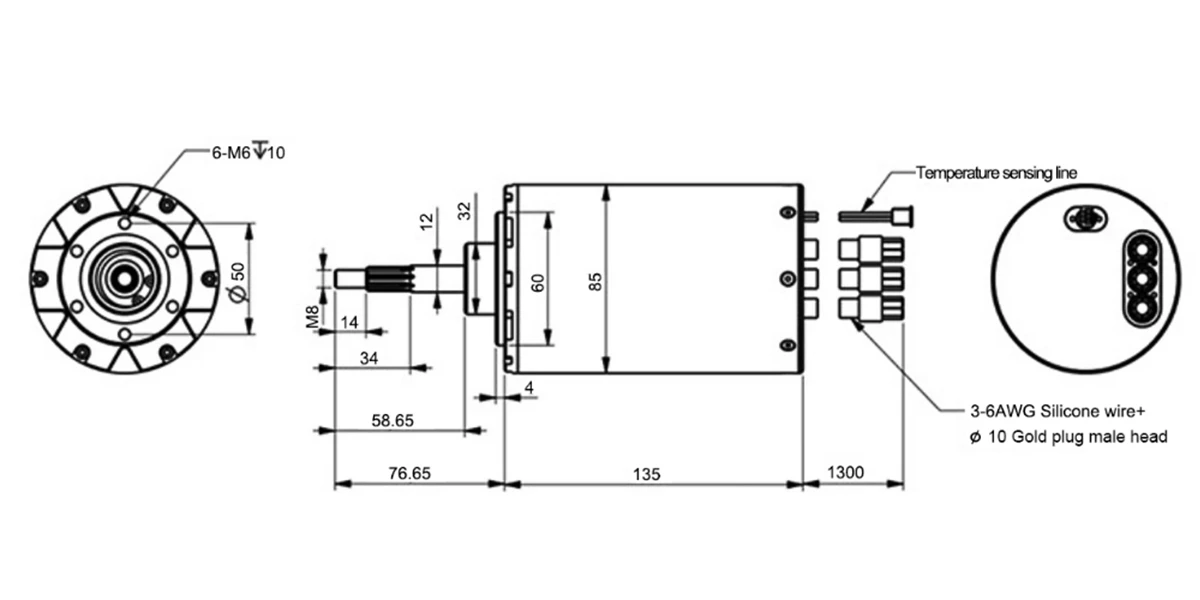

Shaft Extension: 58mm
Extension Cord Length: 1300mm
Waterproof Grade: IP68
Shaft Diameter: 12mm
8.4V/ Rotating Speed: 1125 rpm
Max. Speed: 10584 rpm
Extension Line Length: 1300mm
Test voltage: 8.5V
No Sense Current: 1.5A
Insulation Voltage/ Leakage Current: 500V
Wire: 0.38*50*3.2 mm
Plug: 10mm
Weight: 2.8kg

ESC (Electronic Speed Controller) Specification

Model Current Value Number of Batteries (Input Voltage)
FSESC 4.12 Continuous 50A, peak 240A 3S-12S (8V-60V)
FSESC 4.20 Continuous 50A, peak 240A 3S-12S (8V-60V)
VESC6.6 integrated switch dual drive version 1-channel 100A continuous, 2-channel 200A continuous1-channel peak 400A, 2-channel total peak 800A 3S-12S (8V-60V)
VESC6.6 integrated switch dual drive version 1-channel 100A continuous, 2-channel 200A continuous1-channel peak 400A, 2-channel total peak 800A 3S-12S (8V-60V)
FSESC6.7 VESC6.6 single drive integrated Continuous 70A, peak 200A 3S-12S (8V-60V)
VESC4 dual drive integration 50A continuous 1-channel, peak 100A 2-channel, peak 300A 2-channel 3S-12S (8V-60V)
ODESC3.6 single drive/dual drive 50A continuous 1-channel, peak 120A 1-channel 3S-12S (8V-60V)
VESC6 dual drive 1-channel 100A continuous, 2-channel 200A continuous1-channel peak 400A, 2-channel total peak 800A 3S-12S (8V-60V)
Single drive V6 75200 * Continuous 200A 3S-12S (8V-60V)
Single drive VESC6 waterproof version Continuous 60A, peak 150A 3S-12S (8V-60V)

Note: The ESC model with * is the recommended controller for this page of motor, if you need other ESC models, please contact us.

Product Display   / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / /

Explore our range of reliable waterproof brushless DC motors available for online purchase. The 12000-watt waterproof inrunner BLDC motor offers a rated power of 6000W, rotation speed of 140KV, and input voltage compatibility of 6-18S (DC 25-75.6V). It delivers a maximum torque of 21.8Nm and features a 58mm shaft extension.

This high-torque sensorless BLDC motor, paired with an ESC controller, is ideal for direct-drive propeller, efoil electric surfboard, skateboard, and longboard applications. Its IP68 waterproof rating ensures reliable performance even in challenging environments.

Additionally, we offer a cost-effective IP68 sensorless BLDC motor, an inrunner motor with a maximum power of 12kW. It is compatible with power supply batteries ranging from 6-18S and delivers a maximum torque of 21.8Nm. This waterproof brushless motor finds widespread use in electric surfboards, propellers, robot models, boosters, hydro, and other submersible equipment.

Upgrade your electric propulsion systems with our reliable and waterproof brushless DC motors, designed to meet the demands of direct-drive propellers, efoil electric surfboards, skateboards, longboards, electric surfboards, propellers, robot models, boosters, hydro, and submersible equipment.

Feature   / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / /

  • The speed of the BLDC motor does not exceed the speed of ESC, it can be matched and used.
  • Brushless DC motor speed calculation formula: battery voltage * motor KV value.Brushless DC motor stator speed calculation formula: motor KV value * battery voltage * motor pole pairs.
  • The limit speed of V4 series ESC is 60000 ERPM.The limit speed of V6 series ESC is 15000 OERPM.
  • If the maximum speed of BLDC motor exceeds the speed of the electric speed controller, the ESC can also be matched by reducing the working voltage of motor. But we do not recommend this, because it does not really play the role of a brushless DC motor.

Applications   / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / /

Tips: Advantages of a 140KV sensorless brushless dc motor,

Sensorless brushless motors do not perform well at low speed, their performance at high speed is excellent. It is so good that most ESC manufacturers rely on sensorless synchronization of a sensored motor at high speed. At high speed, most ESCs will alter the timing for the sequence of power pulses that are sent to the motor's windings. In turn, improving efficiency and performance.

Sensorless motors also are lighter in weight, less complicated, and less prone to failure. It is quite easy to damage the thin wire loom that sends all the data from the sensored motor to the ESC.
