120W 1phase 230V ac gear motor with brake and terminal box
$53.08-$56.33
This 120W 1phase 230V ac gear motor is equipped with a brake and a terminal box, making it an ideal choice for challenging engineering applications. The gear motor offers reliable torque and excellent performance in a compact, energy-efficient design.
SPECIFICATIONS
| Motor Type Lead Wire Type |
Rating | Output power W |
Voltage V |
Frequency Hz |
Current A |
Starting torque mN.m |
Rated tourque mN.m |
Rated speed r/min |
Capacitor μF |
|
| Pinion Shaft | Round Shaft | |||||||||
| 5RK120GU-AFM | 5RK120A-AFM | 30min | 120 | 1ph100 | 50 | 2.25 | 700 | 930 | 1250 | 35 |
| 120 | 1ph100 | 60 | 2.85 | 700 | 750 | 1550 | 35 | |||
| 5RK120GU-EFM | 5RK120A-EFM | 30min | 120 | 1ph110 | 60 | 1.9 | 650 | 750 | 1550 | 30 |
| 120 | 1ph120 | 60 | 1.9 | 720 | 750 | 1550 | 30 | |||
| 5RK120GU-CFM | 5RK120A-CFM | 30min | 120 | 1ph220 | 50 | 1.15 | 720 | 930 | 1250 | 8 |
| 120 | 1ph230 | 50 | 1.15 | 720 | 930 | 1250 | 8 | |||
| 5RK120GU-HFM | 5RK120A-HFM | 30min | 120 | 1ph220 | 60 | 1.2 | 720 | 750 | 1550 | 8 |
| 120 | 120 | 1ph230 | 60 | 1.2 | 720 | 750 | 1550 | 8 | ||
| 5IK120GU-SFM | 5IK120A-SFM | Cont | 120 | 3ph220 | 50 | 0.7 | 930 | 930 | 1250 | 8 |
| 120 | 120 | 3ph220 | 60 | 0.6 | 750 | 750 | 1550 | 8 | ||
Product Display
A brake motor is a motor that has a brake and is appropriate for devices that need quick braking and have a holding function. The brake operates in such a way that it engages when the electrical power to the motor is turned off or fails. When the power is turned off, the brake will activate an immediate stop, which may help to keep the loading and position stable.
Product Feature
High Torque Output
Our AC gear motor boasts a substantial torque of 16Nm, providing the necessary power for heavy-duty applications. It ensures reliable performance even under strenuous conditions, making it suitable for demanding tasks that require high torque output.
Variable Speed
The motor features a broad speed range of 0-135RPM, giving users precise control over operations. It offers the versatility to adjust the motor speed in accordance with the demands of the application. This flexibility allows for optimal performance and adaptability in various scenarios.
Bidirectional Operation
Engineered as a reversible gear motor, our AC motor is capable of changing rotational direction effortlessly. This feature is perfect for equipment requiring rotational direction shifts, such as conveyor systems and hoists. It provides convenience and flexibility in applications where bidirectional operation is needed.
Energy Efficient Design
Our AC gear motor is designed to maximize energy efficiency, reducing operational costs over time. It is ideal for continuous use in industrial settings where energy efficiency is crucial. By minimizing energy consumption, it helps optimize resource utilization and promotes sustainability.
Product Applications
Industrial Machinery
Our AC gear motor is ideal for the rigors of heavy machinery where consistent power and adaptability to varying loads are a necessity. It can withstand demanding industrial environments and provide reliable performance in applications such as conveyor systems, industrial mixers, and heavy-duty equipment.
Robotics
The precision and variability in speed of our AC gear motor make it an excellent choice for robotics. It offers fine control and dependability, enabling precise movement and positioning of robotic components. It is suitable for applications in industrial automation, collaborative robots (cobots), and other robotic systems.
Automotive Applications
Our AC gear motor finds application in the automotive industry, particularly in equipment that requires torque and reverse functionality. It can be used in assembly lines, maintenance platforms, and other automotive machinery where reliable and versatile motor operation is essential.
Agricultural Equipment
Our AC gear motor flawlessly fits into agricultural machinery that demands high torque for processing, harvesting, or material handling. It can power agricultural equipment such as conveyors, grain augers, harvesters, and feed mixers, providing the necessary strength and reliability for agricultural applications.
Home Appliance Manufacturing
With its adaptability and efficiency, our AC gear motor is a prime choice for manufacturers of home appliances. It is suitable for applications in appliances that require quiet operation, durability, and precise control, such as washing machines, dryers, dishwashers, and more.
Customization for Specific Tasks
Aside from the mentioned industries, our AC gear motor can be customized to meet the specific requirements of a multitude of other specialized tasks across diverse sectors. Whether it's for unique machinery, specialized equipment, or specific applications, our motor can be tailored to suit the specific needs of various industries and tasks.
Related Products
Videos

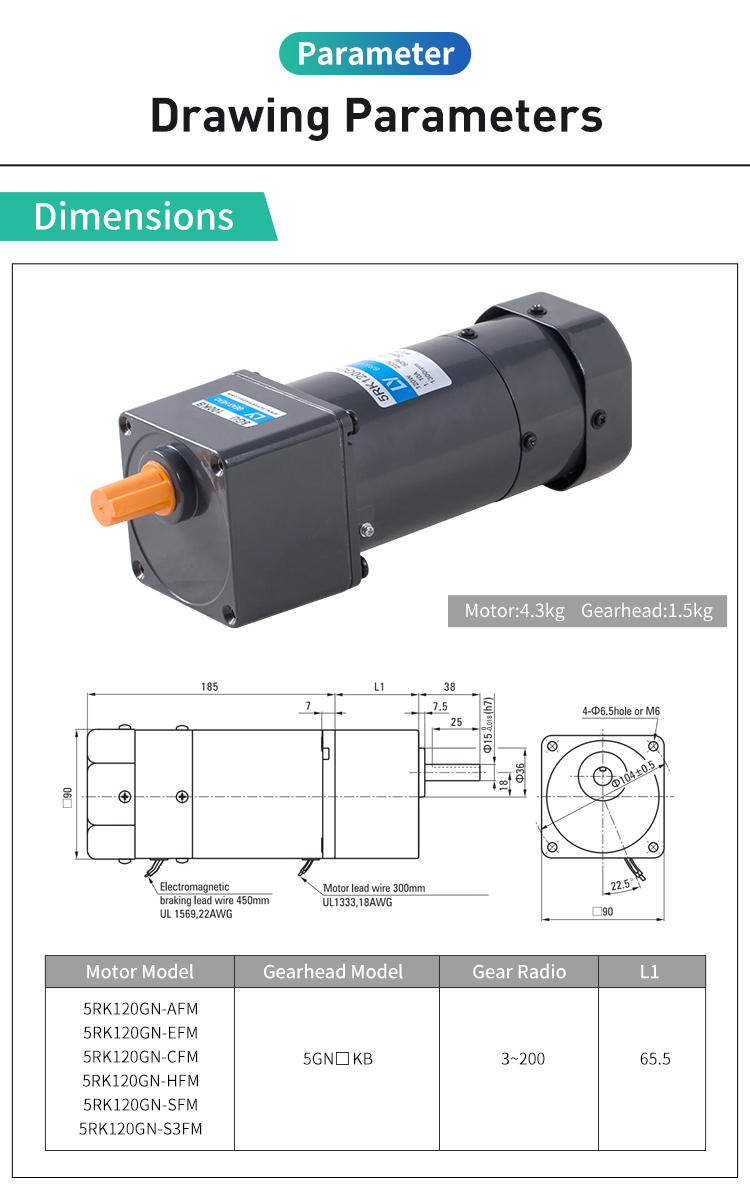

DIMENSIONS
