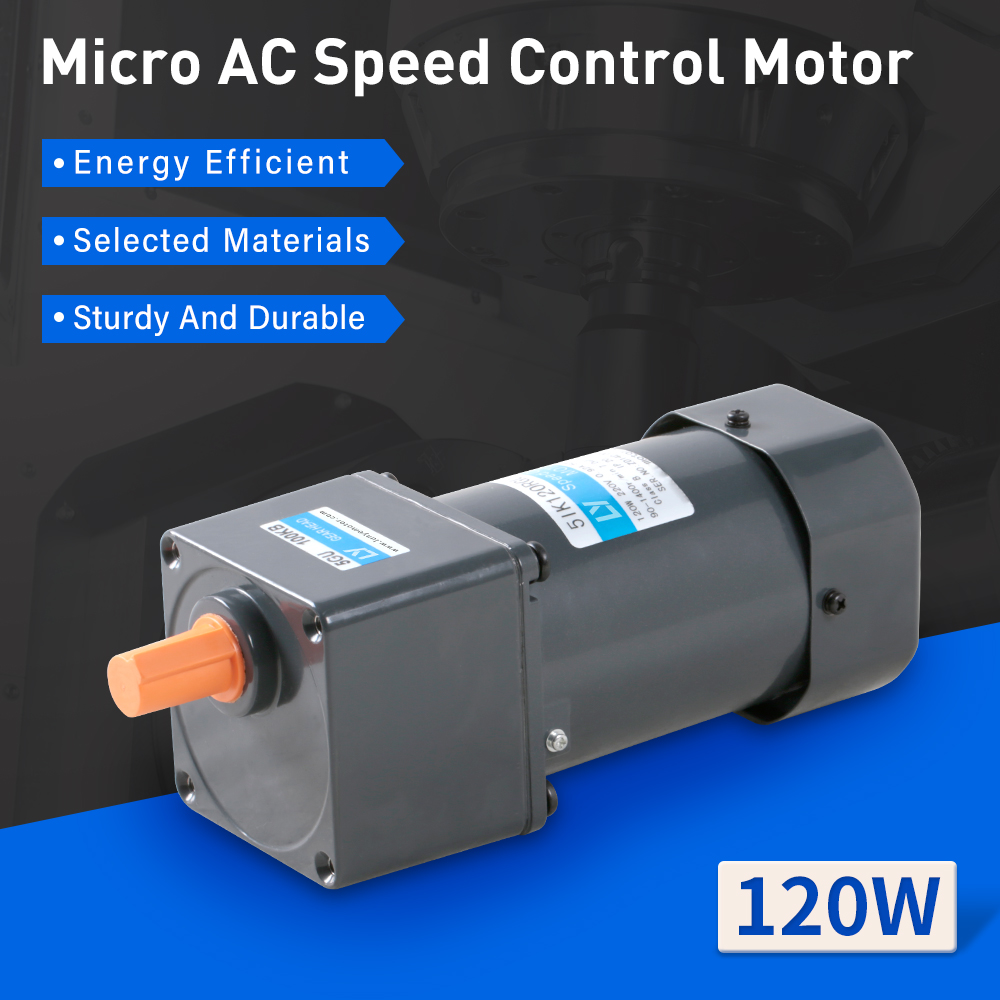

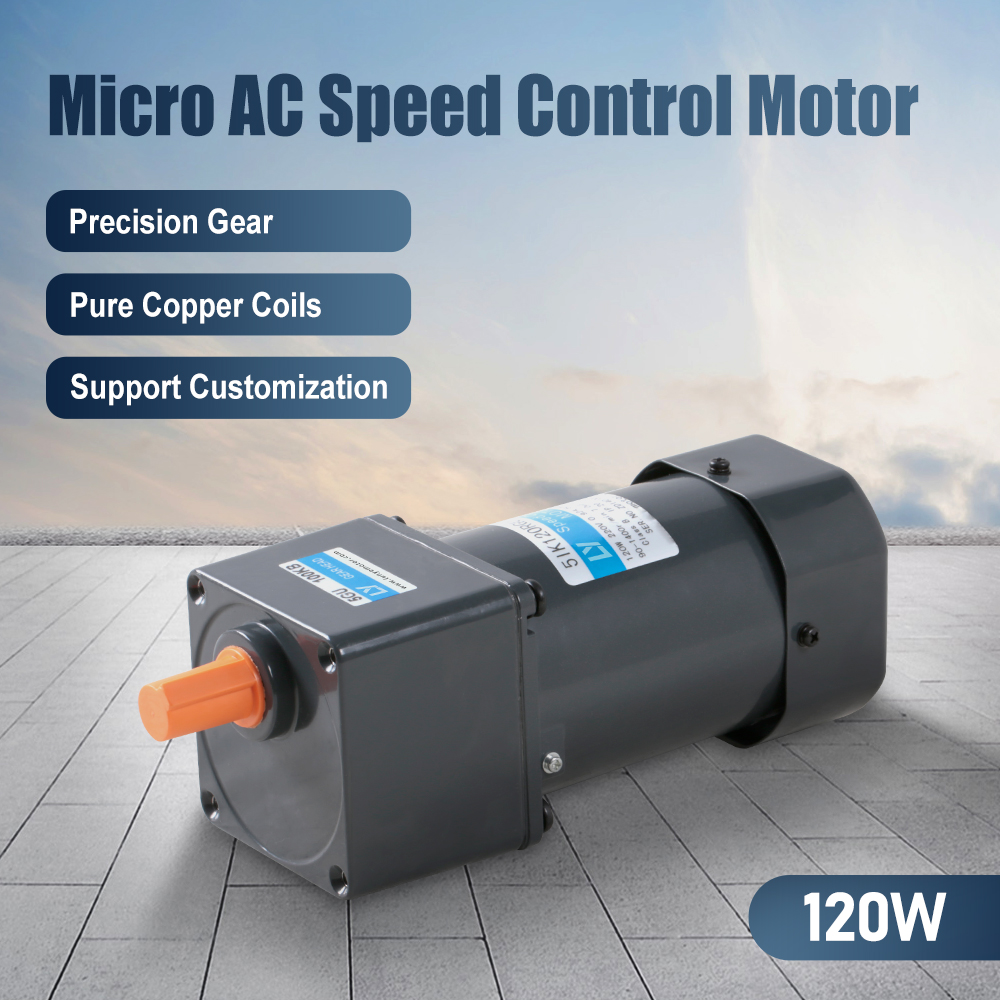

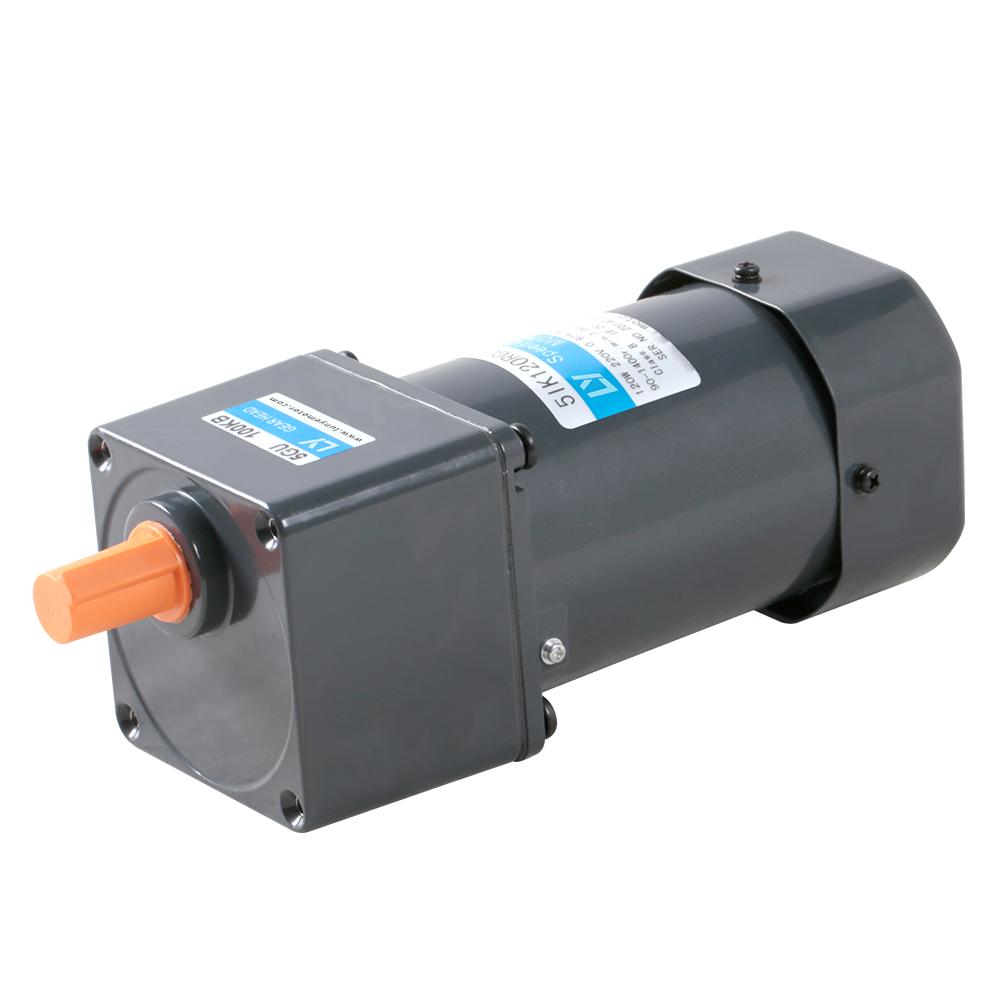

120W 104mm Flange Electric AC Gear Motor

$65.90-$98.60

This 120W 104mm Flange Electric AC Gear Motor is designed to provide consistent power and performance. With an all-metal body and gearbox, it's built for long-term use. Its small size and low-noise output make it ideal for home and office appliances.

Model TypeSpeed Adjustable Motor

Output Power (W)120

Voltage (V/Hz)100-230 50/60

Rated Speed (r/min)90-1350/1650

Product Display

Speed adjustable motor is applied with a variable frequency drive or comparable technology to regulate motor speed and torque. Variable speed motors enable goods and manufacturing facilities to significantly decrease the amount of energy spent by the motors in their devices by putting these critical variables of motor performance under the control of the operator.

Product Feature

Rugged All-Metal Construction

Constructed with an all-metal body and gearbox, this motor is designed for longevity and consistent performance under demanding conditions.

Compact and Quiet

Despite its powerful output, the motor's compact size and low noise operation make it perfectly suited for both home and office environments.

Variable Speed and Torque

Equipped with a variable frequency drive, this motor allows for precise control over speed and torque, accommodating a wide range of operational needs.

Energy Efficient

Designed with energy conservation in mind, this motor features controlled starting current and lower power demand at startup, resulting in noticeable energy savings.

Wide Voltage Range

Operates efficiently across a broad voltage range (100-230V/50-60Hz), ensuring versatile application regardless of regional electrical standards.

Product Applications

Process Industries

Perfect for conveyor systems aiming to minimize idle power loss, pumps, and blowers for controlled flow and efficiency, or compressors for optimized operation.

Material Handling

Enhances the performance of weighfeeders and screwfeeders by offering precise control over material addition, significantly improving accuracy and efficiency.

Automation and Robotics

Its variable speed and torque make it a valuable component in robotic systems and automated machinery, ensuring precise control and reliability.

Energy Conservation Systems

This motor's ability to minimize energy consumption without sacrificing performance makes it ideal for applications within energy-saving projects and technologies.

Consumer Electronics and Office Appliances

Its compact size and low-noise output render it suitable for integration into various consumer electronics and office devices, ensuring quiet operation.

Videos

SPECIFICATIONS

Motor Type
Lead Wire Type
Output power
W
Voltage
V
Frequency
Hz
Speed Control Range r/min Rated Torque Starting Torque
mN.m
Current
A
Capacitor
μF
Pinion Shaft
6IK120RGU-AF 6IK120RA-AF 120 1ph100 50 90-1400 750 360 530 3.65 30
6IK120RGU-AF 6IK120RA-AF 120 1ph100 60 90-1700 750 360 530 3.65 30
6IK120RGU-EF 6IK120RA-EF 120 1ph110 60 90-1700 750 360 520 3.3 20
6IK120RGU-EF 6IK120RA-EF 120 1ph120 60 90-1700 750 360 520 0.23 20
6IK120RGU-CF 6IK120RA-CF 120 1ph220 50 90-1400 750 330 530 1.55 8
6IK120RGU-CF 6IK120RA-CF 120 1ph230 50 90-1400 750 330 530 1.55 8
6IK120RGU-HF 6IK120RA-HF 120 1ph220 60 90-1700 750 360 530 1.65 8
6IK120RGU-HF 6IK120RA-HF 120 1ph230 60 90-1700 750 360 530 1.65 8
