12-48v 2000N 7mm/s-20mm/s linear actuator

Home > 12-48v 2000N 7mm/s-20mm/s linear actuator

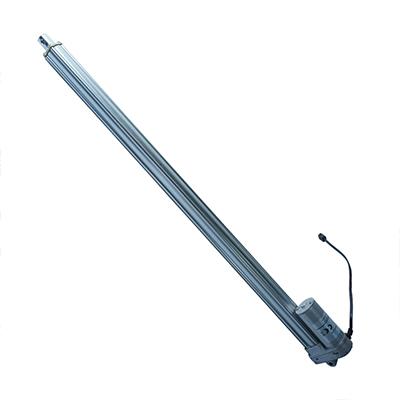

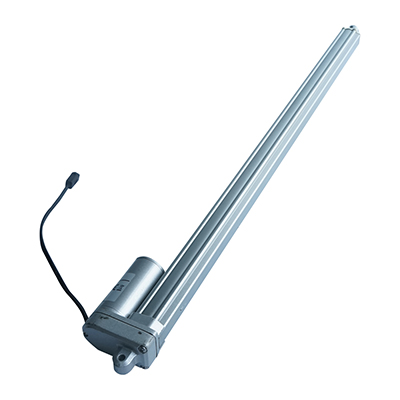

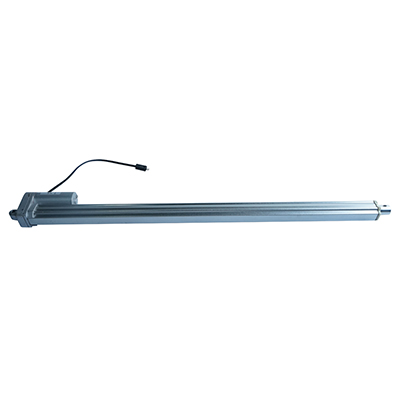

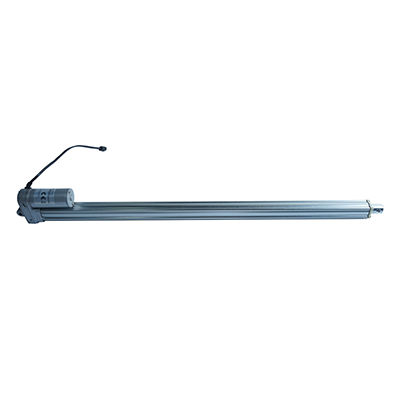

12-48v 2000N 7mm/s-20mm/s linear actuator

$36 - $62

This 12-48v 2000N 7mm/s-20mm/s linear actuator features reliable performance and high load capabilities, making it perfect for heavy-duty applications. Its adjustable speed and voltage settings make it easy to customize for any project, providing a reliable and consistent motion solution.

Voltage (V)48 / 36 / 24 / 12 DC

Load Capacity (N)2000


Input Voltage 48V / 36V / 24V / 12V DC
Load Capacity 2000N
Speed 7~20mm/s
Stroke Customize
Type of Duty 10%,2min.on / 18min.off
Limit switches Inner
Operation Temperature -15℃~45℃
Protection Class IP65

Overview

12-48v 2000N 7mm/s-20mm/s linear actuator 12-48v 2000N 7mm/s-20mm/s linear actuator

LY020 industrial heavy-duty high-thrust linear actuator is an important product in the industrial application product line. The installation size is compact, and the powerful permanent magnet DC motor is used, which is especially suitable for harsh industrial environments, especially for some machinery and automation equipment with relatively large losses. Comprehensive and demanding test items make the sturdy and high-quality push rod maintenance-free and durable.

12-48v 2000N 7mm/s-20mm/s linear actuator 12-48v 2000N 7mm/s-20mm/s linear actuator
  • 1. Miniature DC permanent magnet motor, small size, easy to install.
  • 2. Optional voltage 12V/24V/36V/48V/72V DC.
  • 3. According to the use requirements, the optional speed is from 5mm/s to 60mm/s.
  • 4. The ultimate load is 12000N.
  • 5. Applicable temperature: -15℃ to 65℃, normal temperature duty ratio 25%.
  • 6. Optional signal feedback type: potentiometer, Hall.
  • 7. External Hall switch, adjustable stroke, reliable control.
  • 8. With overcurrent protection function.
  • 9. Protection grade IP66, designed for outdoor use.
  • 10. High-strength metal shell, sturdy and durable, widely used in various industrial equipment, special vehicles and other occasions that require large load output and use in harsh environments.
12-48v 2000N 7mm/s-20mm/s linear actuator 12-48v 2000N 7mm/s-20mm/s linear actuator 12-48v 2000N 7mm/s-20mm/s linear actuator 12-48v 2000N 7mm/s-20mm/s linear actuator 12-48v 2000N 7mm/s-20mm/s linear actuator
Application Image
