Home / 10W Micro AC Low RPM High Torque Motor

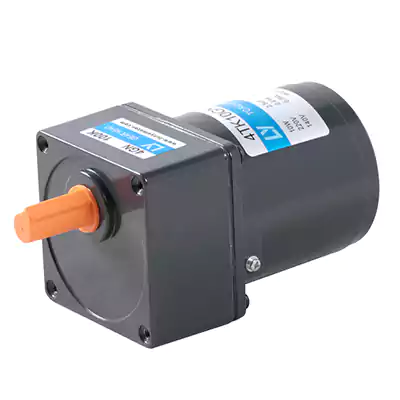

10W Micro AC Low RPM High Torque Motor

$22.51

Experience smooth and powerful performance with this Low RPM High Torque Motor. With 10 Watts of power, it's suitable for a variety of projects. Get the reliable performance you need with this reliable motor.

Motor TypeTorque Motor

Output Power (W)10

Voltage (V/Hz)60-220 50/60

Rated Speed (r/min)750/900

Model Type
Lead Wire Type
Rating At
Locked rotor
Voltage
V
Frequency
Hz
Starting Torque
mN.m
Max. Output power
W
Speed at Max. Output power
r/min
Torque at Max. Output power
mN.m
Capacitor
μF
Pinion Shaft Roung Shaft
2TK3GN-A 2TK3A-A 5MIN
CONT
110
60
50 69
25
3.2
1.3
750 41
16
7/250
2TK3GN-A 2TK3A-A 5MIN
CONT
110
60
60 69
25
3.2
1.3
900 37
11
6/250
2TK3GN-C 2TK3A-C 5MIN
CONT
220
140
50 69
25
3.2
1.2
750 41
16
1.5/450
2TK3GN-C 2TK3A-C 5MIN
CONT
220
140
60 69
25
3.2
1.2
900 37
11
1.2/450
3TK6GN-A 3TK6A-A 5MIN
CONT
110
60
50 134
68
6
2.5
750 80
36
8/250
3TK6GN-A 3TK6A-A 5MIN
CONT
110
60
60 134
68
6.5
2.8
900 74
30
7/250
3TK6GN-C 3TK6A-C 5MIN
CONT
220
140
50 134
68
6
2.5
750 80
36
2/450
3TK6GN-C 3TK6A-C 5MIN
CONT
220
140
60 134
68
6.5
2.8
900 74
30
1.5/450
4TK10GN-A 4TK10A-A 5MIN
CONT
110
60
50 235
74
10
3
750 127
46
10/250
4TK10GN-A 4TK10A-A 5MIN
CONT
110
60
60 69
25
10
3
900 127
38
8/250
4TK10GN-C 4TK10A-C 5MIN
CONT
220
140
50 265
98
10
3
750 127
46
2.5/450
4TK10GN-C 4TK10A-C 5MIN
CONT
220
140
60 225
90
10
3
900 127
38
2/450
5TK20GN-A 5TK20A-A 5MIN
CONT
110
60
50 363
137
20
6
750 224
76
15/250
5TK20GN-A 5TK20A-A 5MIN
CONT
110
60
60 294
108
26
6
900 216
64
12/250
5TK20GN-C 5TK20A-C 5MIN
CONT
220
140
50 363
137
20
6
750 224
76
3.5/450
5TK20GN-C 5TK20A-C 5MIN
CONT
220
140
60 216
64
26
6
900 216
64
3/450

Product Display

Torque motors have a high starting torque and torque motors have a high starting torque and sloping characteristics, allowing easy speed control simply by changing the power supply voltage. (The motor torque varies approximately in proportion to the voltage square.)

Product Feature

Consistent High Torque Output

The 10W Micro AC gear motor delivers a remarkable torque, ideal for applications requiring consistent power. This high torque output ensures reliable performance in tasks necessitating substantial force, making it perfect for precision-heavy applications.

Precise Speed Control

Featuring a versatile speed range, this micro AC motor allows for precise speed adjustment. This control is crucial for applications that demand specific speed settings for optimal performance, offering unparalleled adaptability across various scenarios.

Effortless Directional Change

Designed with bidirectionality, our motor enables easy changes in rotational direction, a necessary feature for machinery such as automated systems and material handling equipment. This enhances flexibility and convenience in applications where reversing operation is crucial.

Energy-Saving Design

This micro AC gear motor is engineered for efficiency, aiming to reduce energy costs significantly. Ideal for continuous operational settings, its energy-efficient design supports sustainable usage, making it a solid choice for long-term applications.

Product Applications

Precision Equipment

With its fine control and robust torque, our micro AC motor is perfectly suited for precision equipment, including intricate industrial machinery and delicate robotic systems. It ensures reliable functionality where precision is paramount.

Consumer Appliances

Given its efficiency and adaptability, this motor excels in consumer appliances, contributing to quiet operation and durability. It's an excellent component for manufacturers looking to enhance the reliability and performance of household appliances.

Light Industrial and Agricultural Use

This gear motor is also a great fit for light industrial applications and agricultural equipment. It offers the strength and reliability needed for tasks in these sectors, such as small conveyors, feed mixers, or other equipment requiring consistent power.

Custom Solutions

Additionally, the versatility of our 10W Micro AC gear motor allows for customization to fit specific tasks across various sectors. It's capable of being tailored to meet the unique needs of specialized equipment or applications, making it a valuable component for a wide range of industrial solutions.

Available Options

  1. Voltage
  2. Output Power
  3. Rated Speed
  4. Torque
  5. IP Grade

Technical Documents

Layout DrawingInstallation GuideLayout Drawing
