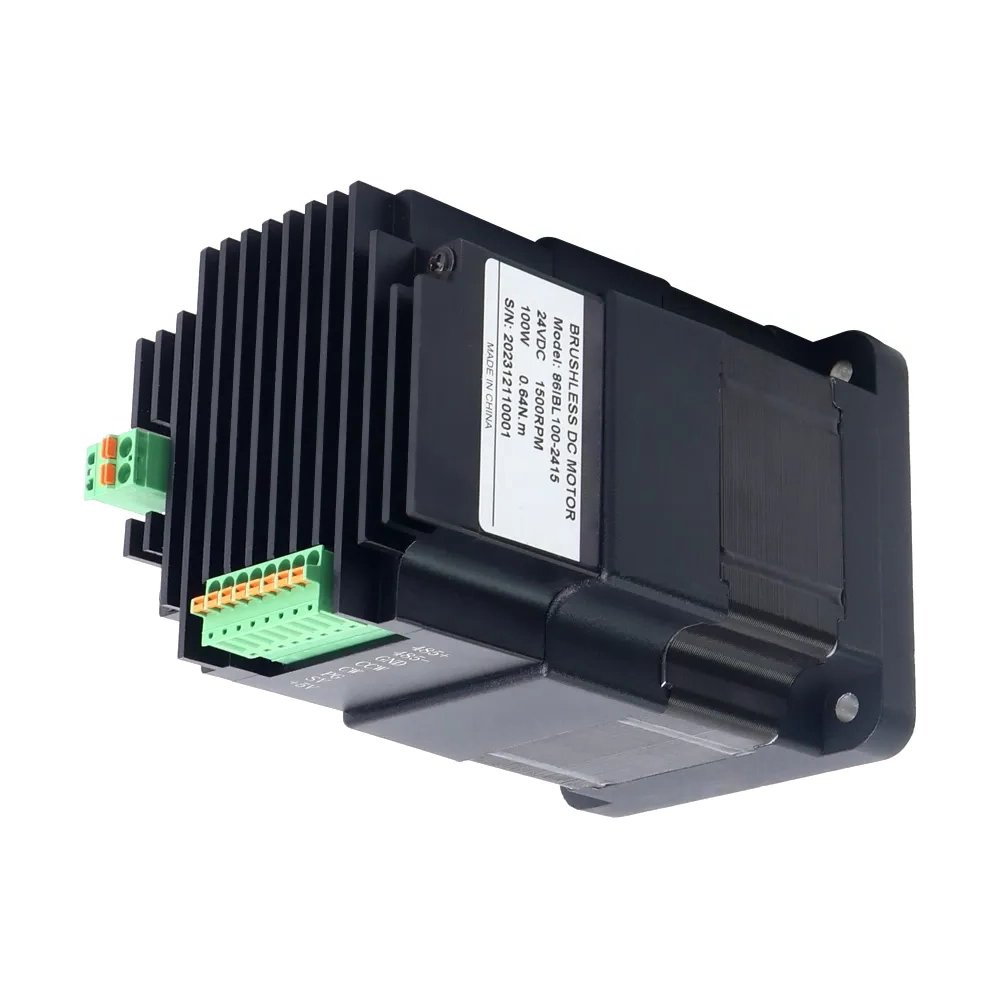

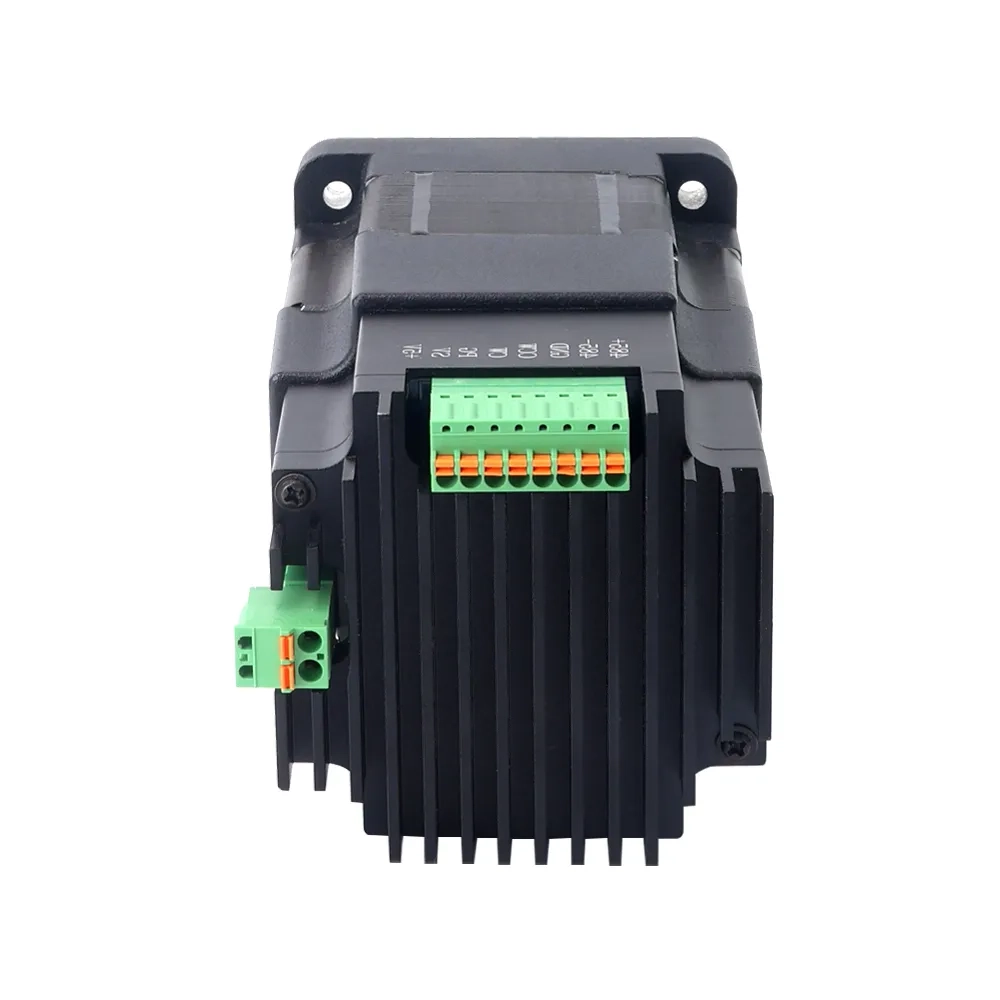

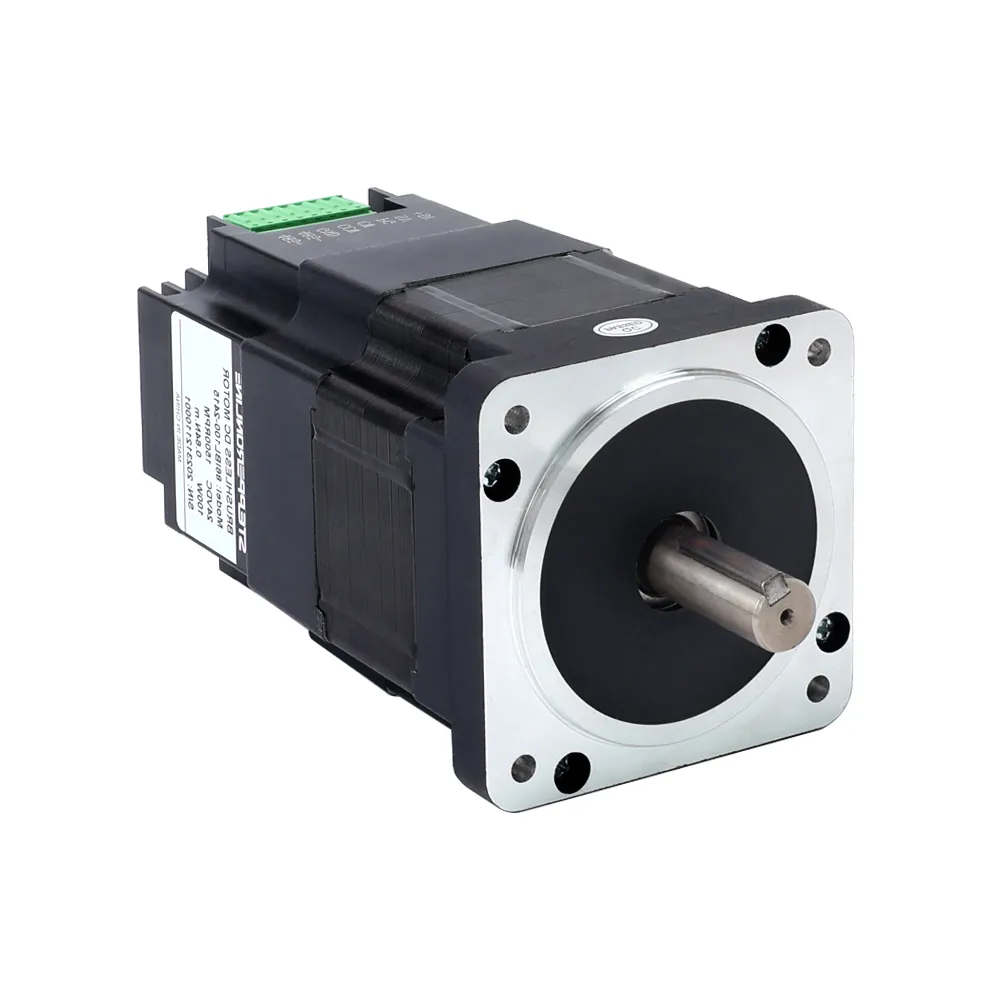

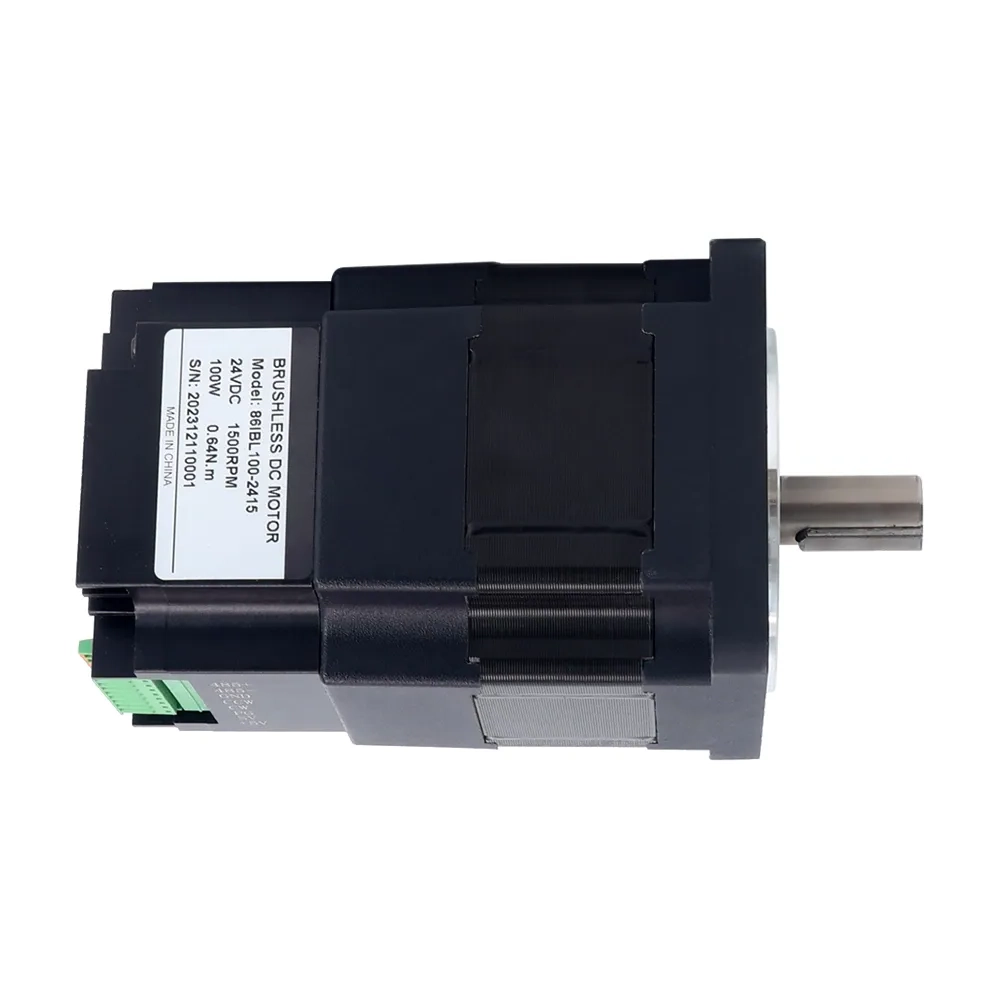

100W 24V 1500RPM 0.64Nm Nema 34 Integrated Brushless DC Motor


100W 24V 1500RPM 0.64Nm Nema 34 Integrated Brushless DC Motor, a versatile and efficient solution designed for various automation and motion control applications. The Nema 34 standard ensures compatibility with industry-standard mounting and dimensions, making it easy to integrate into your existing systems.

Model TypeDC Brushless motor

Output Power (W)100

Voltage (V)24

Rated Speed (rpm)1500

Product Feature

High Efficiency

Designed for high efficiency, reducing energy consumption and operational costs.

Compact Design

Features a compact NEMA 34 frame size, allowing for easy integration into various applications.

High Torque Output

Delivers a torque of 0.64Nm, ensuring strong and reliable performance in demanding tasks.

Stable Speed

Provides a consistent speed of 1500RPM, ideal for applications requiring stable motion control.

Durable Construction

Built with high-quality materials to ensure long-lasting performance and reliability.

Integrated Controller

Comes with an integrated controller, simplifying the setup and reducing the need for external components.

Low Maintenance

Brushless design reduces maintenance requirements, enhancing overall system reliability.

Product Applications

Automation Systems

Ideal for use in automation systems that require precise and reliable motion control.


Suitable for robotic applications, providing accurate and controlled movement.

Conveyor Systems

Perfect for conveyor systems, ensuring smooth and efficient operation.

Medical Equipment

Used in medical equipment that demands high precision and reliability.

Industrial Machinery

Applicable in industrial machinery, offering robust performance for various tasks.

Packaging Machines

Ideal for packaging machines, providing reliable and efficient motion control.

Textile Machinery

Used in textile machinery for precise control and high efficiency.



Electrical Specifications

Manufacturer Part Number 86IBL100-2415
Inductance(mH) 0.51
No. of Phase 3
Phase Resistance(ohm) 0.21
Product Type Integrated BLDC Motor
Rated Current(A) 4.17
Input Voltage(V) 24
Holding Torque(Ncm) 64
Holding Torque(oz.in) 90.63
Rated Power(W) 100
Rated Speed(rpm) 1500
Insulation Class Class B
Resistance/phase 0.21±10%Ohms
Inductance/phase 0.51±20%mH
Sensor HALL

Physical Specifications

Inventory Method Shared Inventory
Frame Size(mm) Nema 34 (86 x 86)
Body Length(mm) 138
Shaft Diameter(mm) 14
Shaft Length(mm) 32
Weight 2.13kg
