1000W 80mm DS2 Servo Motor and Driver

Home > 1000W 80mm DS2 Servo Motor and Driver

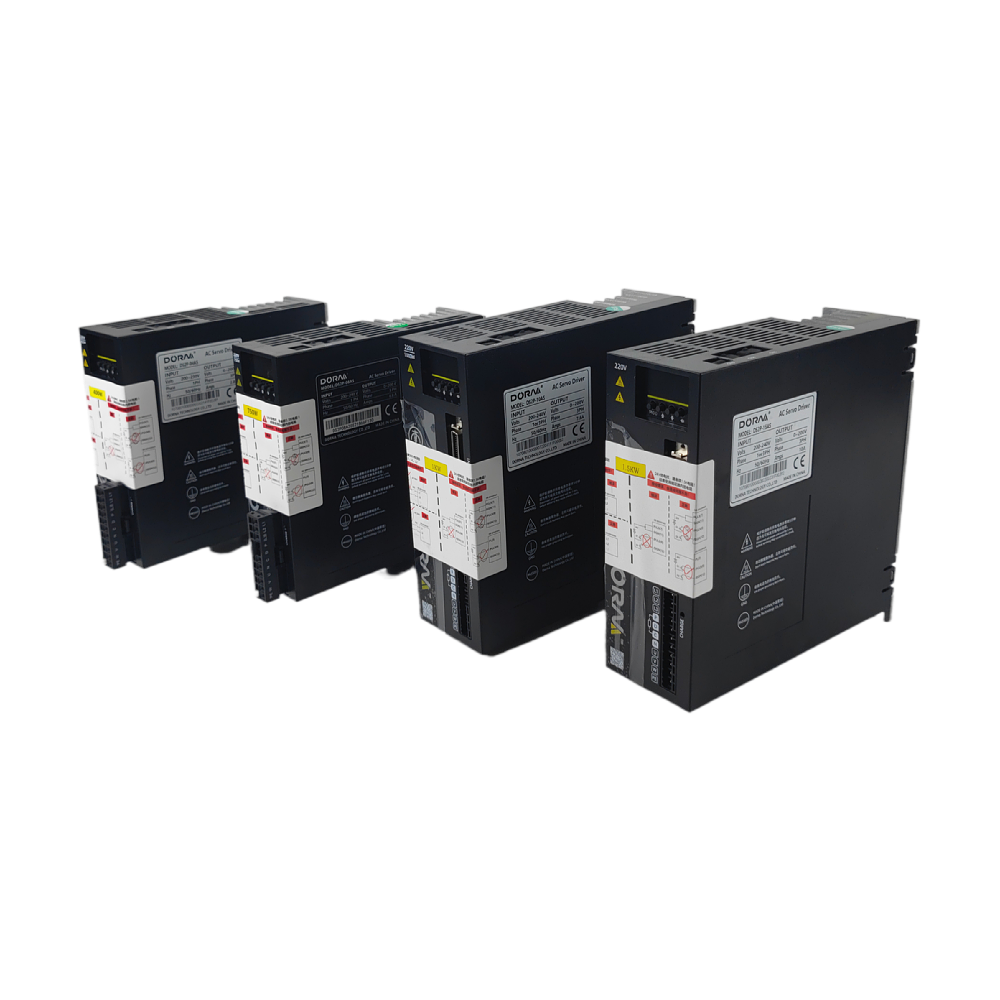

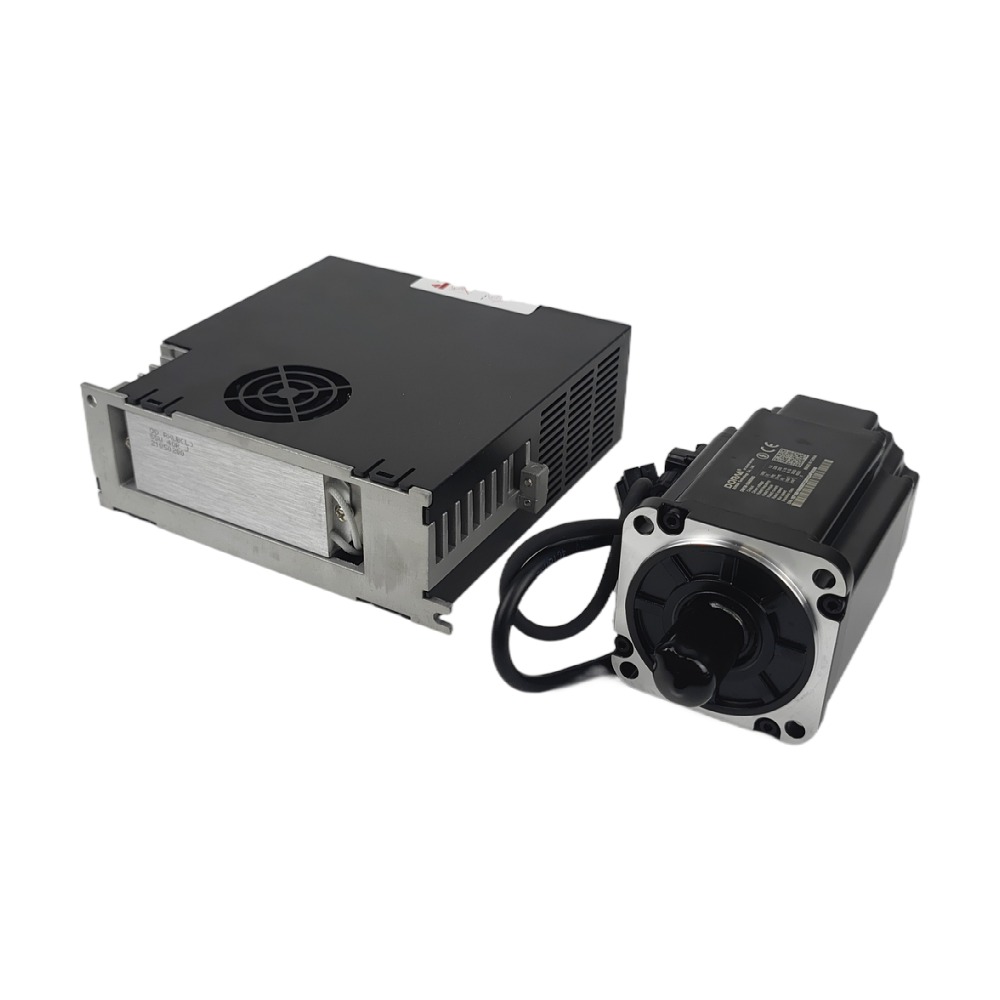

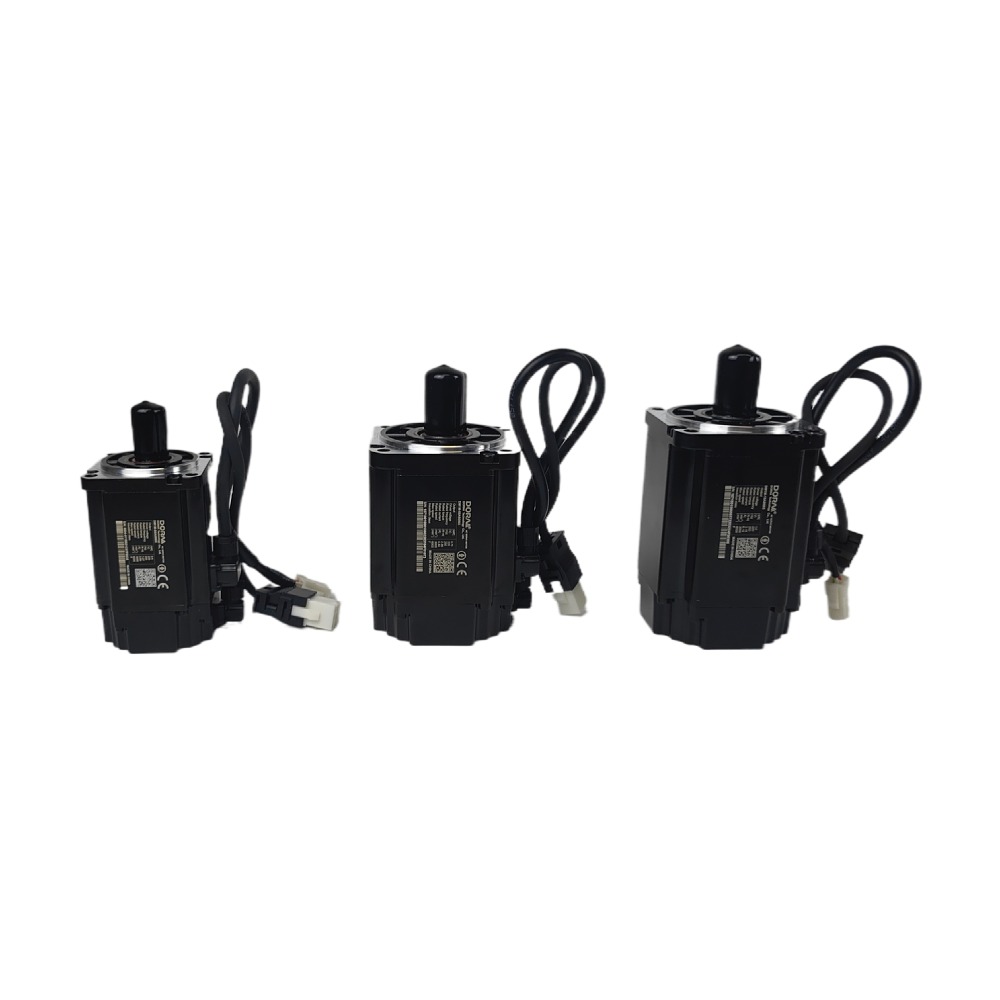

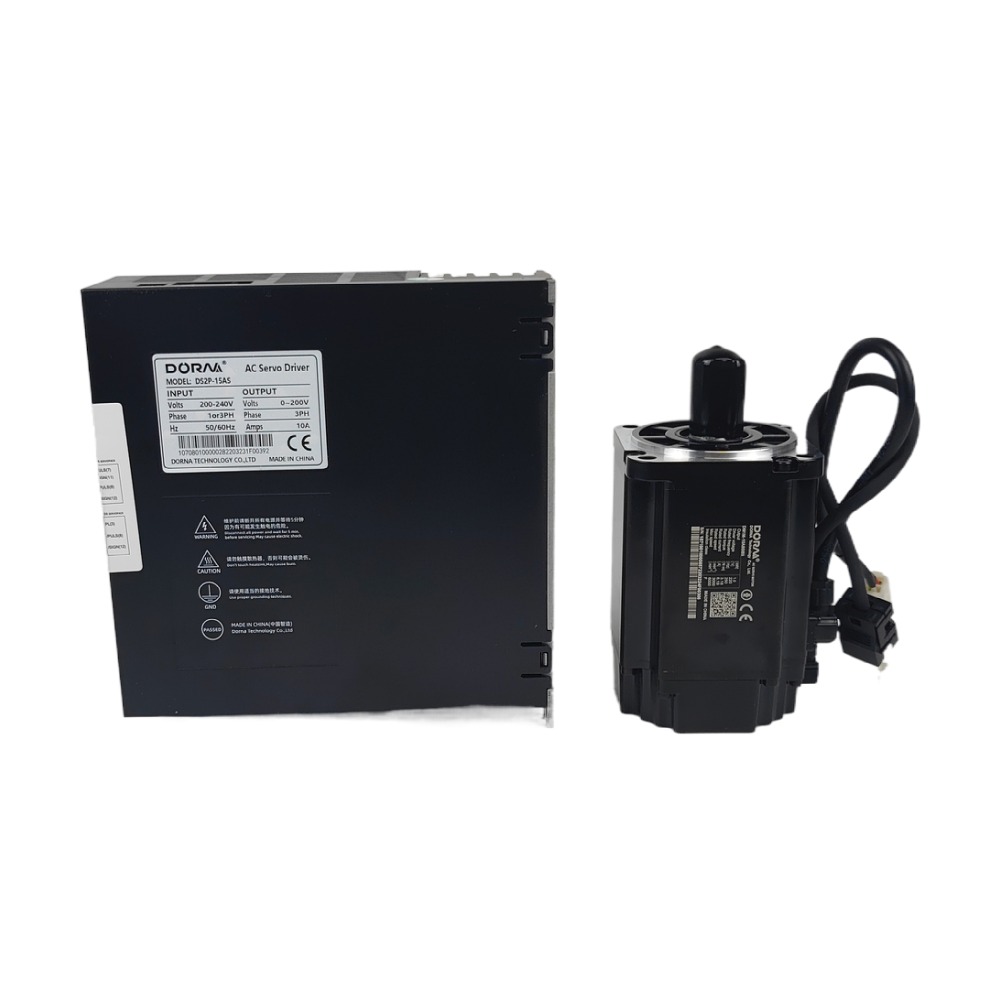

1000W 80mm DS2 Servo Motor and Driver

$205 - $294

This powerful 1000W 80mm DS2 Servo Motor and Driver is a reliable and efficient solution for your industrial application needs. With a peak torque of 1.5Nm and a rated speed of 3000rpm, it offers a fast and accurate response and control. It is a great choice for dynamic motion control.

Power1000W

Voltage220V

Rated Speed3000rpm

Rated Torque3.18Nm


Voltage (V) Power Driver Model Flange(mm) Motor Model Rated Speed (rpm) Rated torque(N*m)
220V 100W DS2P-01AS 40 DM1M-01A40I8S 3000 0.32
200W DS2P-02AS 60 DM1M-02A60I8S 3000 0.64
400W DS2P-04AS 60 DM1M-04A60I8S 3000 1.27
750W DS2P-08AS 80 DM1M-08A80I8S 3000 2.39
1KW DS2P-10AS 80 DM1M-10A80I8S 3000 3.18
1KW DS2P—10AS 130 DMIS-10A13018S 2000 4.77
1.5KW DS2P—15AS 130 DMIS-15A13018s 2000 7.16
2KW DS2P—20AS 130 DMIS-20A13018S 2000 9.55

Overview

1000W 80mm Servo Motor and Driver 1000W 80mm Servo Motor and Driver 1000W 80mm Servo Motor and Driver
  • 1. High Performance---Max Speed 6000rpm, Max Speed 6000rpm;
  • 2. 23-Bit Encoder----23-Bit absolute optical encoder, 8 millon ppr resolution up to 0.15arc/sec;
  • 3. IP67---Up to IP67 Protection class;
  • 4. High Vibration Resistance--Magnetic encoder can work in vibrations up to 20g;
