1000W 80mm B2 Servo Motor And Servo Driver


This 1000W 80mm B2 Servo Motor and Servo Driver is an outstanding choice for serious applications. It features a superior power output of 1000W, while the 80 mm shaft diameter ensures smooth operation and allows for precision-level usage.

Model TypeAC Synchronous Servo Motor

Output Power (W)1000

Voltage (V)220

Rated Speed (r/min)3000

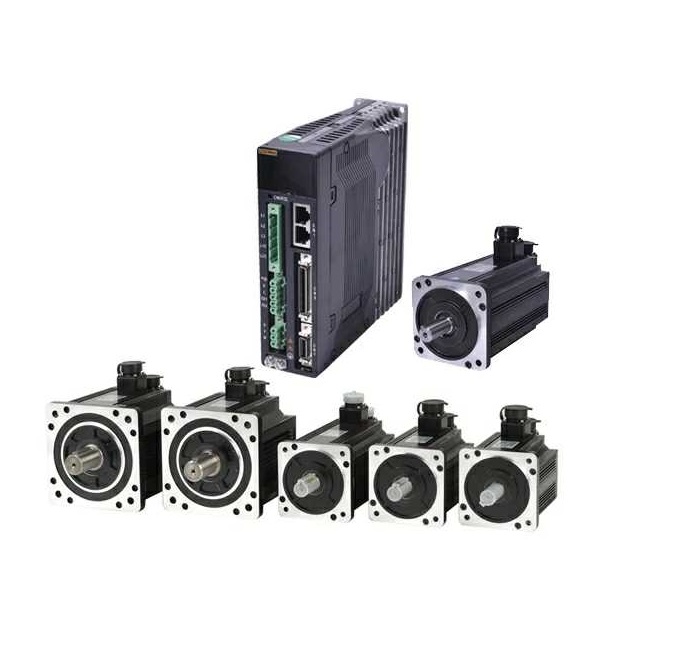

Product Display

1000W 80mm B2 Servo Motor And Servo Driver 1000W 80mm B2 Servo Motor And Servo Driver

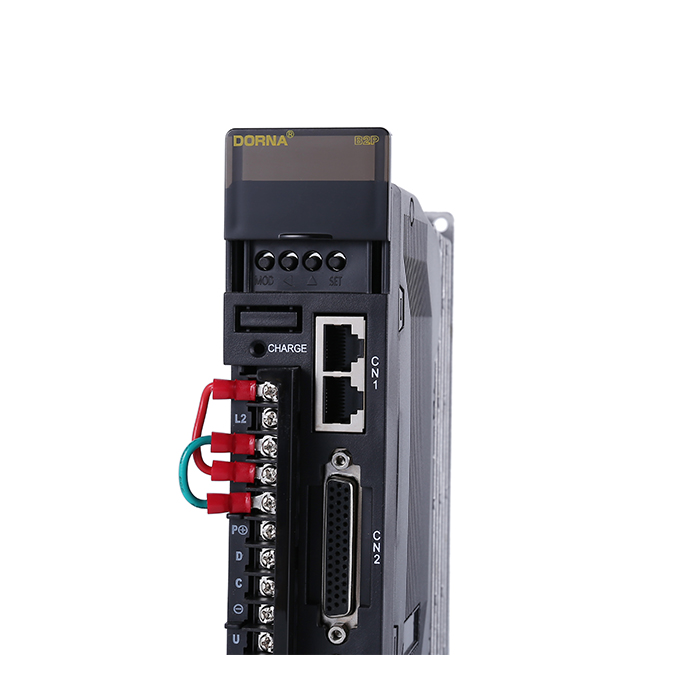

servo motor drive kit details

1000W 80mm B2 Servo Motor And Servo Driver

servo motor drive kit specifications

1000W 80mm B2 Servo Motor And Servo Driver

Product Feature

High Load Capacity

Delivers an impressive 3000N force for demanding applications.

Customizable Speed and Stroke

Max speed of 35mm/s for lighter loads (750N) and 7mm/s for the full load (3000N) with customizable stroke length.

Flexible Input Voltage

Accommodates both 24V and 12V DC power supplies.

Smart Design

Comes with internal limit switches for precision control.

Type of Duty

Designed for intermittent use with a 10% duty cycle (2 minutes on/18 minutes off).

Temperature Resilience

Operates reliably in temperatures ranging from -15℃ to 45℃.

Initial Protection Class

Rated IP20, suitable for indoor use where it is not exposed to liquids.

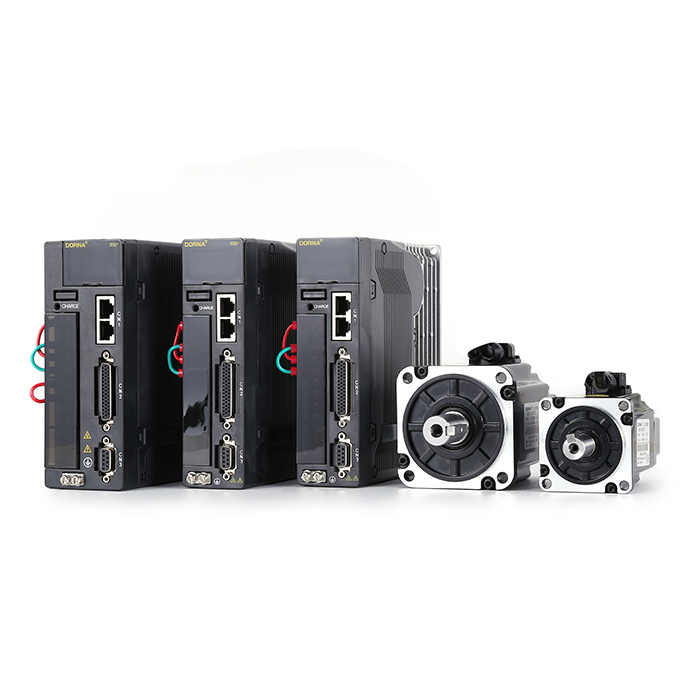

1000W 80mm B2 Servo Motor And Servo Driver 1000W 80mm B2 Servo Motor And Servo Driver

Product Applications

Industrial Automation

Servo motors are widely used in industrial automation systems, such as pick-and-place machines, packaging equipment, assembly lines, and robotic arms, providing precise positioning and motion control.

Computer Numerical Control (CNC) Machines

CNC machines, including milling machines, lathes, and routers, rely on servo motors for accurate and repeatable positioning of cutting tools and workpieces during manufacturing processes.

Semiconductor and Electronics Manufacturing

The production of semiconductors, printed circuit boards, and electronic components requires servo motors for precise positioning and motion control during processes like die bonding, wire bonding, and component placement.

Robotics and Automation

Servo motors are used in various robotic applications, including industrial robots, collaborative robots (cobots), and service robots, enabling precise and coordinated movements for tasks like assembly, welding, and material handling.

Printing and Packaging Machinery

The packaging and printing industries utilize servo motors in machines like labelers, form-fill-seal machines, and high-speed printing presses for precise web handling, registration, and motion control.

Machine Tools and Woodworking

Servo motors are used in machine tools like lathes, milling machines, and woodworking equipment, providing accurate positioning and motion control for cutting, shaping, and drilling operations.

1000W 80mm B2 Servo Motor And Servo Driver



Voltage (V) Power Driver Model Flange(mm) Motor Model Servo Motor
Rated speed (r/min) Torque(N.M)
220 100W EPS-B2-0D10AA-A000 40 40DNMA2-0D10DKAM 3000 0.32
200W EPS-B2-0D20AA-A000 60 60DNMA2-0D20DKAK 3000 0.64
400W EPS-B2-0D40AA-A000 60 60DNMA2-0D40DKAK 3000 1.27
750W EPS-B2-0D75AA-A000 80 80DNMA2-0D75DKAK 3000 2.39
80 80DNMA2-0D75CKAK 2000 3.58
90 90DNMA1-0D75DKAM 3000 2.39
90 90DNMA1-0D75CKAM 2000 3.58
1KW EPS-B2-0001AA-A000 80 80DNMA2-0001DKAK 3000 3.18
130 130DNMA2-0001CKAM 2000 4.77
1.5KW EPS-B2-01D5AA-A000 130 130DNMA2-01D5AKAM 1000 14.33
130 130DNMA2-01D5 BKAM 1500 9.55
EPS-B2-01D5AA-A000-G 130 130DNMA2-01D5CKAM 2000 7.16
130 130DNMA2-01D5DKAM 3000 4.77
2KW EPS-B2-02D2AA-A000-G 130 130DNMA1-02D2BKAM 1500 12.73
EPS-B2-02D2AA-A000 130 130DNMA1-02D2CKAM 2000 9.55
3KW EPS-B2-0003AA-A000 130 130DNMA2-0003CKAM 2000 14.33
130 130DNMA2-0003DKAM 3000 9.55
