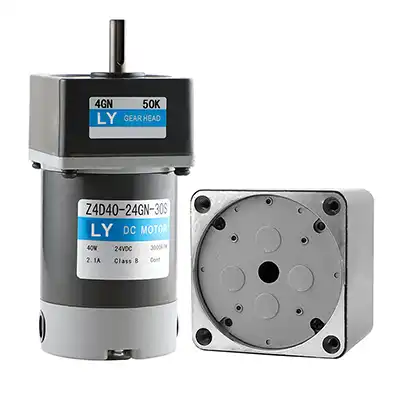

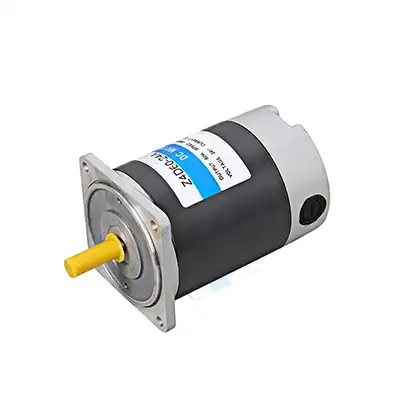

10-300W 24-220V High Torque Permanent Magnet Micro DC geared motor
$35.40
This 10-300W 24-220V High Torque Permanent Magnet Micro DC geared motor offers superior performance for your projects. Its high torque motor ensures reliable operation while the adjustable speed and voltage output provide flexibility. The motor can generate 10-300W of power and is compatible with a wide range of voltage levels. Enjoy improved efficiency and reliability for your applications.
SPECIFICATIONS
|
Motor models available |
||
|
Motor Frame Size |
60 mm / 70mm / 80mm / 90mm / 104mm |
|
|
Moter Type |
Brushed DC Motor |
|
|
Output Power |
10W / 15W / 25W / 40W / 60W / 90W / 120 W / 140W / 180W / 200W / 300W(Can Be Customized) |
|
|
Output Shaft |
Shaft diameter: 8mm / 10mm / 12mm / 15mm ;
Shaft shpe: Round Shaft, D-Cut Shaft, Key-Way Shaft (Can Be Customized) |
|
|
Voltage type |
12V/24V/90V/220V |
|
|
Frequency |
50/60Hz |
|
|
Accessories |
Electric Brake |
|
|
Gearbox frame size |
60 mm / 70mm / 80mm / 90mm / 104mm |
|
|
Gear Ratio |
3K-200K |
|
|
Type Of Pinion |
GN Type / GU Type |
|
|
Gearbox Type |
Regular Square Case gearbox / Right Angle Gearbox / L Type Gearbox |
|

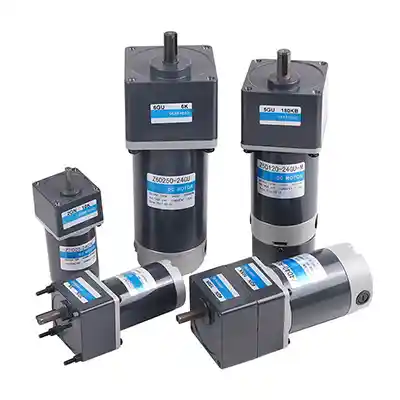

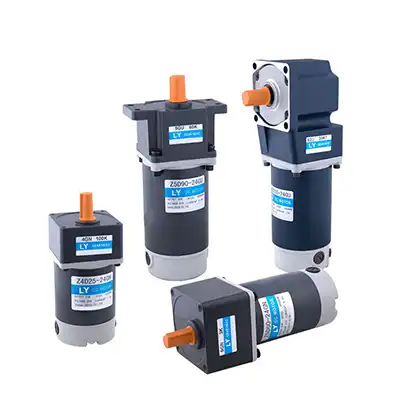

Product Display

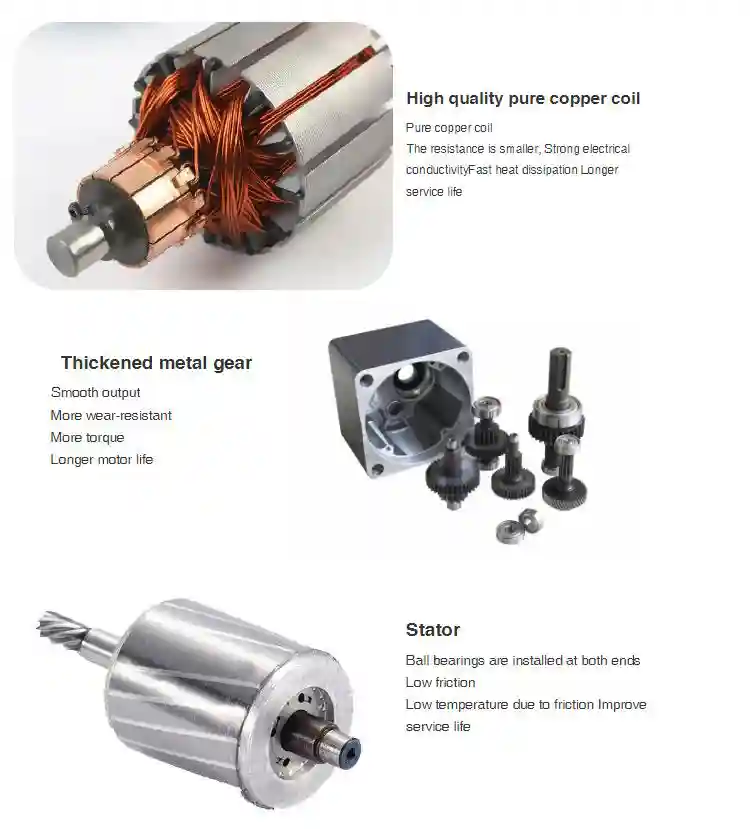

Product Feature
Extensive Power Range
With output capabilities stretching from 10W to 300W, this motor caters to various power demands, making it suitable for numerous applications.
Wide Voltage Flexibility
Compatible with an extensive voltage range from 24V up to 220V, it accommodates different energy requirements for project versatility.
Customizable Output Shaft & Voltage Type
Clients can select from shaft diameters and shapes, as well as voltage types, to ensure perfect integration with their systems.
Versatile Motor and Gearbox Options
The motor is available in various frame sizes and boasts a range of gearbox configurations, ensuring an ideal fit for specific torque demands and space constraints.
High Precision, Controlled Speed
With rated speeds up to 3000rpm and options for electric brakes, precision in high-torque applications is guaranteed.
Product Applications
Automated Equipment
The motor's high torque and customization options make it perfectly suited for various automated systems, from production lines to packaging machinery.
Material Handling
With its robust power and gear ratios, this motor can effectively drive conveyors, lifts, and other material handling equipment.
Healthcare Devices
The ability to operate quietly and smoothly makes this motor ideal for healthcare devices that require a gentle and steady motion.
Robotics and Control Systems
It provides the accuracy and torque needed for intricate robotics and control systems, where precision is paramount.
Related Products
Videos
DIMENSIONS
Technical Documents Downloads
| File Name | Size | Download |
| DC-Motor-Catalog.pdf | 55.7MB | Download |
