SPECIFICATIONS
Electrical Specification

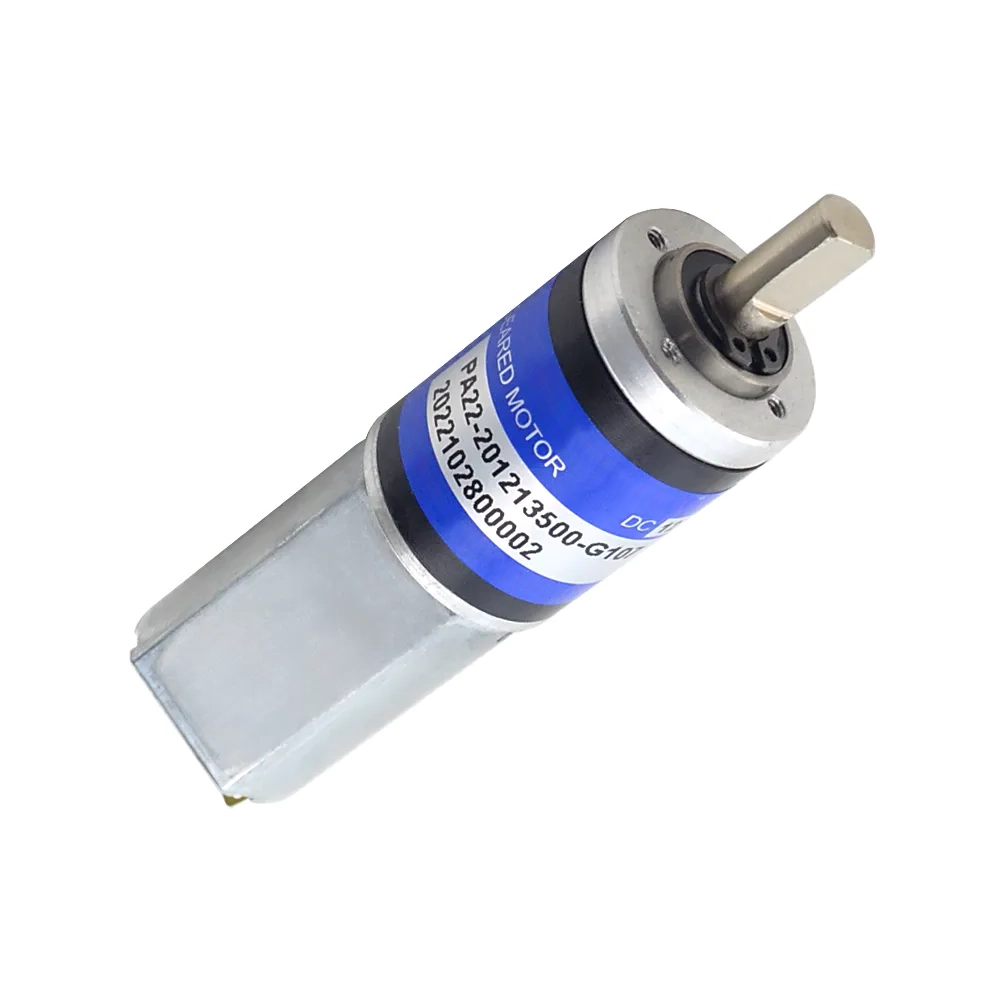

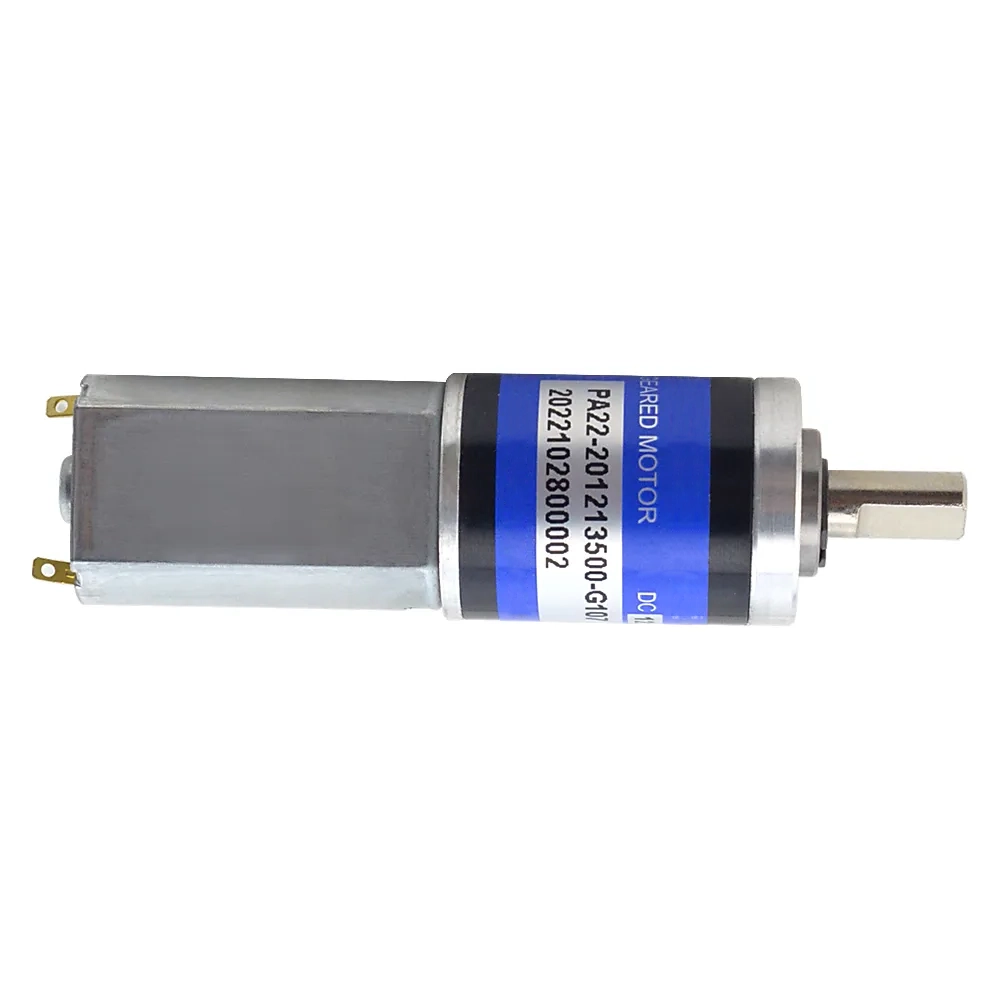

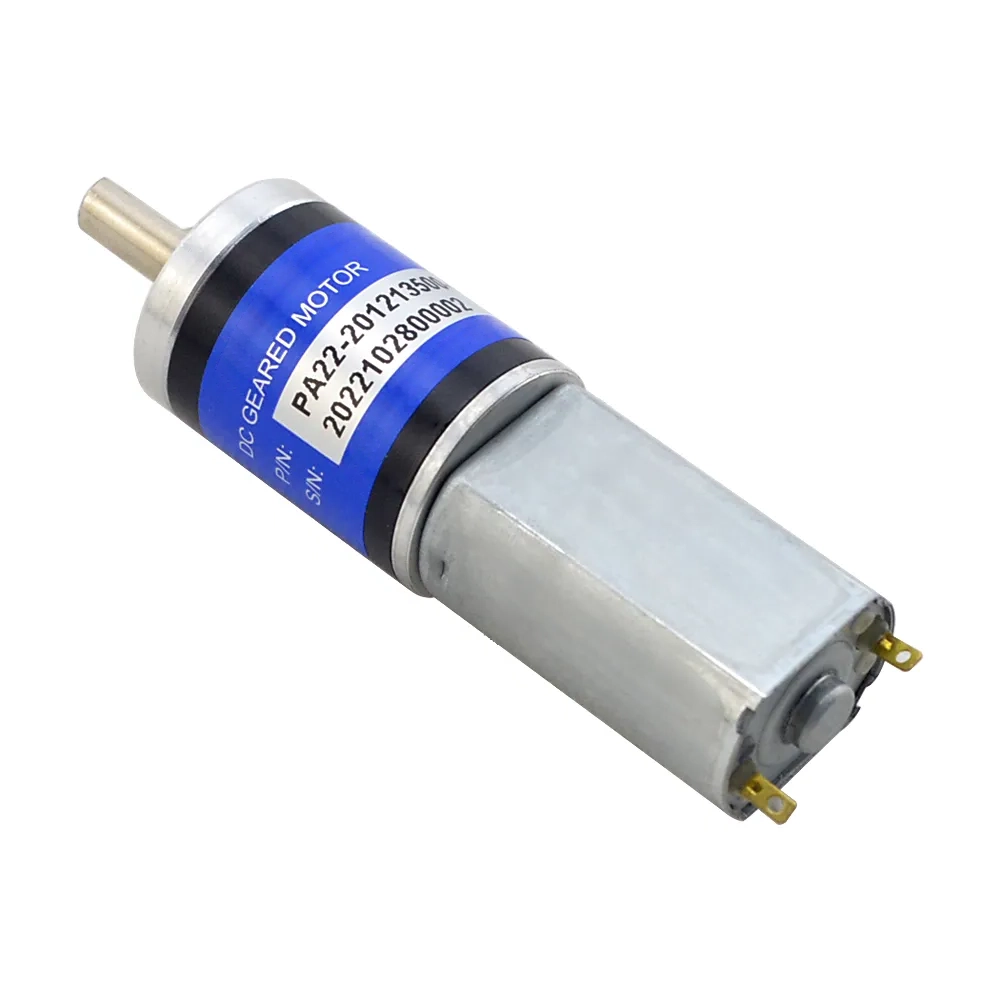

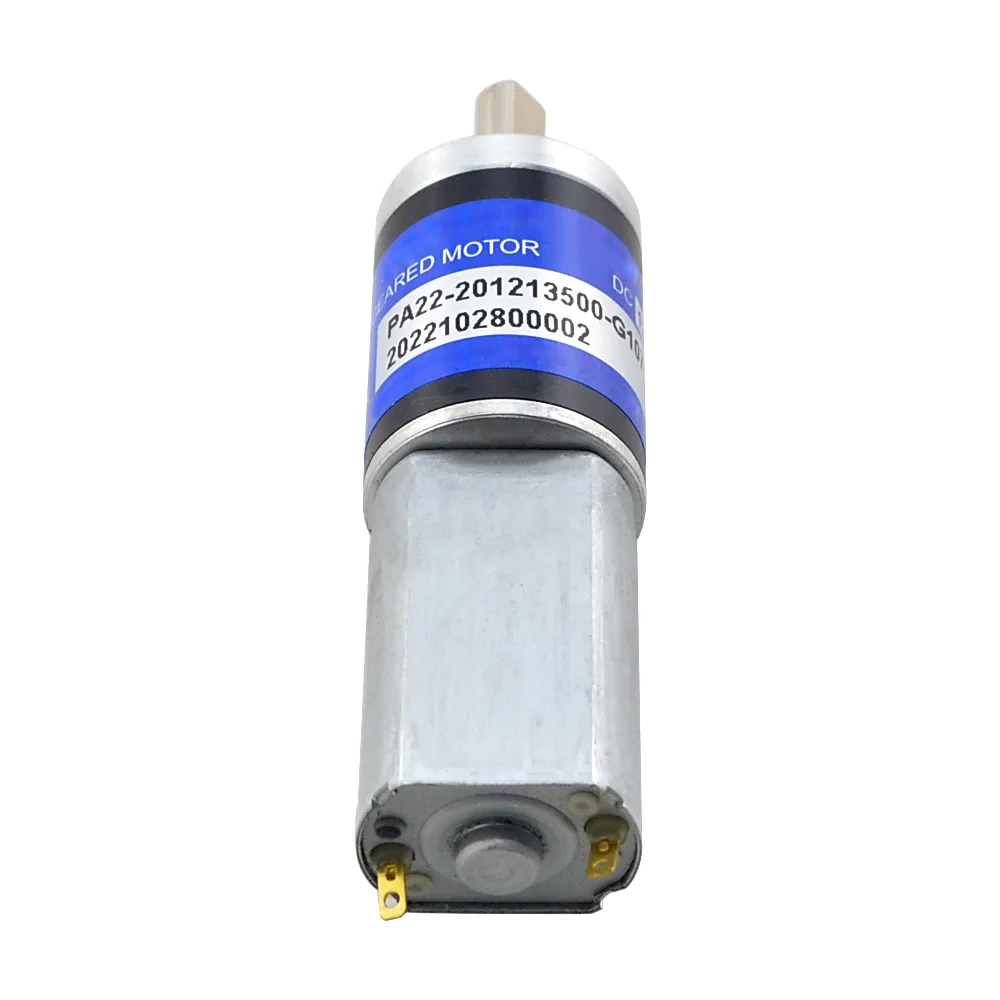

| Part Number | PA22-201213500-G107 |
| Motor Type | Brushed DC Motor |
| Rated Current(A) | 0.55 |
| Rated Torque(kg.cm) | 1.1 |
| Rated Power(W) | 1.6 |
| Rated Speed(rpm) | 98 |
| Rated Voltage(V) | 12 |
Gearbox Specification
| Gearbox Type | Planetary |
| Gear Ratio | 107:1 |
| Max. Permissible Torque | 5kg.cm |
| Moment Permissible Torque (within 30S) | 10kg.cm |
| Max. Permissible Radial Load | <=10N |
| Max. Permissible Axial Load | <=6N |
Physical Specification
| Inventory Method | Dedicated Inventory |
| Gearbox Type | Planetary Gearbox |
| Gear Ratio(xx:1) | 107 |
| Gearbox Shape | Round |
| Output Shaft Type | D |
| Shaft Diameter(mm) | 6 |
| Shaft Length(mm) | 15 |
| D-cut Length | 9mm |
Product Feature
Compact and Lightweight
Designed to be compact and lightweight, making it suitable for applications with space constraints.
High Torque Output
Provides a torque of 0.107Nm, ensuring strong and reliable performance for various applications.
Stable Speed
Delivers a stable speed of 98RPM, ideal for applications requiring consistent motion control.
Durable Construction
Constructed with high-quality materials, ensuring durability and long-lasting performance.
Energy Efficient
Engineered for high efficiency, minimizing energy consumption and operational costs.
Easy Integration
Features a standard design that allows for easy integration into existing systems and applications.
Reliable Planetary Gearbox
Equipped with a planetary gearbox, providing precise and reliable gear reduction.
Product Applications
Robotics
Ideal for use in robotic systems, providing precise and controlled movement for various robotic applications.
Automated Systems
Suitable for automated systems that require consistent and reliable motion control.
Home Appliances
Used in home appliances, ensuring efficient and reliable operation.
Medical Devices
Applicable in medical devices that demand precision and reliability in operation.
Consumer Electronics
Perfect for integration into consumer electronics that require compact and efficient motion solutions.
DIY Projects
Ideal for various DIY projects that require a compact and reliable DC gear motor.
Model Making
Used in model making, providing precise and smooth operation for detailed models.
