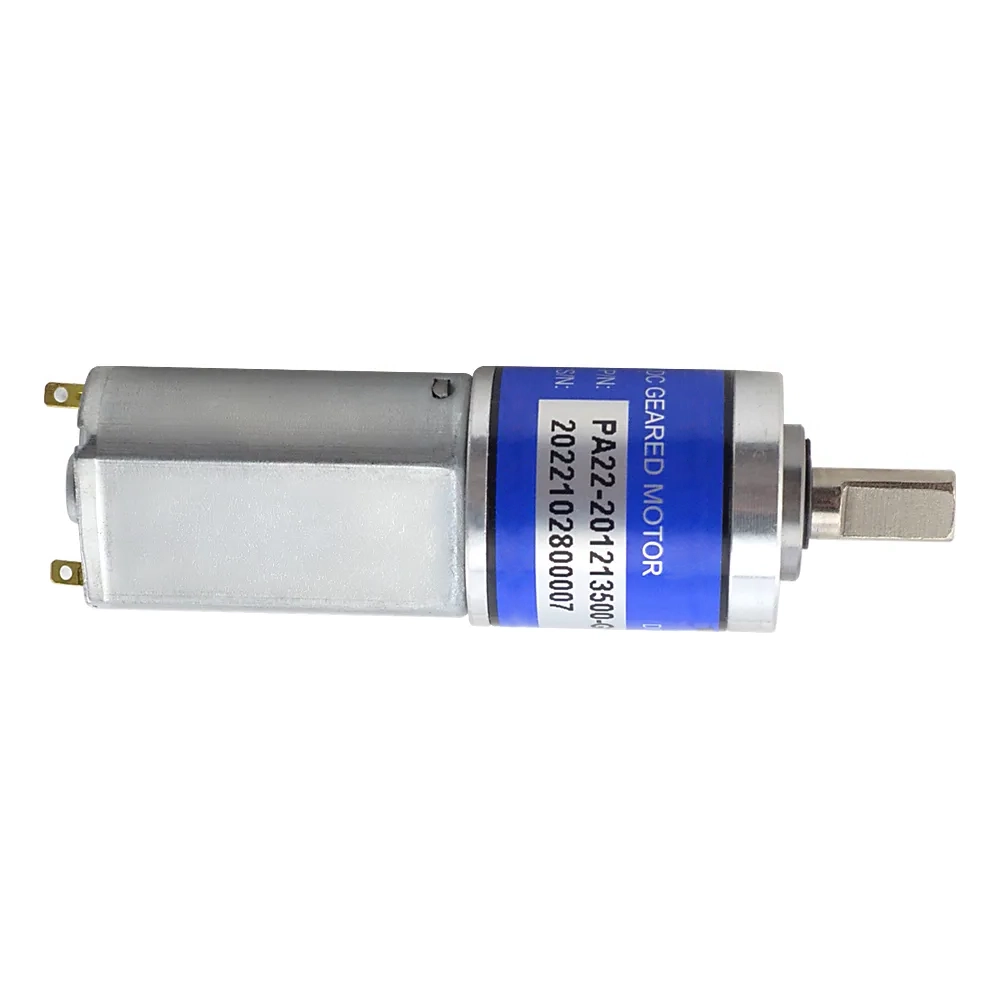

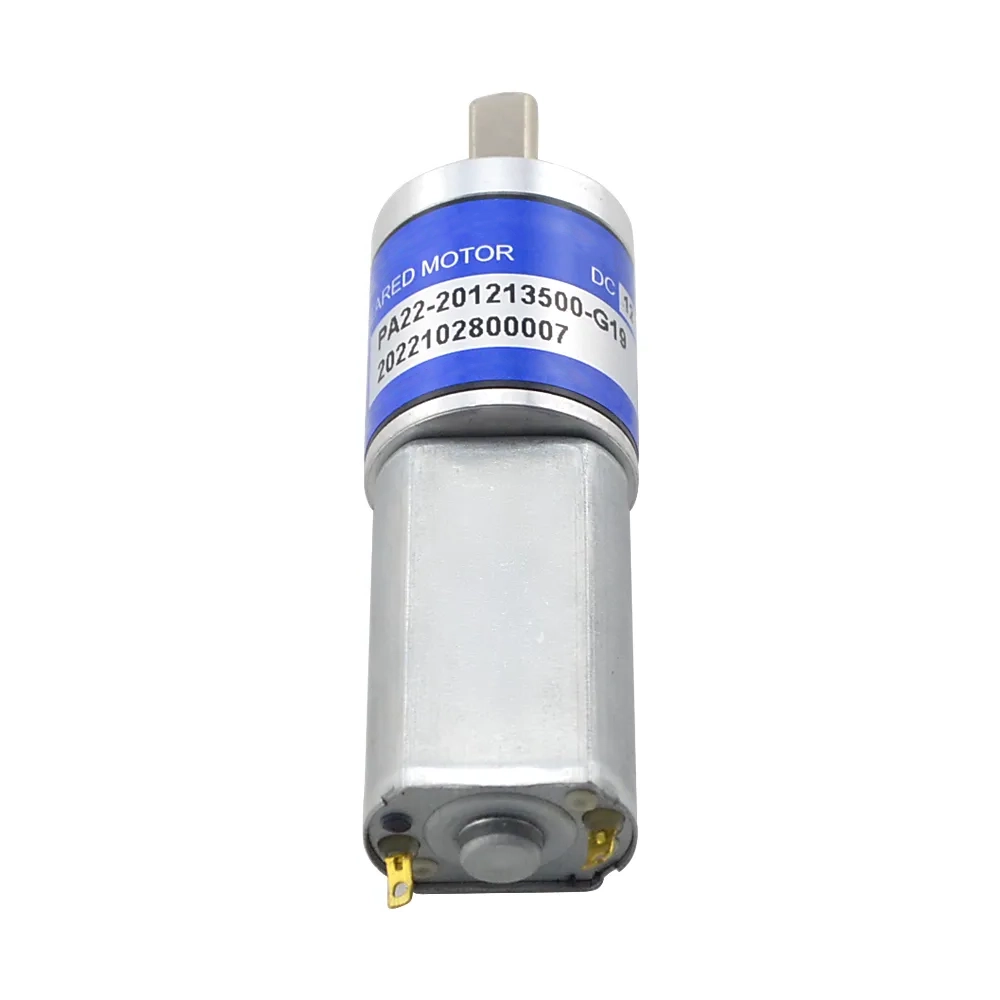

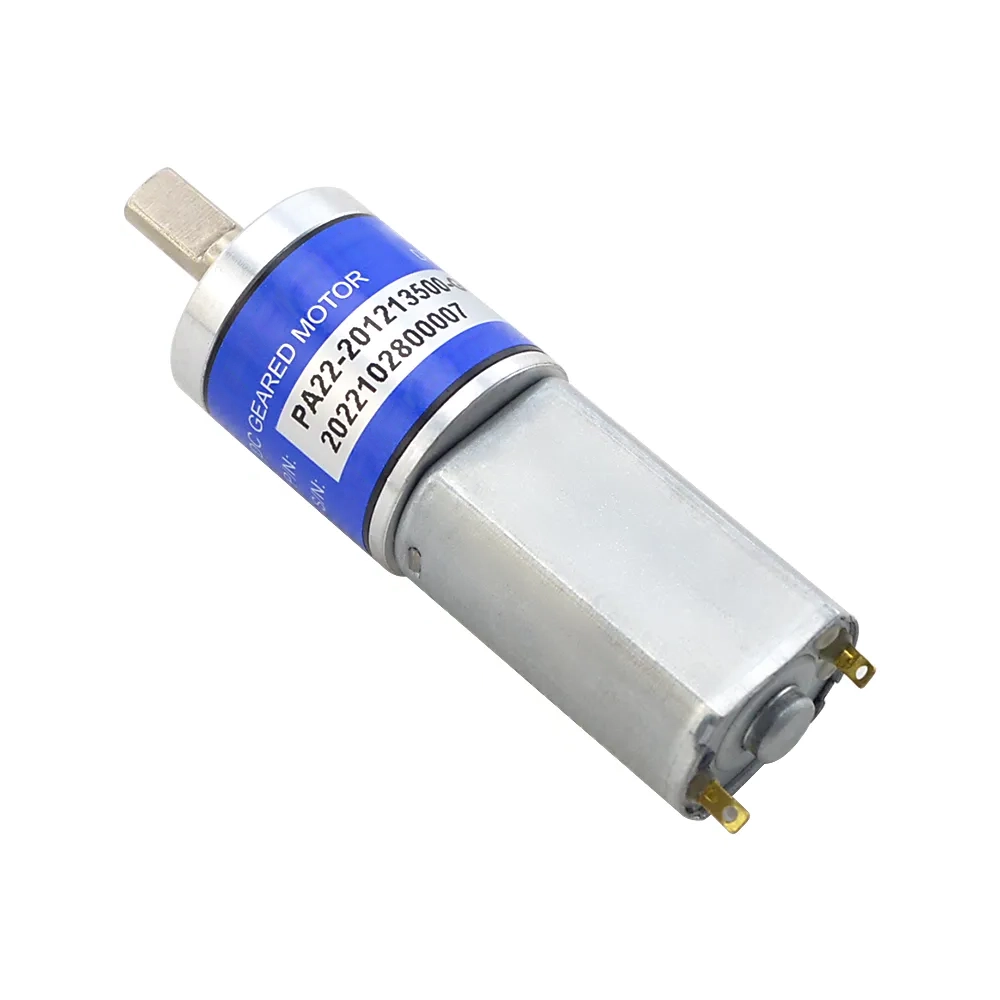

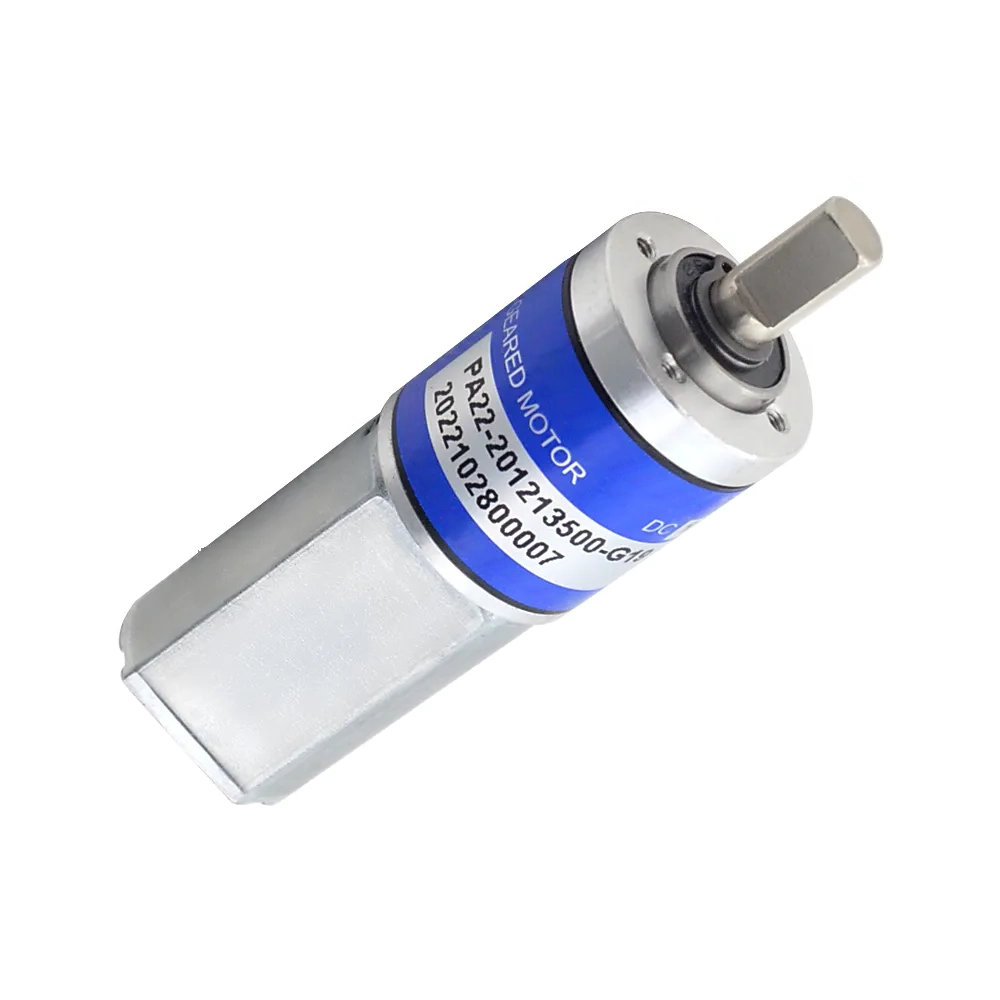

1.6W 12V 552RPM 0.023Nm Brushed DC Gear Motor With Planetary Gearbox

Home > 1.6W 12V 552RPM 0.023Nm Brushed DC Gear Motor With Planetary Gearbox

1.6W 12V 552RPM 0.023Nm Brushed DC Gear Motor With Planetary Gearbox

$11.75

1.6W 12V 552RPM 0.023Nm Brushed DC Gear Motor with Planetary Gearbox, a compact and efficient solution for low-power motion control applications. This motor features a brushed DC design, known for its reliability and durability.

Motor TypeDC Geared Brush Motor

Output Power (W)1.6

Voltage (V)12

Rated Speed (rpm)552

Electrical Specification

Part Number PA22-201213500-G19
Motor Type Brushed DC Motor
Rated Current(A) 0.55
Rated Torque(kg.cm) 0.23
Rated Power(W) 1.6
Rated Speed(rpm) 552
Rated Voltage(V) 12

Gearbox Specification

Attribute Value
Gearbox Type Planetary
Gear Ratio 19:1
Max. Permissible Torque 5kg.cm
Moment Permissible Torque (within 30S) 10kg.cm
Max. Permissible Radial Load <=10N
Max. Permissible Axial Load <=6N

Physical Specification

Attribute Value
Gearbox Type Planetary
Inventory Method Dedicated Inventory
Gearbox Type Planetary Gearbox
Gear Ratio(xx:1) 19
Gearbox Shape Round
Output Shaft Type D
Shaft Diameter(mm) 6
Shaft Length(mm) 15

Product Display   / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / /

Feature   / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / /

Applications   / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / /
