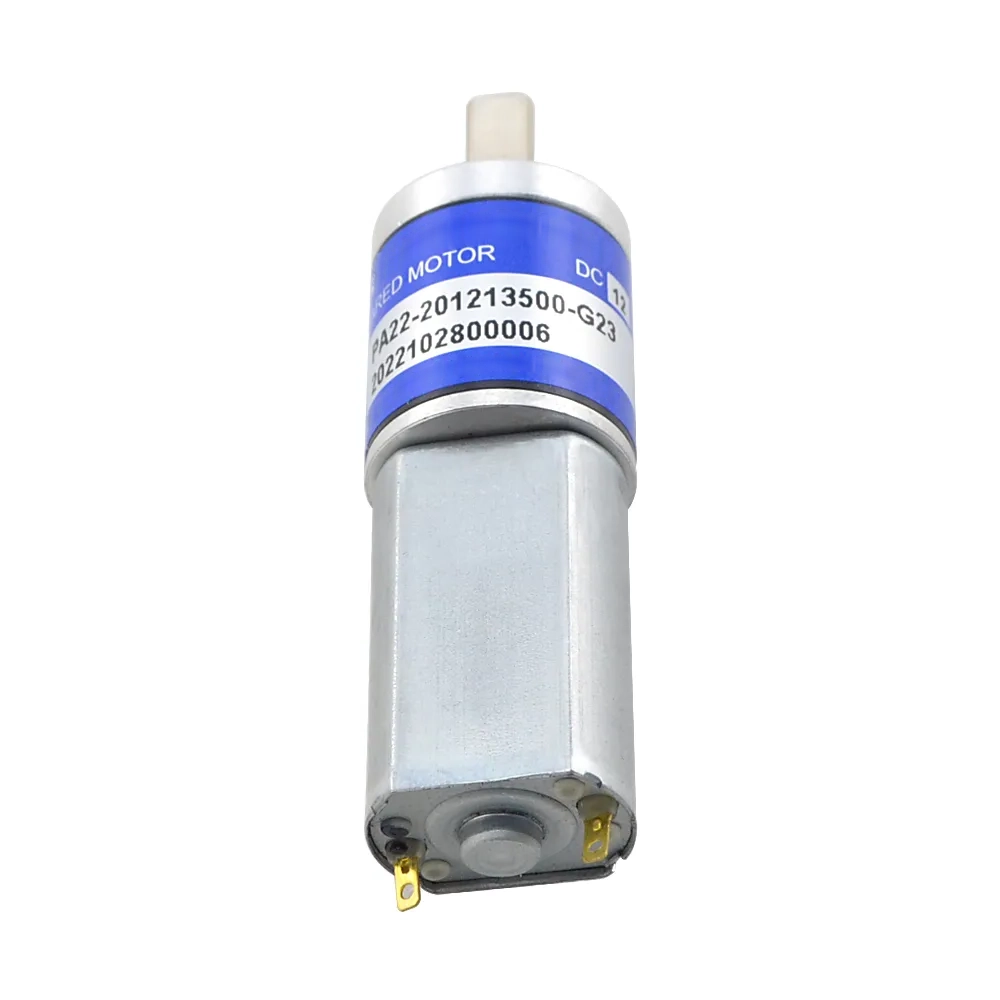

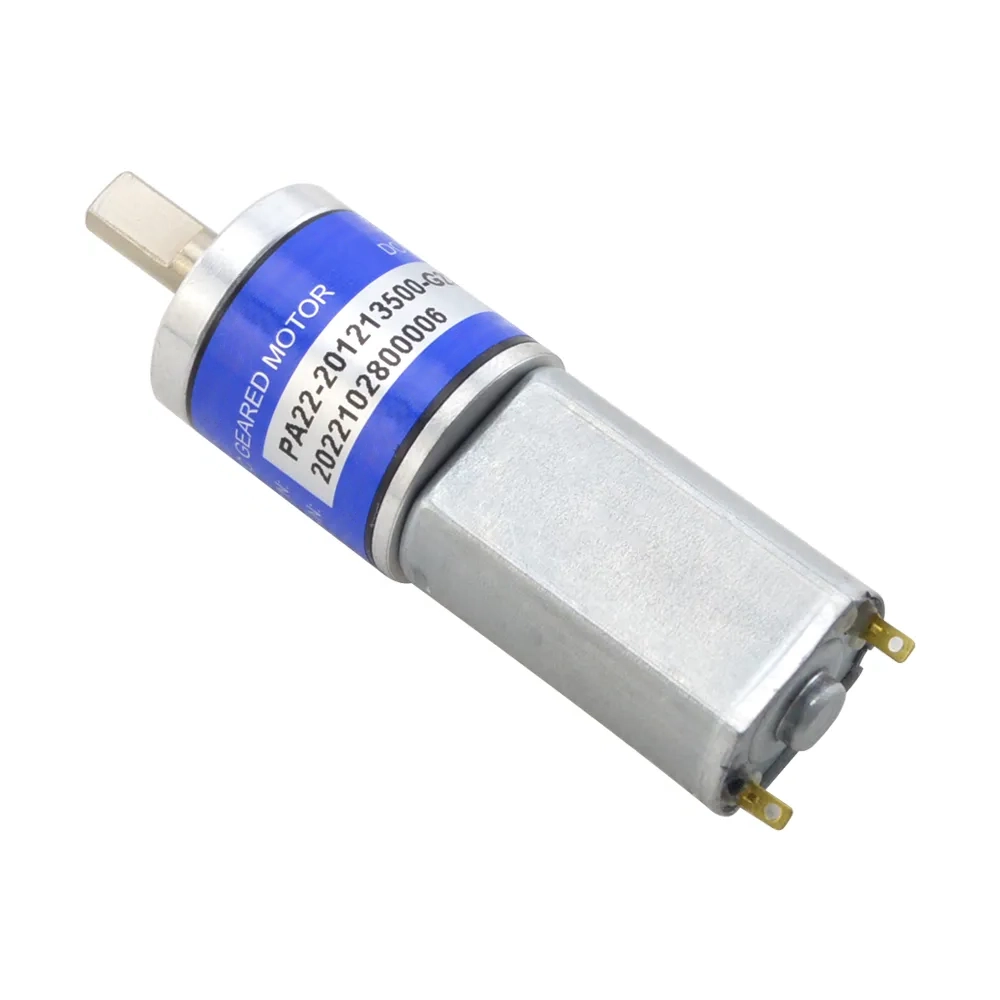

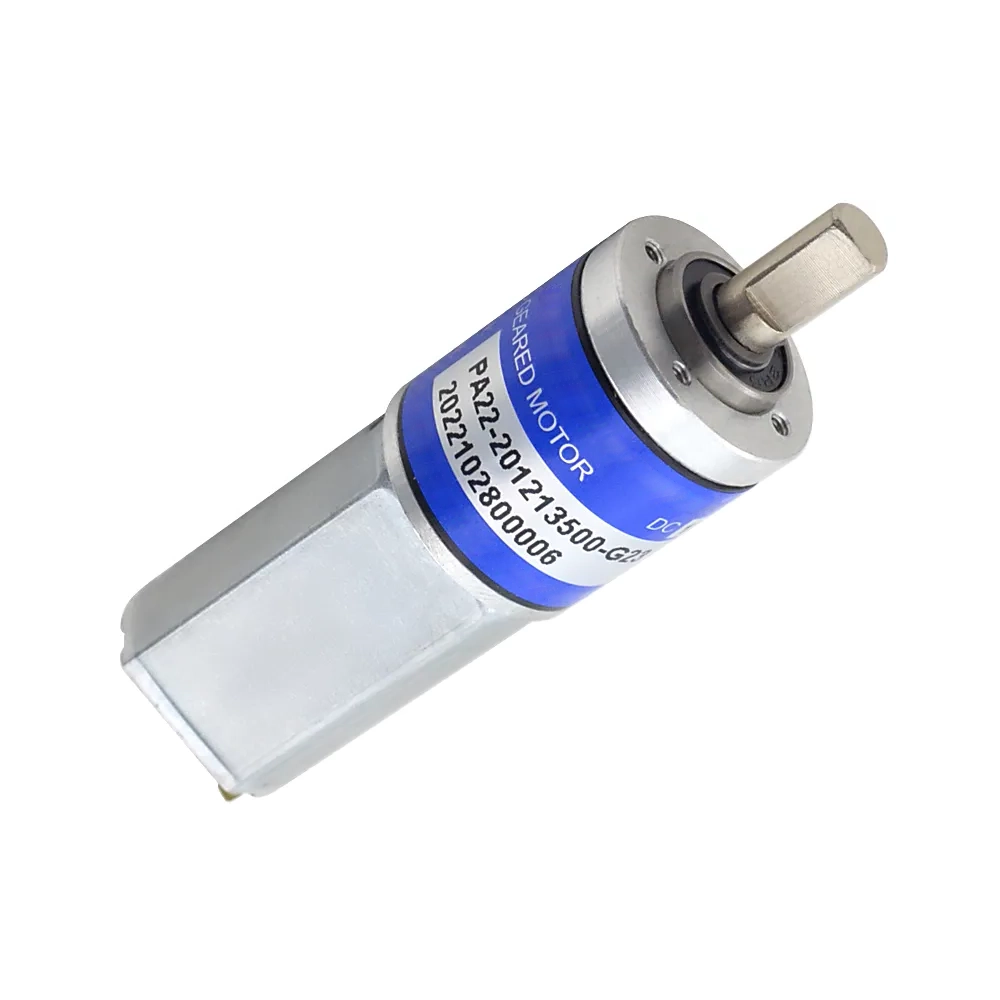

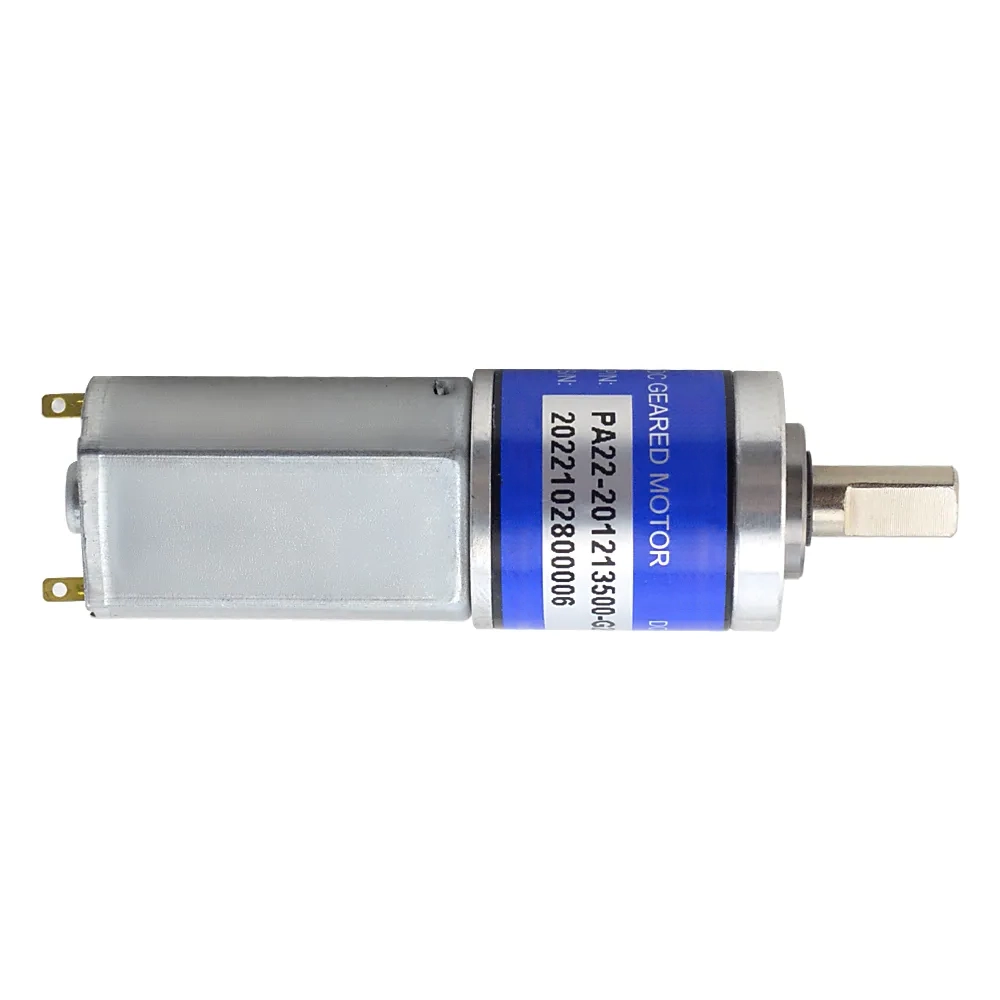

1.6W 12V 465RPM 0.026Nm Brushed DC Gear Motor With Planetary Gearbox

$10.75

1.6W 12V 465RPM 0.026Nm Brushed DC Gear Motor with Planetary Gearbox, a compact and efficient solution for low-power motion control applications. This motor features a brushed DC design, known for its reliability and durability.

Model Type

Output Power (W)()1.6

Voltage (V)()12

Rated Speed (rpm)()465

SPECIFICATIONS

Electrical Specification

Part Number PA22-201213500-G23
Motor Type Brushed DC Motor
Rated Current(A) 0.55
Rated Torque(kg.cm) 0.27
Rated Power(W) 1.6
Rated Speed(rpm) 465
Rated Voltage(V) 12

Gearbox Specification

Gearbox Type Planetary
Gear Ratio 22.56:1
Max. Permissible Torque 5kg.cm
Moment Permissible Torque (within 30S) 10kg.cm
Max. Permissible Radial Load <=10N
Max. Permissible Axial Load <=6N

Physical Specification

Inventory Method Dedicated Inventory
Gearbox Type Planetary Gearbox
Gear Ratio(xx:1) 22.56
Gearbox Shape Round
Output Shaft Type D
Shaft Diameter(mm) 6
Shaft Length(mm) 15

Videos

DIMENSIONS

Technical Documents Downloads

File NameSizeDownload
DC-Motor-Catalog.pdf55.7MBDownload
