1.6W 12V 41RPM 0.225Nm Brushed DC Gear Motor With Planetary Gearbox

Home > 1.6W 12V 41RPM 0.225Nm Brushed DC Gear Motor With Planetary Gearbox

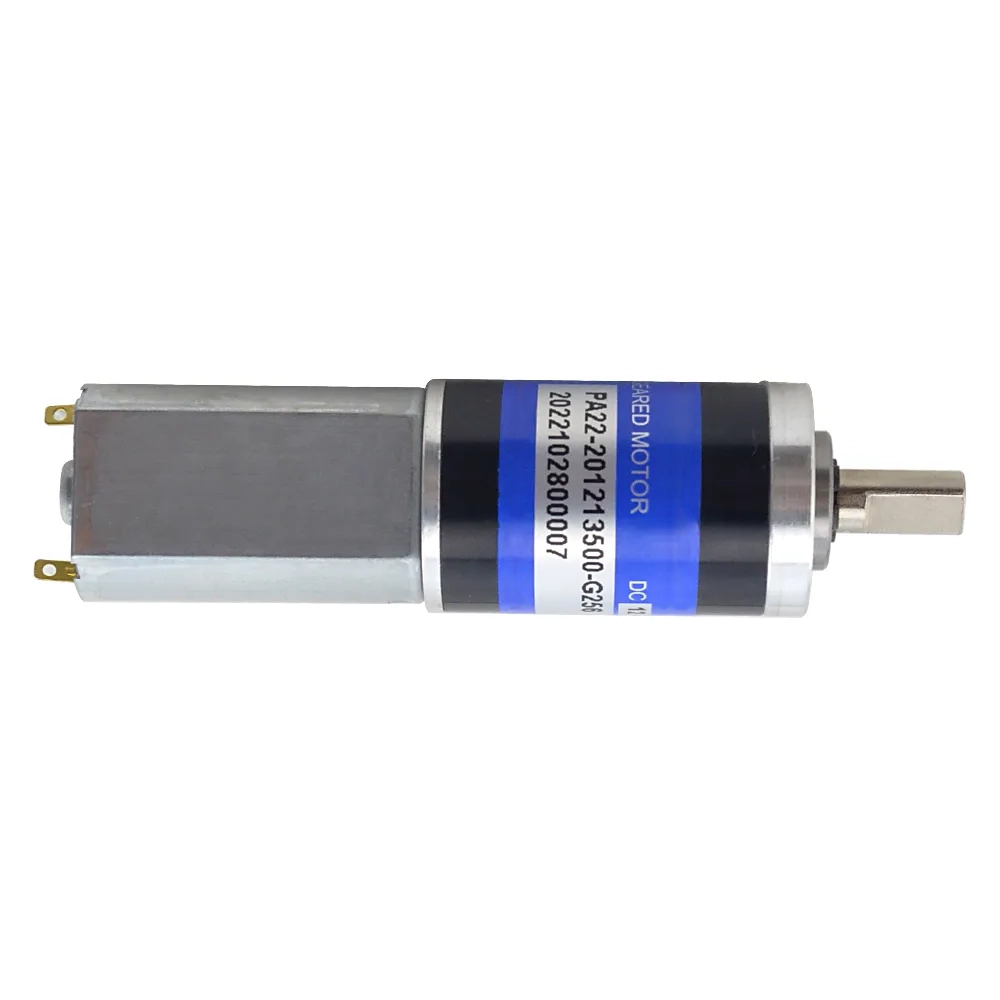

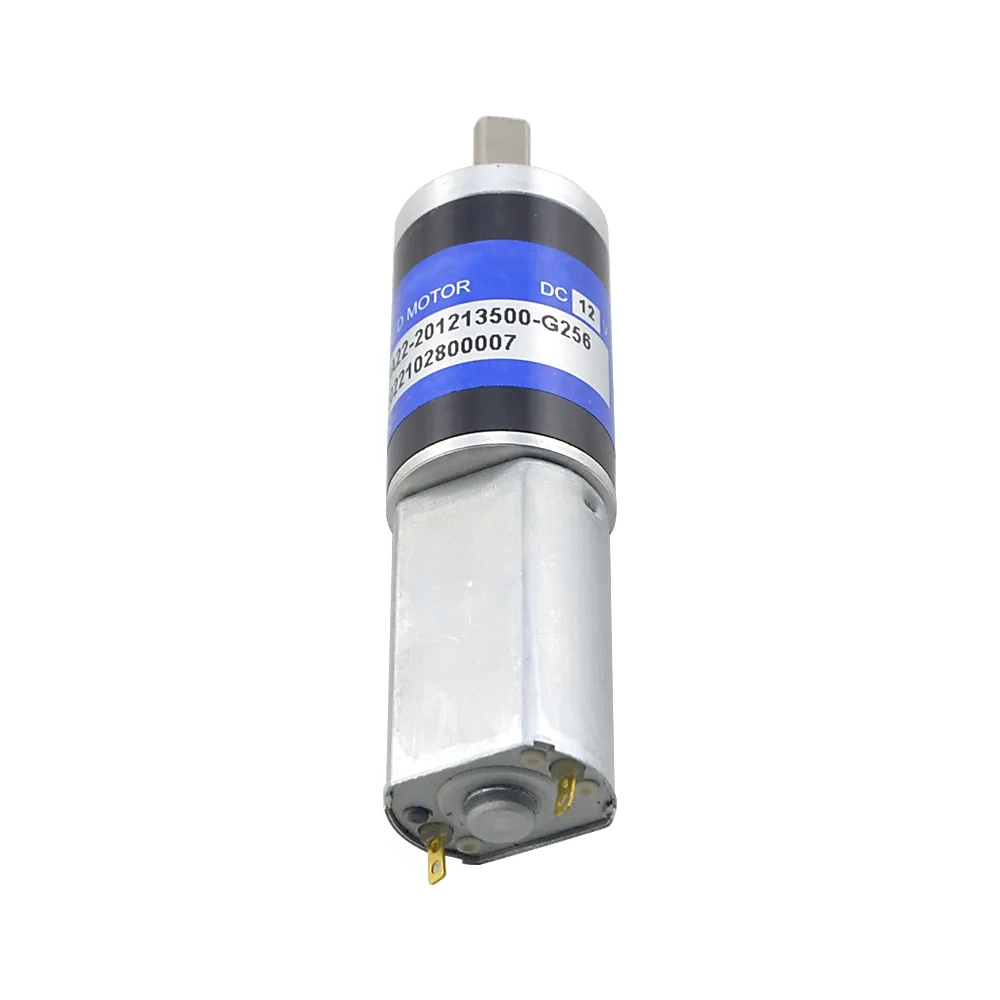

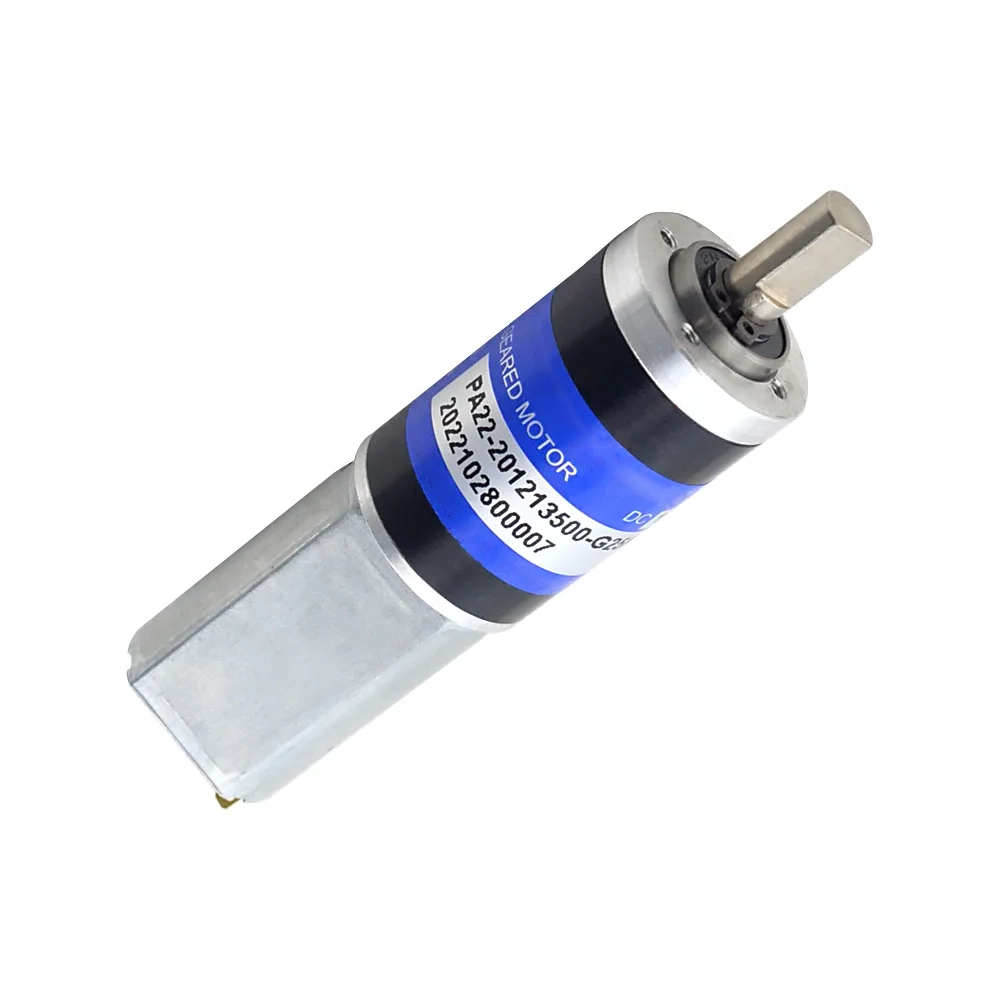

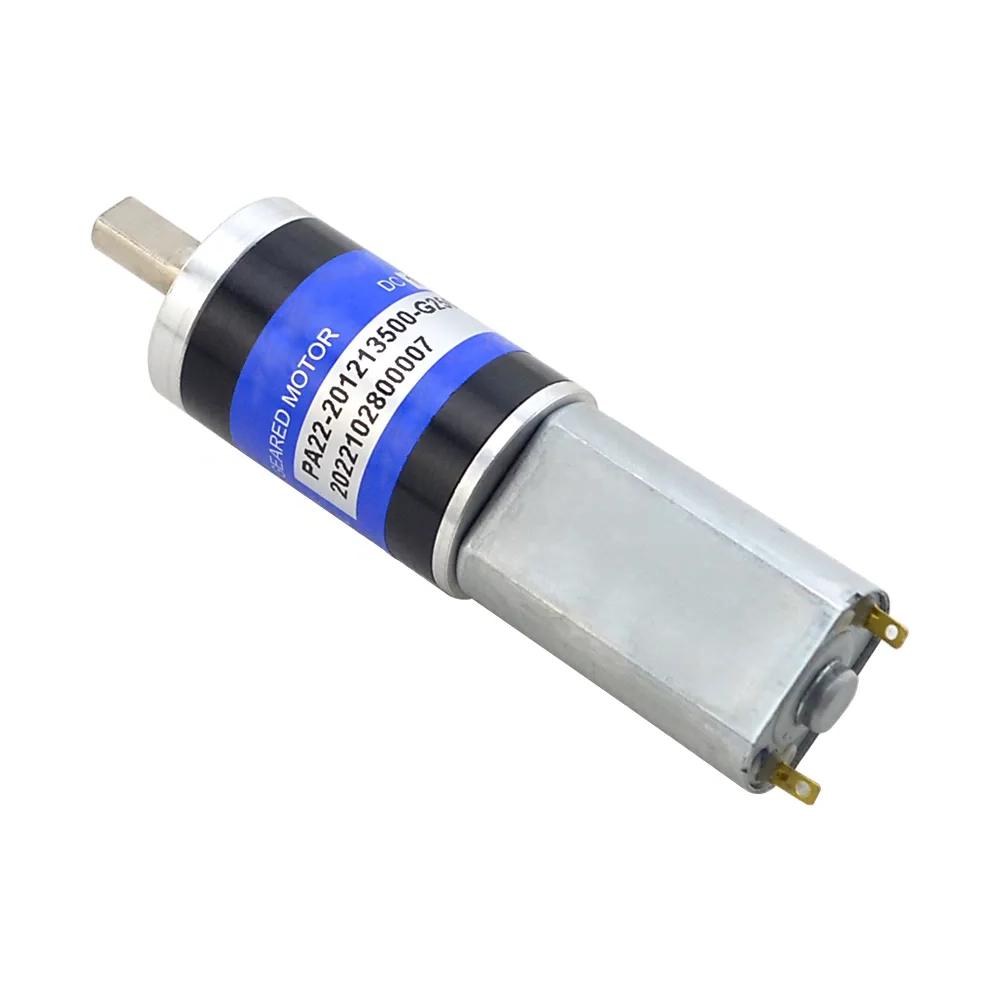

1.6W 12V 41RPM 0.225Nm Brushed DC Gear Motor With Planetary Gearbox

$13.56

1.6W 12V 41RPM 0.225Nm Brushed DC Gear Motor with Planetary Gearbox, a harmonious blend of power, precision, and tranquility.

Motor TypeDC Geared Brush Motor

Output Power (W)1.6

Voltage (V)12

Rated Speed (rpm)41

Electrical Specification

Part Number PA22-201213500-G256
Motor Type Brushed DC Motor
Rated Current(A) 0.55
Rated Torque(kg.cm) 2.3
Rated Power(W) 1.6
Rated Speed(rpm) 41
Rated Voltage(V) 12

Gearbox Specification

Gearbox Type Planetary
Gear Ratio 256:1
Max. Permissible Torque 5kg.cm
Moment Permissible Torque (within 30S) 10kg.cm
Max. Permissible Radial Load <=10N
Max. Permissible Axial Load <=6N

Physical Specification

Inventory Method Dedicated Inventory
Gearbox Type Planetary Gearbox
Gear Ratio(xx:1) 256
Gearbox Shape Round
Output Shaft Type D
Shaft Diameter(mm) 6
Shaft Length(mm) 15
D-cut Length 9mm

Product Display   / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / /

Feature   / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / /

Applications   / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / /
