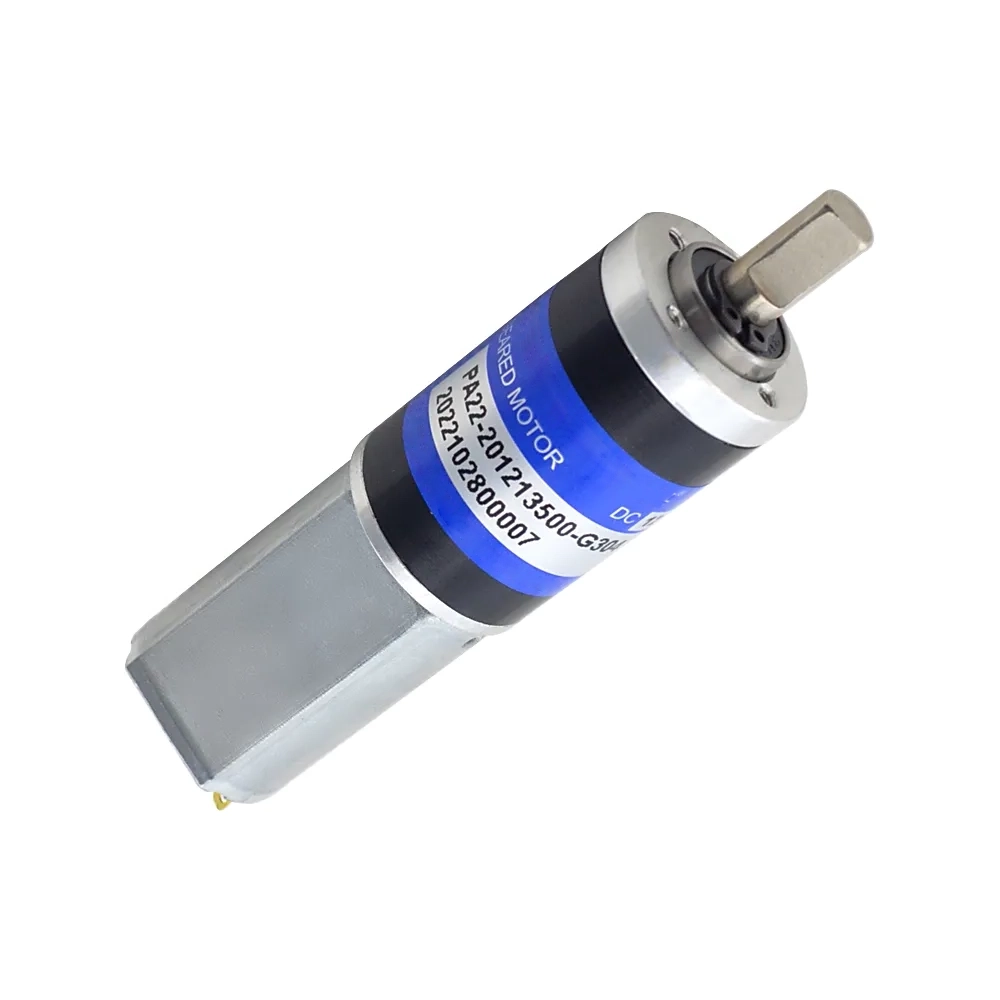

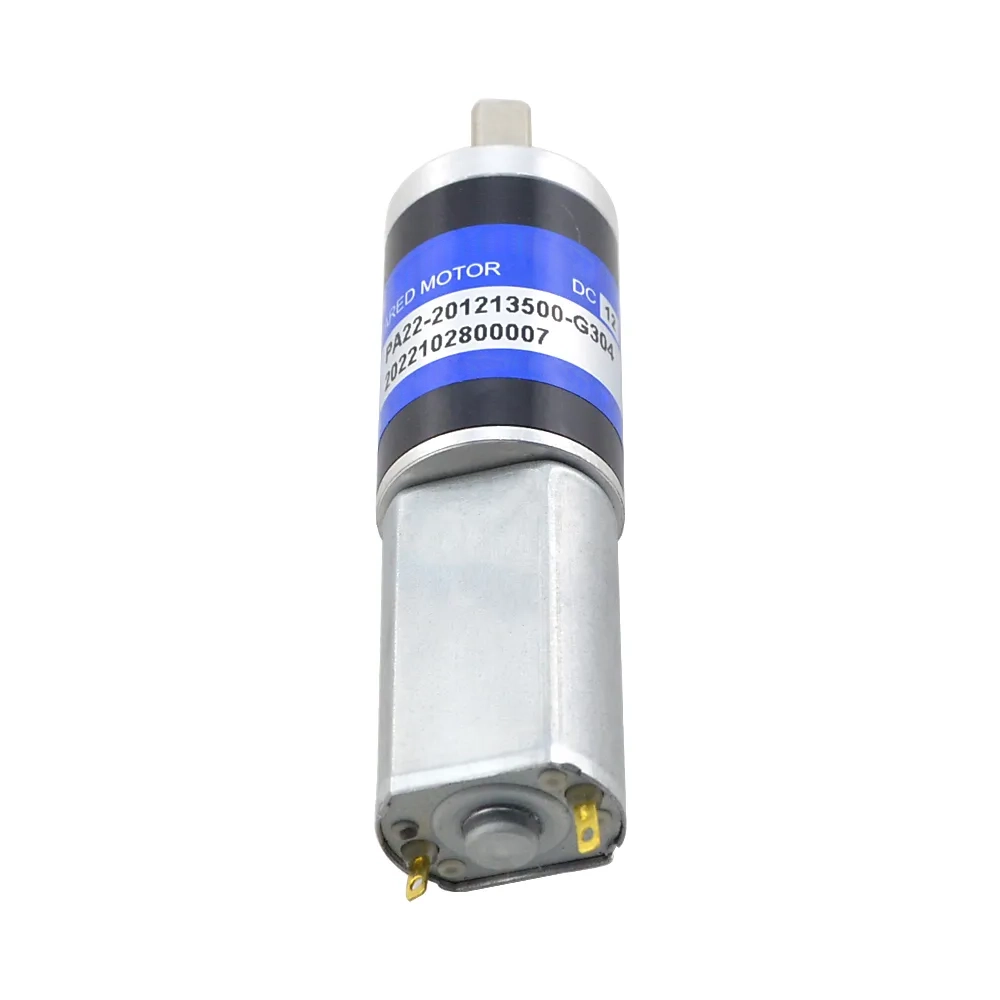

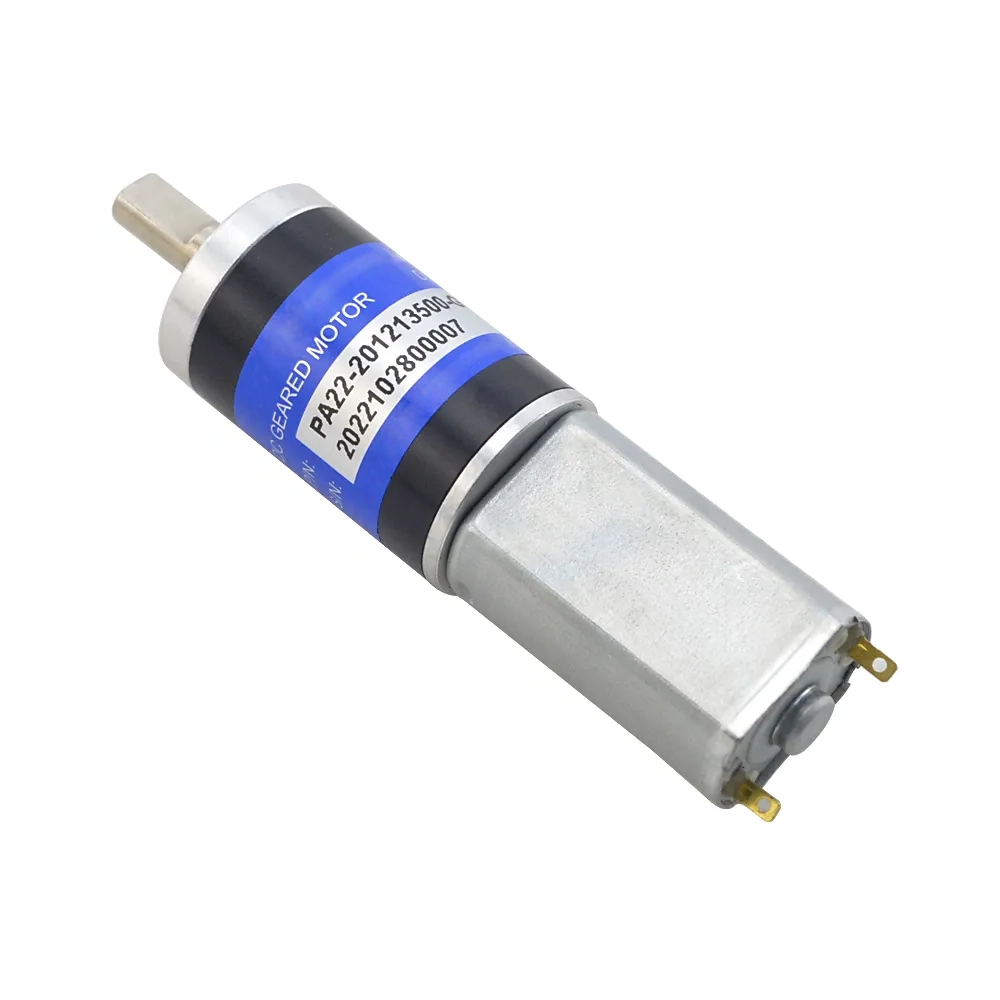

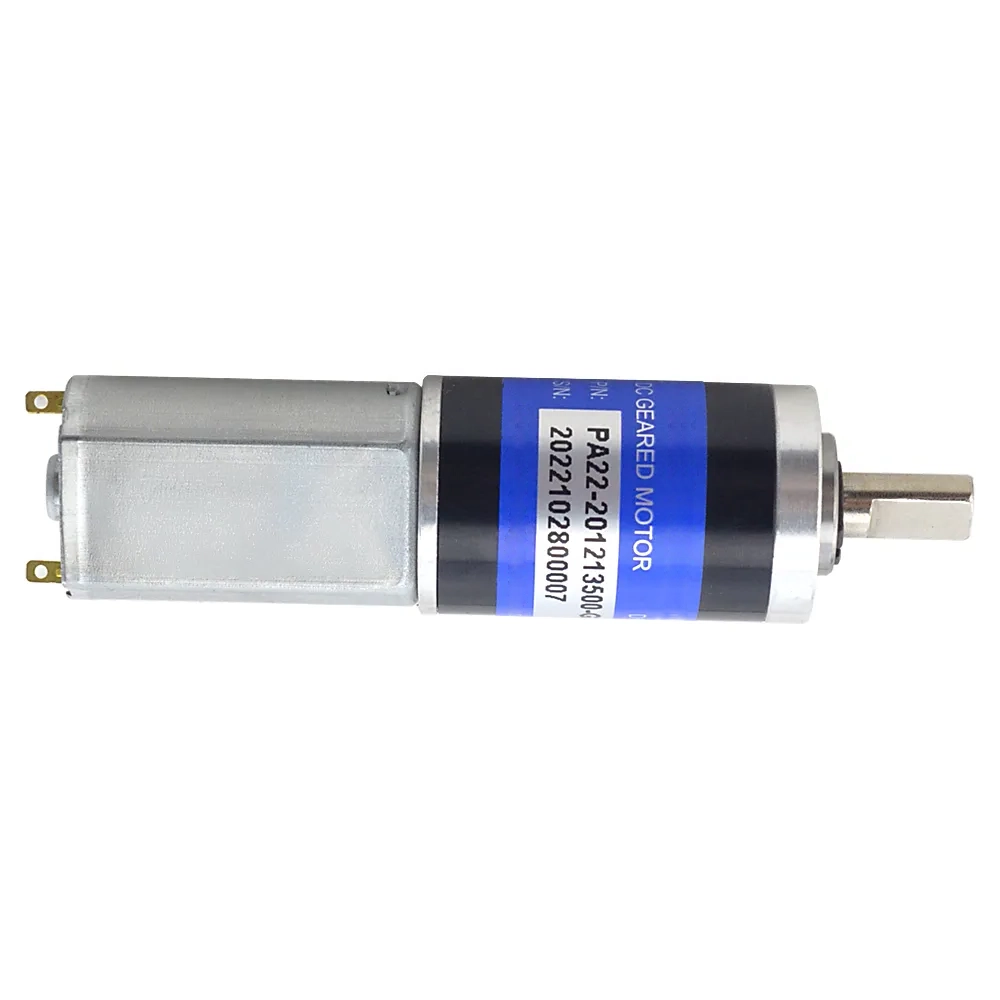

| Part Number | PA22-201213500-G304 |
| Motor Type | Brushed DC Motor |
| Rated Current(A) | 0.55 |
| Rated Torque(kg.cm) | 2.7 |
| Rated Power(W) | 1.6 |
| Rated Speed(rpm) | 34.5 |
| Rated Voltage(V) | 12 |
| Rotation Direction | CW/CCW |
| Gearbox Type | Planetary |
| Gear Ratio | 304:1 |
| Max. Permissible Torque | 5kg.cm |
| Moment Permissible Torque (within 30S) | 10kg.cm |
| Max. Permissible Radial Load | <=10N |
| Max. Permissible Axial Load | <=6N |
| Inventory Method | Dedicated Inventory |
| Gearbox Type | Planetary Gearbox |
| Gear Ratio(xx:1) | 304 |
| Gearbox Shape | Round |
| Output Shaft Type | D |
| Shaft Diameter(mm) | 6 |
| Shaft Length(mm) | 15 |
