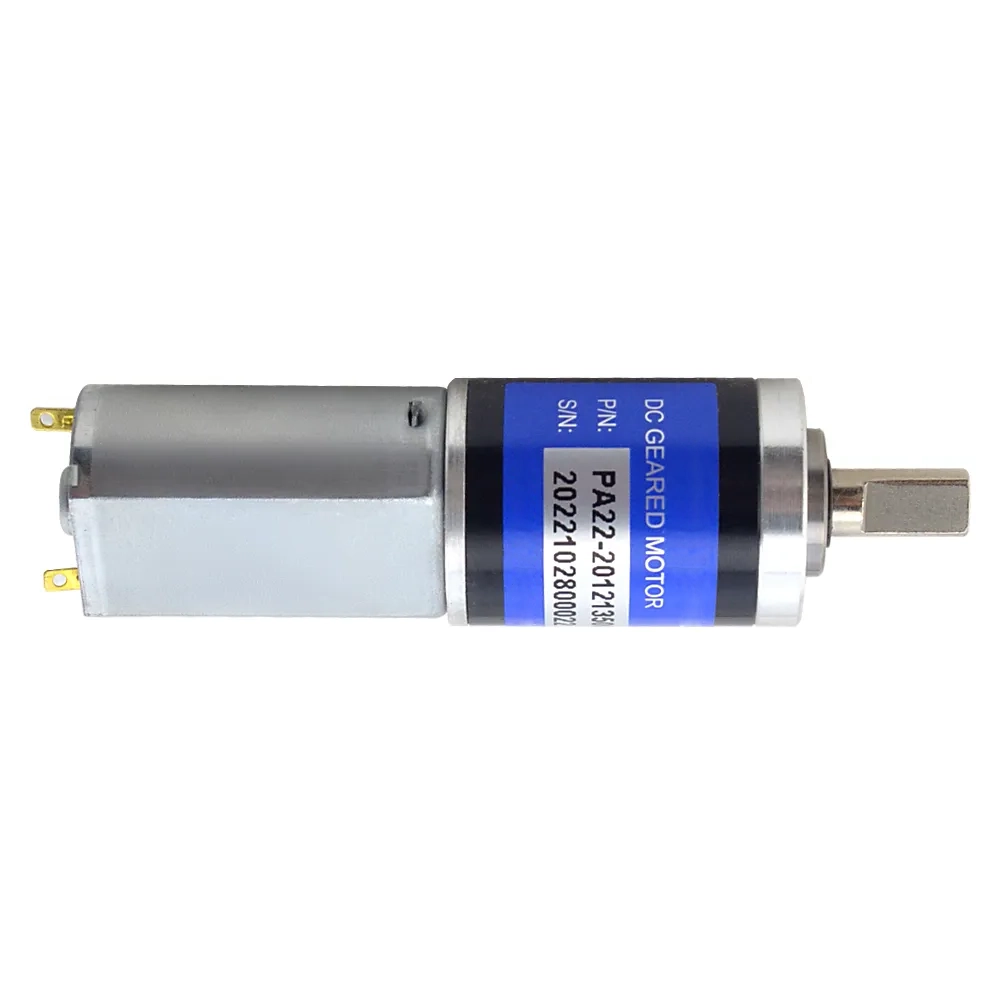

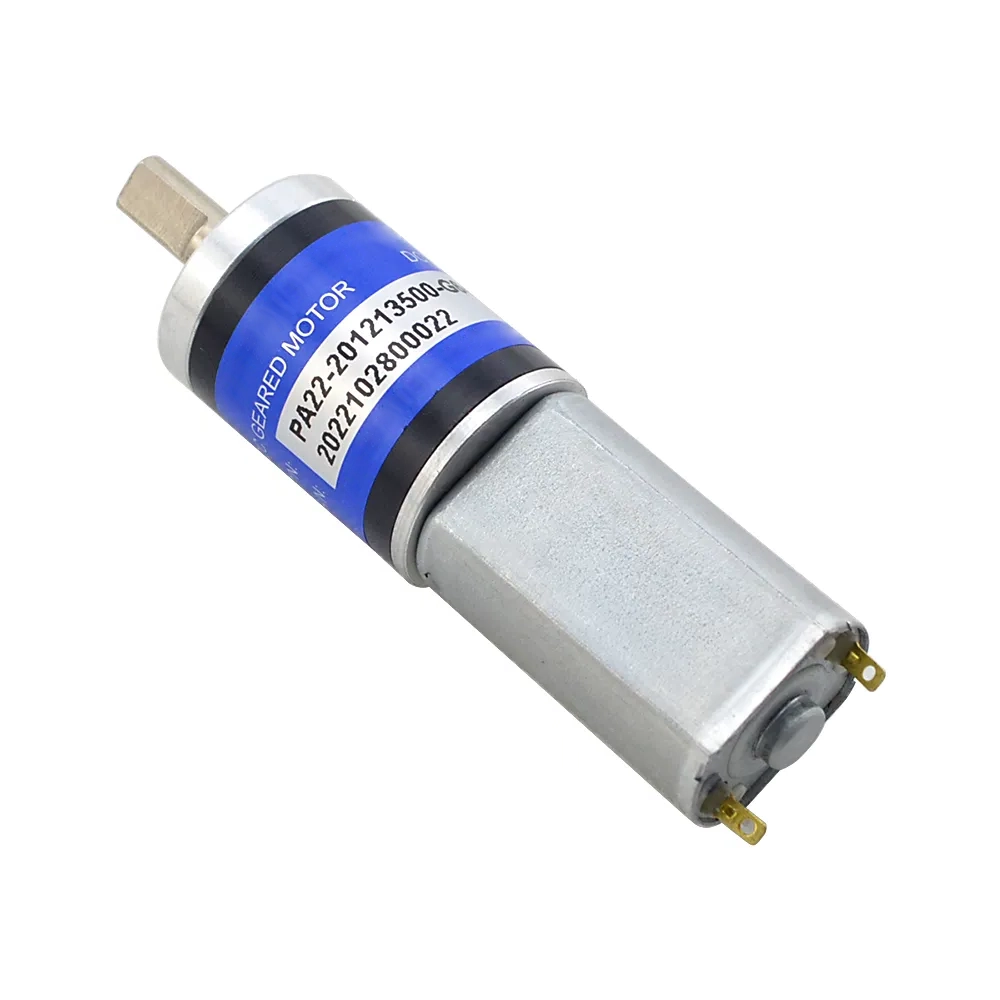

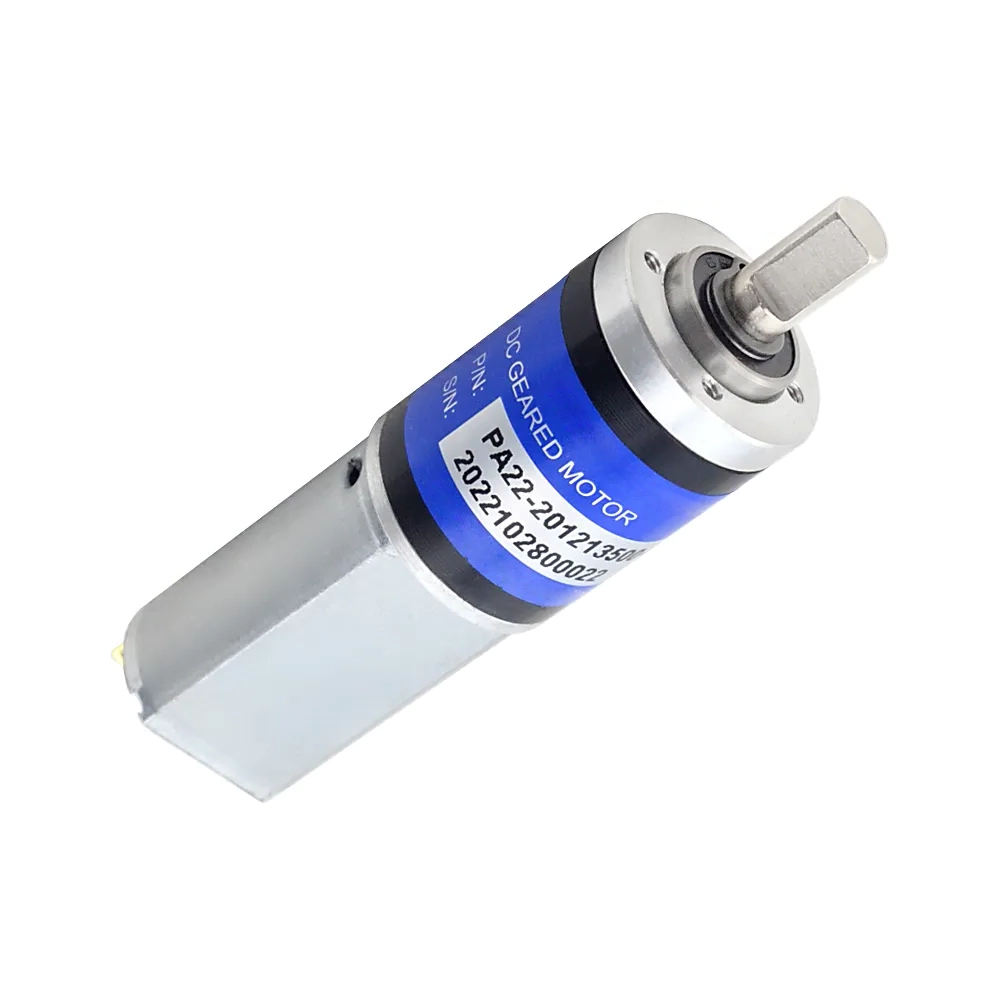

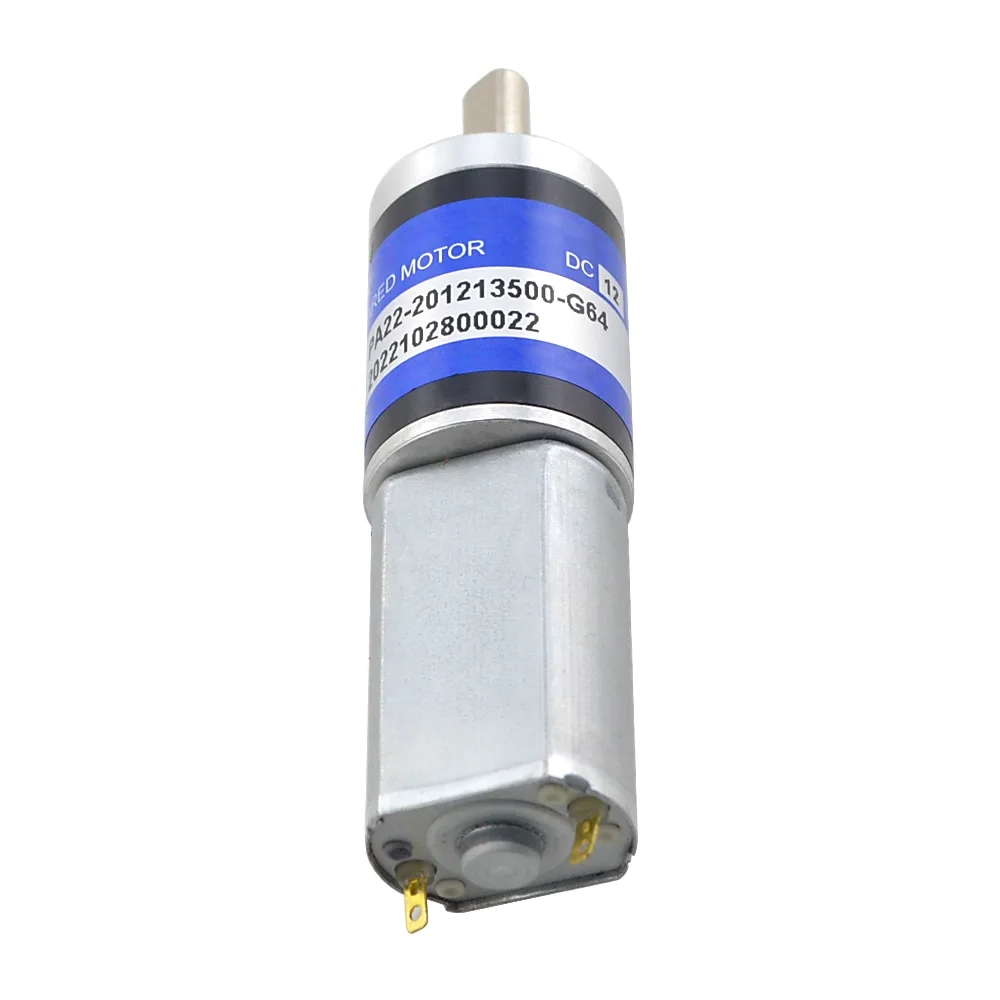

1.6W 12V 164RPM 0.068Nm Brushed DC Gear Motor With Planetary Gearbox

Home > 1.6W 12V 164RPM 0.068Nm Brushed DC Gear Motor With Planetary Gearbox

1.6W 12V 164RPM 0.068Nm Brushed DC Gear Motor With Planetary Gearbox

$11.45

1.6W 12V 164RPM 0.068Nm Brushed DC Gear Motor with Planetary Gearbox, a compact and efficient solution for low-power motion control applications. This motor features a brushed DC design, known for its reliability and durability. The planetary gearbox offers increased torque output and smooth operation, allowing for precise control of rotational speed and torque.

Motor TypeDC Geared Brush Motor

Output Power (W)1.6

Voltage (V)12

Rated Speed (rpm)164

Electrical Specification

Part Number PA22-201213500-G64
Motor Type Brushed DC Motor
Rated Current(A) 0.55
Rated Torque(kg.cm) 0.7
Rated Power(W) 1.6
Rated Speed(rpm) 164
Rated Voltage(V) 12

Gearbox Specification

Attribute Value
Gearbox Type Planetary
Gear Ratio 64:1
Max. Permissible Torque 5kg.cm
Moment Permissible Torque (within 30S) 10kg.cm
Max. Permissible Radial Load <=10N
Max. Permissible Axial Load <=6N

Physical Specification

Inventory Method Dedicated Inventory Gearbox Type Planetary Gearbox Gear Ratio(xx:1) 64 Gearbox Shape Round Output Shaft Type D Shaft Diameter(mm) 6 Shaft Length(mm) 15
