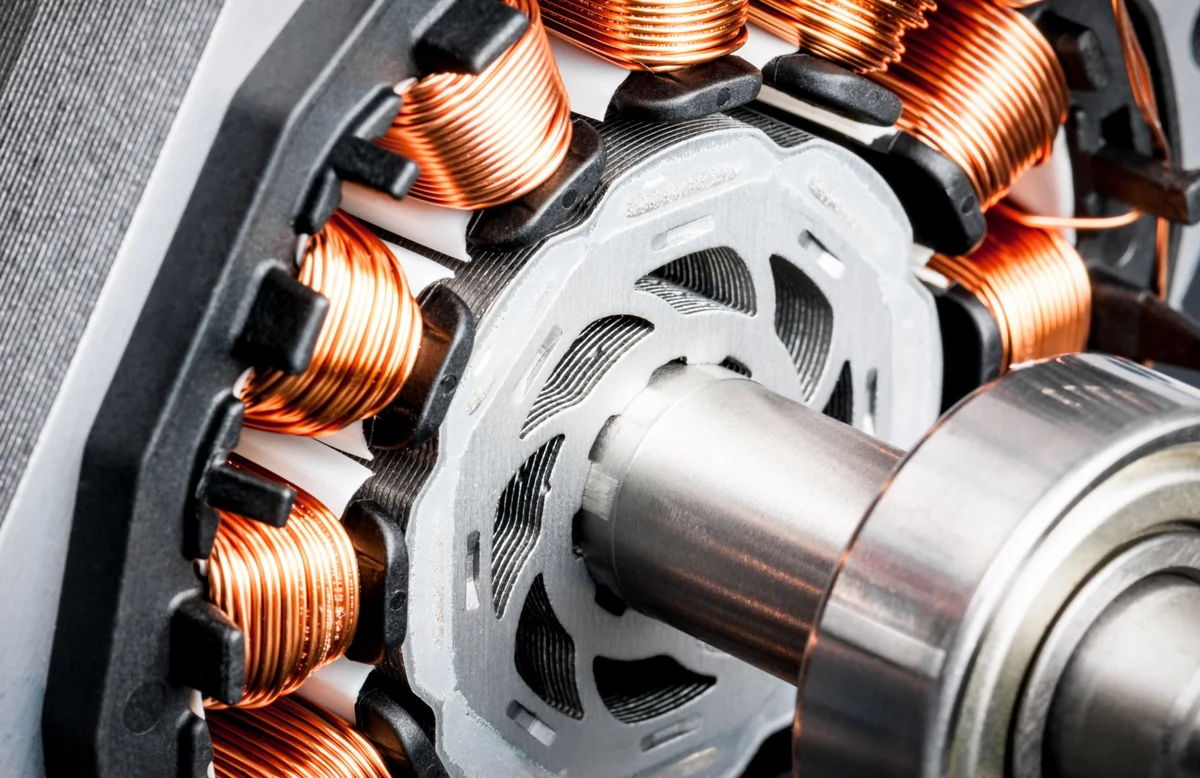

FOC Control of BLDC Motor

2024-06-19 17:27:20

Field Oriented Control (FOC), also known as vector control, has become a leading technology for precise and efficient control of Brushless DC (BLDC) motors. This advanced motor control strategy can improve performance, reduce energy consumption, and enhance responsiveness for a variety of applications. In this article, we will delve into the principles, implementation, and advantages of FOC in BLDC motors.

Introduction to Field-Oriented Control (FOC)

Traditional BLDC motor control methods (such as trapezoidal control) can provide basic speed and torque control, but lack precision. The emergence of FOC provides a better solution to these issues.

Basic Principles of FOC

Field-Oriented Control (FOC) decouples the stator current into synchronous reference frame. By independently controlling the torque and flux components, FOC achieves precise motor control.

Principles of Field-Oriented Control

  1. Stator Current Decoupling:

    FOC decouples the stator currents into two components: torque-producing current (Iq) and magnetizing current (Id). This decoupling allows independent control of motor torque and flux.

  2. Transformation to a Synchronous Reference Frame:

    The stator currents are transformed from the stationary reference frame to a synchronous reference frame using Park and Clarke transformations. This transformation simplifies the control algorithms.

  3. Control of Motor Torque and Flux:

    In the synchronous reference frame, the torque-producing current (Iq) controls the motor's electromagnetic torque, while the magnetizing current (Id) regulates the flux level. Precise control of these components enables accurate motor performance.

Implementation of Field-Oriented Control

  1. Current Sensors and Measurements

    FOC requires accurate measurements of the stator currents. Current sensors, such as Hall effect sensors or shunt resistors, provide feedback for the control system.

  2. Control Algorithms and Strategies

    FOC employs advanced control algorithms, such as proportional-integral (PI) controllers or more sophisticated techniques like model predictive control (MPC). These algorithms calculate the required voltage vectors to achieve the desired torque and flux.

  3. Real-Time Processing and Hardware Requirements

    FOC necessitates real-time processing capabilities to execute control algorithms. Microcontrollers or digital signal processors (DSPs) are commonly used for FOC implementation. Additionally, high-frequency PWM signals are generated to drive the motor.

Advantages and Benefits of Field-Oriented Control

  • Improved Motor Performance: FOC provides precise control over motor torque and speed, resulting in smoother operation, reduced torque ripple, and enhanced dynamic response. This enables improved motor performance across a wide range of operating conditions.

  • Enhanced Energy Efficiency: By optimizing the motor's torque and flux, FOC minimizes energy losses and improves overall energy efficiency. The ability to precisely control the motor's operating point allows for optimal energy consumption.

  • Precise Torque and Speed Control: FOC enables accurate control of motor torque and speed, making it suitable for applications that require precise motion control, such as robotics, CNC machines, and electric vehicles.

  • Reduced Acoustic Noise and Vibration: FOC's precise control minimizes motor vibrations and acoustic noise, resulting in quieter operation. This makes it particularly advantageous in applications where noise reduction is essential, such as home appliances and HVAC systems.

Applications of Field-Oriented Control in BLDC Motors

  • Electric Vehicles and Hybrid Electric Vehicles: FOC plays a vital role in electric vehicle propulsion systems, enabling efficient and precise control of motor torque and speed, resulting in improved vehicle performance and extended range.

  • Industrial Automation and Robotics: FOC is widely employed in robotics and industrial automation, providing accurate control for robotic arms, conveyor systems, CNC machines, and other motion control applications. The precise torque and speed control offered by FOC enhance productivity and system performance.

  • HVAC Systems and Appliances: FOC finds application in HVAC systems, where it enables precise control of fan and compressor motors, improving energy efficiency and reducing noise levels. It is also used inappliances such as refrigerators and washing machines for optimal motor control and energy savings.

  • Renewable Energy Systems: FOC is utilized in renewable energy systems like wind turbines and solar trackers to maximize energy extraction and improve system efficiency. The precise control of 750w BLDC motors in these applications enhances power generation and tracking capabilities.


Field-Oriented Control (FOC) has revolutionized the control of Brushless DC (BLDC) motors, enabling precise and efficient operation in various applications. By decoupling stator currents and transforming them into a synchronous reference frame, FOC achieves superior motor performance, reduced energy consumption, and enhanced responsiveness. The implementation of FOC requires careful consideration of current sensors, control algorithms, and real-time processing capabilities.
