DC Motors with Electromagnetic Compatibility

2024-09-12 09:31:02

DC motors are essential components in various industries, from automotive and robotics to medical devices and consumer electronics. As these motors find themselves integrated into increasingly complex systems, their performance must not only be measured by efficiency, torque, and speed but also by their electromagnetic compatibility (EMC). Ensuring that DC motors meet EMC standards is crucial for maintaining the reliability and functionality of the entire system. This article will explore the concept of electromagnetic compatibility in DC motors, its importance, the challenges it presents, and the methods to mitigate electromagnetic interference (EMI).

What is Electromagnetic Compatibility (EMC)?

Electromagnetic compatibility (EMC) refers to the ability of electrical equipment, such as DC motors, to operate effectively within its electromagnetic environment without causing or experiencing unacceptable levels of electromagnetic interference (EMI). EMC encompasses two primary aspects:

  • Emissions: The unwanted electromagnetic energy emitted by the motor, which could interfere with the operation of nearby electronic devices.
  • Immunity: The motor's ability to function correctly despite being subjected to external electromagnetic disturbances.

In simpler terms, a motor with proper EMC ensures that it neither generates disruptive electromagnetic noise nor suffers from external electromagnetic disturbances. This is crucial in applications where precise control and communication are necessary, such as medical equipment, automotive systems, and industrial machinery.

Importance of EMC in DC Motors

Ensuring EMC compliance in DC motors is becoming increasingly important as industries demand higher levels of reliability, performance, and safety. Here are a few reasons why EMC is crucial for DC motors:

  1. Avoiding System Malfunctions: EMI can lead to malfunctions in critical systems by disrupting the control circuits of a DC motor. This is especially dangerous in applications such as medical devices and aerospace systems, where safety is paramount.
  2. Regulatory Compliance: Many industries are governed by strict regulatory requirements that mandate EMC testing and certification. For instance, automotive manufacturers must ensure that their DC motors meet the EMC requirements laid out by international standards such as ISO 11452 and CISPR 25. Failure to comply with these standards can lead to legal penalties, product recalls, and damage to the manufacturer's reputation.
  3. Preventing Interference with Sensitive Devices: DC motors are often used in environments with sensitive electronic equipment, such as hospitals and laboratories. Electromagnetic interference from a motor can disrupt the operation of nearby devices, leading to inaccurate readings, data loss, or equipment failure. Ensuring that the motor has good EMC characteristics helps prevent such issues.
  4. Improving System Efficiency: Motors with poor EMC characteristics can generate excessive noise, which can degrade the performance of other components within the system. By minimizing emissions and improving immunity, manufacturers can ensure that the entire system operates more efficiently and reliably.

Sources of Electromagnetic Interference in DC Motors

Electromagnetic interference in DC motors typically originates from two primary sources: internal and external.

Internal EMI Sources:

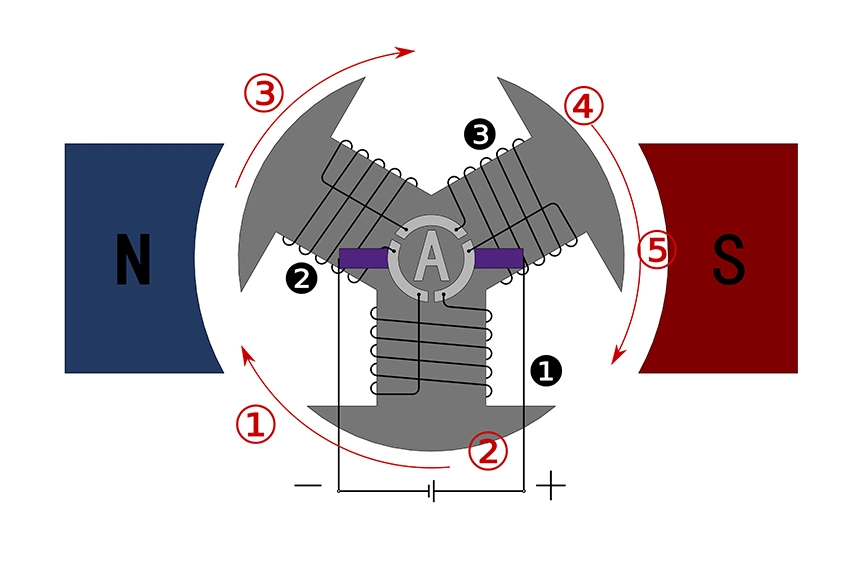

  • Commutator and Brushes: In brushed DC motors, the commutator and brushes generate sparks as they make and break contact during rotation. These sparks generate high-frequency noise, which can interfere with nearby electronic circuits.
  • Switching Noise: Modern DC motors often use pulse-width modulation (PWM) controllers to adjust the motor's speed. However, the high-frequency switching of these controllers can generate significant electromagnetic noise.
  • Cabling and Wiring: The electrical cables connected to the motor can act as antennas, radiating electromagnetic energy that can interfere with nearby systems.

External EMI Sources

  • Power Supply Disturbances: Fluctuations or disturbances in the power supply can cause electromagnetic interference that affects the motor's operation. For example, voltage spikes or surges can induce noise in the motor's control circuits.
  • Nearby Equipment: Other devices in the vicinity of the motor, such as radios, computers, or industrial equipment, can emit electromagnetic energy that disrupts the motor's performance.

Methods for Achieving EMC in DC Motors

Ensuring that DC motors are electromagnetically compatible requires a combination of design techniques, shielding methods, and filtering components. Some of the most effective methods for improving EMC in DC motors include:

  1. Shielding: Shielding involves enclosing the motor and its components in a conductive material to prevent electromagnetic energy from radiating outwards or from external sources from penetrating the motor. Properly designed shielding can significantly reduce EMI emissions.
  2. Filtering: EMI filters are often used in conjunction with DC motors to suppress unwanted high-frequency noise. These filters can be placed on the power lines or control signals to block electromagnetic noise from entering or leaving the motor. Common filtering techniques include the use of capacitors, inductors, and ferrite beads.
  3. Twisted Pair and Shielded Cables: The cables used to connect the motor to the control system should be carefully selected to minimize EMI. Twisted pair cables can help cancel out electromagnetic noise, while shielded cables can prevent radiated noise from affecting the motor or other nearby equipment.
  4. Motor Design Improvements: Engineers can design DC motors with improved EMC characteristics by addressing the sources of EMI at the design stage. For example, reducing the sparking between the commutator and brushes in brushed motors, or optimizing the switching characteristics of the PWM controller, can help minimize EMI emissions.
  5. Grounding: Proper grounding is essential for achieving EMC in DC motors. A well-designed grounding system ensures that unwanted electromagnetic energy is safely dissipated, rather than radiating into the environment. Grounding should be applied to both the motor housing and the control system to create a stable reference point for the electrical signals.
  6. Using Low-EMI Components: Manufacturers can choose components specifically designed to minimize electromagnetic emissions. For example, using low-EMI capacitors and resistors in the motor's control circuit can reduce the amount of electromagnetic noise generated during operation.

Applications Requiring EMC-Compliant DC Motors

DC motors with good electromagnetic compatibility are essential in several applications where reliable performance is critical, and electromagnetic interference could pose significant challenges. Some examples of such applications include:

  1. Automotive Industry: In modern vehicles, DC motors are used for a wide range of applications, such as power windows, seat adjustments, and windshield wipers. Given the dense concentration of electronic components in vehicles, ensuring that motors do not interfere with critical systems such as engine control units (ECUs) or infotainment systems is crucial.
  2. Medical Devices: In hospitals and healthcare environments, DC motors are used in devices such as ventilators, infusion pumps, and robotic surgical systems. Since these devices are often in close proximity to other sensitive equipment, EMC compliance is essential to prevent interference that could affect patient care.
  3. Industrial Automation: In factories and manufacturing plants, DC motors drive conveyors, robotic arms, and other equipment. Ensuring that these motors are EMC-compliant helps prevent interference with control systems, sensors, and communication networks, improving overall system reliability.
  4. Consumer Electronics: DC motors are used in household appliances such as vacuum cleaners, electric fans, and power tools. Ensuring that these motors are electromagnetically compatible helps prevent them from interfering with other electronic devices, such as televisions or radios, enhancing the user experience.

Conclusion

DC motors with electromagnetic compatibility are critical to ensuring the reliability, efficiency, and safety of modern electronic systems. By minimizing emissions and improving immunity to external electromagnetic interference, EMC-compliant DC motors can operate smoothly in complex environments without disrupting nearby equipment or suffering performance degradation. Achieving EMC in DC motors requires careful attention to design, shielding, filtering, and grounding techniques. These measures not only improve the performance of the motor itself but also contribute to the overall stability of the systems in which they are used.
