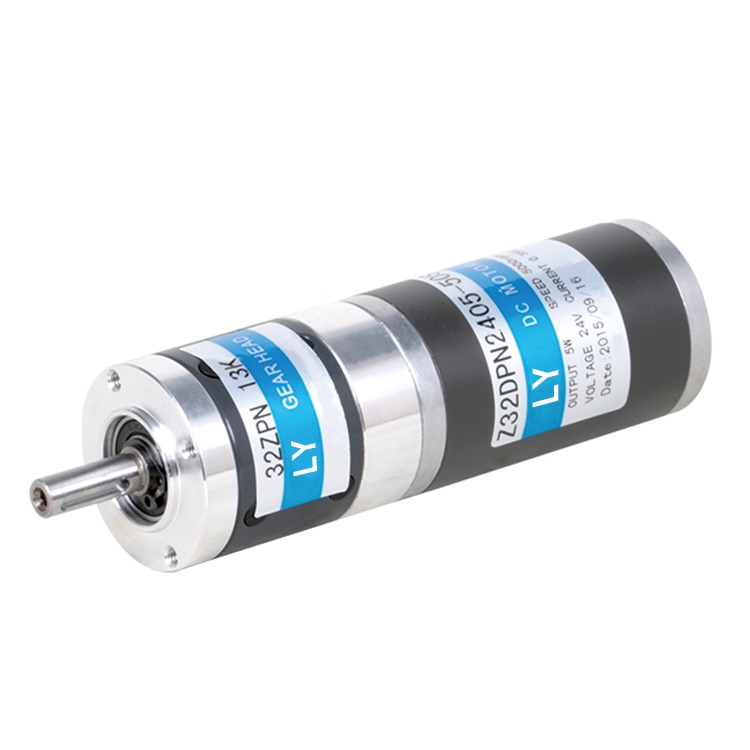

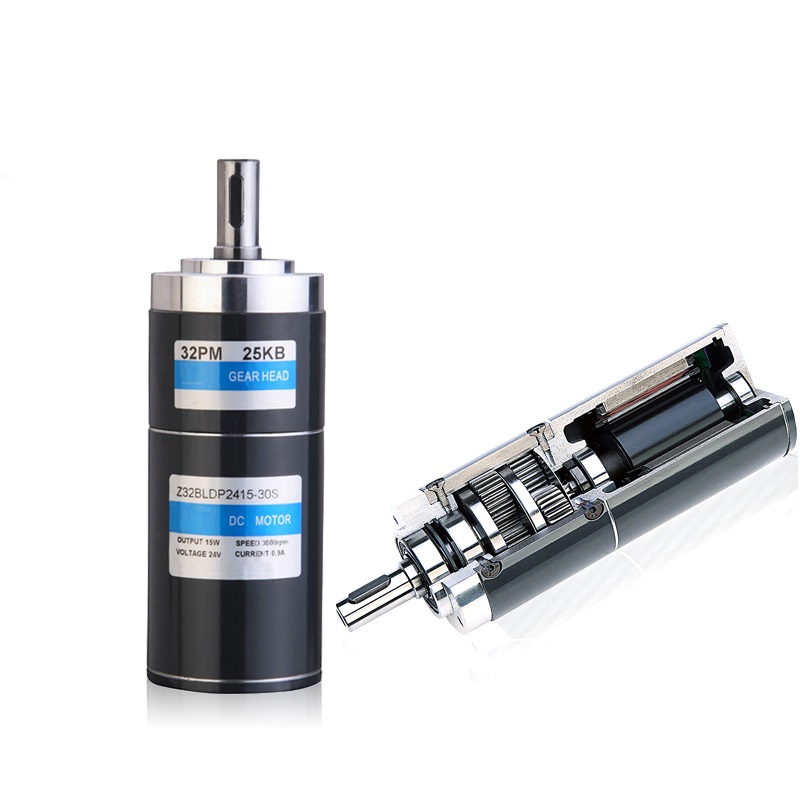

32mm 10w/15w Diameter Planetary Brush Geared Motor
32mm 10w/15w Diameter Planetary Brush Geared Motor
32mm 10w/15w Diameter Planetary Brush Geared Motor
32mm 10w/15w Diameter Planetary Brush Geared Motor
right
left
  • 32mm 10w/15w Diameter Planetary Brush Geared Motor

  • Motor Type:Brush Planetary Gear Motor
    Output Power (W):10/15
    Voltage (V):24
    Speed with Load (rpm):4000/5000
    Torque with Load (N.m):0.024/0.029
    Diameter (mm):32
    Ratio:3.7-308
    Allowable Torque:0.08-4
  • 1 piece

    $75.00 - $89.00
  • Online consultation

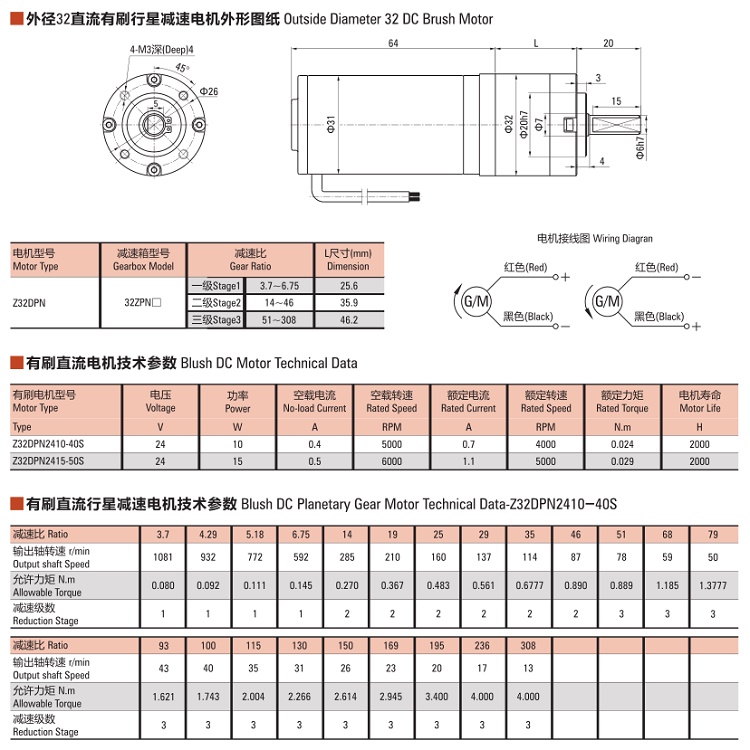

Parameters

Motr Type Voltage/V Power/W Nolod Current /A No-load Speed /RPM Rated Current /A Rated Speed /RPM Rated Torque /N.m Motor Life /H
Z32DPN2410-40S 24 10 0.4 5000 0.7 4000 0.024 2000
Z32DPN2415-50S 24 15 0.5 6000 1.1 5000 0.029 2000
Ratio 3.7 5.18 6.75 13.73 19.2 25 28.93 34.97 45.56
Output shaft speed r/min 1081 932 772 592 285 210 160 137 114
Allowable torque N.m 0.08 0.092 0.111 0.145 0.27 0.367 0.483 0.561 0.6777
Reduction stage 1 1 1 1 2 2 2 2 2
Ratio 50.89 68.08 78.7 92.7 99.5 115.1 129.8 149.9 168.85
Output shaft speed r/min 87 78 59 50 43 40 35 31 26
Allowable torque N.m 0.89 0.889 1.185 1.3777 1.621 1.743 2.004 2.266 2.614
Reduction stage 2 3 3 3 3 3 3 3 3
Ratio 195.28 236.1 307.54
Output shaft speed r/min 23 20 17 13
Allowable torque N.m 2.945 3.4 4 4
Reduction stage 3 3 3 3

Introduction

  • 1. Double support structure:Adopt dual supporting structure for output shaft so max torque of gearbox is increased a lot
  • 2. Spindle connection:Sun wheel and planetary wheel are connected by spline which increase the max torque of greabox and lengthen the life
  • 3. Inner hole:Double supporting structure;Internal grinding on inner bore of planetary gears making the inner bore of planetary gears making the inner bore roundness less than 0.003mm running by rolling instead
  • 4. Helical tooth:We use helical gear at input stage which make the noise low and run smoothly in high speed.The inner gear ring is separated so that we can make more ratio and the design is flexible
32mm 10w/15w Diameter Planetary Brush Geared Motor32mm 10w/15w Diameter Planetary Brush Geared Motor

Features

  • 1. This planetary gear motor is of low noise, small size, light weight
  • 2. Large output, high efficiency.
  • 3. Hard mechanical feature and stable electromagnetic performance.

Application

32mm 10w/15w Diameter Planetary Brush Geared Motor
