220V AC 1500W 24000rpm Air Cooling CNC Spindle Motor


This CNC spindle motor offers 220V AC power up to 800W and a maximum speed of 24000rpm for high-speed operations. With the air cooling feature, you can operate this motor at maximum efficiency with minimal heat buildup.

Power (W)1500

Voltage (V)220

Operating Speed (rpm)24000

Product Display

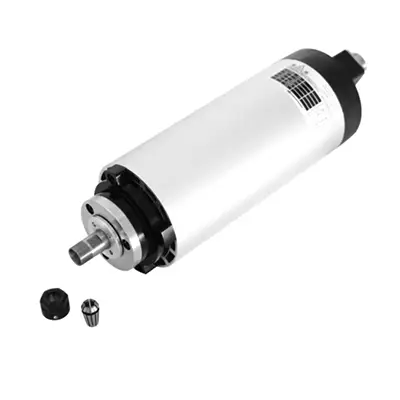

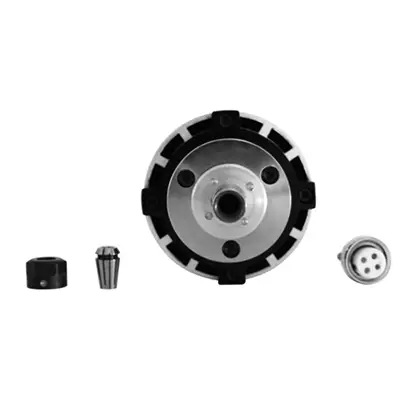

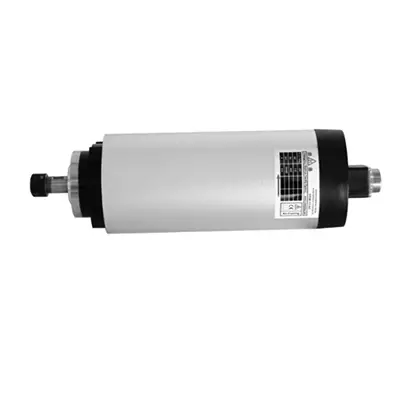

220V AC 1500W 24000 rpm Air Cooling CNC Spindle Motor

Product Feature

High Power Output

Delivers a robust 1500W output, making it suitable for various CNC machining tasks.

High-Speed Performance

Operates at an impressive speed of 24000RPM, ensuring efficient and precise machining.

Air-Cooling System

Features an air-cooling system that maintains optimal operating temperatures and prevents overheating.

Stable Frequency Operation

Provides stable frequency operation, delivering smooth and consistent performance under varying load conditions.

Durable Construction

Constructed with high-quality materials to ensure longevity and reliable performance in industrial environments.

Low Noise Operation

Designed to operate quietly, making it ideal for noise-sensitive environments.

Precision Bearings

Equipped with precision bearings that ensure smooth and accurate machining.

Product Applications


Ideal for high-speed woodworking tasks such as cutting, milling, and engraving with precision.


Suitable for precise metalworking applications, delivering smooth and accurate machining.

Plastic Fabrication

Perfect for machining plastic components with high precision and efficiency.


Used in prototyping and model making, ensuring detailed and precise results.


Excellent for engraving intricate designs on various materials with high accuracy.

Sign Making

Ideal for creating detailed signs and designs on wood, metal, and plastic surfaces.



Model LY80-1.5-ER11
Matched VFD Model GK3000-4T0055G (7.5 hp three phase VFD)
Power 1.5 kW
Phase Three phase
Speed 24000 rpm
Voltage 3-phase 220V±10% AC
Current 6.0A
Frequency 400Hz
Torque 0.58 Nm
Number of Pole 2 poles
Cooling Type Air-cooled
Installation Method Horizontally or Vertically (When the motor is installed, the radial runout standard is required to be within 5um, and the chuck is generally 10um-15um.)
Lubrication Grease
Thermal Class Class F
Protection Class IP50
Certification CE
Warranty Bearings for half a year, other parts for one year
Joint of Nose ER11 (φ3.175 mm - φ7 mm)
Bearings Type 7002C P4*2 & 7002C P4*1
Application Woodworking & Plastic
Weight 3.8 kg
