Model: |
BLDC-D110BLD1500-36A-30S |
Matched Controller Model: |
BLD-BD100 |
Rated Power: |
1500W |
Rated Voltage: |
36V |
Rated Current: |
52.08A |
Phase: |
3 phase |
Rated Torque: |
4.78 Nm |
Max Torque: |
14.33Nm |
Rated Speed: |
3000 rpm |
No-load Current: |
<20A |
Square Flange Size: |
110 mm |
Insulation Grade: |
F |
Working Efficiency: |
85% |
Insulation Grade: |
F |
Protection Grade: |
IP54 |
Motor Lead Length: |
1 meter |
Certificate: |
CE, RoHS, ISO |
Weight: |
5.5 kg |
Note: Power, Voltage, Speed, Shaft, Motor Length, and Motor Lead of BLDC Motors can be customized.
Dimensions(Unit: mm)
- Instantaneous maximum torque line: The maximum torque momentarily impacts the load when the motor is started.Beyond this torque, the over-current protection of the driver will cause the motor to stop.
- Short-time operation area: The motor can run for a short time within this torque range at different speeds.If the operation time is too long, the motor will generate heat, which may cause the motor to stop or burn.
- Rated operating torque line: The rated torque of the motor runs at different speeds, and the motor can run for a long time at this torque.
- Continuous operating area: When the motor rotates at different speeds, it runs continuously in this corresponding zone.
Line Define
Power Wire |
Hall Wire |
Red |
U |
Red |
5V |
Yellow |
V |
Black |
GND |
Black |
W |
Hu |
Blue |
Hv |
Green |
Hw |
White |
Details
Product Display / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / /

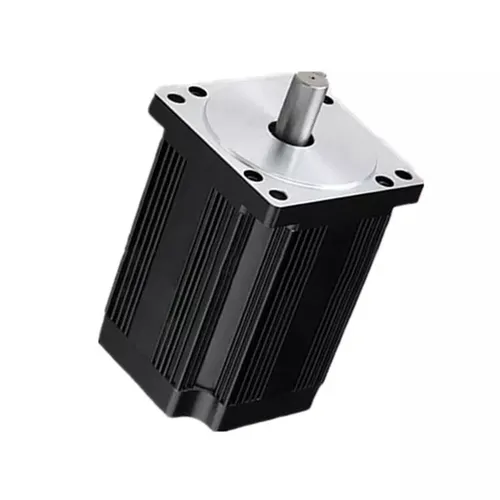

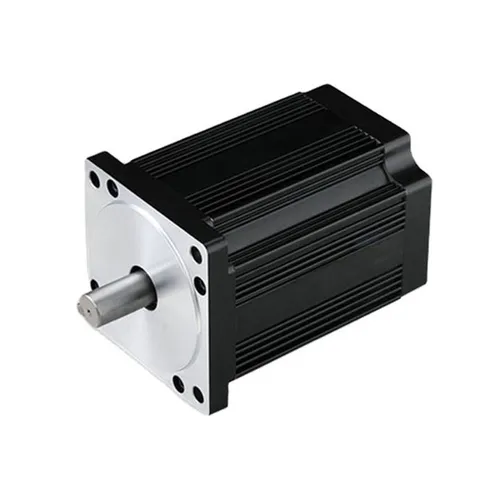

The 36V High Torque DC Brushless Motor is a powerful and cost-effective solution, offering a power output of 1500W. It provides a rated torque of 4.78 Nm and a maximum torque of 14.33 Nm, making it suitable for various applications. The motor utilizes a three-phase brushless rotor with permanent magnets, minimizing secondary losses and enhancing energy efficiency. Additionally, it is equipped with protective functions to ensure the safety of the equipment system.
Feature / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / /
- Stable Speed Control: The brushless motor allows for precise speed control by continuously adjusting the voltage applied to the motor based on a feedback signal. This enables stable operation even under changing loads.
- Thin and High Power Design: With a permanent magnet brushless motor rotor, the motor achieves a thin and compact form factor without compromising on power output.
- Wide Speed Control Range: Compared to AC motors and inverters, the 36V brushless motor offers a broader speed control range. It can operate smoothly and efficiently from low to high speeds, without any torque limitations at low speeds.
- Energy Saving Contribution: By utilizing a permanent magnet rotor, the brushless DC motor significantly reduces rotor losses, resulting in over 20% power consumption reduction compared to three-phase induction motors with variable frequency control. This feature promotes energy efficiency and helps reduce overall device power consumption.
- Equipped with Protection Functions: The 36V brushless motor is integrated with protective functions to safeguard the equipment system, ensuring reliable and safe operation.
Applications / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / /
The 36V High Torque DC Brushless Motor finds extensive applications in various industries and everyday devices, including:
- Electric bicycles
- Inverter air conditioners
- Washing machines
- Drones
- Automobiles
- CNC machine tools
- Polishing and grinding equipment
- Packaging machinery
- Tools
- Turnstiles
- Industrial control systems
- Medical machinery
- Automation equipment
- AGV trolleys
- Aerospace
- Intelligent storage equipment
Note: These are just a few examples of the wide range of applications that benefit from the performance and efficiency of the 36V High Torque DC Brushless Motor.
Tips:For your 1.5 kW brushless DC motor, can we use it at -30°C? Also, how do we control the brake, is it manual or electric?
Yes, the 36V 1500W DC brushless motor can work normally at -30C without adding a heater. Also, for the brake, it can be controlled electrically by 36V power supply. 36V brushless motor electromagnetic brake is a mechanical device to lock the shaft of DC brushless motor and make the motor shaft lock with the brake by power-off brake.
